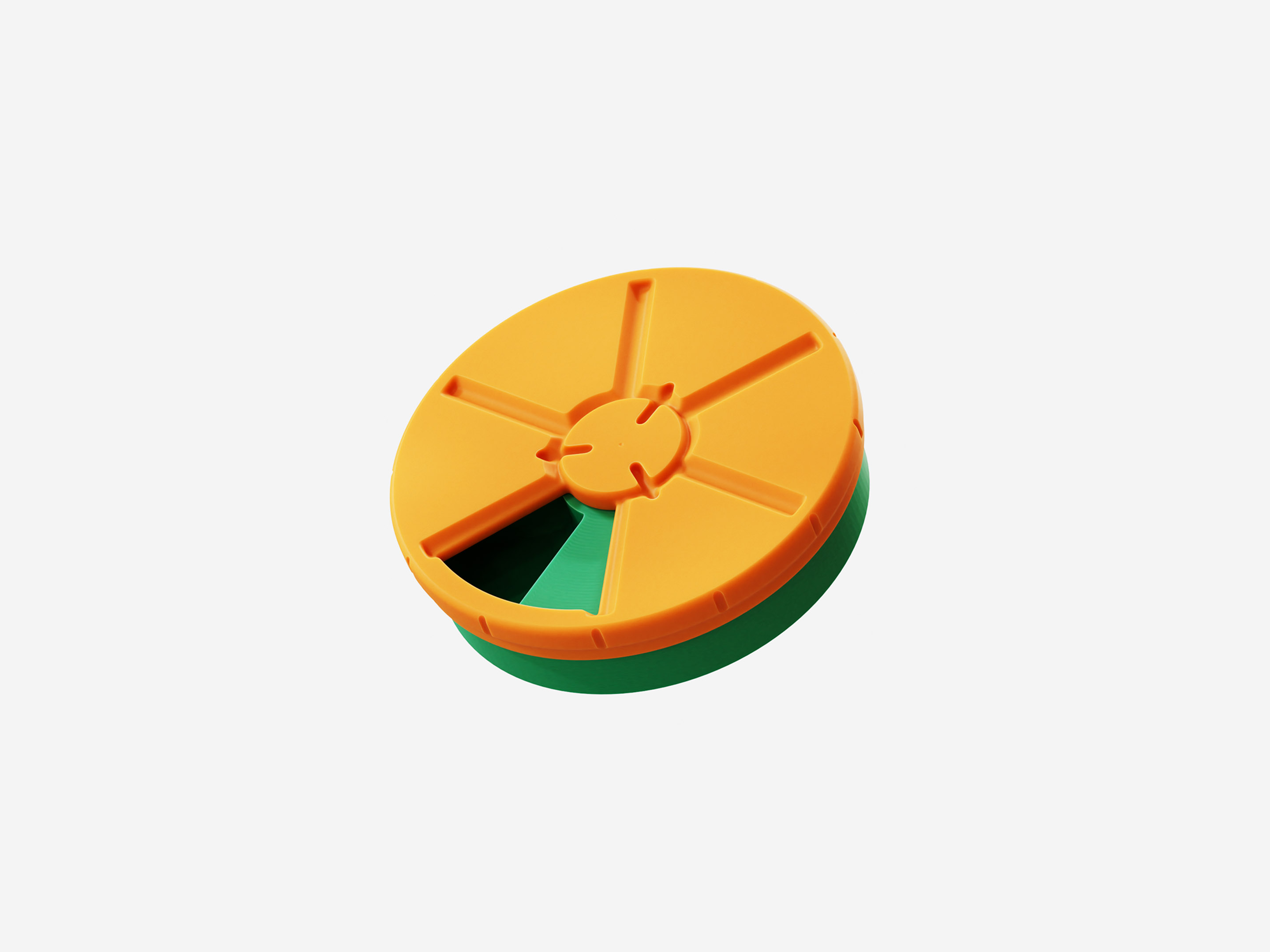

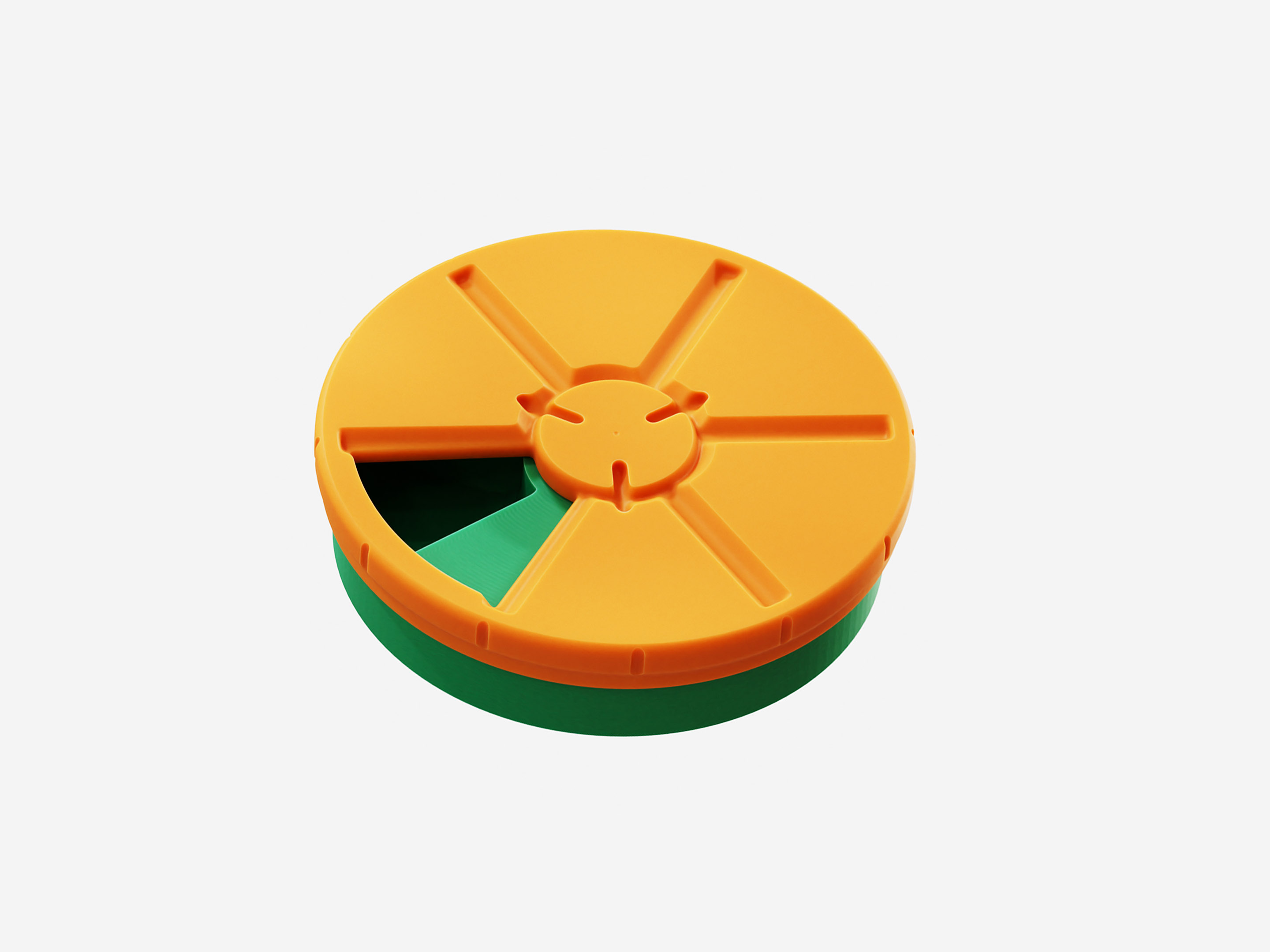

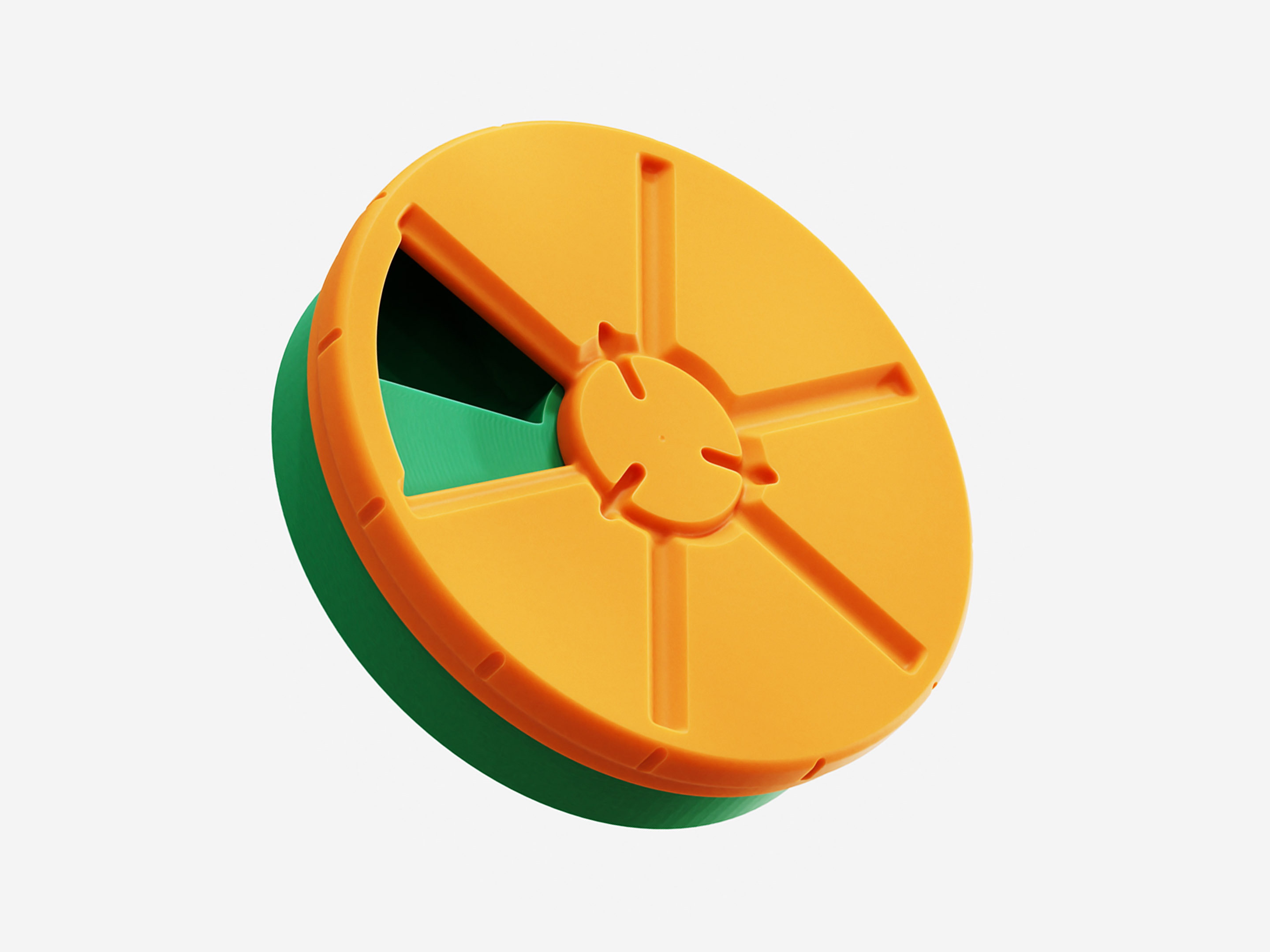

Sliding Compartment Box

This box was designed for storing small fishing tackle such as snaps or lead shots.

It features five compartments, which can be easily accessed using a cylindrical sliding lid.

The box prints clean without supports and requires no extra tools. It can be assembled straight off the printer.

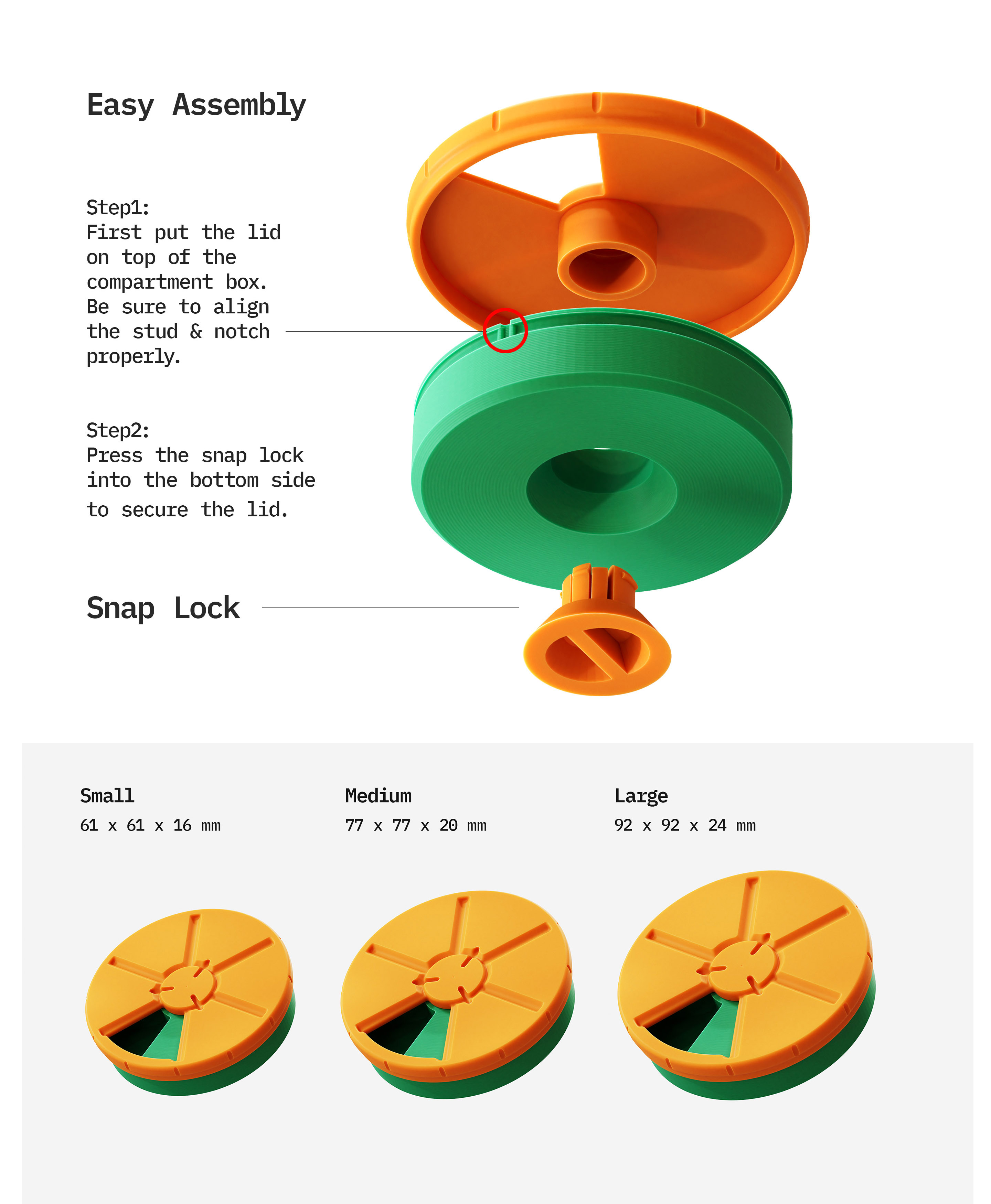

Assembly

Step 1:
Place the lid on top of the compartment box. Make sure the stud on the inside of the lid is properly aligned with the notch on the box before assembly.

Step 2:
Press the snap lock into the bottom side to secure the lid.
Done.

Sizes

The box is available in three pre-made sizes, but you can also scale it up or down to your preference.
Avoid downscaling to much so the snap-lock mechanism continues to work properly.

Small
61 × 61 × 16 mm

Medium
77 × 77 × 20 mm

Large
92 × 92 × 24 mm
