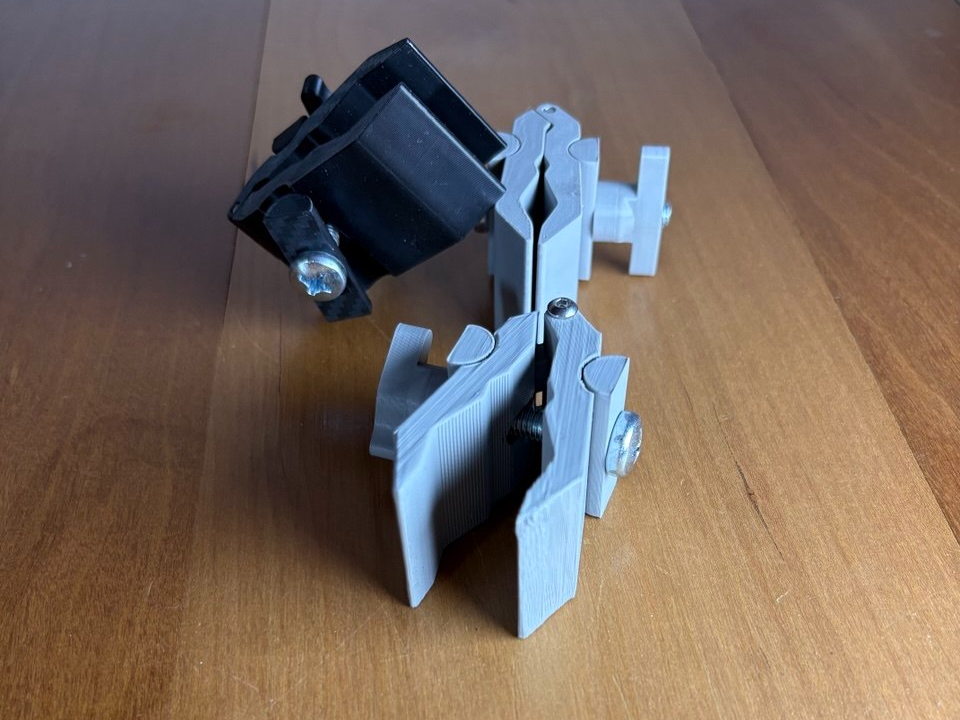

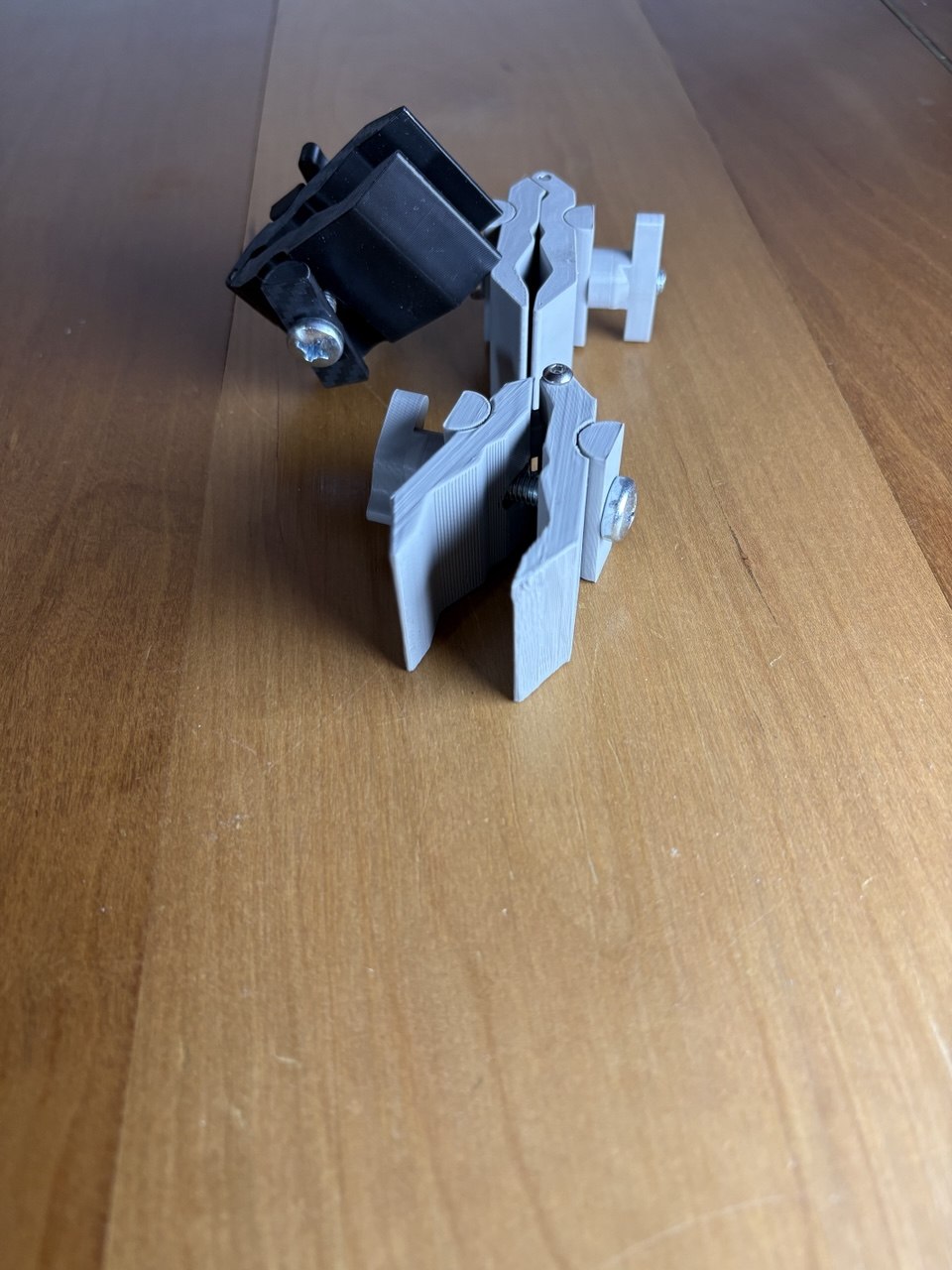

Python Clamp

Overview A strong and versatile functional clamp designed for everyday workshop use. This model is optimized for 3D printing and uses standard hardware to ensure maximum durability and grip.

Hardware Required

1x M6 x 40mm Bolt (Main clamping screw)
1x M6 Nut
1x M3 x 30mm Bolt (Used as the pivot/hinge pin)

Specifications

Total Length: ~55mm
Maximum Opening: 40mm

Print Settings

Material: PETG recommended for durability, but PLA works great too!
Wall Loops: Minimum 3.
Infill: 8% - 10% (Gyroid pattern recommended).
Supports: Yes, standard supports are sufficient for the hinge and overhangs.

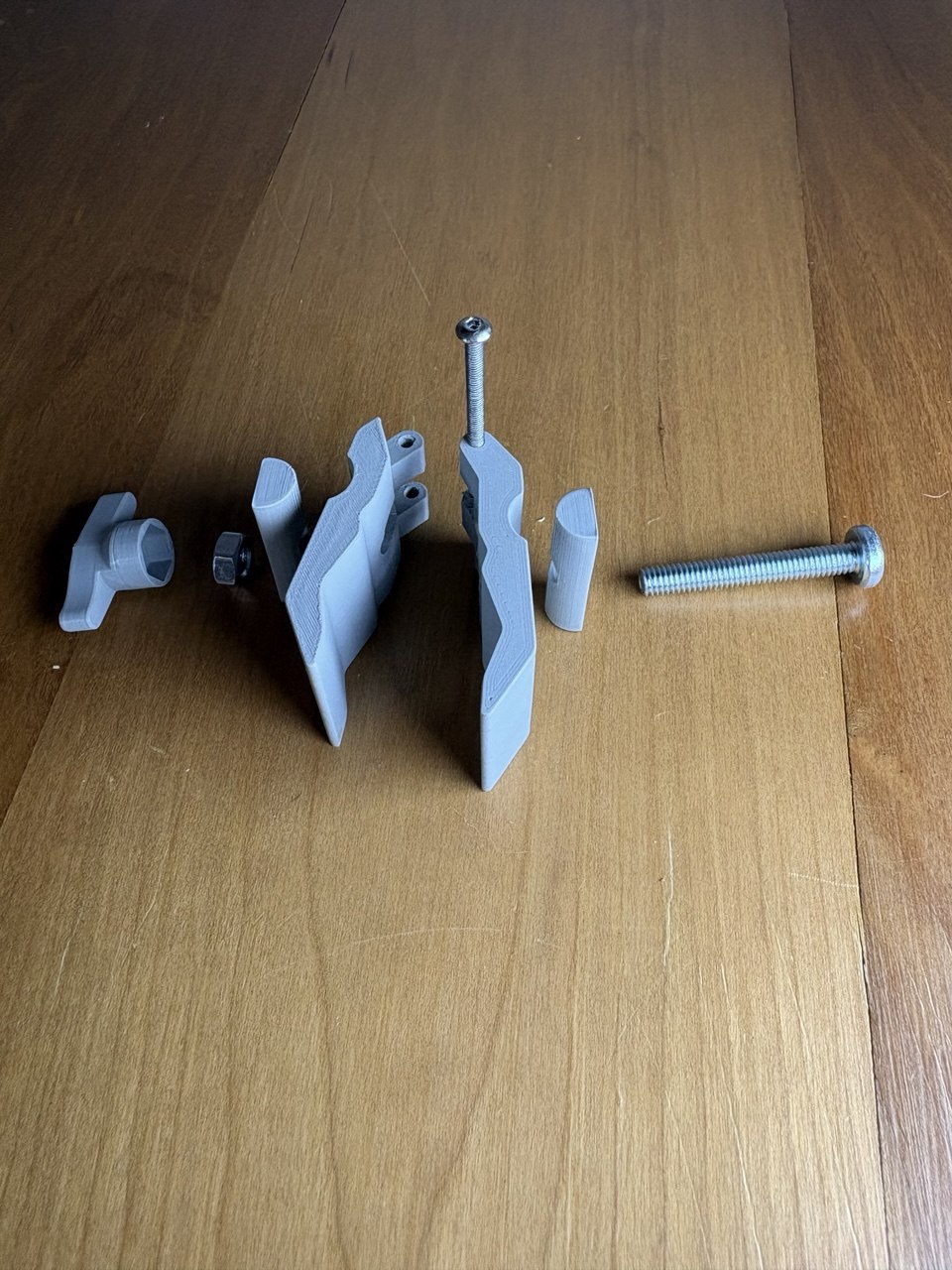

Assembly

Assemble the two main jaws using the M3x30 bolt as the pivot axis.
Insert the M6 nut into its designated seat.
Thread the M6x40 bolt through the printed knob and the spherical joint to complete the clamping mechanism.
