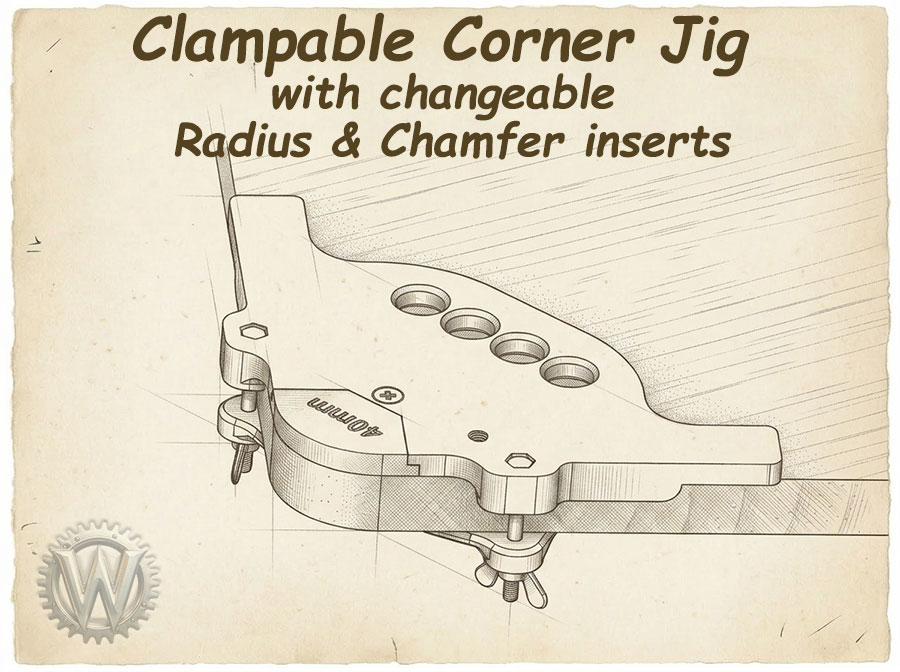

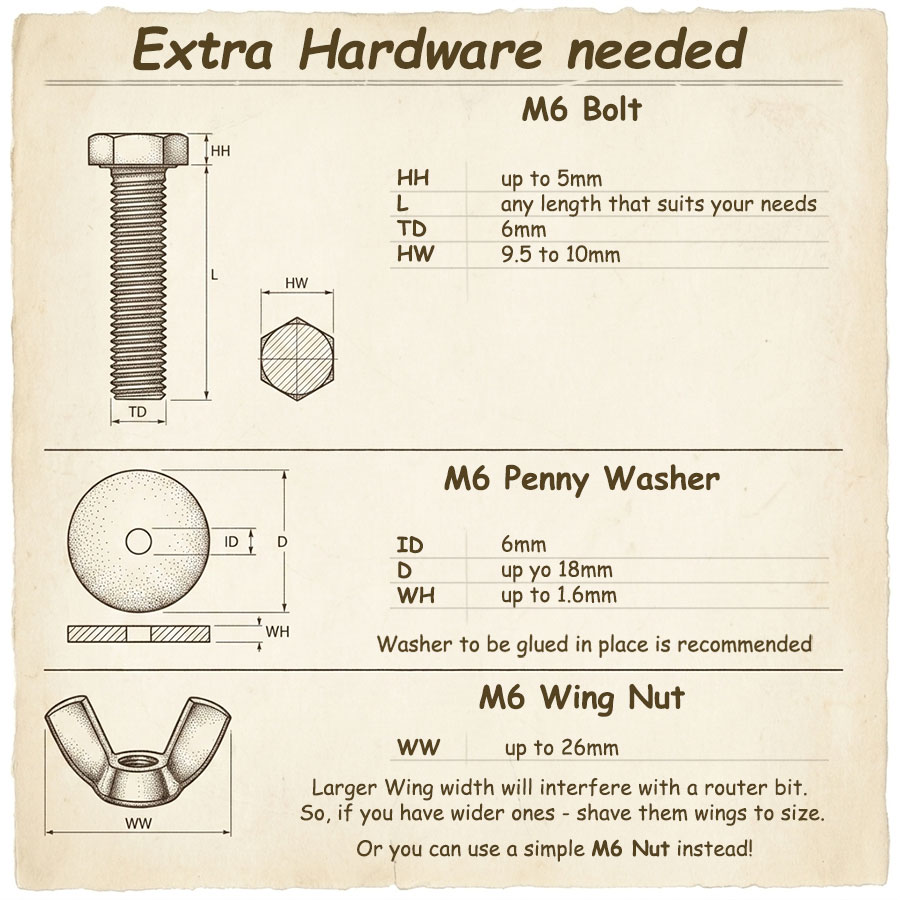

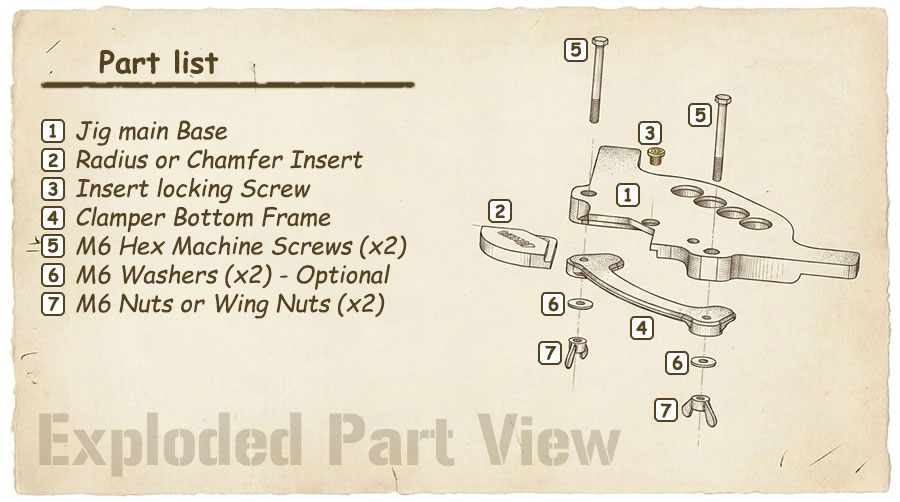

This is second version (or upgraded) of my Corner Radius/Chamfer Jig with Changeable inserts. Most difference here is a possibility to clamp Jig to the workpiece. In other words this version is better suitable to work with handheld routers. Clamp here are not needed. All you need is to print Bottom Clamp frame and use 2x M6 Hex Bolts and 2x M6 Wing Nuts or simple 2x M6 Nuts and a Spanner if you don't have winged ones in your possesion. As You can see in schema above, there is a space done for M6x18mm Washer. I would recommend to use ones just to make Clamp Frame more durable. But if you don't have one, no problem, you can use it without them Washers.

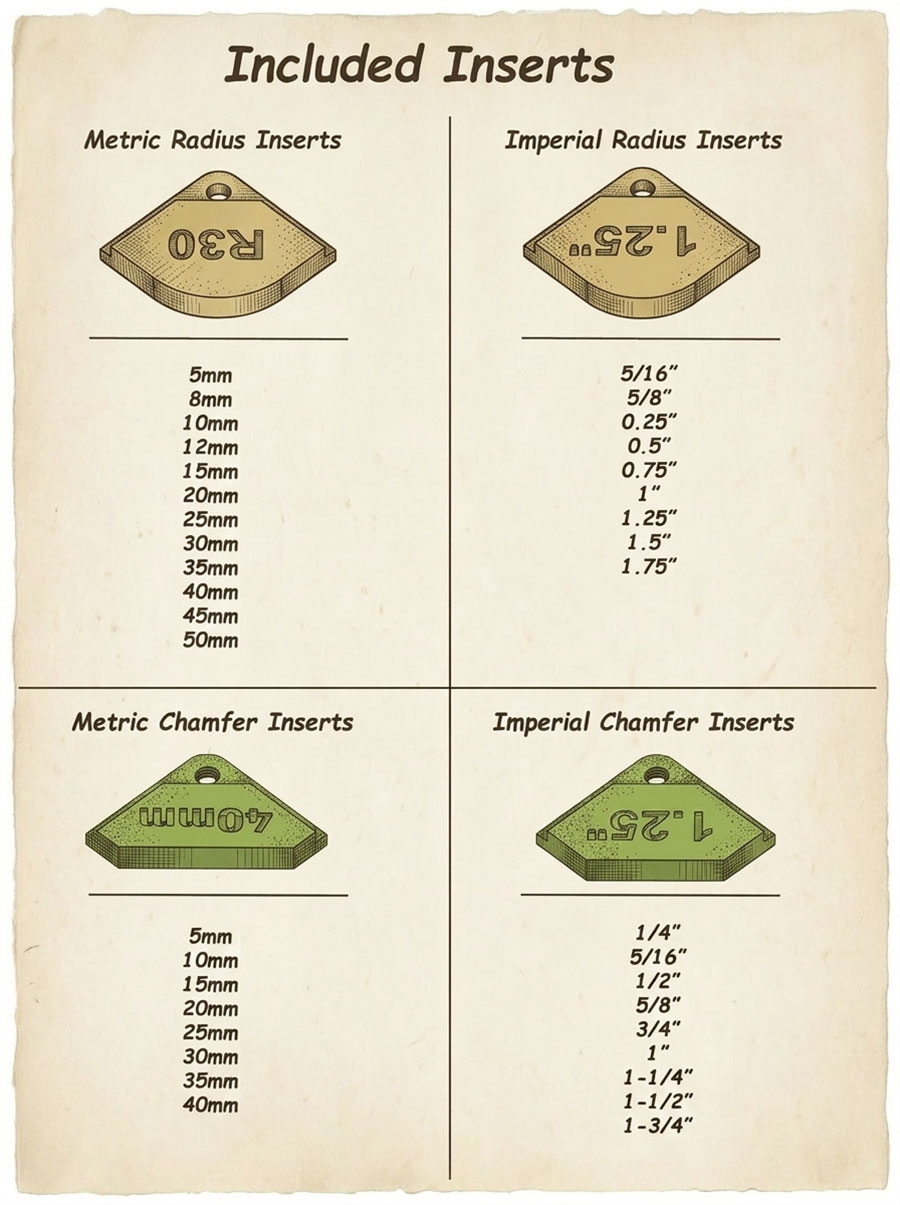

I have compiled all set in one profile. All inserts are here as well. So, if You like the New Jig, but have printed old one - You can use inserts from old set. No changes done here at all. I'm experimenting with other style of fittin inserts to the Jig base, but at least till now, I haven't find any other way I would like more than I have done already. So sticking to Screwable Inserts. At least for now.

If You have any questions, requests or suggestions, please don't hesitate to ask.
