Hollowed-out G17 Disassembly & Assembly Model G17 Full-Scale Articulated Model Toy |

Design Features

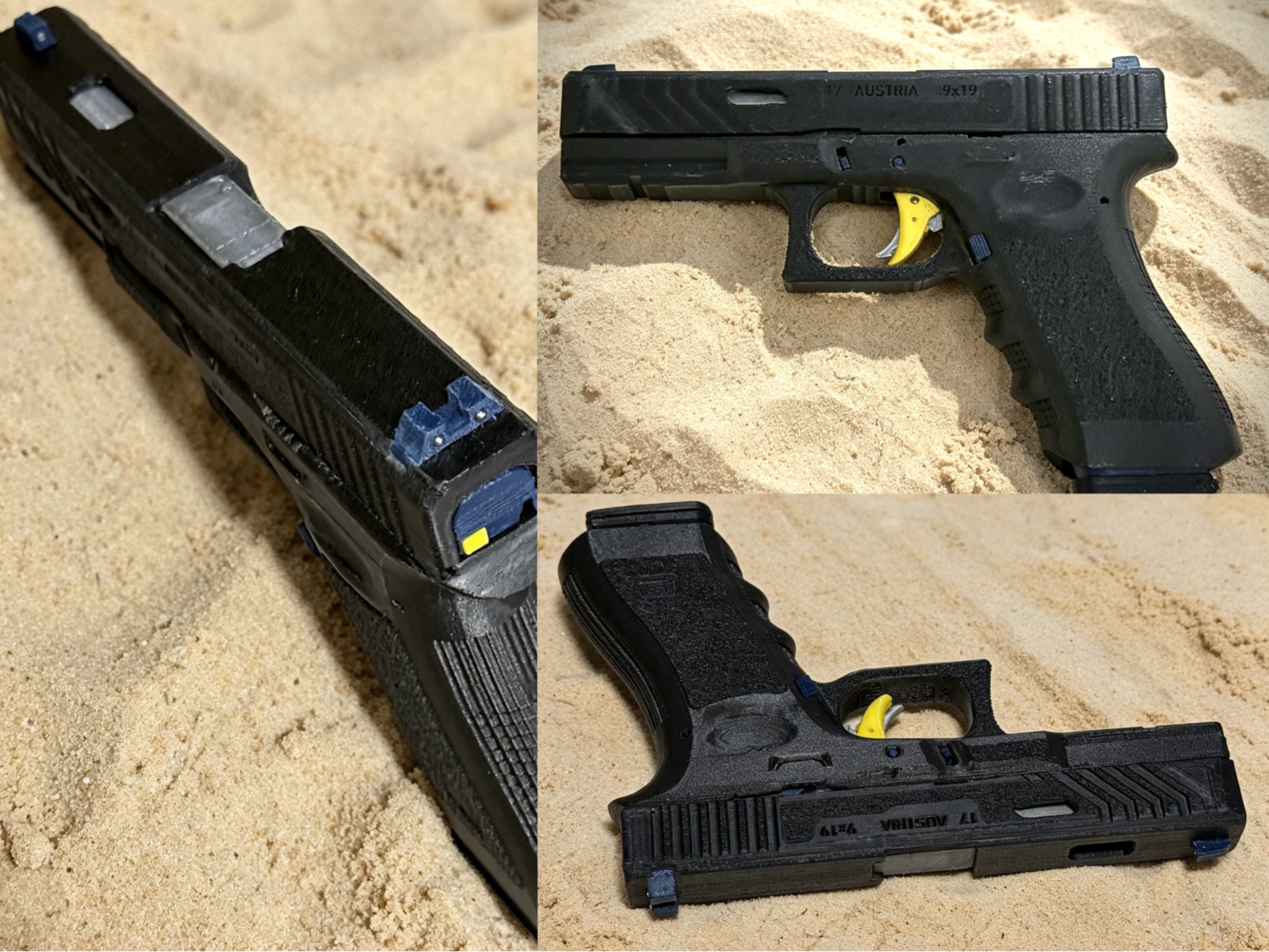

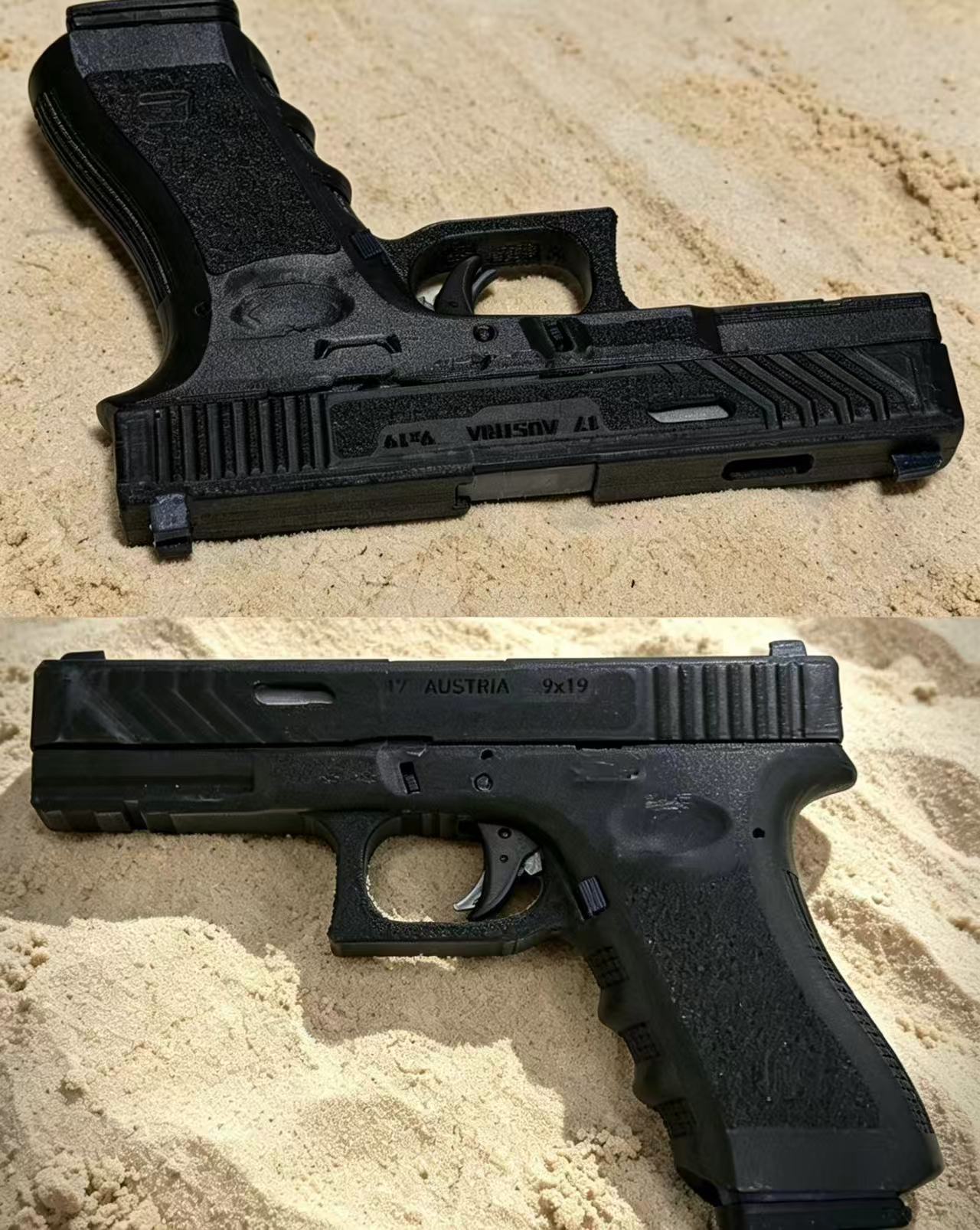

This is a 1:1 full-internal-structure replica toy of the G17. It has no functional firing capability. Please abide by local laws and regulations. Bright colors such as red or yellow are recommended for 3D printing.

With 100% infill, the model is sturdy, durable and solid in hand, weighing approximately 300 grams. This variant adopts enhanced PETG-CF material (optimized PETG) with reinforced structural design. The slide is recommended to be printed with PETG-CF or standard PETG; the grip and frame can be printed with PLA.

Engravings on the slide and barrel can be edited in the configuration file.

Front and rear sights are pre-drilled with 2mm holes for decoration using 2mm metal pins, fiber optic rods or 1.75mm 3D printing filament. Interchangeable sights are also provided, including a 1.8mm hole version and a tactical version.

Part layout is optimized to balance support removal difficulty and printing strength.

Tolerances of all mating surfaces are fine-tuned. Nonetheless, it is advised to polish and lubricate all assembly surfaces before installation, and ream all assembly holes with matching drill bits in advance.

This build requires decent hands-on skills and patience. Prior experience assembling large-scale models is preferred.

An A1 mini version is also available.

Assembly Guides

Assembly tutorials are available on Bilibili and YouTube. Search keyword: G17 3D print

Required Springs

1. Compression spring: 0.3×2×10mm or 0.25×2.5×7mm
2. Compression spring: 0.5×3×5mm or 0.3×3×4mm
3. Compression spring: 0.6×8×80mm or 0.7×8.5×85mm
4. Compression spring: 0.3×2×20mm
5. Compression spring: 0.4×4×20mm
6. Compression spring: 0.5×6×40mm or 0.5×6.5×40mm
7. Tension spring: 0.5×5×25mm

8. Magazine spring: Square spring 0.8×8×21×150mm. The 3D-printable spring included in the files can be used as an alternative.




   镂空版GLOCK G17 拆装模型 17 全比例 可动模型玩具

设计特点：

1. G17结构模型玩具，此款为 1:1 全内构 G17模型，没有实际功能，请遵守当地的法律，并建议用鲜艳颜色如红色、黄色打印
2. 100%填充，结实耐用，手感压手，大概300g左右，此版本为PETG-CF，PETG优化，结构进行加强。套筒建议PETG-CF，PETG打印；握把和框架Frame可以用PLA打印
3. 配置文件中可以修改套筒和枪管的刻字
4. 前后准星增加了2mm的孔，可以用2mm金属销钉/光纤、或者1.75mm的3D打印材料线进行装饰，同时给出了一盘可替换的准星，包括1.8mm孔版本、战术版本
5. 对零件摆放进行了优化，兼顾拆支撑难度和打印强度
6. 所有需装配的面的公差进行了优化，但建议装配前还是对所有装配面进行打磨、润滑，所有装配的孔建议在装配前用相应钻头进行扩孔
7. 需要有较强的动手能力和耐心，最好有大型模型的拼装经验
8. 同时发布A1mini 版本

关于组装，B站和Youtube上可以搜索到视频，关键词 “G17 3D打印”

所需弹簧：

1   0.3×2×10mm 或/or 0.25*2.5*7mm
2    0.5×3×5mm  或/or 0.3*3*4mm
3    0.6×8×80mm 或/or 0.7*8.5*85mm
4    0.3*2*20mm
5     0.4*4*20mm
6     0.5*6*40mm 或/or 0.5*6.5*40mm
7     拉簧  0.5*5*25

8     弹匣弹簧用：0.8*8*21*150mm 方型弹簧，也可用配置里打印的弹簧
