Fully 3D Printed Adjustable Massage Head Rest

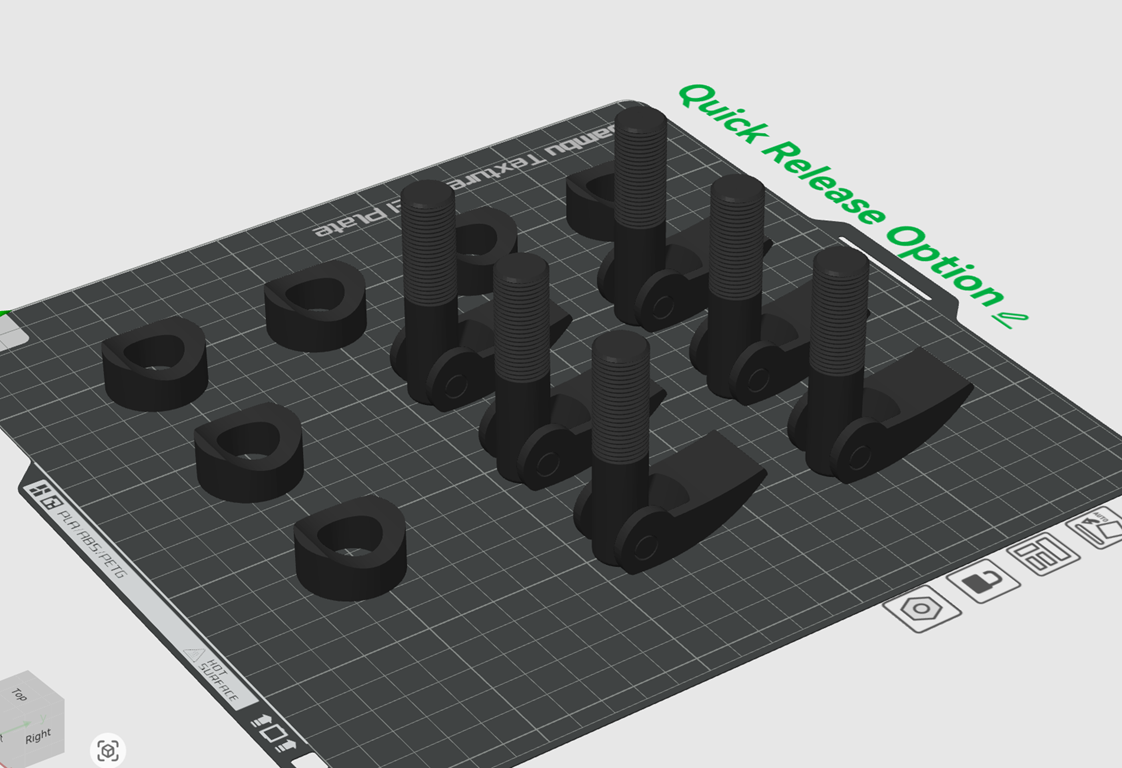

*** Quick Release Bolts & Washers Now Added***

Transform any bed, into a more comfortable relaxation station with this fully adjustable massage head rest.

Designed from the ground up for 3D printing, this model features a sturdy scissor-linkage mechanism that allows the headrest height and angle to be adjusted to suit different users and positions. The large circular support platform accommodates a removable cushion, providing comfortable support for face-down massages.

Features

• ✅ 100% 3D printed design
• ✅ No hardware required
• ✅ Fully 3D printed thumb screws and pivots
• ✅ Adjustable height and angle
• ✅ Scissor-lift mechanism for smooth positioning
• ✅ Large support platform for custom cushions
• ✅ Easy assembly
• ✅ Designed for strength and stability

Hardware Required

None.
Every structural component, including the fastening system, is fully 3D printable.

Printing Recommendations

• 4–5 wall loops recommended
• 20–40% infill depending on intended use
• PETG, PLA+, ABS, or ASA recommended
• Print screws and pivot components with higher wall counts for maximum durability

Assembly

See instructions

Assembly is straightforward using the included printed thumb screws and pivot points. No tools, nuts, bolts, or inserts are required.

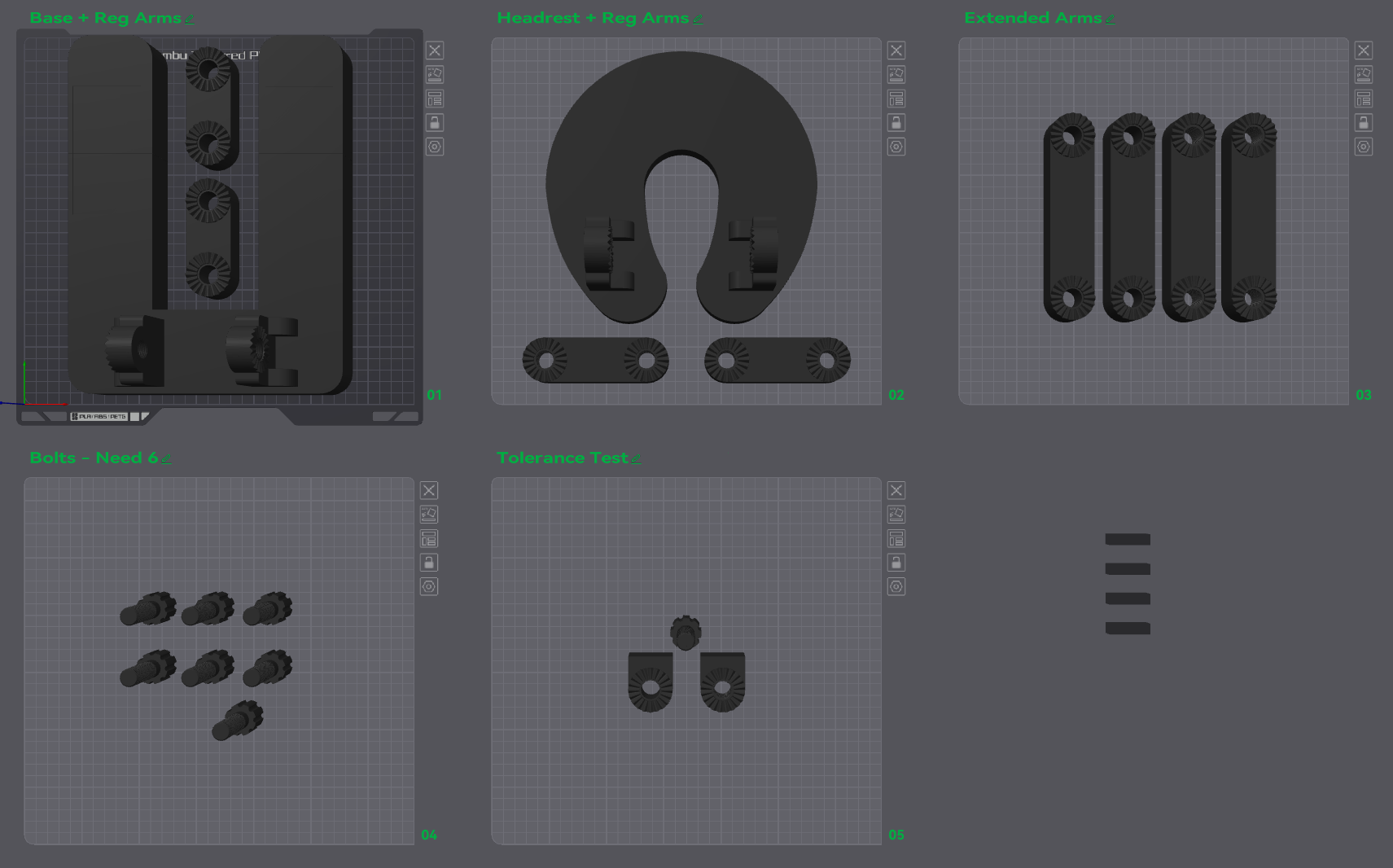

Parts required for the build are:

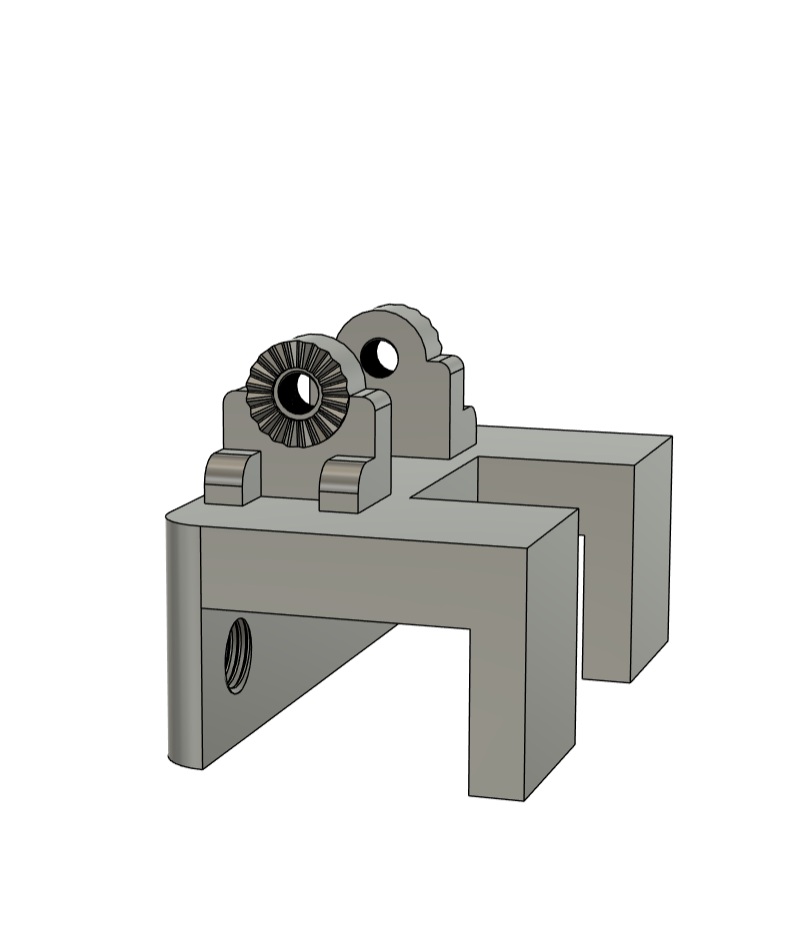

• Base
• Headrest
• 6 bolts
• 2x threaded arms,
• 2x un-threaded arms

Notes

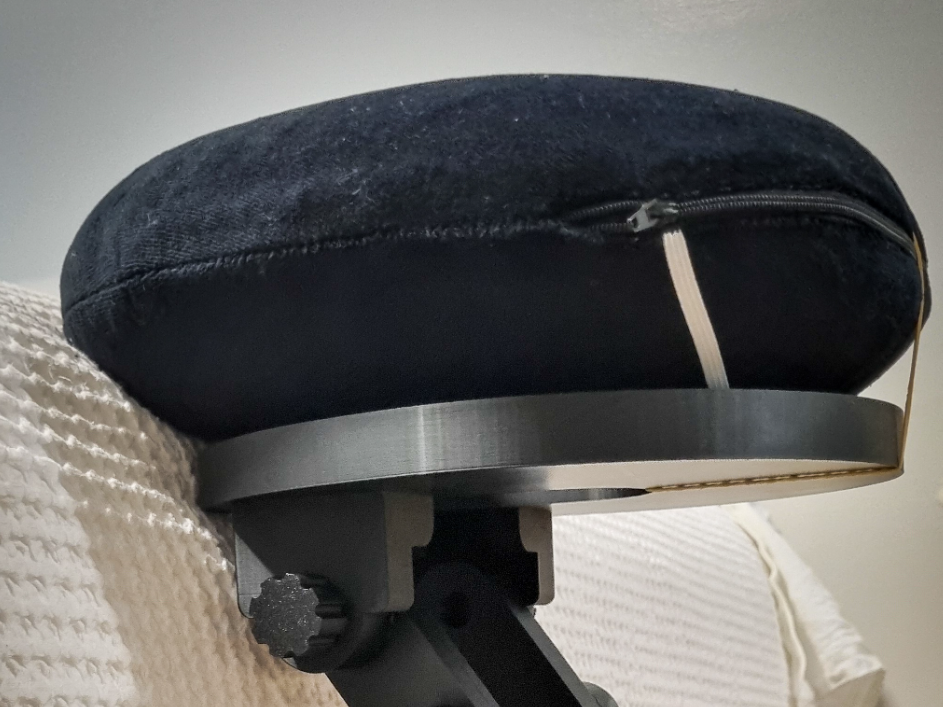

The cushion shown in the photos is an example only and is not included in the print files.  This style of cushion slips and I initially used rubber bands to secure it in place. I have since swapped to a round cushion which works better. link below.

If you print one, I'd love to see your make and hear any feedback for future improvements!
