Parametric Ribbed Fruit Fly Trap

MODYLO: The Omnia Fruit Fly Trap

To turn this 3D print into a highly effective fruit fly trap, you just need the right bait recipe. Here is a quick guide on how to set it up so it blends seamlessly into your kitchen while doing its job.

The Ultimate Fruit Fly Bait Recipe

Fruit flies are drawn to fermentation and sweetness. Here is a liquid bait that lures them in but prevents them from easily finding their way back out.

Ingredient	Amount	Purpose
Apple Cider Vinegar (ACV)	Fill to ~1/3 of the container	The ultimate fruit fly magnet (mimics rotting fruit).
Dish Soap (Liquid)	2–3 drops	Breaks the surface tension of the liquid so they sink.
Sugar or Fruit Scraps (Optional)	1 tsp sugar or a piece of banana	Adds an extra punch of sweetness to boost the aroma.

Parametric

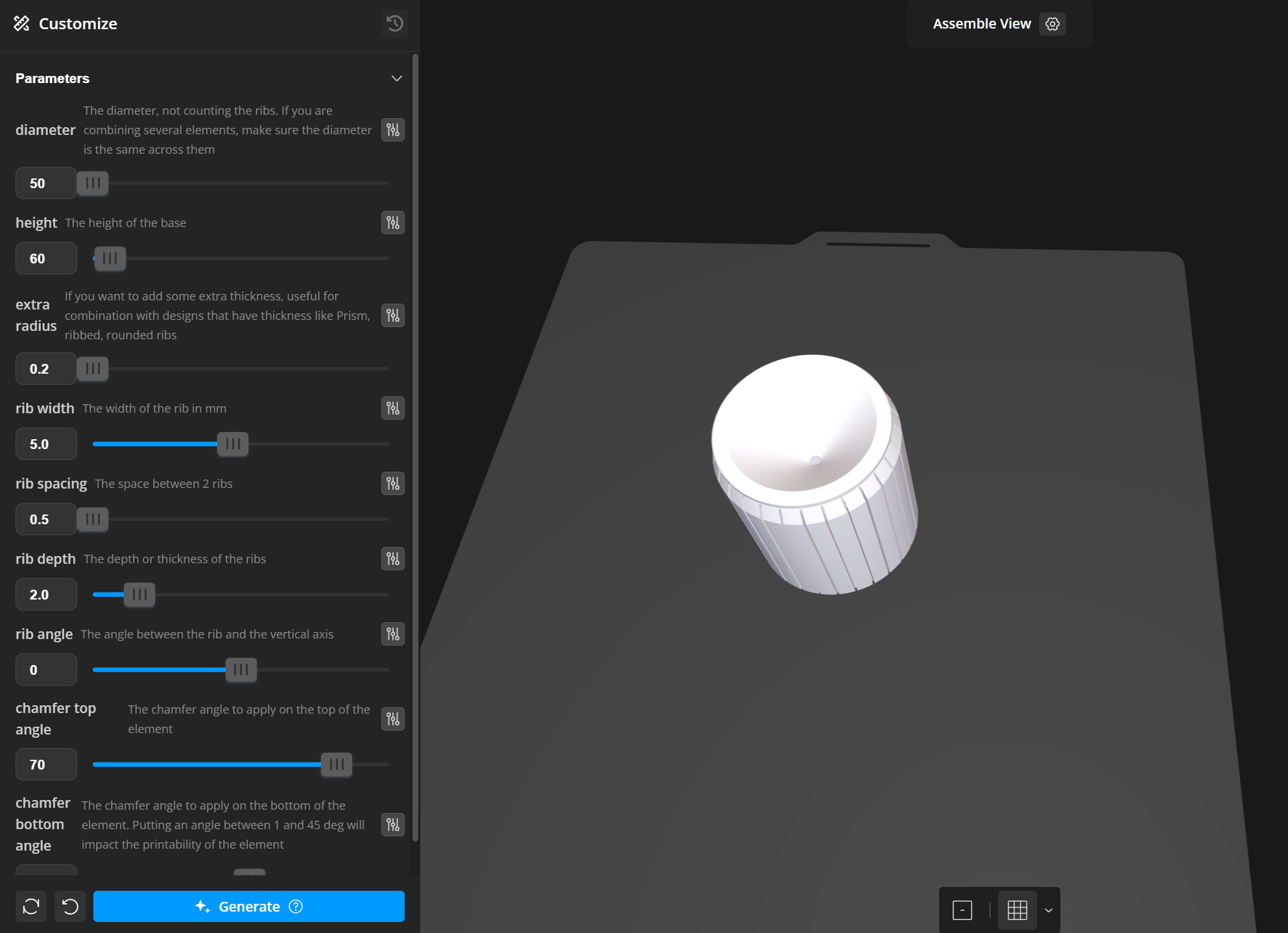

Use the customize button to enter the customization tool and play with the rib appearance but also the size. Note that the fly trap lid has been designed for a 50mm diameter, it supports higher diameters but will not look as good as on 50mm.

Key Features

Funnel Geometry: Classic, functional design to trap fruit flies using standard household mixtures.
Internal Fill Line: A small molded line inside the base indicates the recommended level for your bait solution to prevent overfilling.
Support-Free: Both the bases and the caps are designed to print cleanly without any support material.

Anatomy of the Assembly

The assembly consists of two basic parts:

The Base (Bait Reservoir): Holds the liquid solution and features the internal level mark.
The Fruit Fly Cap: The threaded funnel insert that twists securely onto the base.

Usage, Setup & Print Optimization Tips

The Solution: Fill the base to the internal line with a simple mix described above.
Optimised Wall Modification: The provided .3mf file includes a built-in print modifier that automatically increases the wall loop count to 3 walls from the bottom of the base up to the internal fill line. This ensures the reservoir is completely water-tight where the liquid sits, without wasting filament or print time on the upper half of the model.
Zero-Waste Multi-Color Printing: Although both parts are arranged on a single build plate, the .3mf print sequence is specifically configured to print the cap entirely before moving on to the base. This sequential logic eliminates constant filament switching and completely avoids purging waste, giving you a clean two-color assembly with zero wasted material.
Maintenance: Unscrew the cap, rinse out the base, refill, and twist it back together.
