Parametric NVMe M.2 Drive Storage Organizer / Stacking Tray

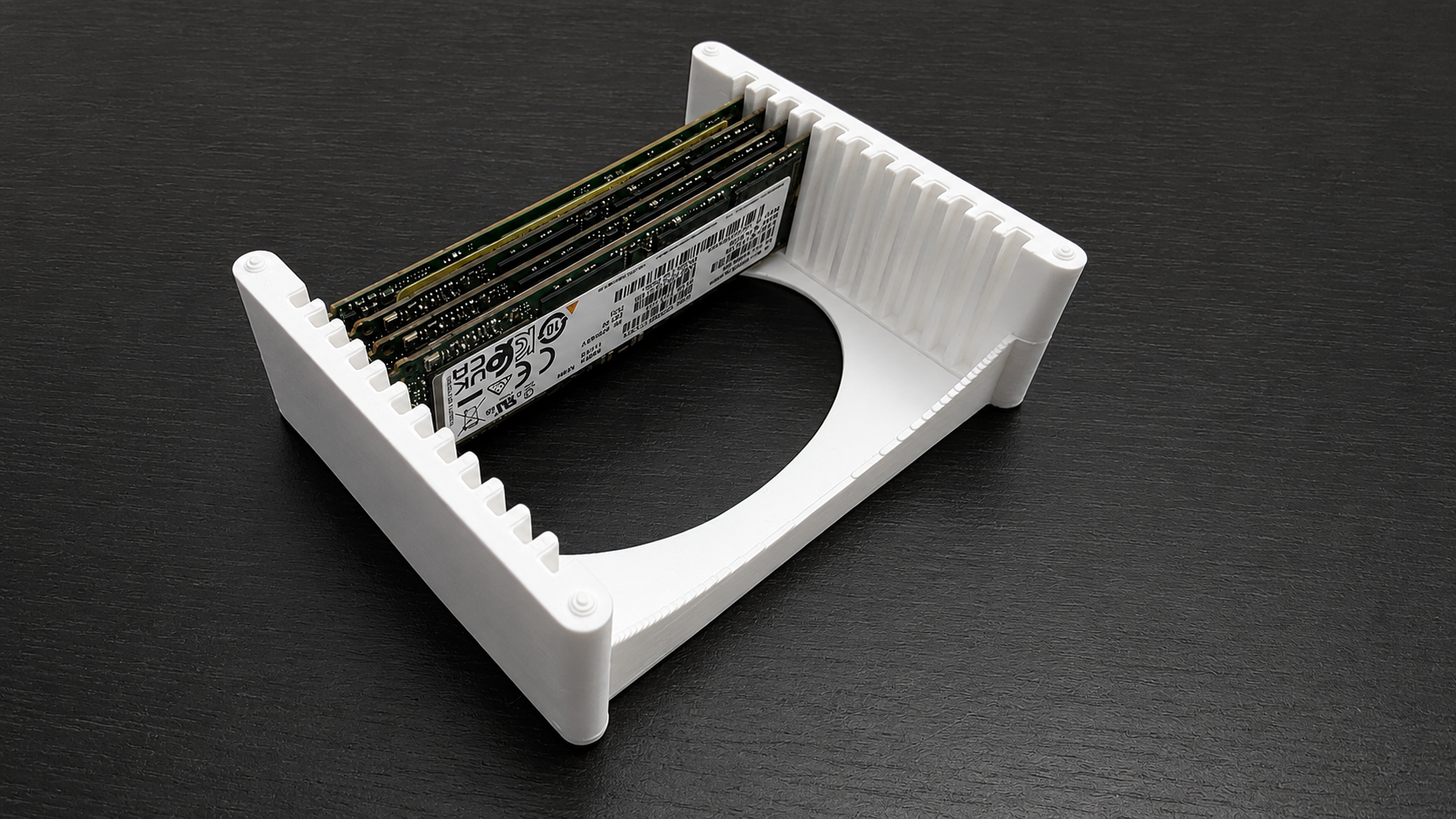

Keep your high-performance storage organized, protected, and easily accessible. Designed specifically for tech enthusiasts, system builders, and homelab administrators, this premium, low-profile storage tray provides a secure vertical staging ground for loose M.2 NVMe solid-state drives.

Featuring a fully parametric, modular architecture, this holder maximizes desk or drawer space while ensuring your delicate PCB components and gold contact pins remain completely isolated and safe from static, scratches, or physical damage.

Key Features

• Custom Fit for M.2 2280 Form Factor: Tailored specifically to standard 2280 NVMe dimensions, with integrated tolerances built in to comfortably clear installed thermal pads or varying PCB thicknesses (up to 2.4mm clearance).
• Smooth Entry Chamfers: No more snagging or forcing drives into place. Each individual slot features a 0.5mm beveled entryway funnel that smoothly guides the drive directly into its secure pocket.
• Sleek, Low-Profile Side Walls: Optimized with an elegant 6mm thinned side-pillar profile to minimize your physical desktop footprint without sacrificing structural integrity.
• Sleek Top Edge Filleting: Built with a modern, 1.0mm rounded corner radius running the full length of the top outer edges, ensuring a smooth, injection-molded look and comfortable handling.
• Interlocking Stacking Architecture: Designed to grow with your hardware collection. The top features four low-profile alignment domes that nest perfectly into corresponding sockets on the underside of a matching tray, allowing you to securely stack multiple units vertically.
• Integrated Ergonomic Scoops: Precision-cut crescent scoops on the front and back end walls provide comfortable finger placement for effortlessly lifting and moving the tray, even when fully loaded.

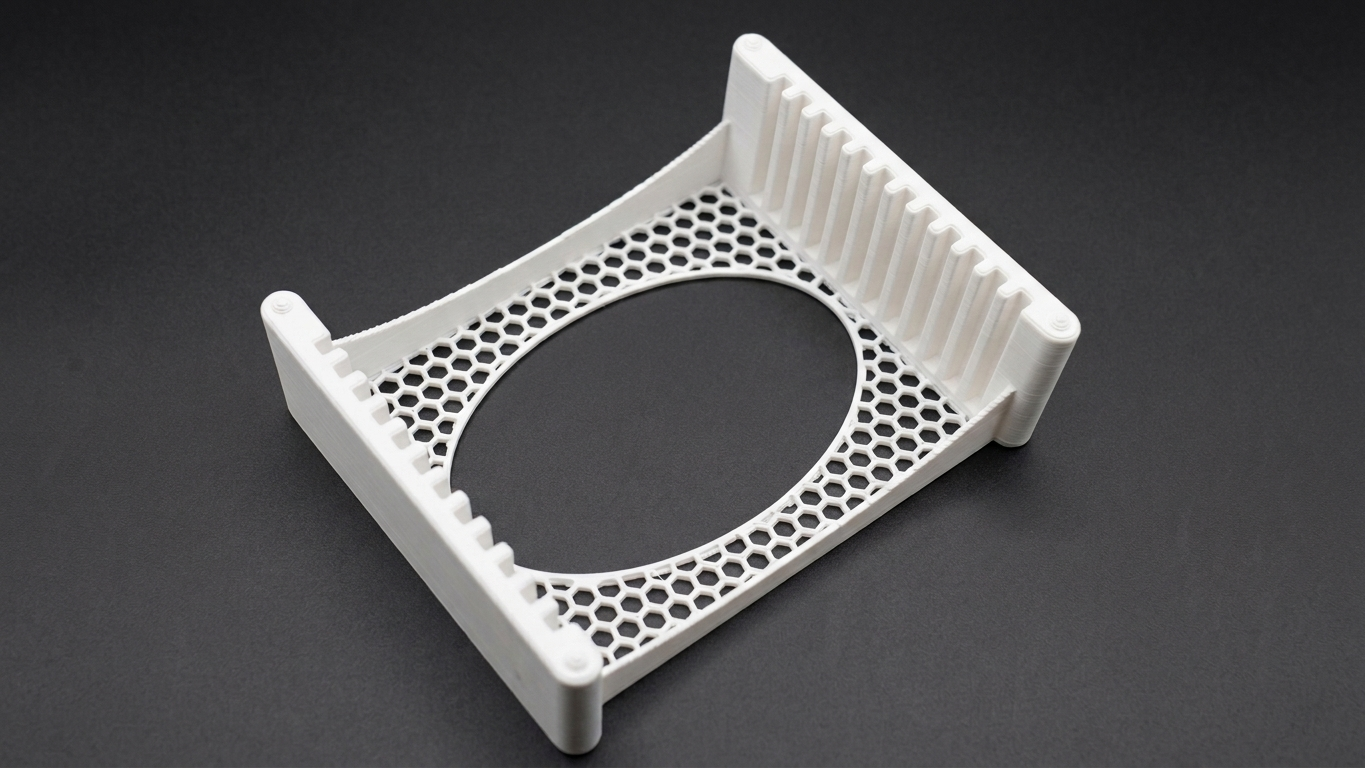

• Material-Saving Open Floor: A generous central weight-reduction oval cutout minimizes filament usage during 3D printing and provides immediate bottom-side airflow/ventilation.

Technical Specifications

• Supported Media: M.2 NVMe / SATA SSDs (Form factor 2280)
• Slot Pitch (Spacing): 4.5mm center-to-center
• Max Drive Thickness Clearance: 2.4mm
• Insertion Depth: 24mm (Provides excellent vertical stability while leaving the drive label and layout fully visible for easy identification)
• Base Height: 2mm floor slab thickness
• Stacking Pin Profile: 3.0mm diameter low-profile dome (0.8mm projection with a 0.2mm mechanical print clearance socket)

*** Note: This is a fully customizable, parametric part. The overall storage depth automatically scales dynamically based on the exact drive capacity variable specified in the configuration text.
