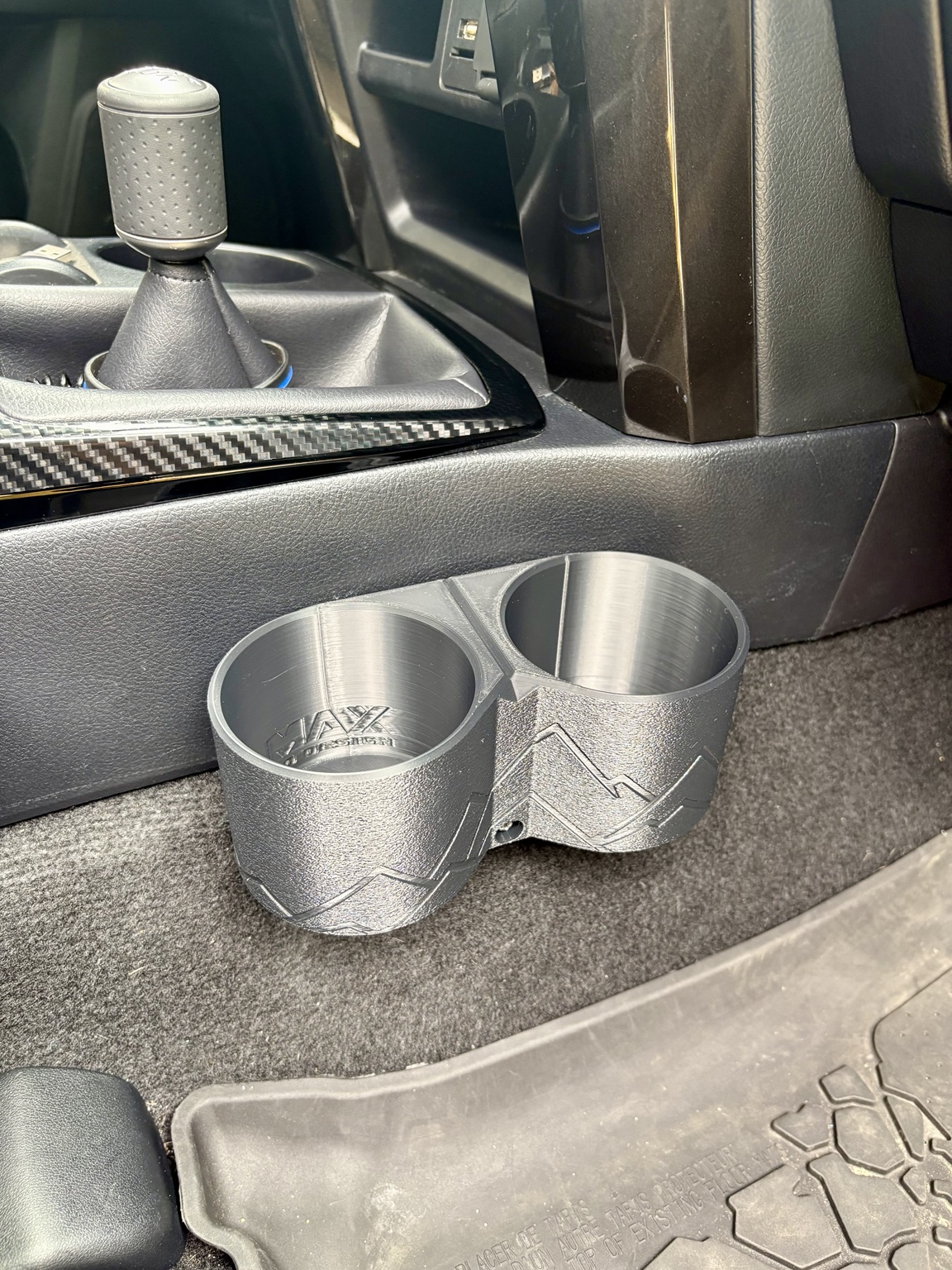

Add extra bottle and drink storage to your vehicle's center console area with this console-mounted dual cupholder. Originally designed around the 5th generation Toyota 4Runner, the mounting system has also been successfully tested on other vehicles with similar console geometry.

The holder securely mounts by clipping underneath the console trim using a locking tab system—no drilling or permanent vehicle modification required. The design provides a stable mounting solution while still allowing easy removal when needed.

Verified fitment includes:

• Toyota 4Runner (5th Gen)
• Kia Telluride
• Toyota Corolla

Additional vehicles may be compatible. If you test fit it in another vehicle, I'd love to hear what it works with!

UPDATE: A plain version without the mountain design is now available.

The exterior features an optional rugged mountain-inspired pattern combined with fuzzy skin texture to better match OEM-style interior plastics and reduce the typical "3D printed" appearance.

Printed from ASA for improved heat resistance and long-term automotive durability.

Features:

• Holds large water bottles and tumblers
• No drilling or permanent modifications required

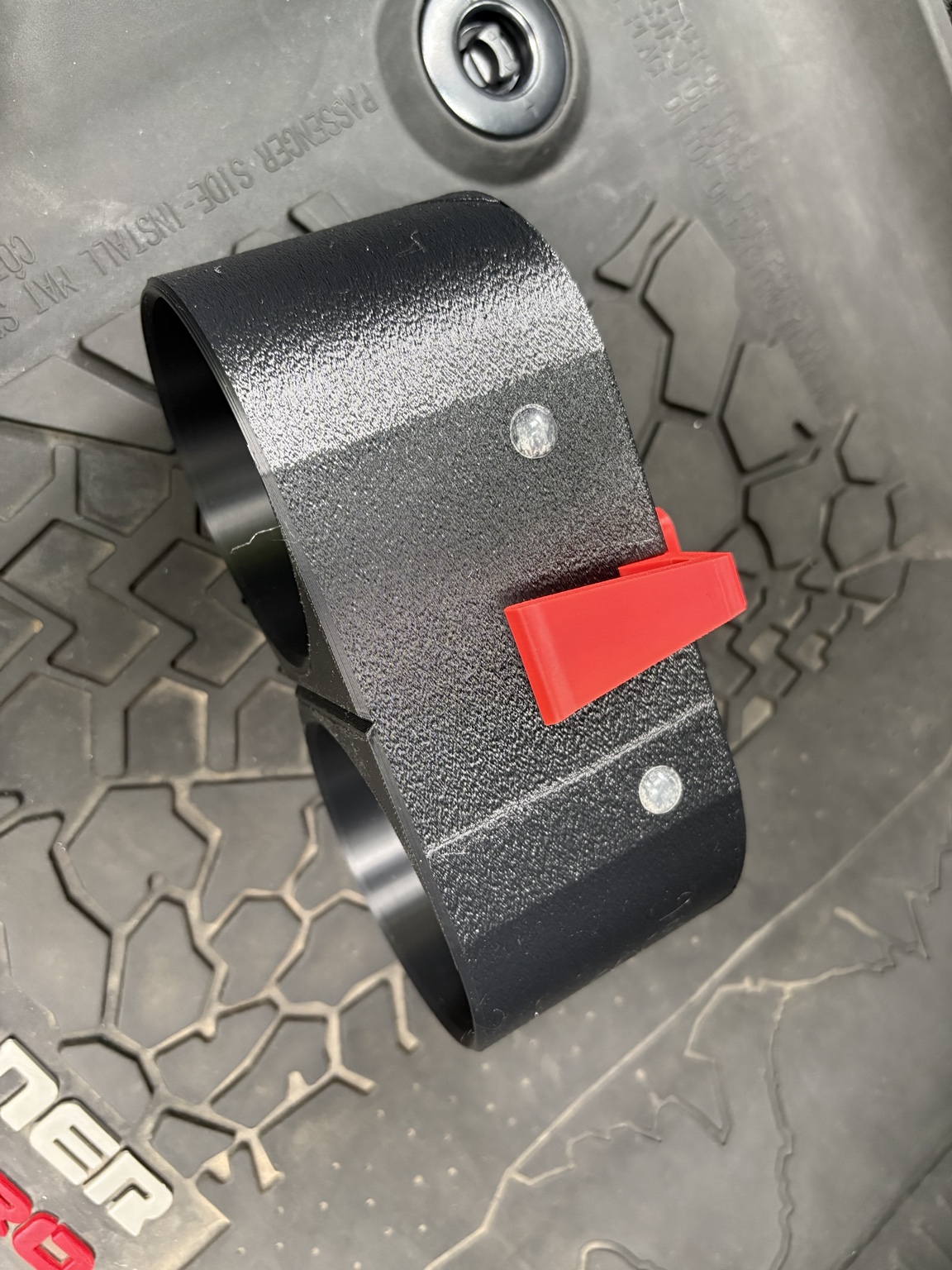

• Removable locking-tab mounting system
• Optional mountain design or plain version
• Printed in automotive-friendly ASA
• Designed to blend with OEM interior finishes
• Compatible with many vehicles featuring similar console geometry

Fitment:
Designed around the 5th gen 4Runner platform (2010–2024).

May also fit other vehicles depending on console trim shape and spacing.

Cupholder Size:

• Approx. 82mm diameter
• Approx. 72mm deep

Assembly

1. Insert the brass thread insert into the opening on the locking tab.
2. Use the M4 screw threaded into the end of the locking tab to pull the insert fully into place.
3. Remove the screw from the locking tab.
4. Slide the locking tab into the cupholder base.
5. Attach the cover plate using the four screws to retain the locking tab.
6. Apply silicone bumpers if desired to help protect trim surfaces.

Parts Required

• M4 x 25mm screw - [https://amzn.to/4faFtpS](https://amzn.to/4faFtpS)
• Brass thread insert - [https://amzn.to/4u0pgHt](https://amzn.to/4u0pgHt)
• #4 x 1/2" screws (4) - [https://amzn.to/4ukAW8o](https://amzn.to/4ukAW8o)
• 3/8" diameter x 1/8" thick silicone adhesive bumpers (4) - [https://amzn.to/3RvFta6](https://amzn.to/3RvFta6)
