Updated 20260603

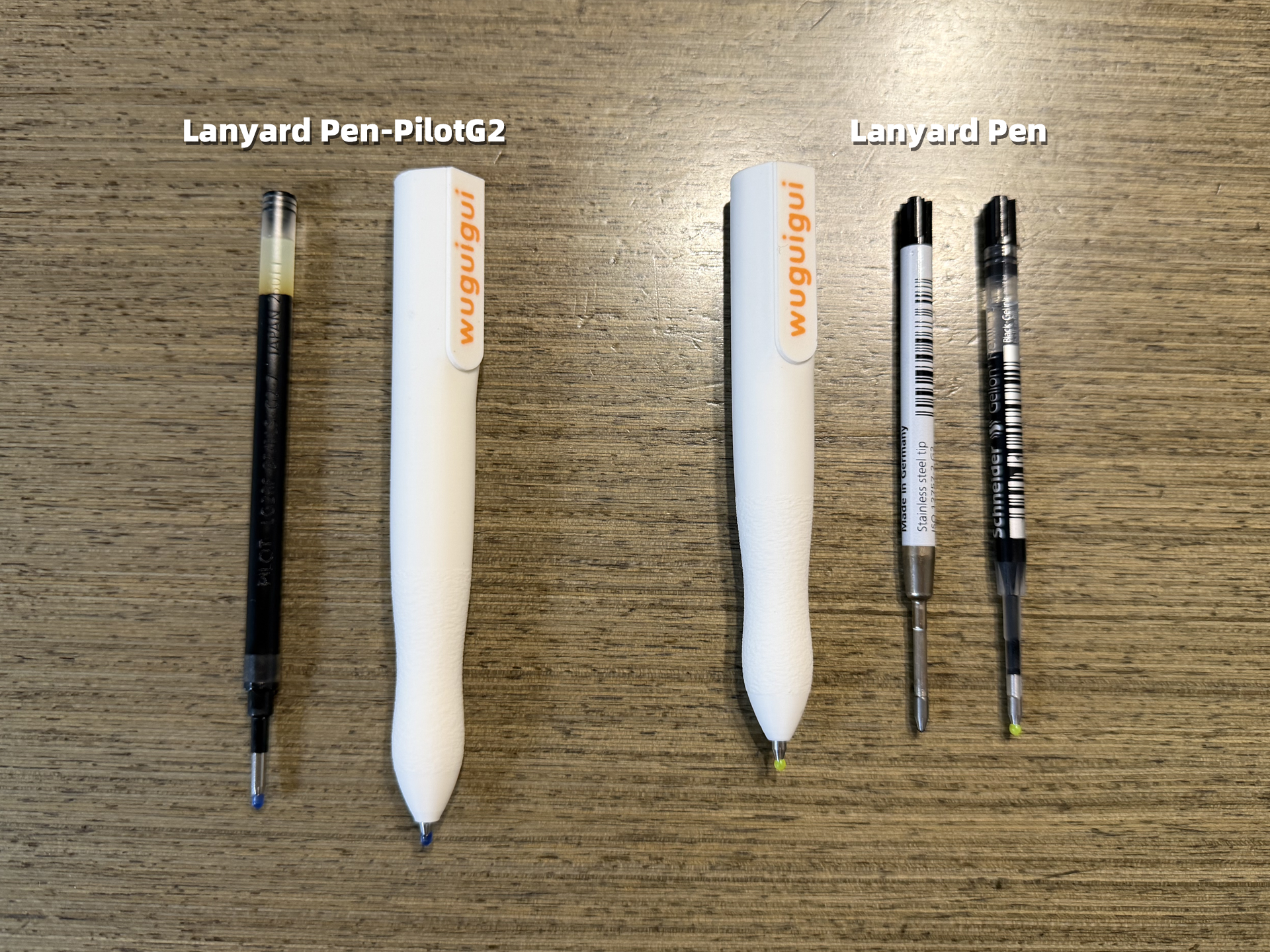

A user asked if there was a model compatible with the Pilot G2 refill. I bought one to test and found it’s significantly longer than the European standard G2 (like the Schneider G2). So, I redesigned the model. After a successful test print, I’ve uploaded the new print profile. If you need it, just select the “Lanyard Pen-PilotG2/ZebraJF” version to print.

* The Zebra JF refill is also suitable in the print profile Updated 20260607.

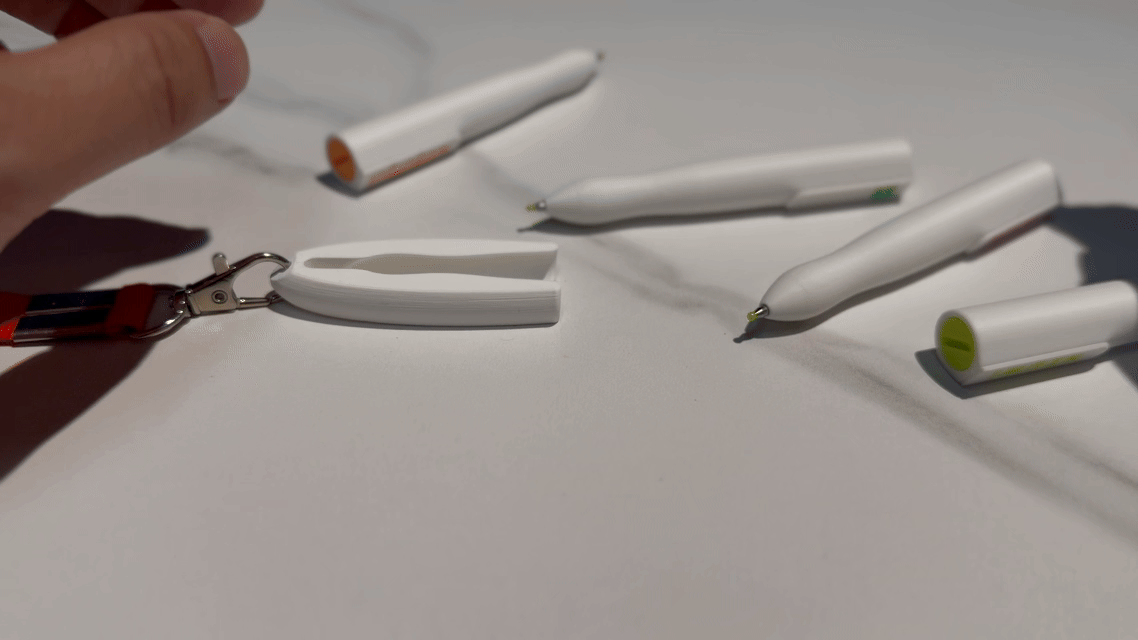

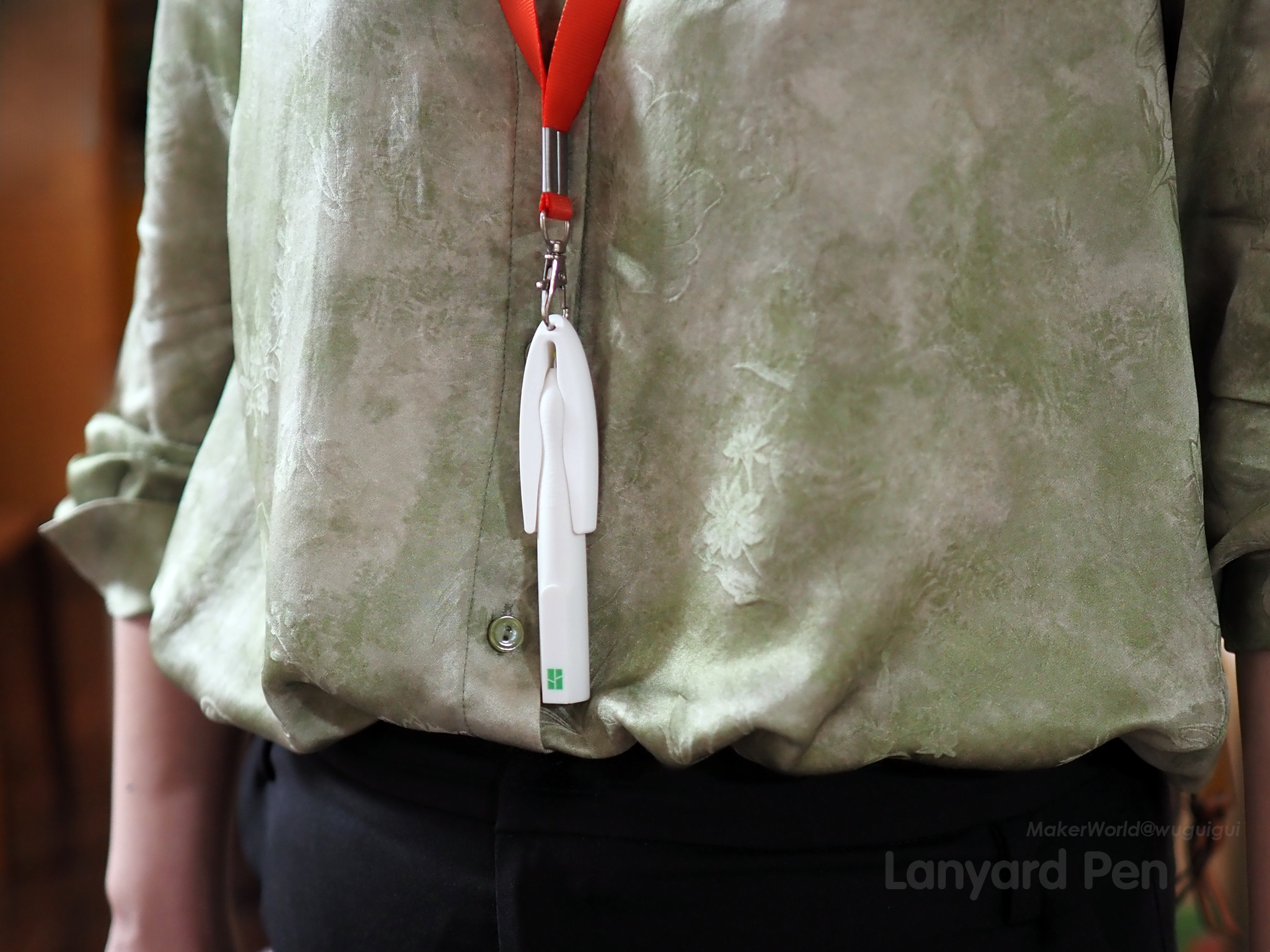

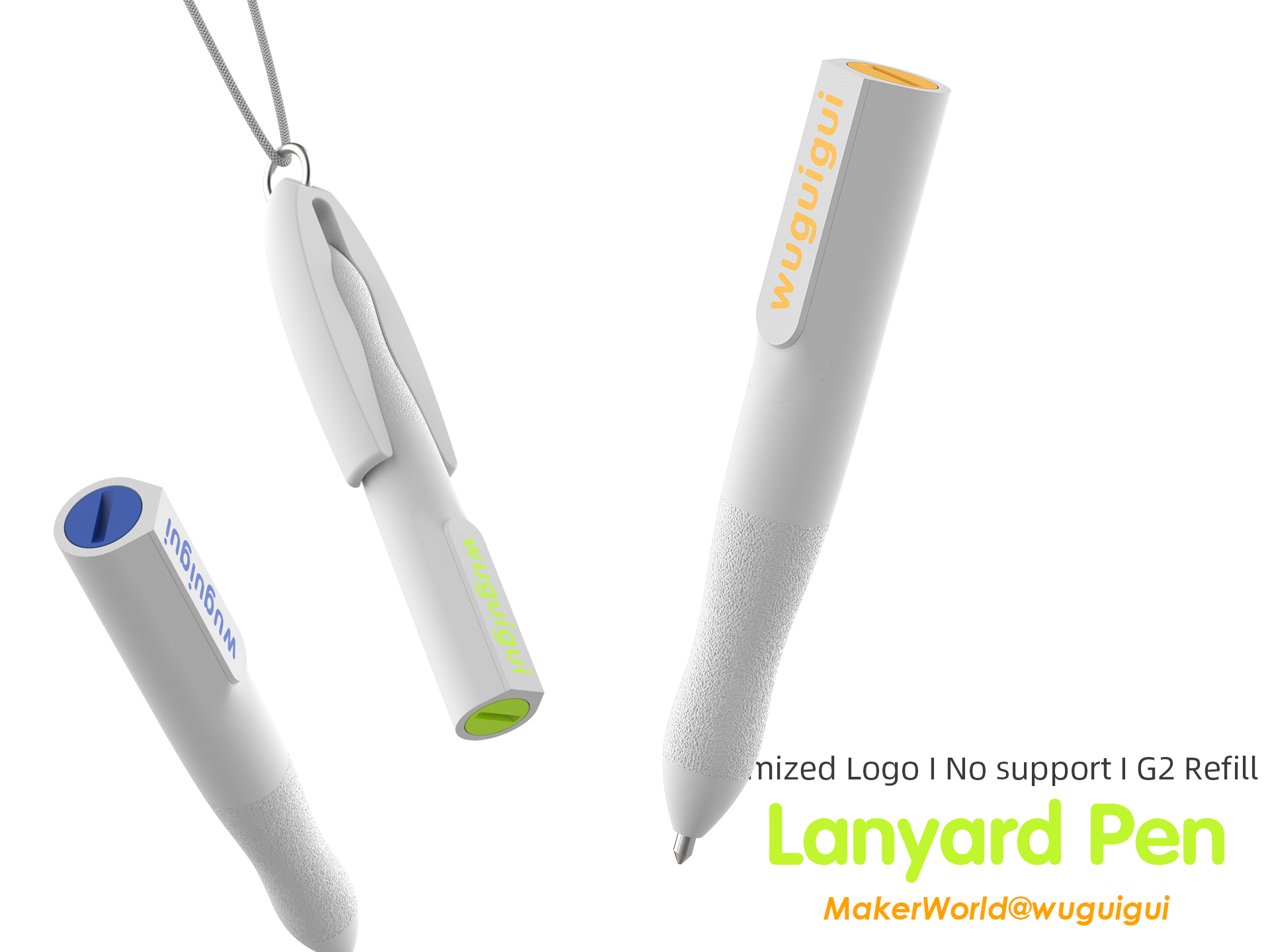

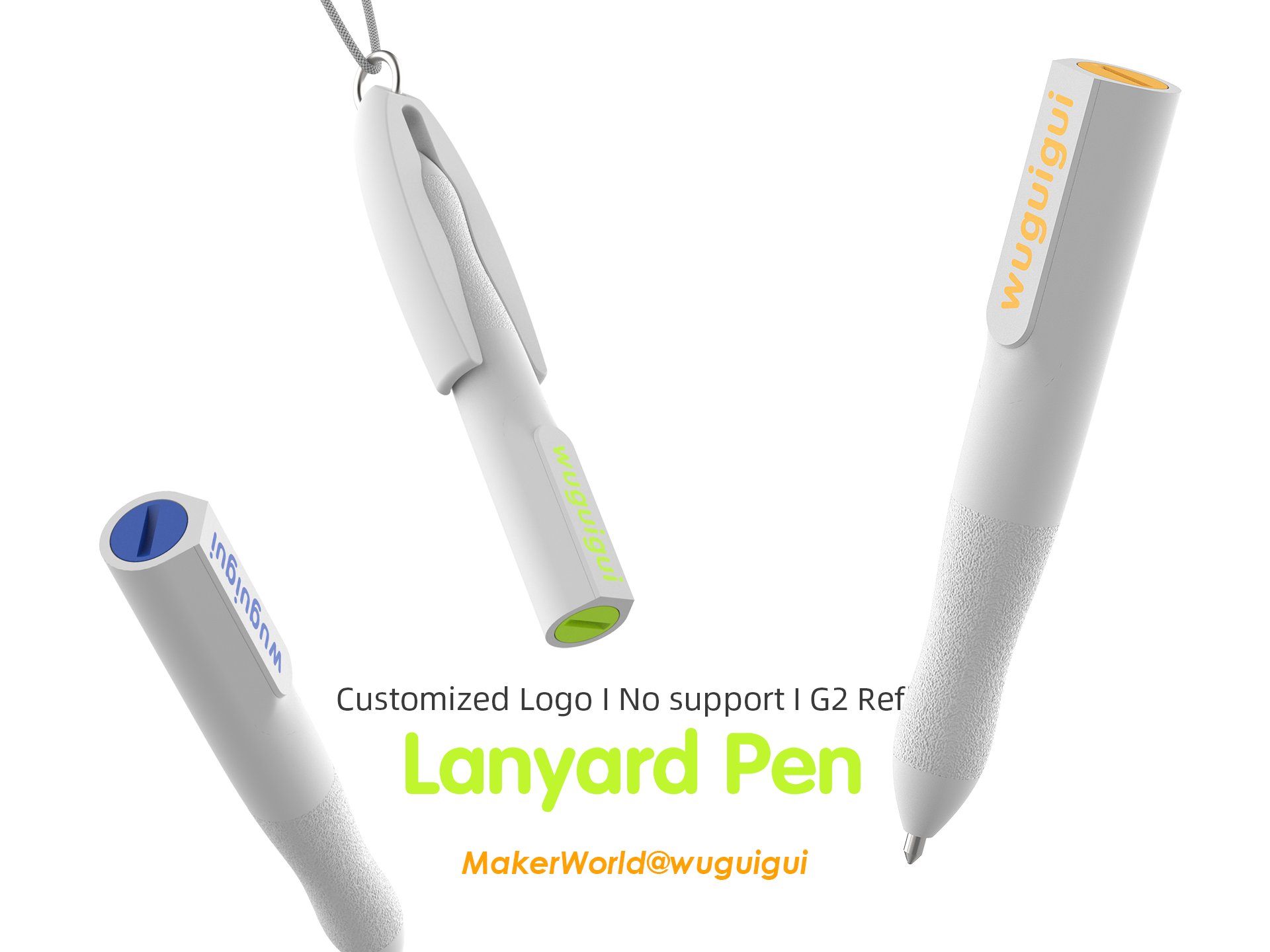

This is a compact, highly portable pen designed to attach directly to a lanyard. Perfect for hanging around your neck, it is an incredibly useful tool for busy work environments like exhibitions, trade shows, and conferences.

Key Features

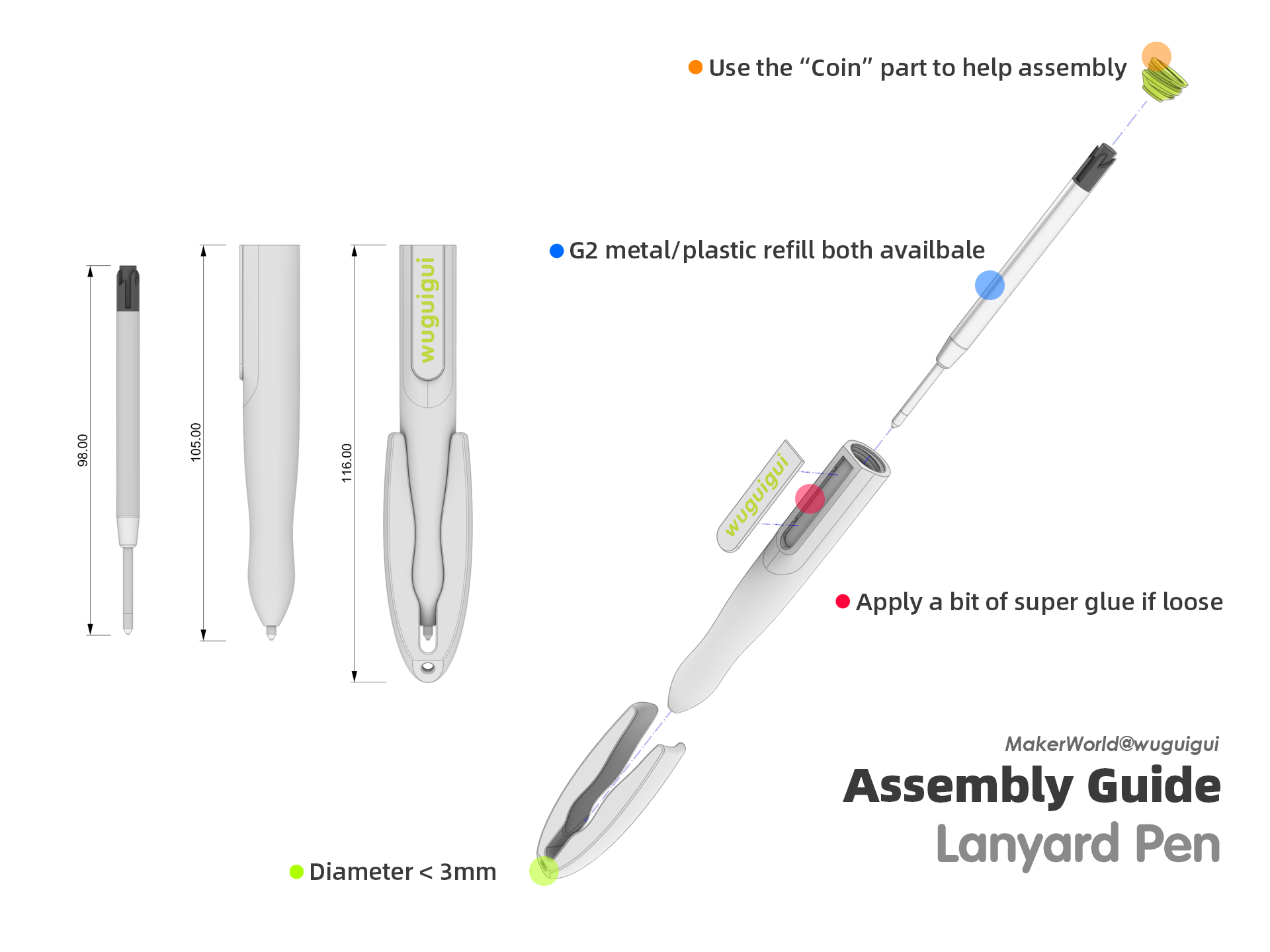

Ultra-Compact Design: Only 105mm long (116mm with the cap on).

3D-Printed Form & Function: The semi-open cap features a 3D-printed elastic structure that balances aesthetics with functionality.

Versatile Compatibility: Fits both standard G2 metal and plastic refills.

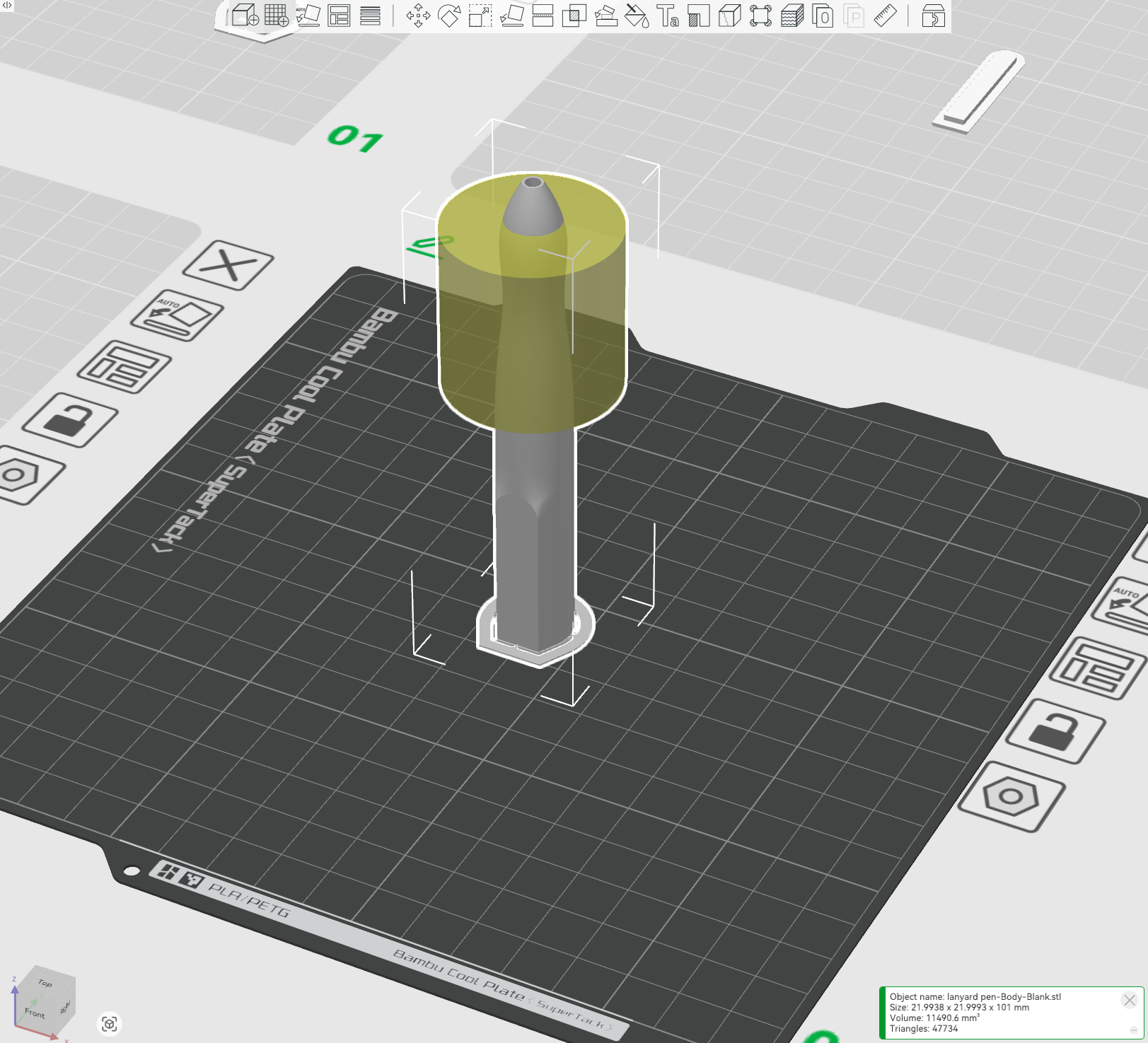

Enhanced Grip: The body model includes a built-in modifier zone to apply a fuzzy skin texture, significantly improving grip feel and giving the pen an exquisite, premium look.

Design That Stays Put: The logo tag serves a dual purpose: displaying the Logo and preventing the pen from rolling off the desk.

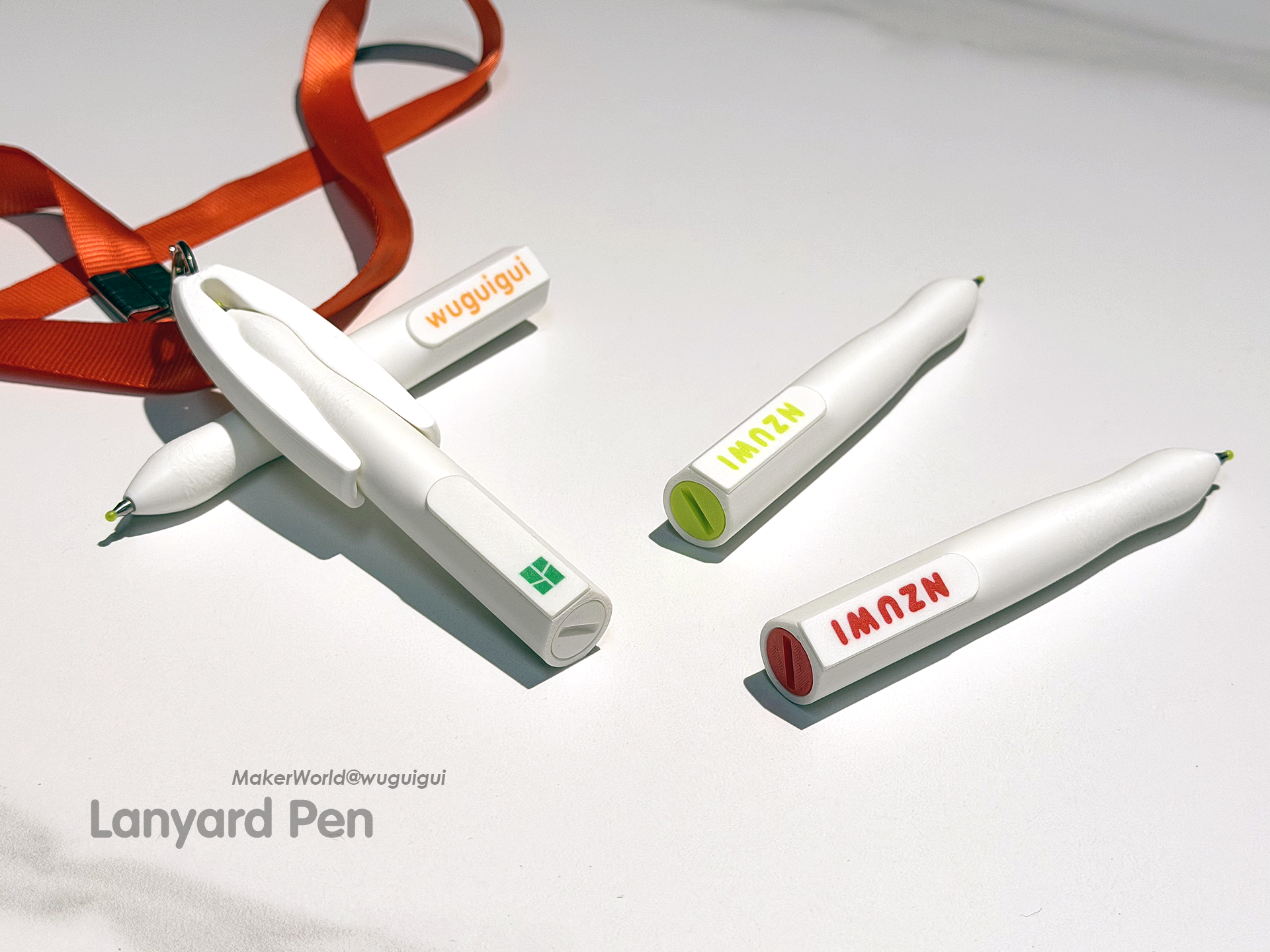

I have included multiple versions of the model so you can personalize it to your liking:

1. The Blank Tag Version (lanyard pen-Blank Tag.stl)

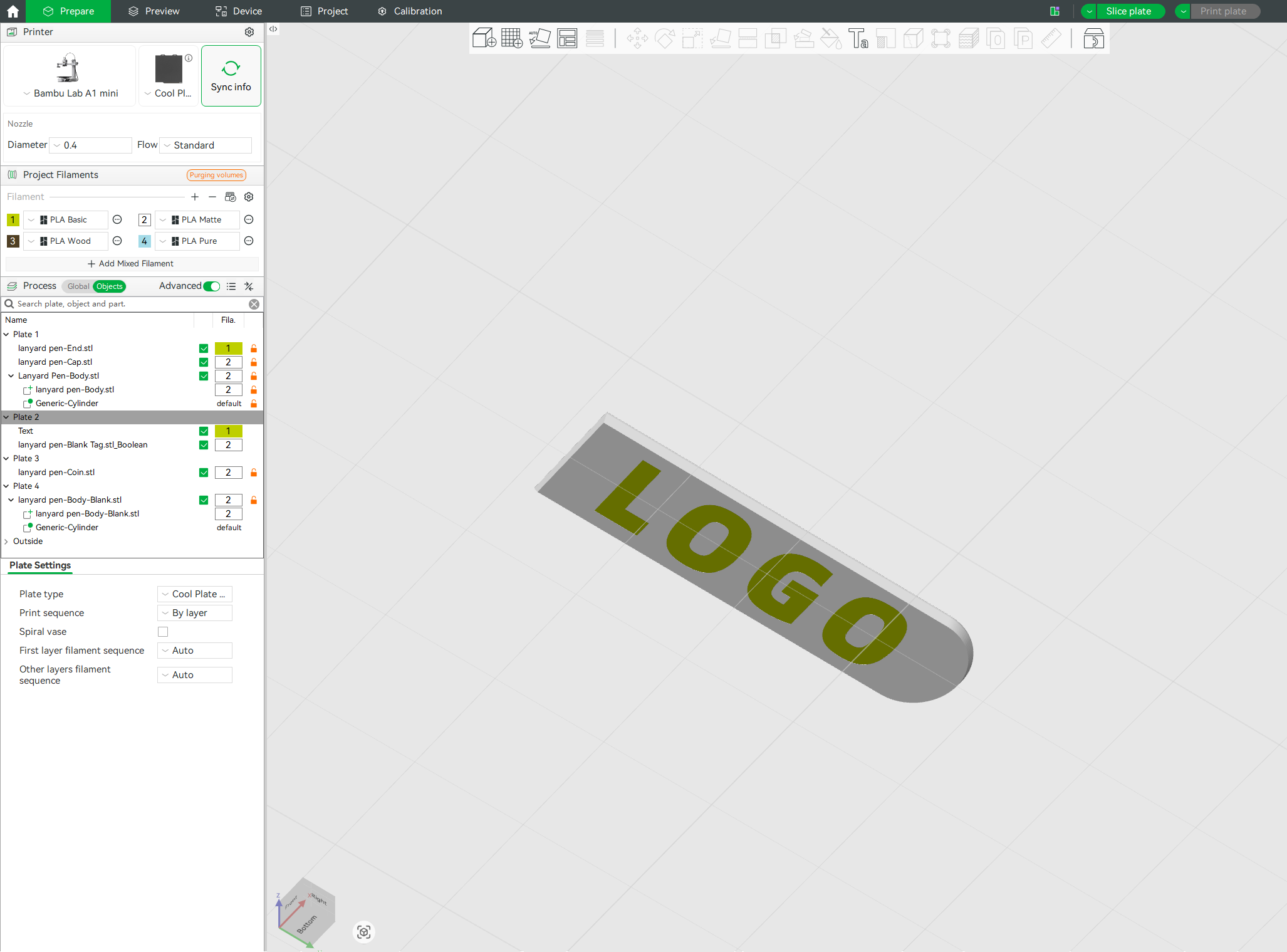

Perfect for adding your company or studio logo directly in Bambu Studio using the Text shape and Mesh Boolean tools.

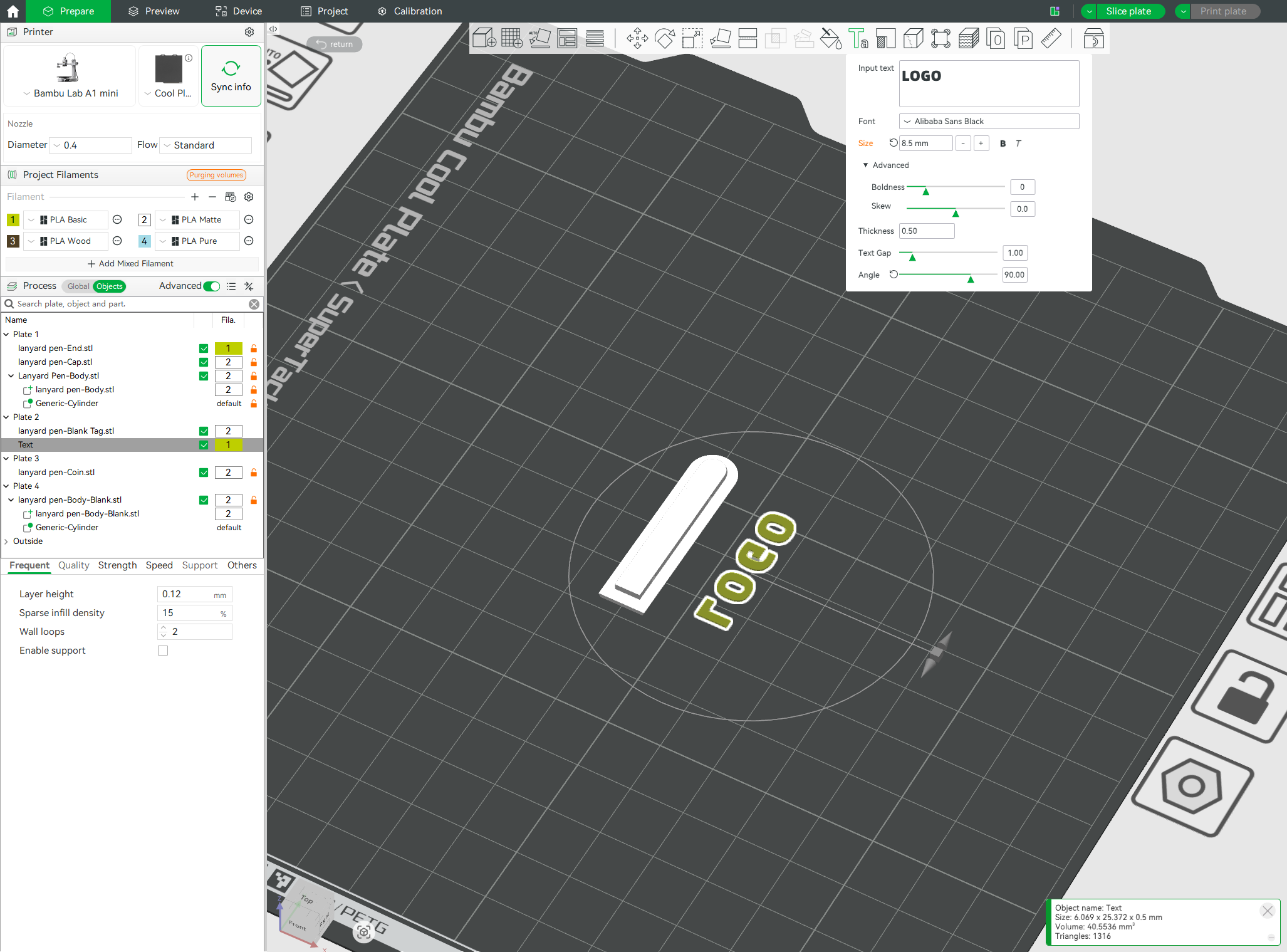

How to customize it:

1. Click the Text shape tool (do not select the pen part first) and type your text.
2. Scale and position the text so it sits neatly in the middle of the blank tag area.
3. Select both the text and the tag part together.

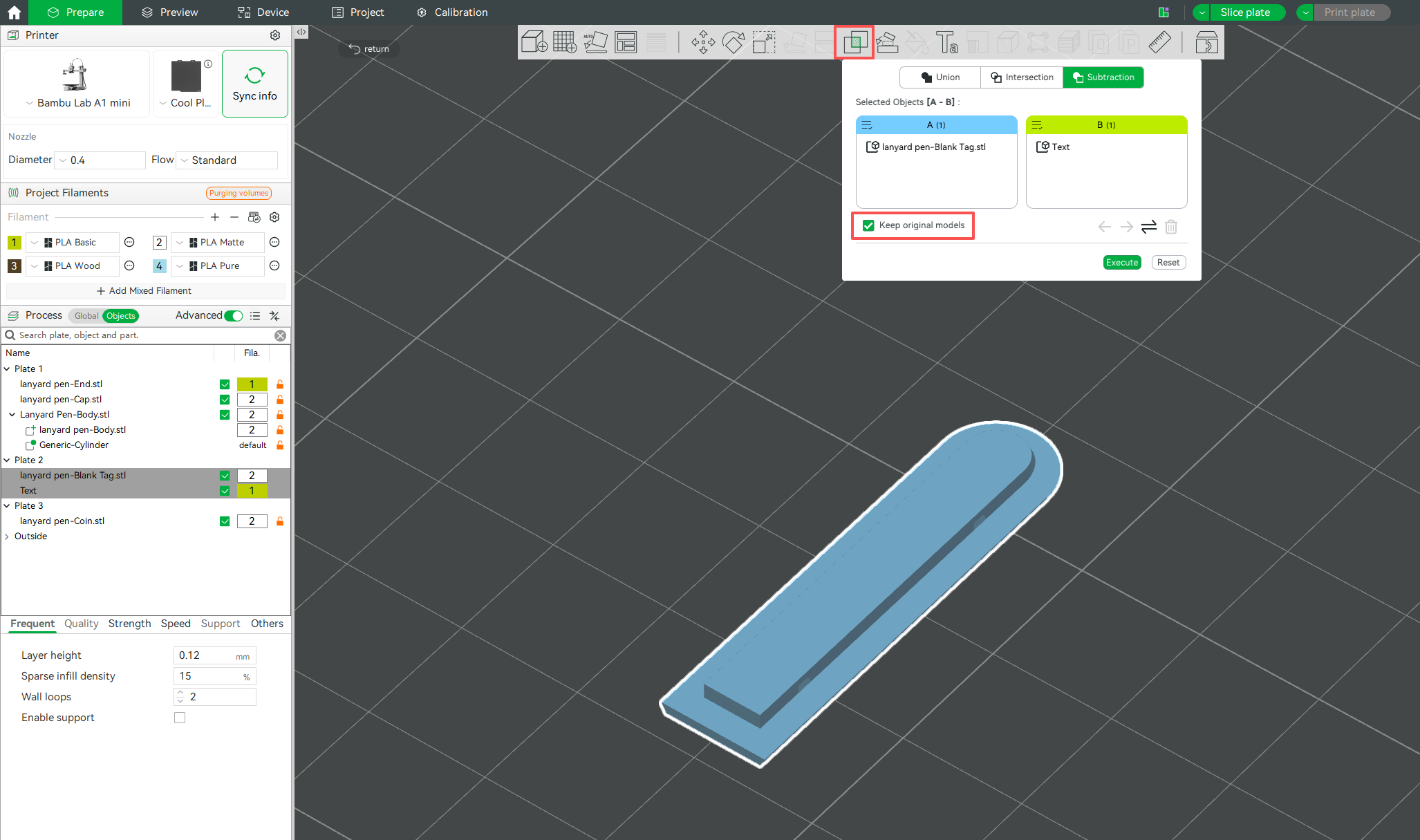

4. Click Mesh Boolean tool, and select Subtraction (make sure "Keep original models" is selected) to carve your custom text into the model.

2. The Completely Blank Version (lanyard pen-Body-Blank)

For creators with 3D modeling experience, this version removes the tag entirely, giving you a smooth canvas to emboss or carve your own complex logos and designs.

Recommended Print Settings

For the best visual and tactile results, I recommend the following filament choices:

• Pen Body & Cap: White PLA Matte (for a clean, professional finish).

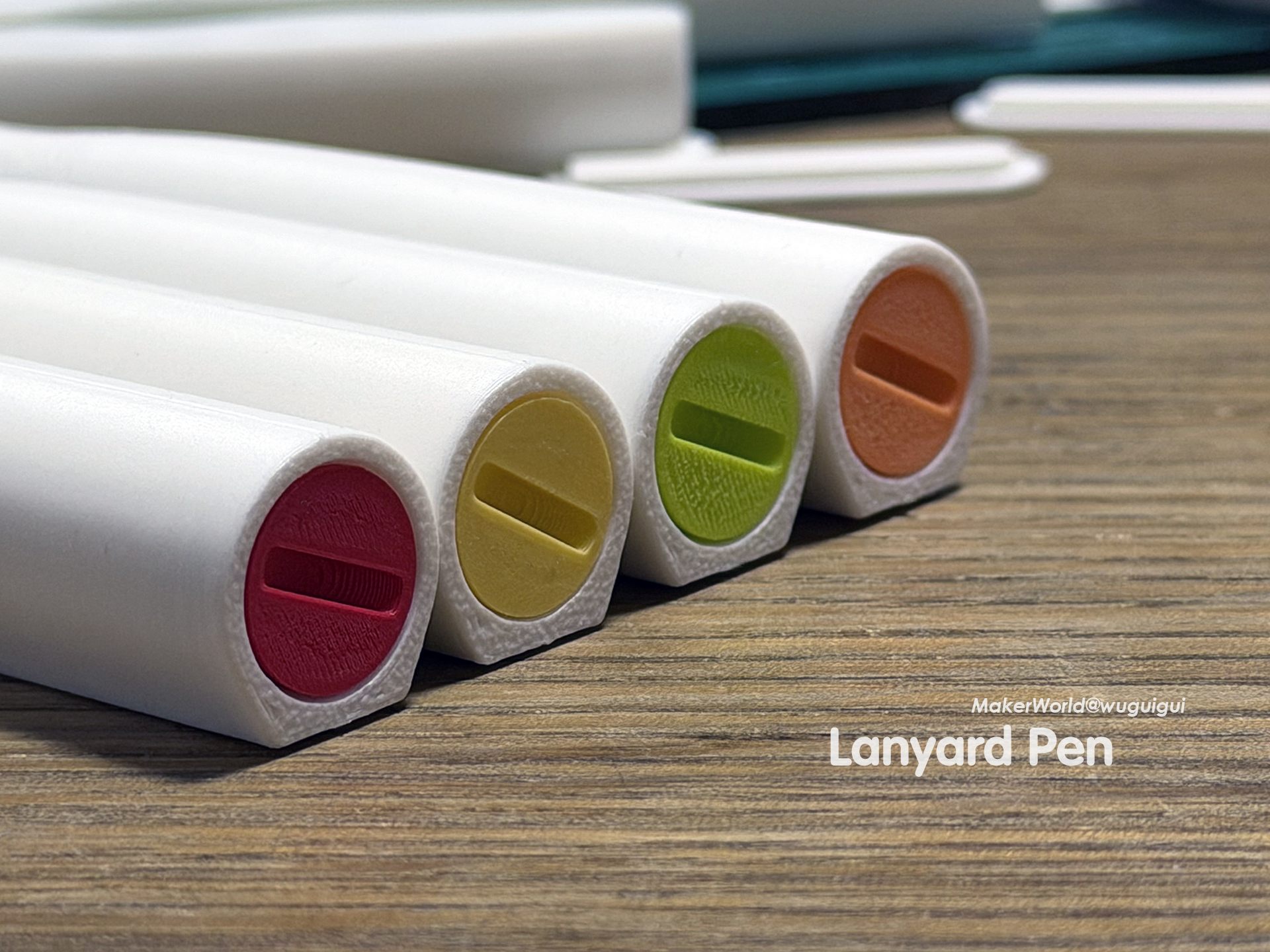

• The End Cap: A bright, vivid color of your choice to add a nice pop of contrast!

Trust me, once you start using this at events, you won't want to go without it. Happy printing and have fun!
