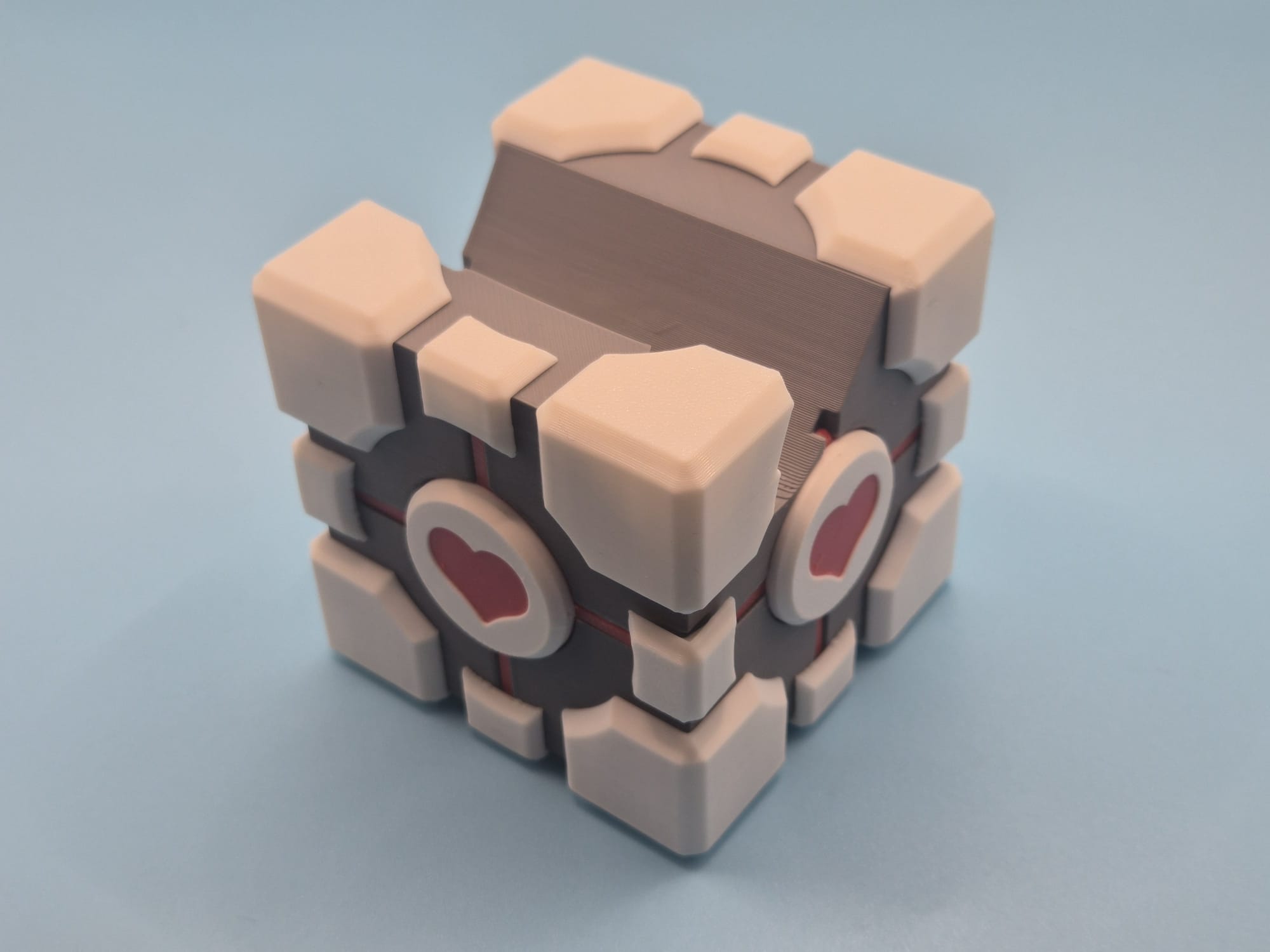

Show off your Xbox Controller in style with this Portal Cube Desk Stand.

It was designed for the Xbox Series X/S Wireless Controller. I haven't tested it with an elite or 360 controller.

This model is designed to be easy to assemble and uses around 120g of filament. The assembled cube is 70 x 70 x 70mm.

Print Instructions

No supports are required.

There is an AMS and Non-AMS version (which requires some gluing).

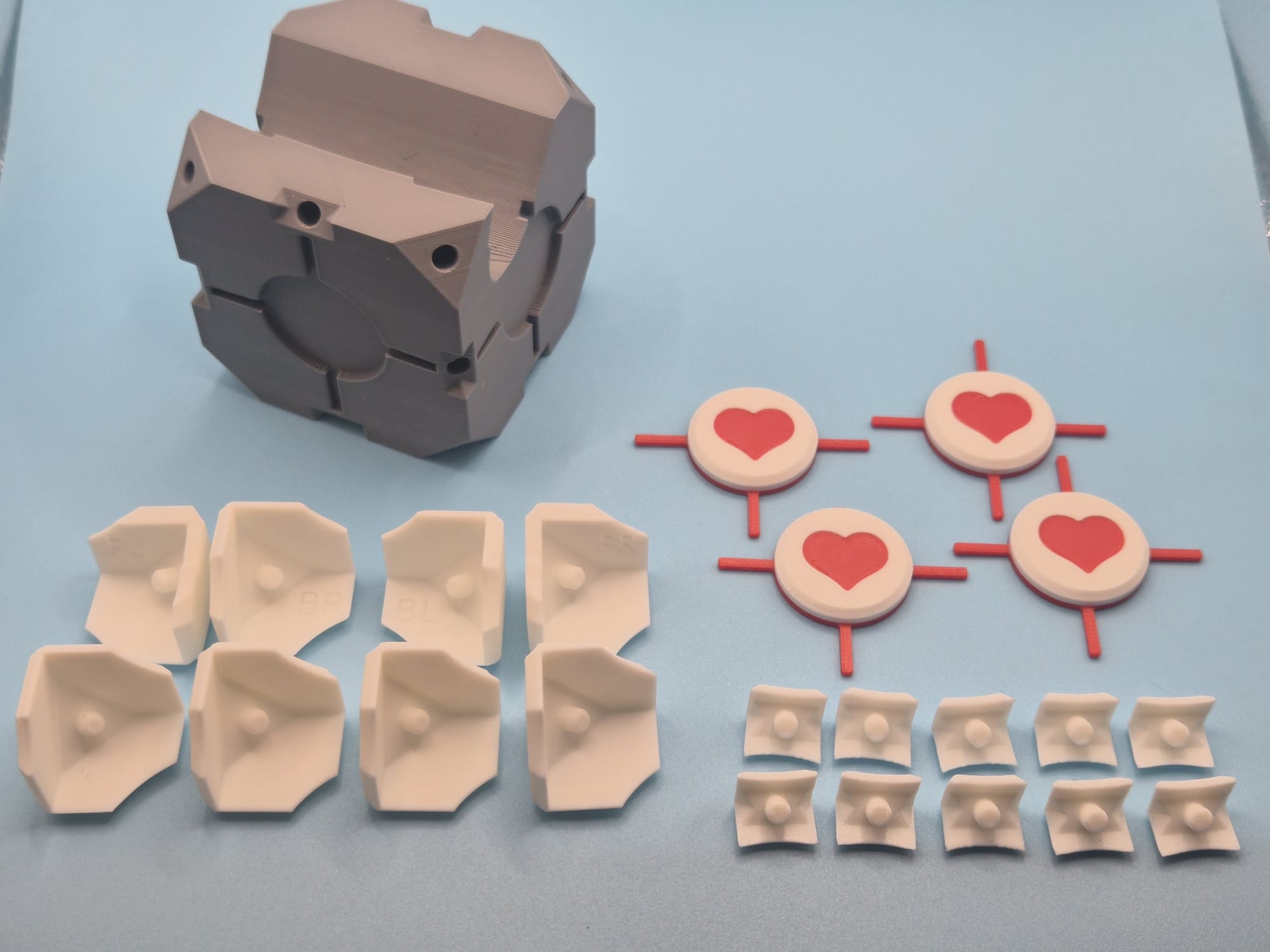

You will need to print the following parts:

1x Cube - Grey

2x Front Circles - White / Red

2x Side Circles - White / Red

4x Bottom Corners - White

4x Top Corners (FL = front left, FR = front right, BL = back left, BR = back right) - White

10x Middle Edges - White

NON-AMS Version

2x Short Lines & Hearts part - Red

2x Full Lines & Hearts part - Red

4x Circles - White

Assembly Instructions

Note: All the parts should push-fit together, however you can use super glue too if they're loose.

Make sure you assemble it before gluing to make sure you get the corners correct!

1. Print the parts

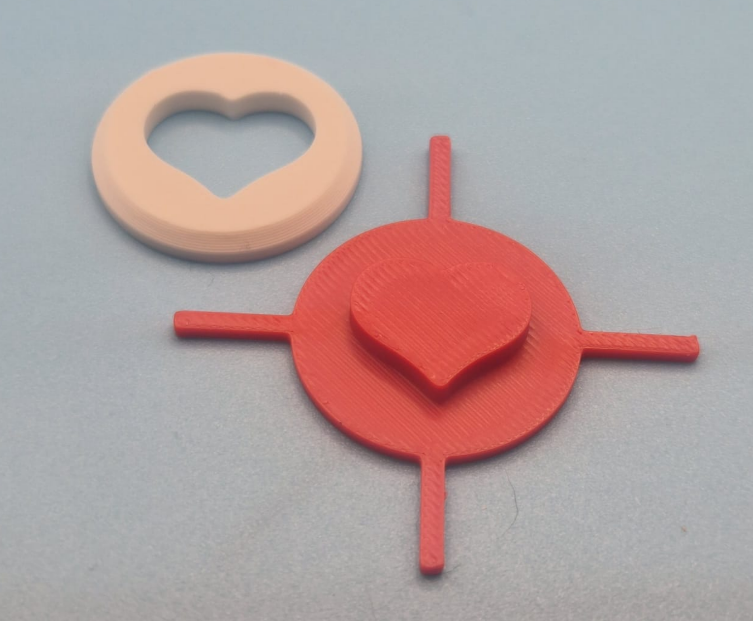

1b. (NON-AMS Version only) Glue the white circle to the red lines & heart part.

You'll need 2 short lines and 2 normal lines.

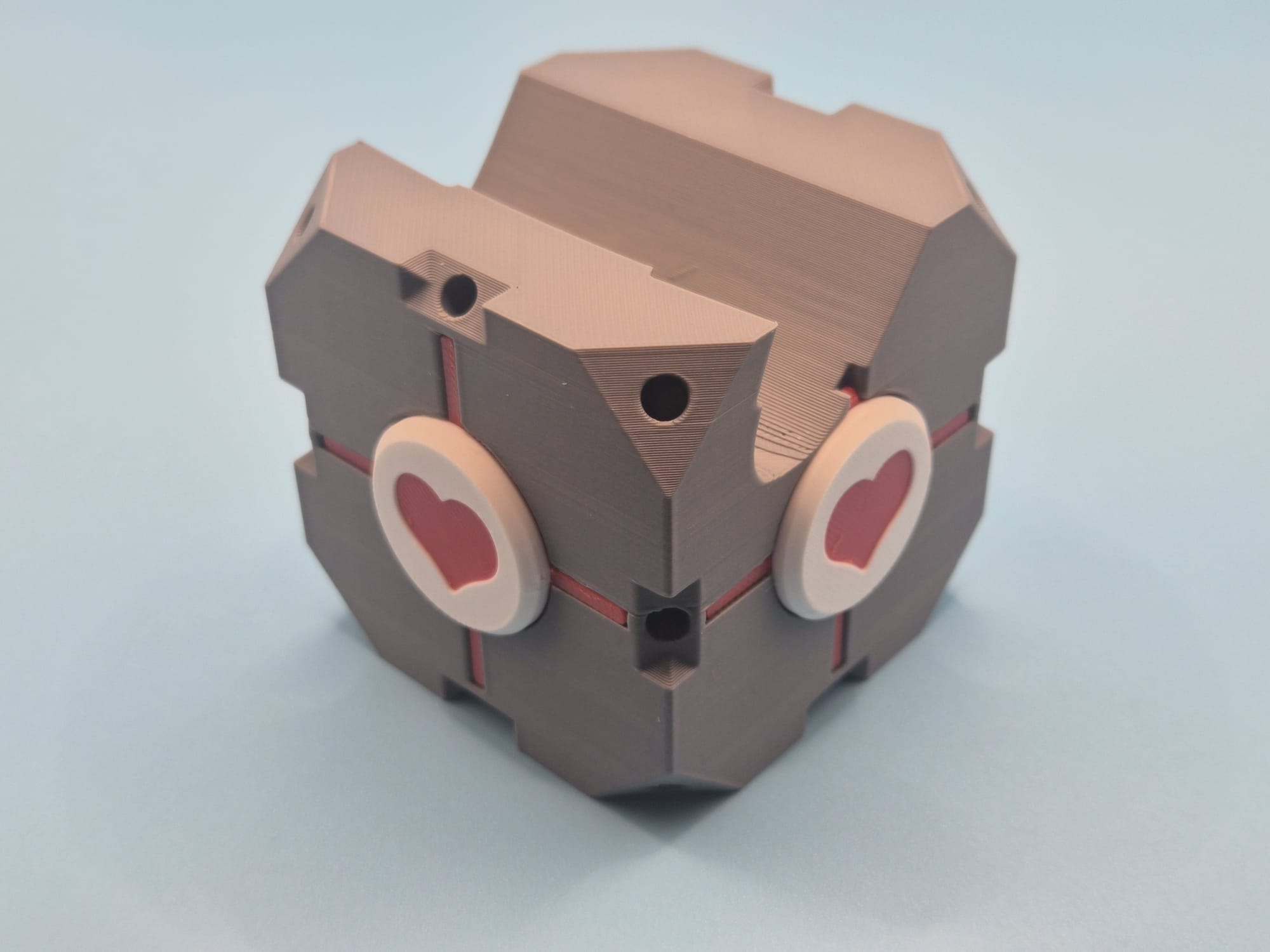

2. Push in the circles in each side.

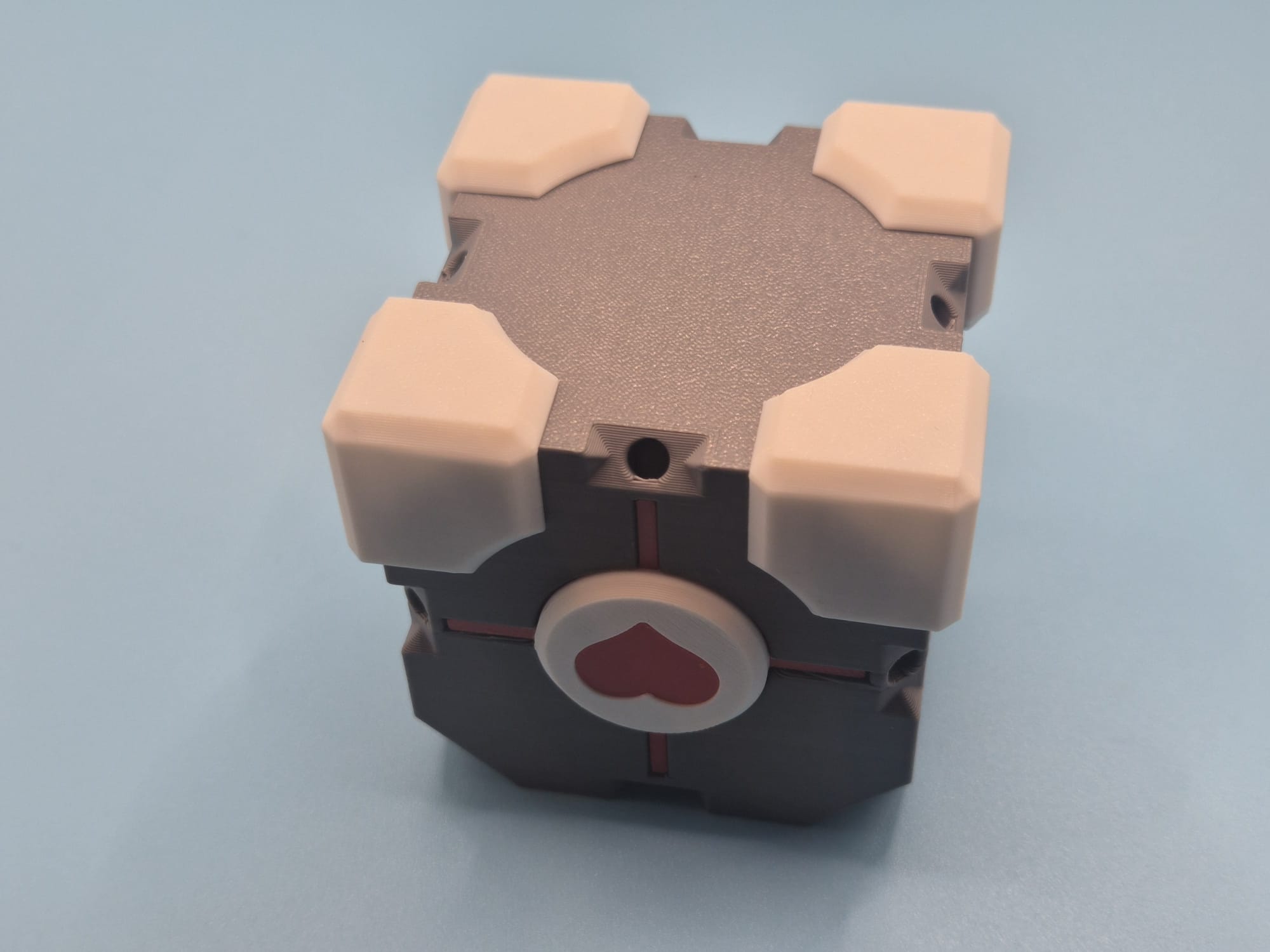

3. Turn the cube upside-down and insert the 4 bottom corners, with the side that was on the build plate on the bottom side.

(Note: Do not use the corners that have text on them)

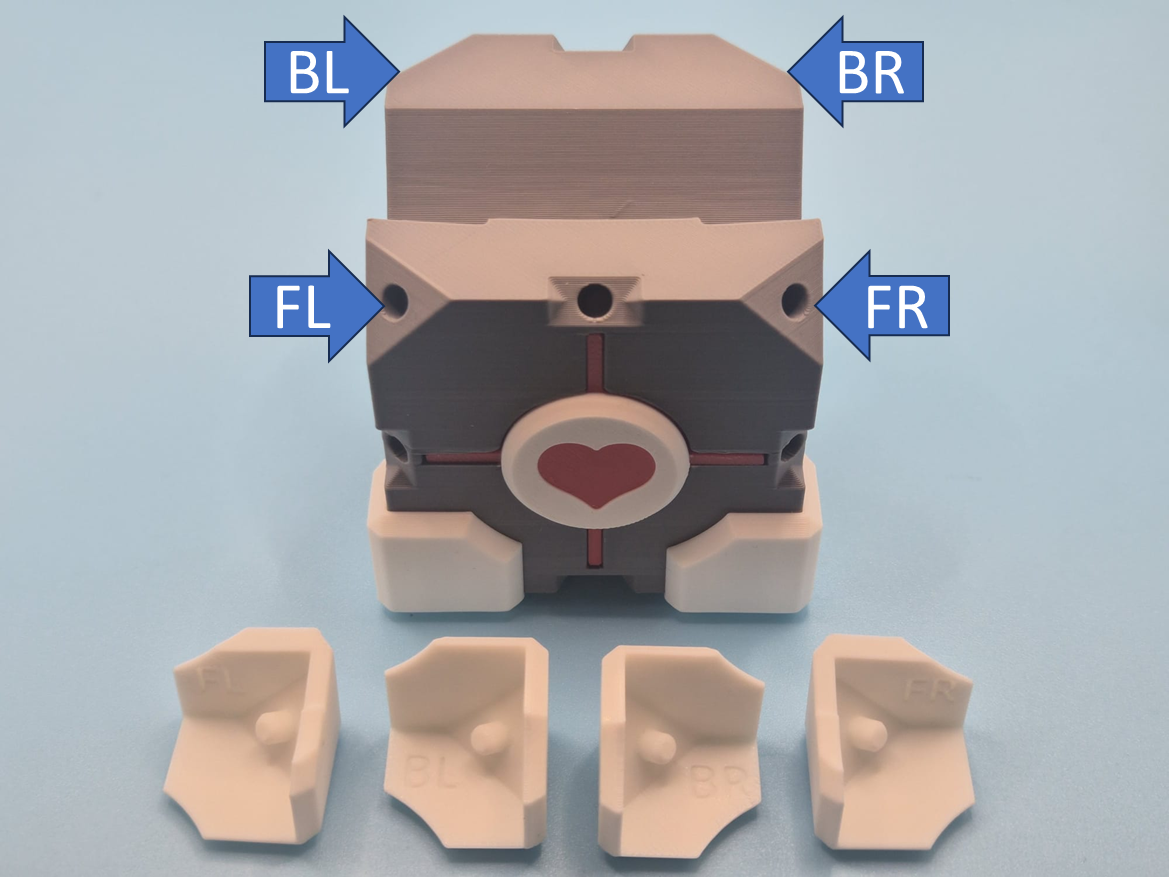

4. Rotate the cube so the front is facing you. Insert the 4 top corners matching the letters to the arrow.

(Note: The side that was on the bed should face upwards)

(FL = Front Left, FR = Front Right, BL = Back Left, BR = Back Right).

5. Insert the 10 middle edges.

6. Boost this model

Any Issues

Please comment or DM me any issues you have.

Updates

20/05/2026 - Initial release

Commercial Use

If you wish to sell this model commercially, drop me a DM.
