Segmenta - Modular LED Corner Light — STL Grátis

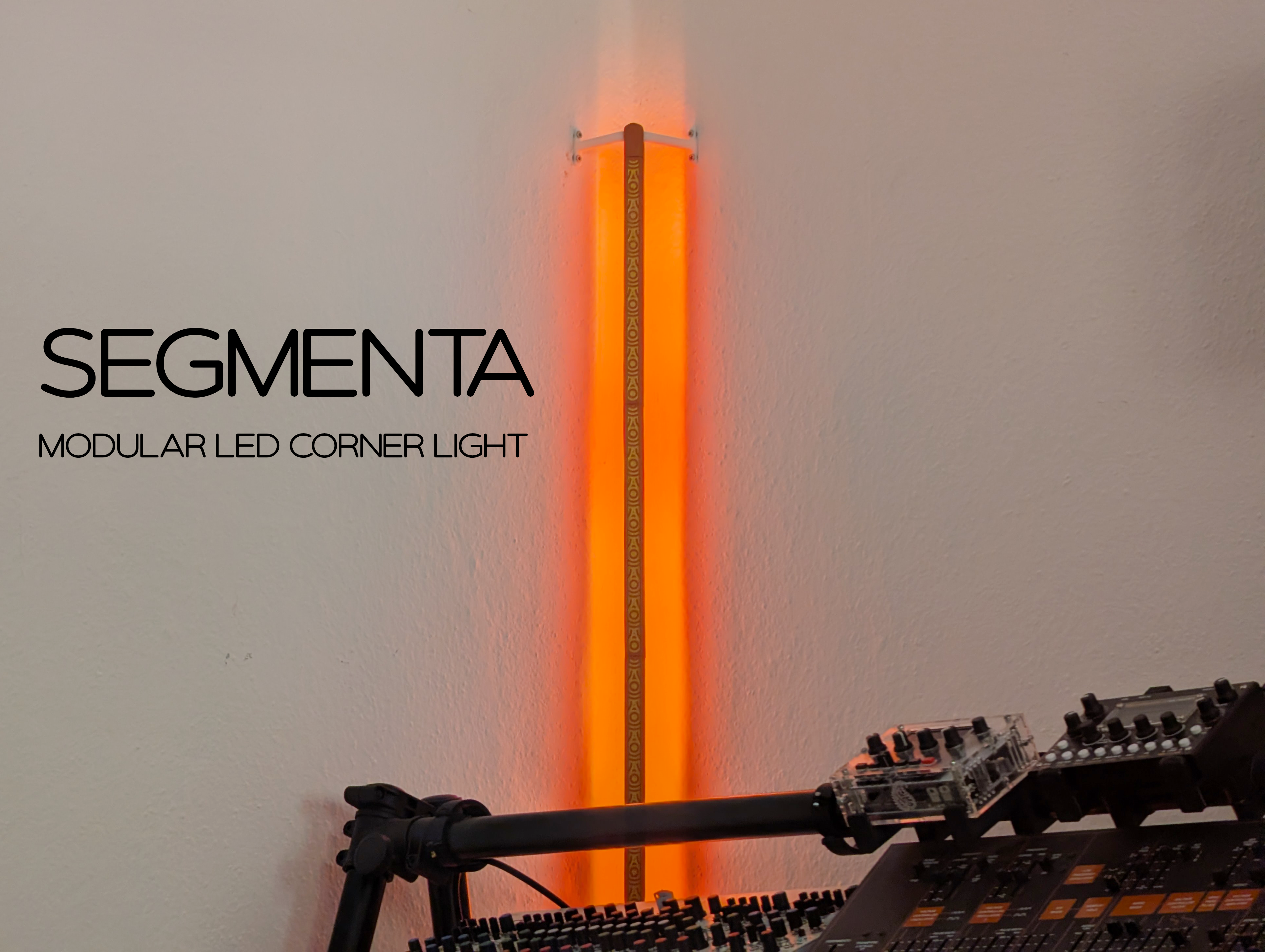

Transform your space with this sleek, modular LED corner lamp. Designed with both simplicity and customizability in mind, this light fixture seamlessly integrates into any room corner to cast a warm, ambient glow.

Whether you are looking for a clean, minimalist aesthetic or a more intricate light installation, this design adapts to your vision. It features two distinct variations: a standard "raw" version for a pure, modern look, and a detailed version featuring beautiful decorative inlays on the backside.

To ensure anyone can build this regardless of their equipment, the structural files are available in three different sizes to perfectly match your specific 3D printer's build volume.

Print Guide

This model is designed to be highly accessible and straightforward to print.

Print with Support
No other setting changes needed

Bill of Materials (Printed Parts)

Depending on how tall you want your final lamp to be, print the following:

Your amount of LED Profiles
Matching amount of Diffusers (1 per LED Profile)
1x End Part Bottom
1x End Part Top
2x Holder Left
2x Holder Right

Step-by-Step Build & Installation Guide

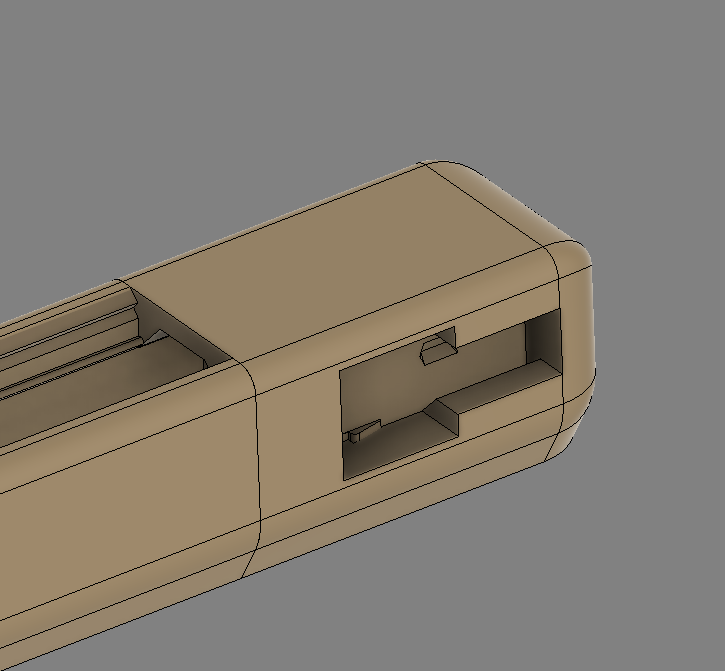

1. Assemble the Frame Start by clipping the End Part Bottom onto your first LED Profile. If you are building a taller lamp, connect your additional LED Profiles together—they feature easy-to-use snap-fit connectors. Once your tower is built to your desired height, snap the Top Endpart securely into place.

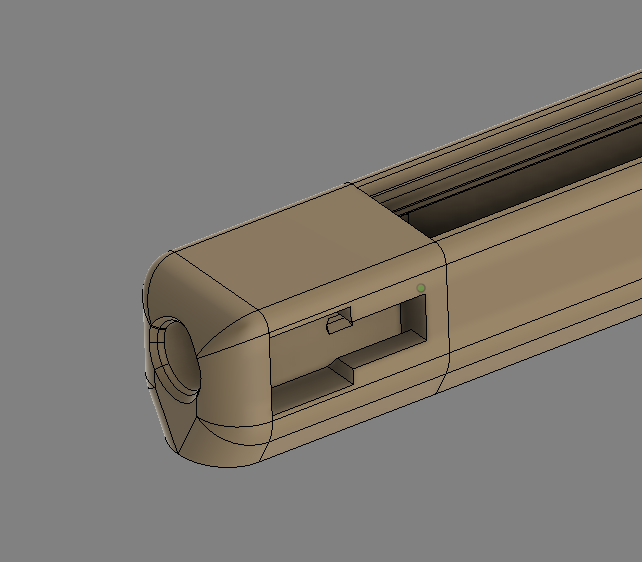

2. Prepare the Lighting Measure and cut your LED strip to match the length of your assembled profiles. Connect your power cable to the LED strip, and route the wire through the designated hole in either the top or bottom end part (depending on how you want to manage your room's cable setup).

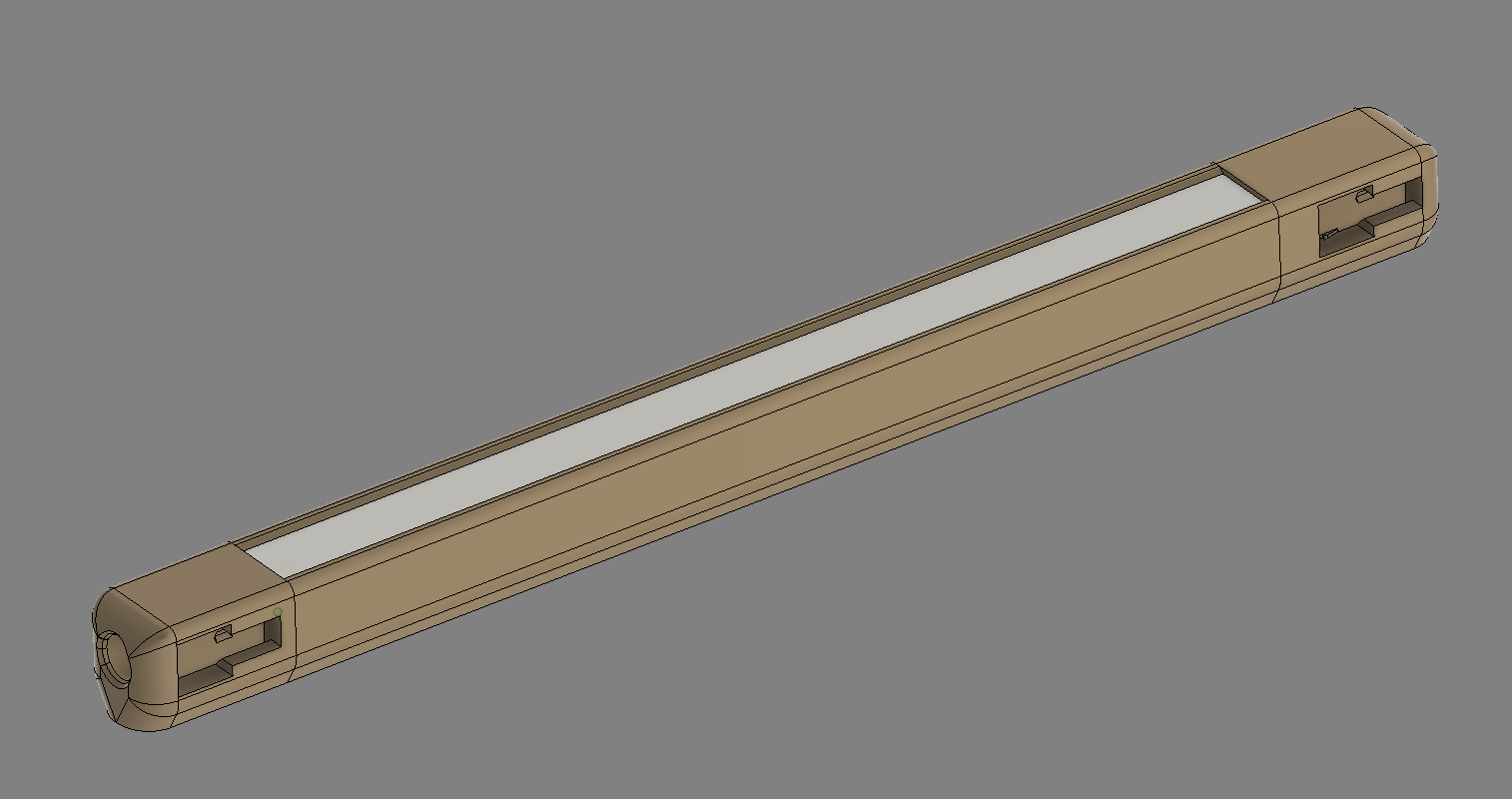

3. Install the LEDs Carefully stick the LED strip down into the center channel of your connected profiles, then attach your printed diffusers over the front.

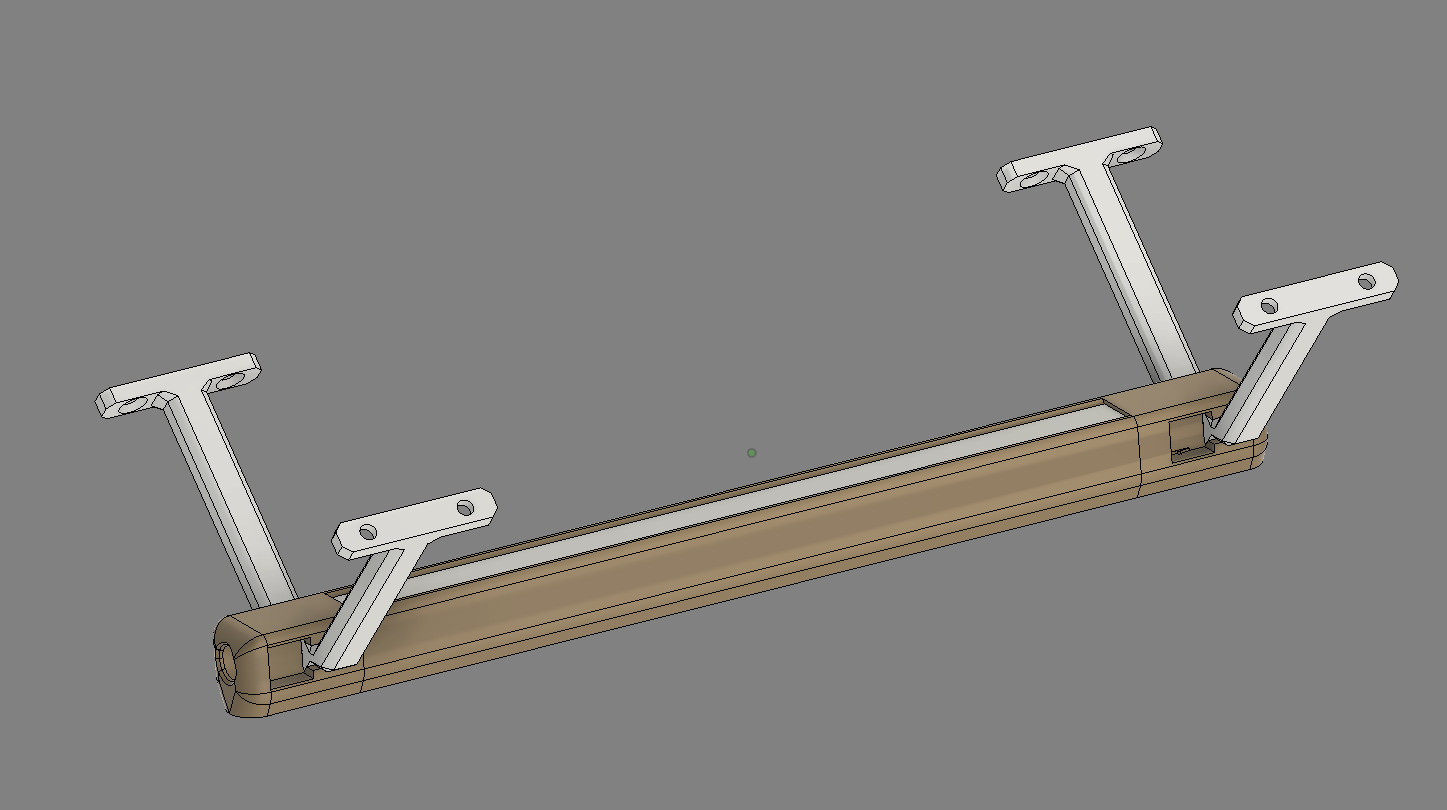

4. Mount to the Wall Temporarily attach the Left and Right Holders to the top and bottom Endparts. Hold the entire lamp assembly perfectly vertically in your chosen room corner and mark the screw hole positions on the wall with a pencil.

5. Final Setup Set the lamp aside, drill your marked holes, and screw the holder parts directly into the wall. Finally, gently slot your assembled LED profile structure into the mounted holders.

A Video of this process will be uploaded very soon!

If you have any problems along the way feel free to reach out!
