Parametric Geometric Floating Wall Shelf

Create your own fully customizable geometric floating wall shelf directly in the customizer!

This parametric model allows you to generate modern wall shelves in multiple shapes and sizes, with a smart integrated mounting system designed for clean printing and easy wall installation.

✨ Features

🔷 Multiple geometric shapes

Choose between several shelf styles:

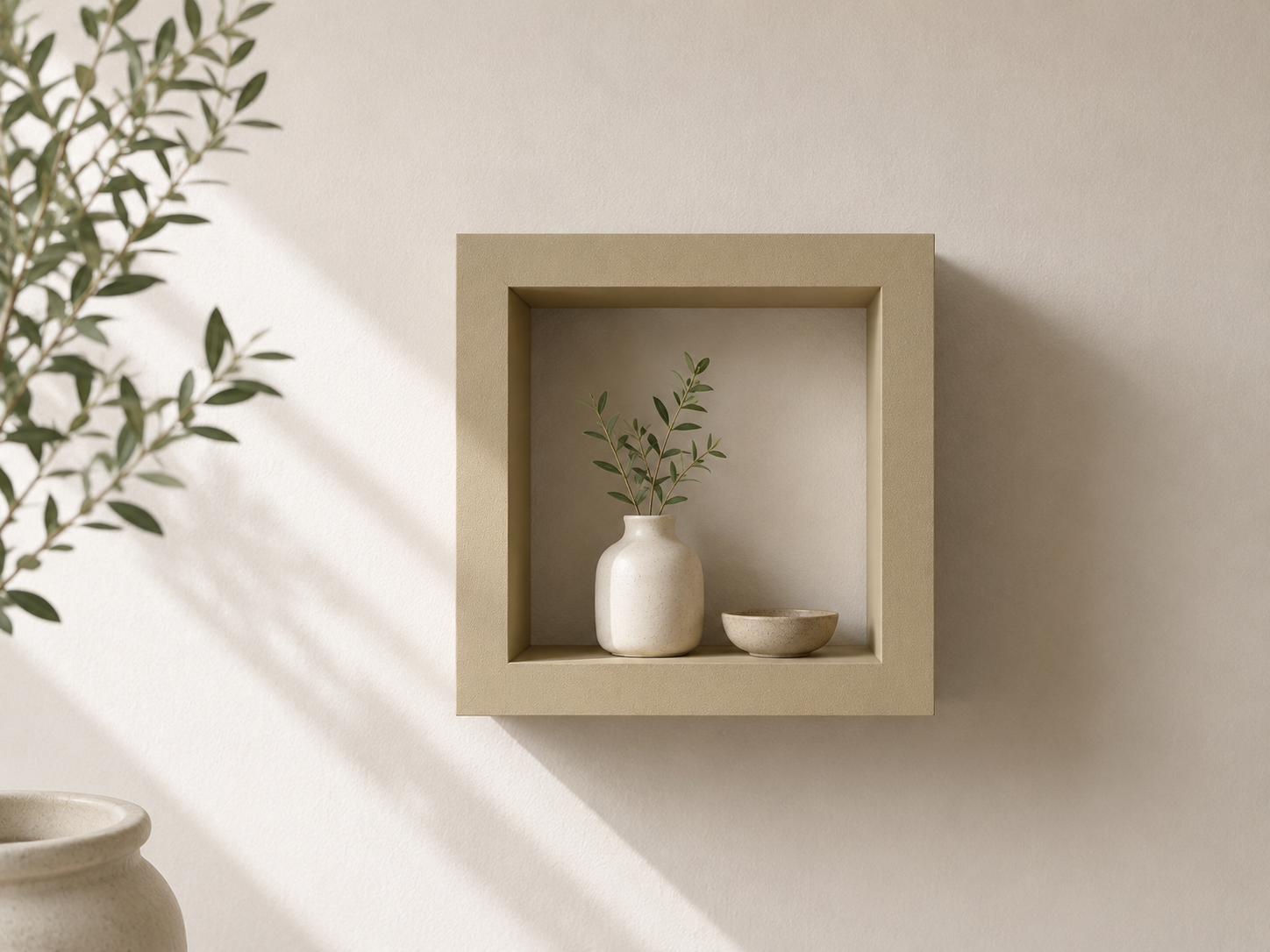

Rectangle

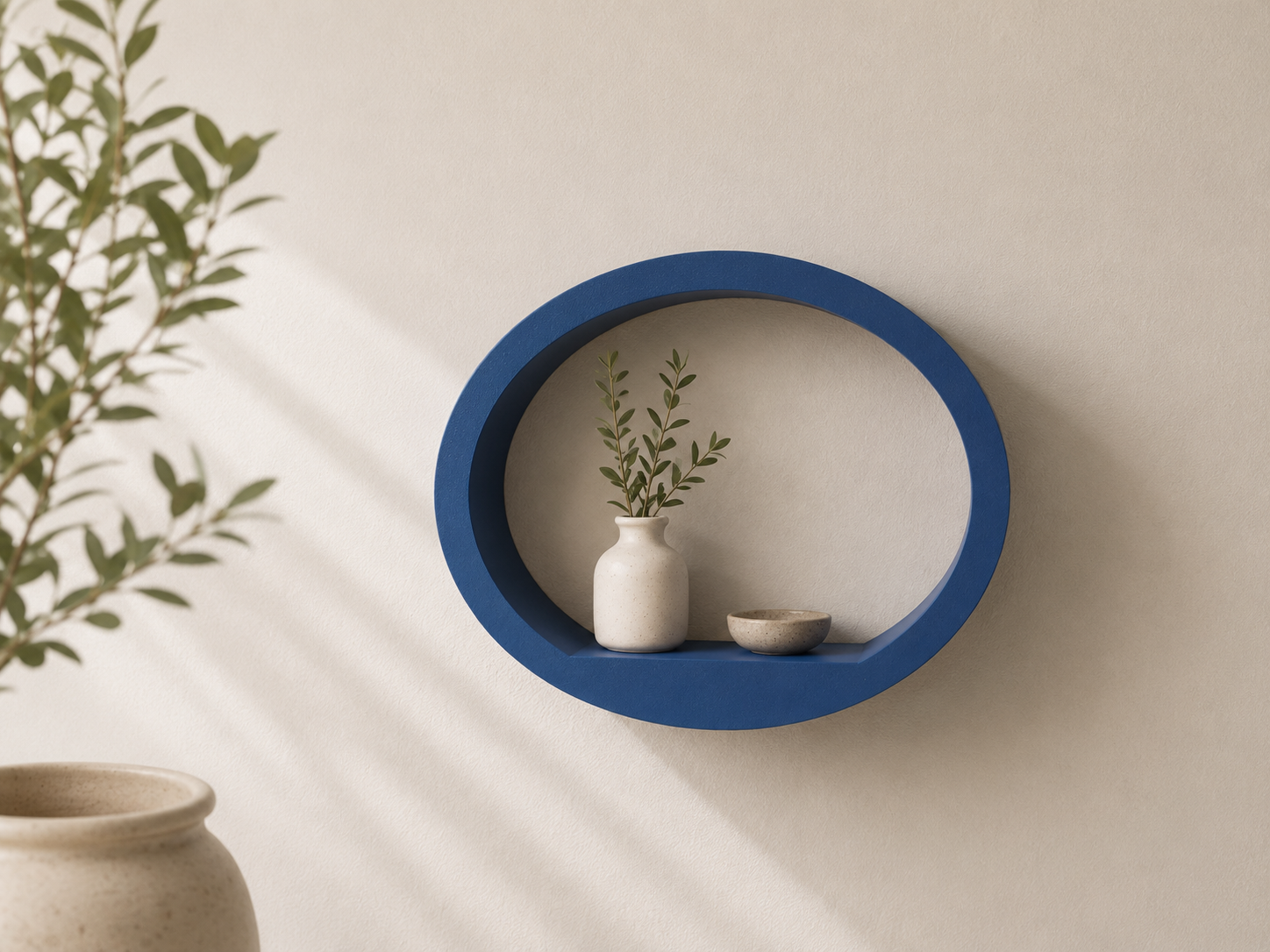

Round
Diamond
Hexagon
Inverted Hexagon

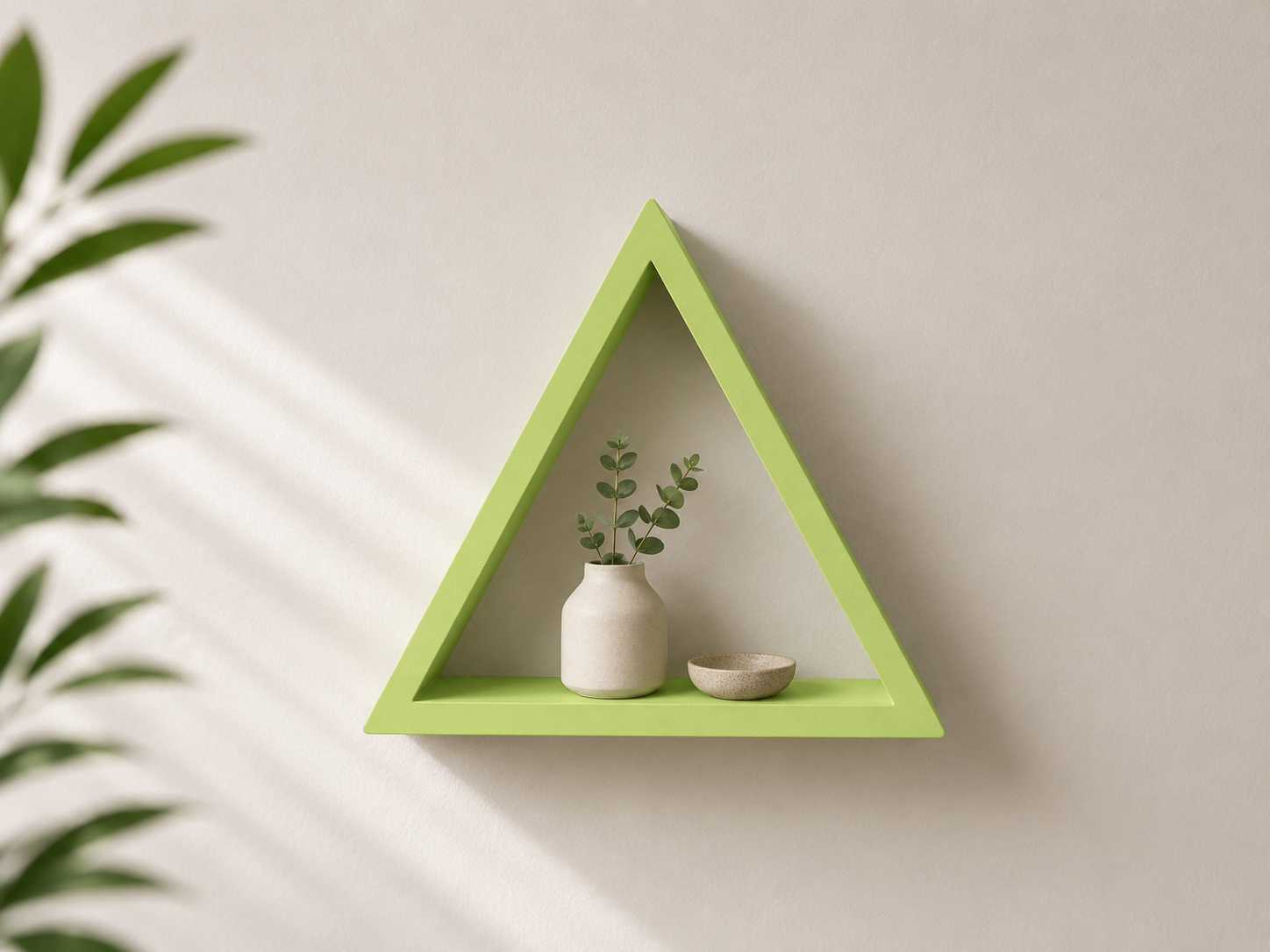

Triangle
Inverted Triangle

📐 Fully parametric

Customize:

Shelf width
Shelf height
Shelf depth
Wall/frame thickness
Corner radius
Floor/platform height
Mounting type
Screw type (M4 / M5)

🧱 Optional integrated floor

Some shapes support an optional bottom floor/platform for additional storage and stability:

Round
Diamond
Inverted Triangle

The floor height is also customizable.

🔩 Smart wall mounting system

Integrated hidden keyhole mounting system:

Clean invisible mounting from the front
Optimized for 3D printing
Automatic placement depending on shape
Supports M4 and M5 screws
Advanced mounting geometry for complex shapes

Different shapes automatically use the most appropriate mounting strategy:

Full keyholes
Semi-keyholes
Hidden head pockets
Slope-aware placement

🪛 Important mounting note

For proper installation, screw heads must protrude approximately:

7 mm from the wall

This allows the hidden mounting system to lock correctly behind the screw heads.

🧩 Wall drilling template included

Optional printable wall drilling template:

Automatically matches keyhole spacing
Compact size (only as large as necessary)
Single-hole shelves automatically disable unnecessary templates
Helps position screws accurately on the wall

🖨️ Printing recommendations

Recommended materials:

PLA
PETG
ABS/ASA for stronger wall installations

Recommended settings:

3–5 walls
10–25% infill
Add some modifiers on the keyholes for strength (see my print profiles)
Add some supports for the keyholes (very easy to take off)

⚠️ Notes

Very thin walls are automatically prevented for structural safety.
Some mounting systems adapt automatically depending on shelf proportions.
Large corner radii may slightly affect internal mounting placement to preserve strength.

❤️ Fully customizable

Perfect for:

Minimalist interiors
Decorative wall storage
Gaming setups
Offices
Bathrooms
Kitchen organization
Display shelves

Create your own unique geometric shelf design in seconds.
