Controller Panel Box

This default controller panel is a design we have been using in several electronical hobby projects. We decided to share it as it might serve a purpose for some of you! The default profile is a closed box which used M4 threaded inserts for the lid. Use a series of negative parts in any slicer software to cut out the shapes necessary for your projects. Alternatively you can download the STEP file and add more complicated shapes!

Compatible with all Bambu printers: X series, P series, H series. A1 and A1 mini.

Instructions

• Print per object to ensure better adhesion and results (NOT ACTIVATED BY DEFAULT FOR PRINTER COMPATIBILITY)

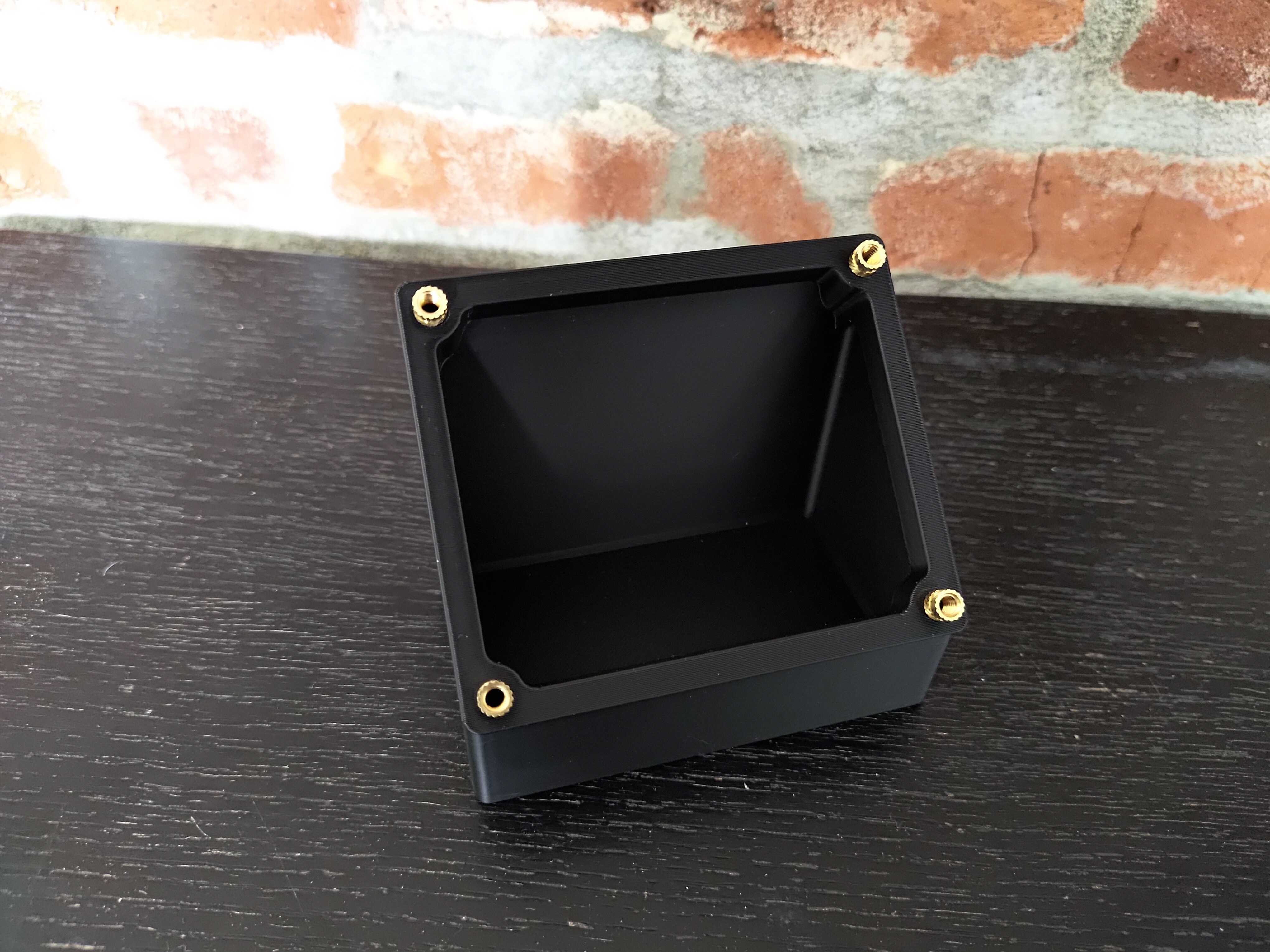

• Insert 4x M4 threaded inserts (MAX 6mm in length)



Tips

• Use your slicer software to add negative parts and shape the controller panel that you need!
• Download the STEP file for even more control of shaping your panel
• Fits PCBs to roughly 88 mm by 53 mm

Print Settings (recommended)

• Print per object to achieve better results and no stringing
• No supports needed
