Hooks Generator (Customizable Parametric)

Hi! This is a parametric hook generator, whether you need a tiny key clip, a heavy-duty garden tool mount, or an over-the-door organizer, you should be able to generate the exact geometry you need.

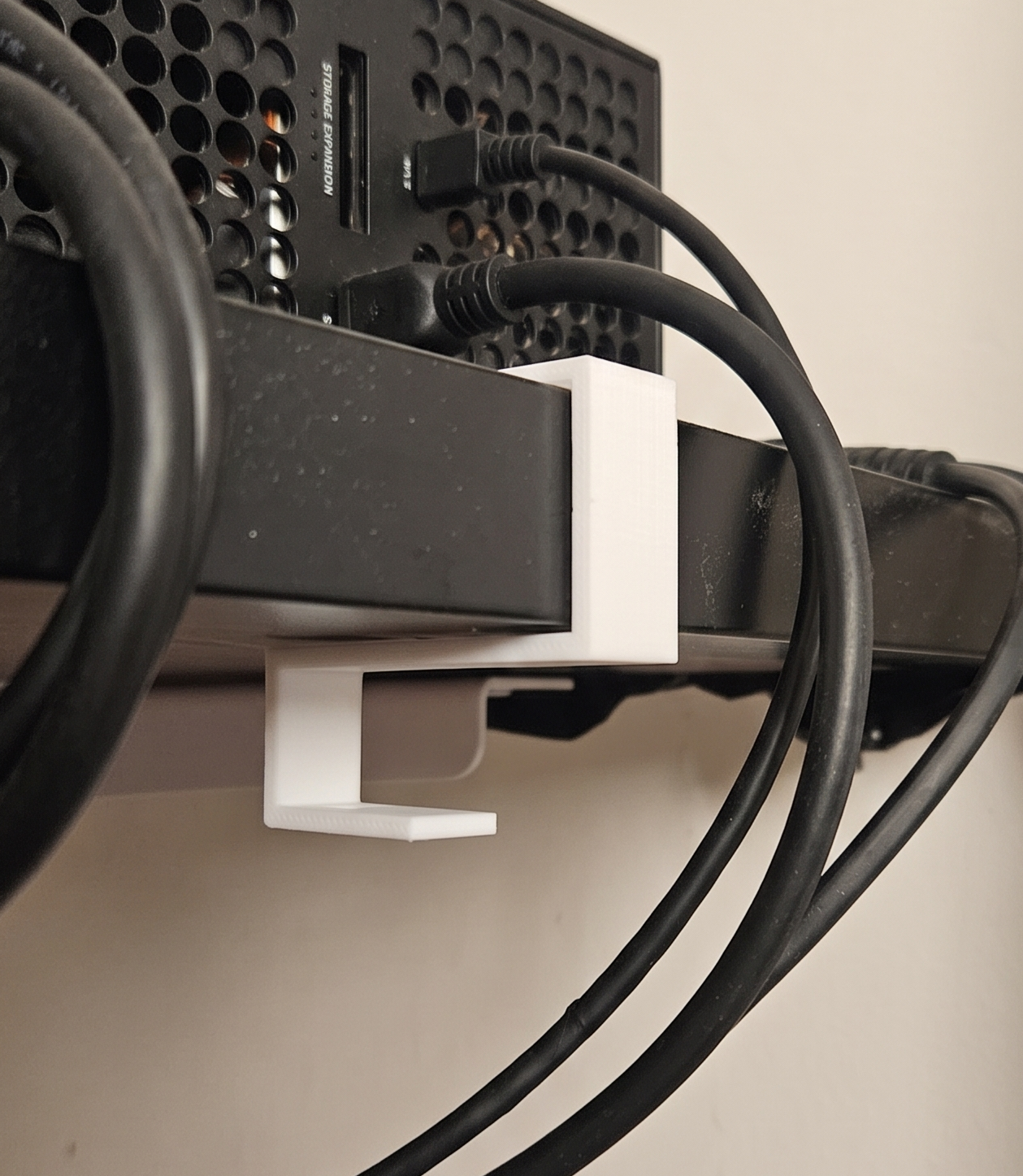

It uses a 5-segment "arm" system so you can shape it to fit over doors, over furniture edges, under shelves, or just flat against a wall. It’s designed to be printed on its side so the layer lines don't snap when you hang something heavy on it.

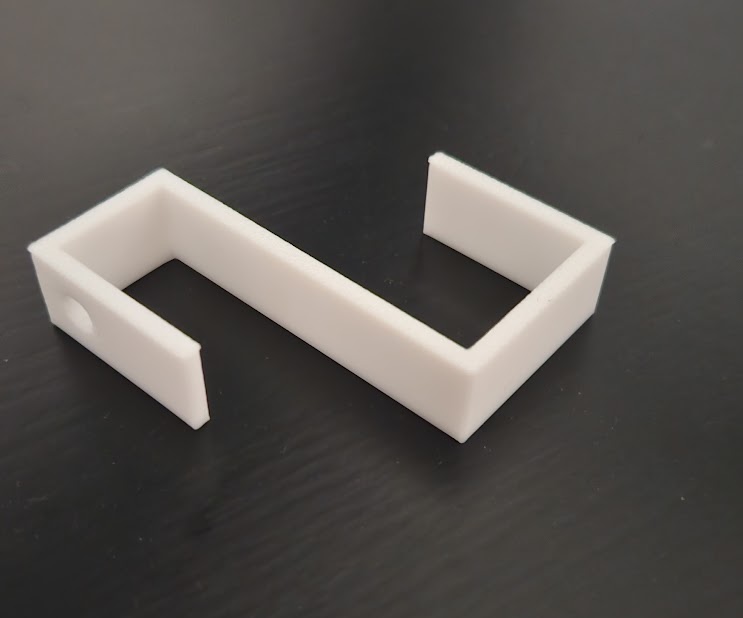

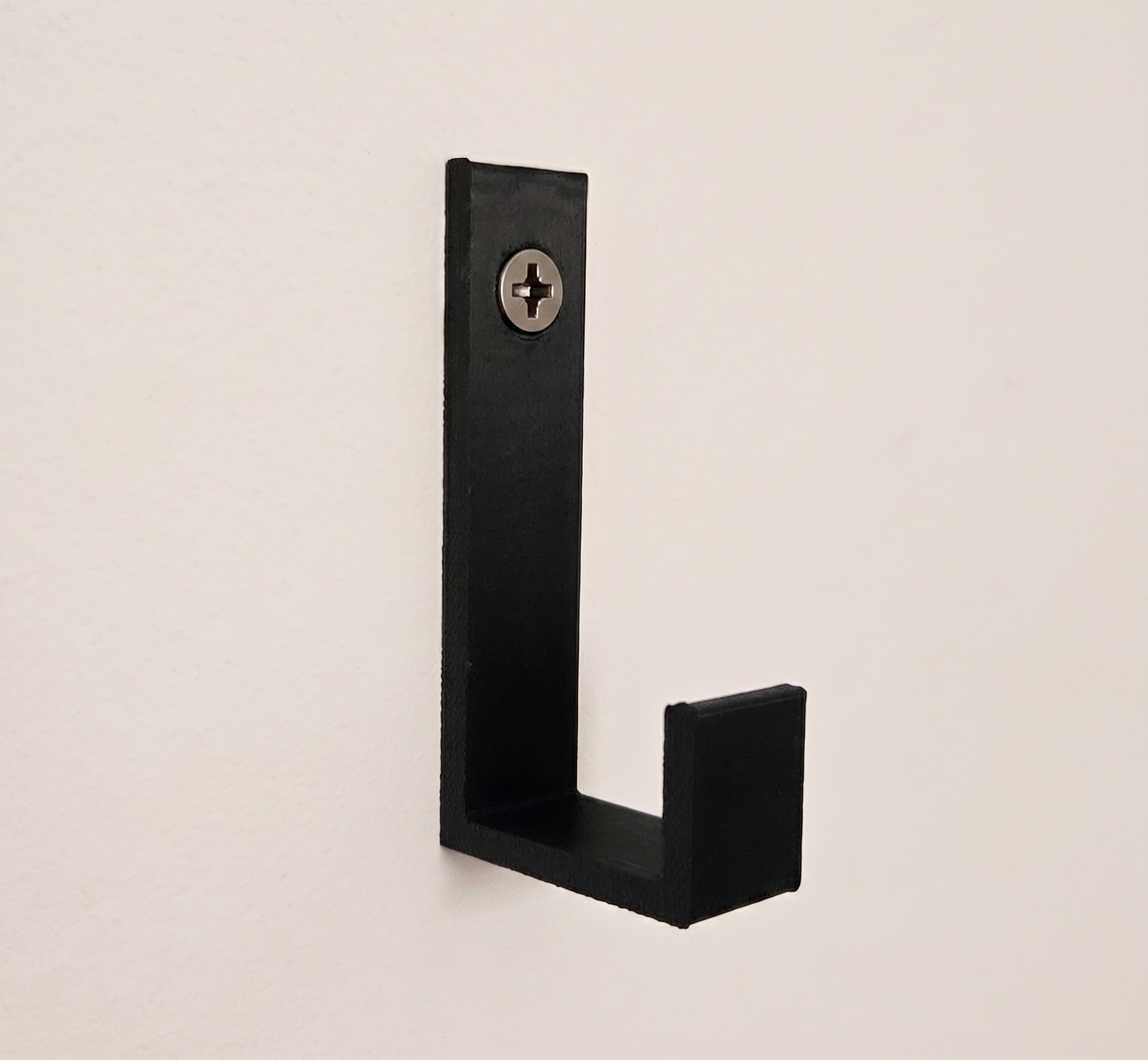

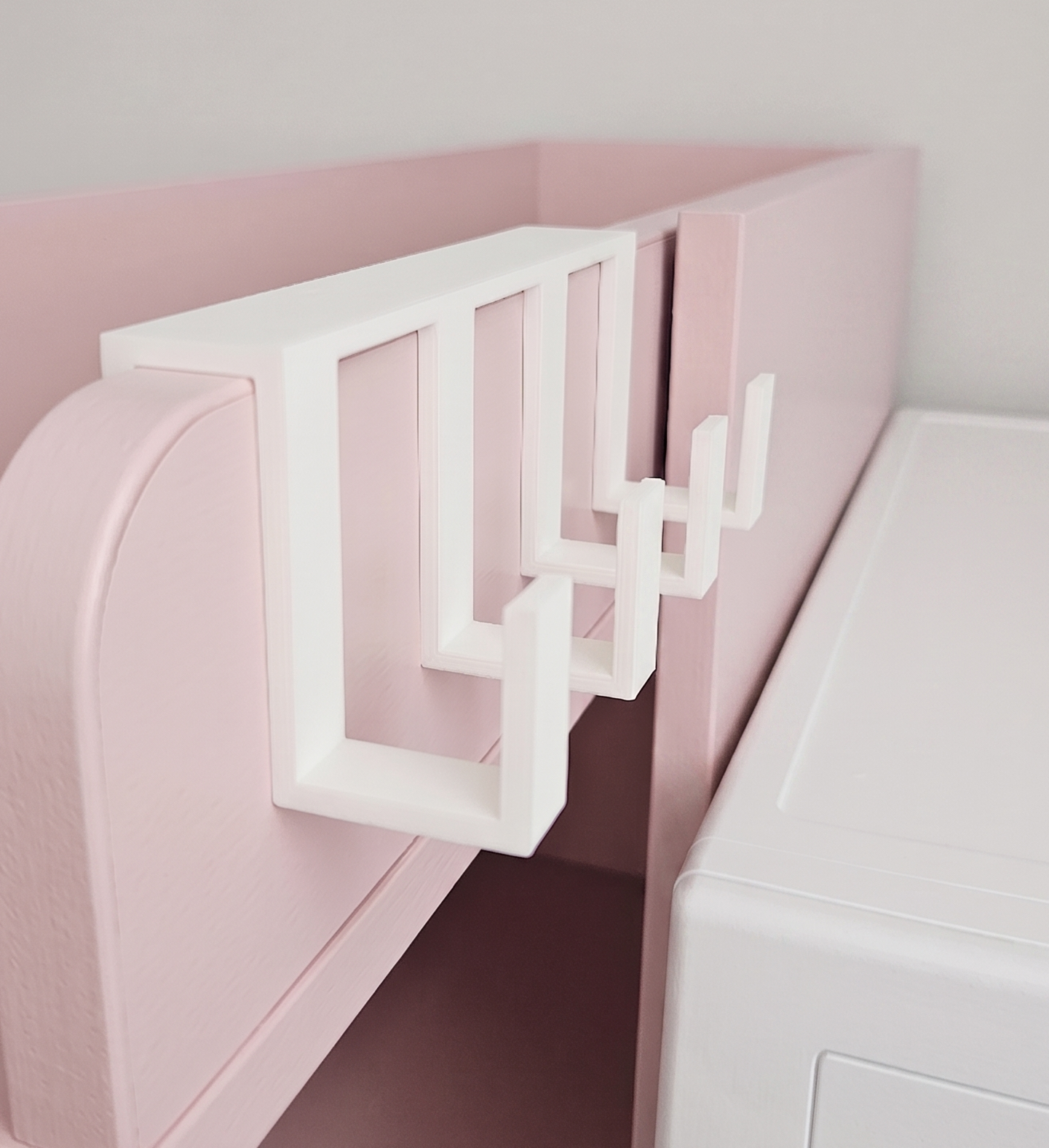

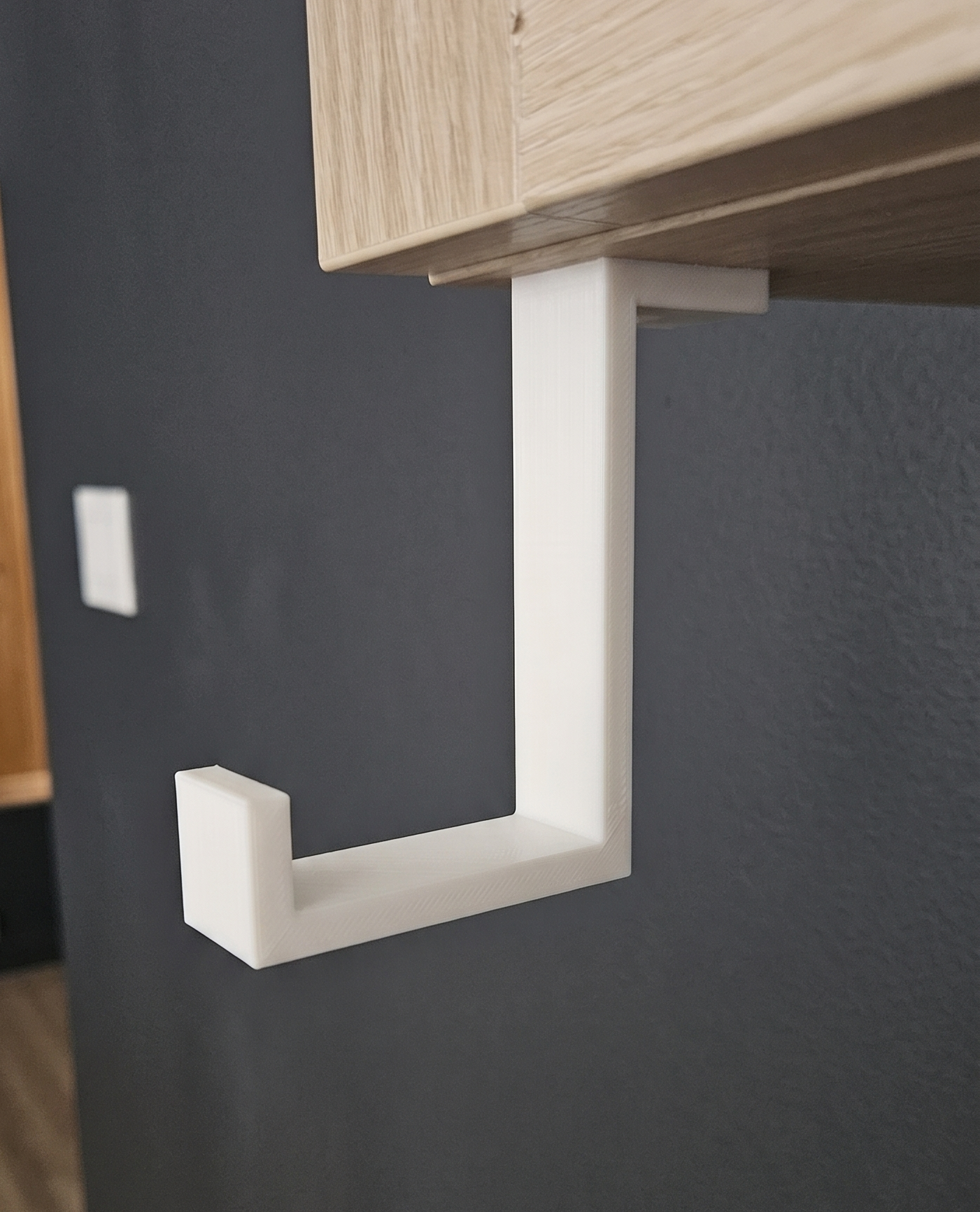

Examples:

How to configure it

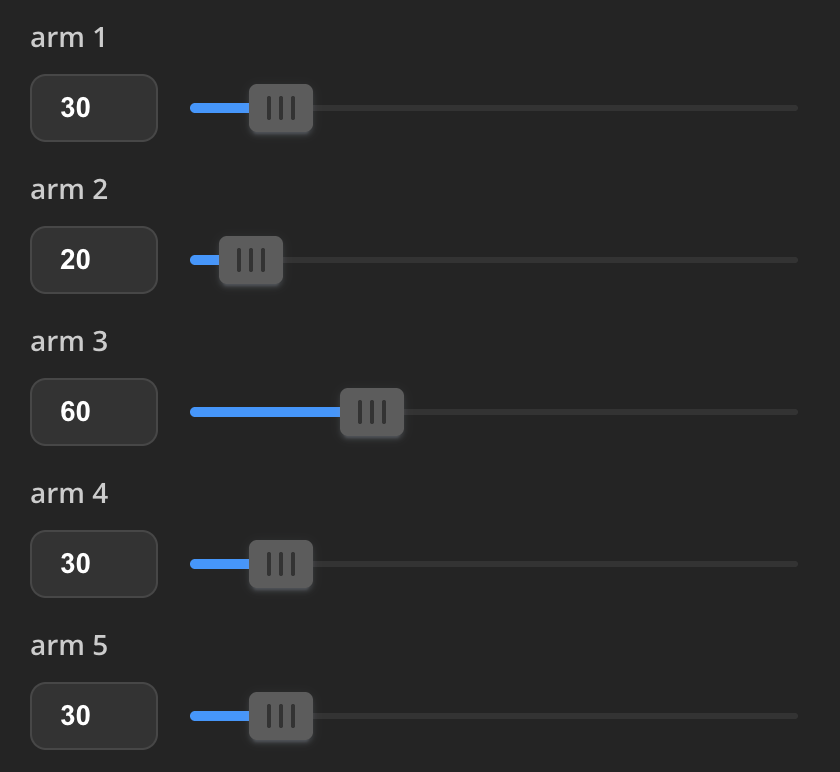

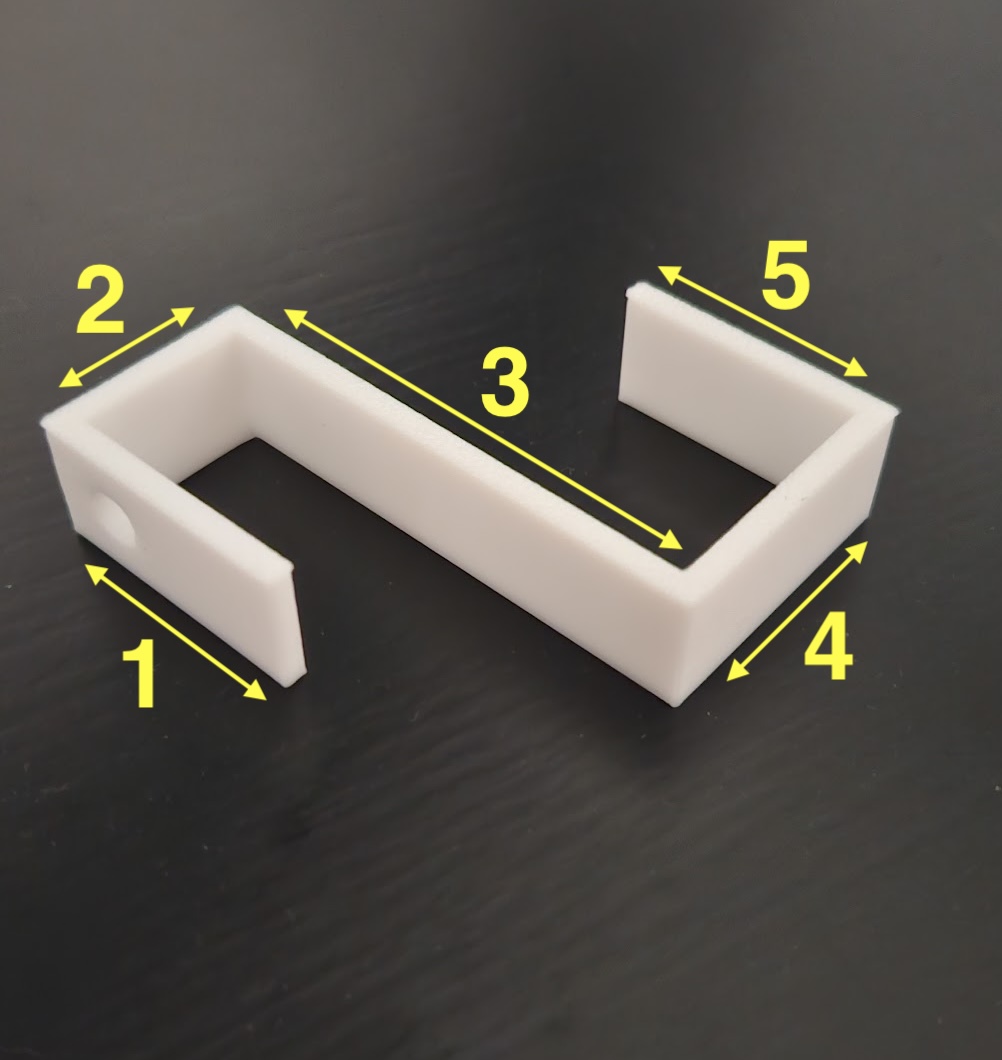

The hook is broken down into 5 segments (Arms 1–5). If you want to get rid of a segment, you can just set its length to 0

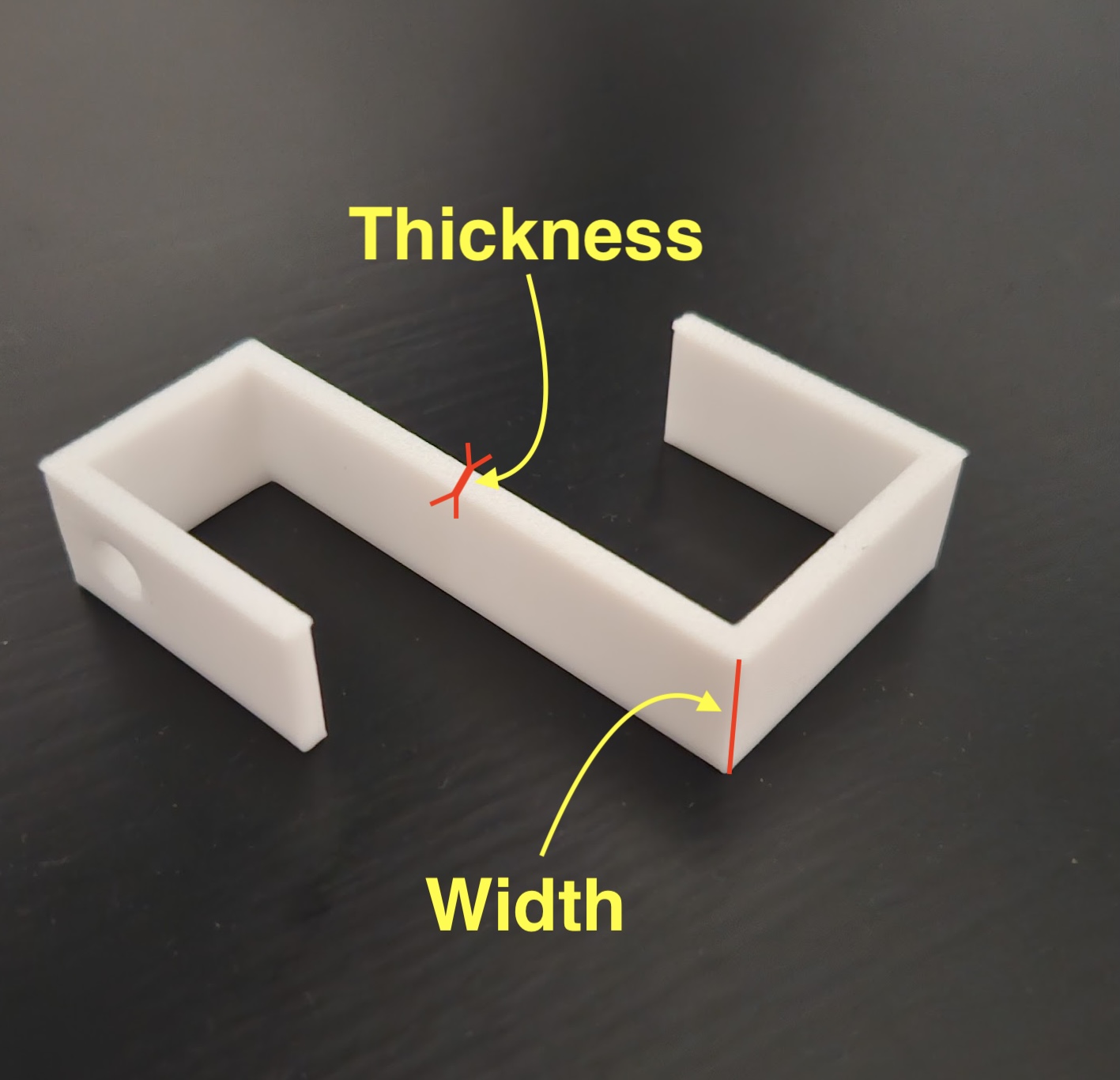

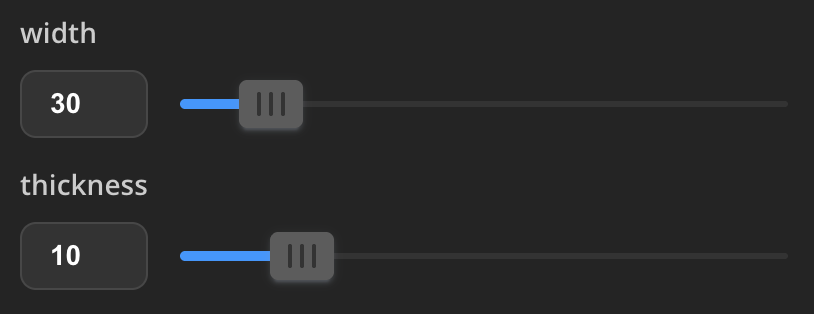

There are two parameters to change the thickness and the width of the hook(s)

Mounting:

Set “screw hole radius” to whatever hardware you have. If you're using command strips, set this to 0.

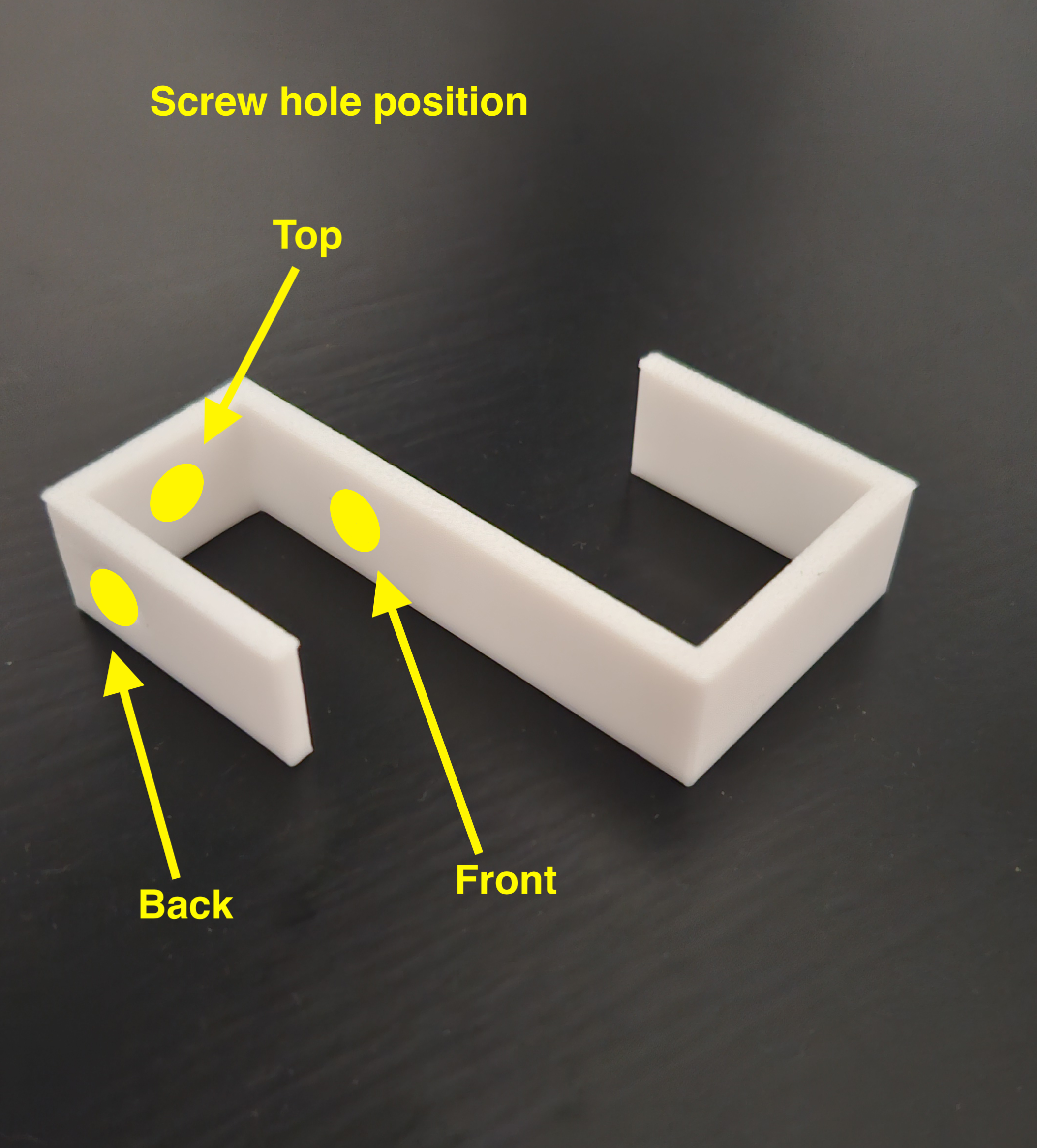

The “screw hole position” lets you toggle between mounting it to a wall (back), a ceiling/shelf (top), or a weird front-mount.

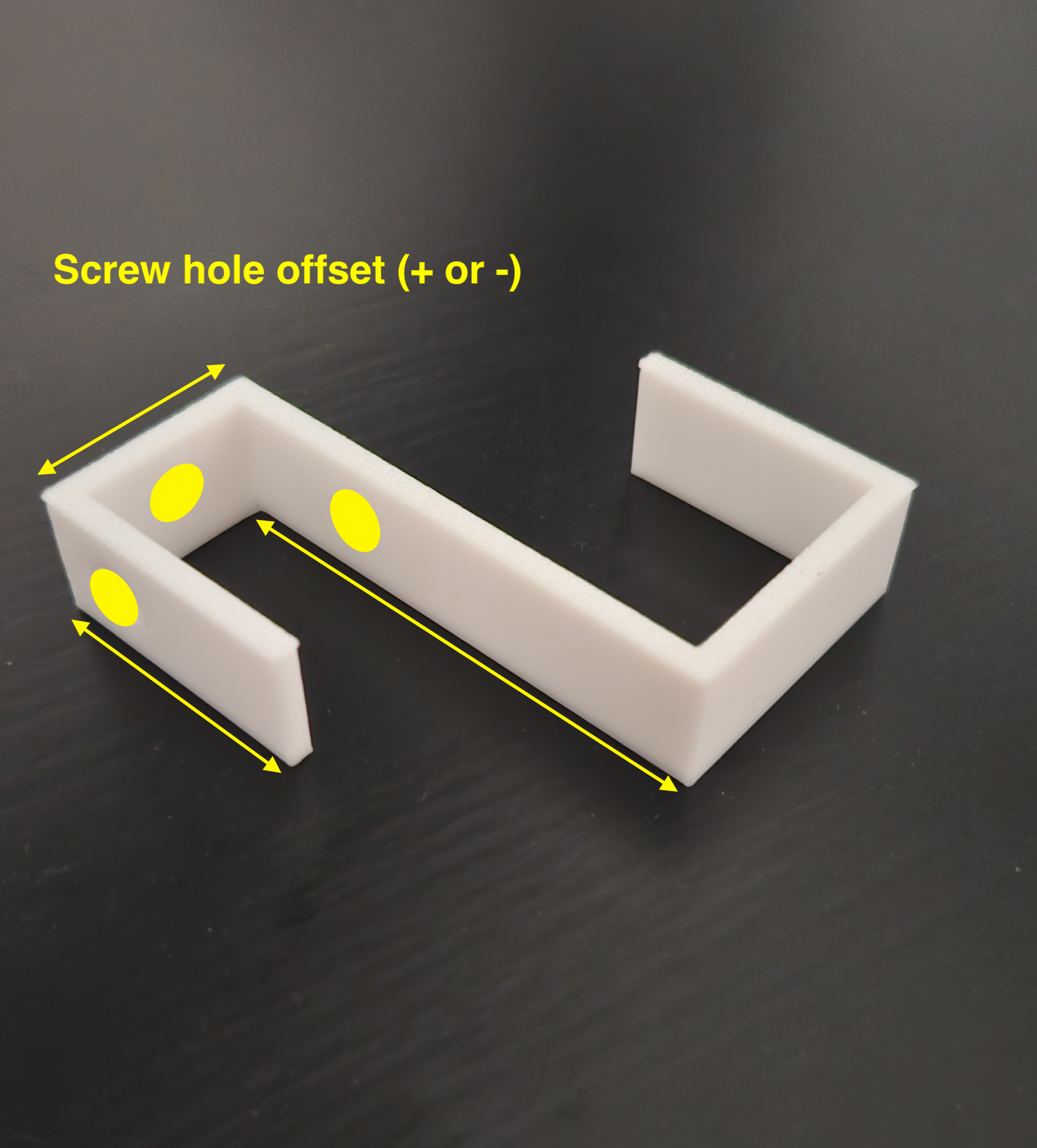

The “srew hole offset” lets you move the screw hole by +/- a specific offset (make sure it's inside the arm length)

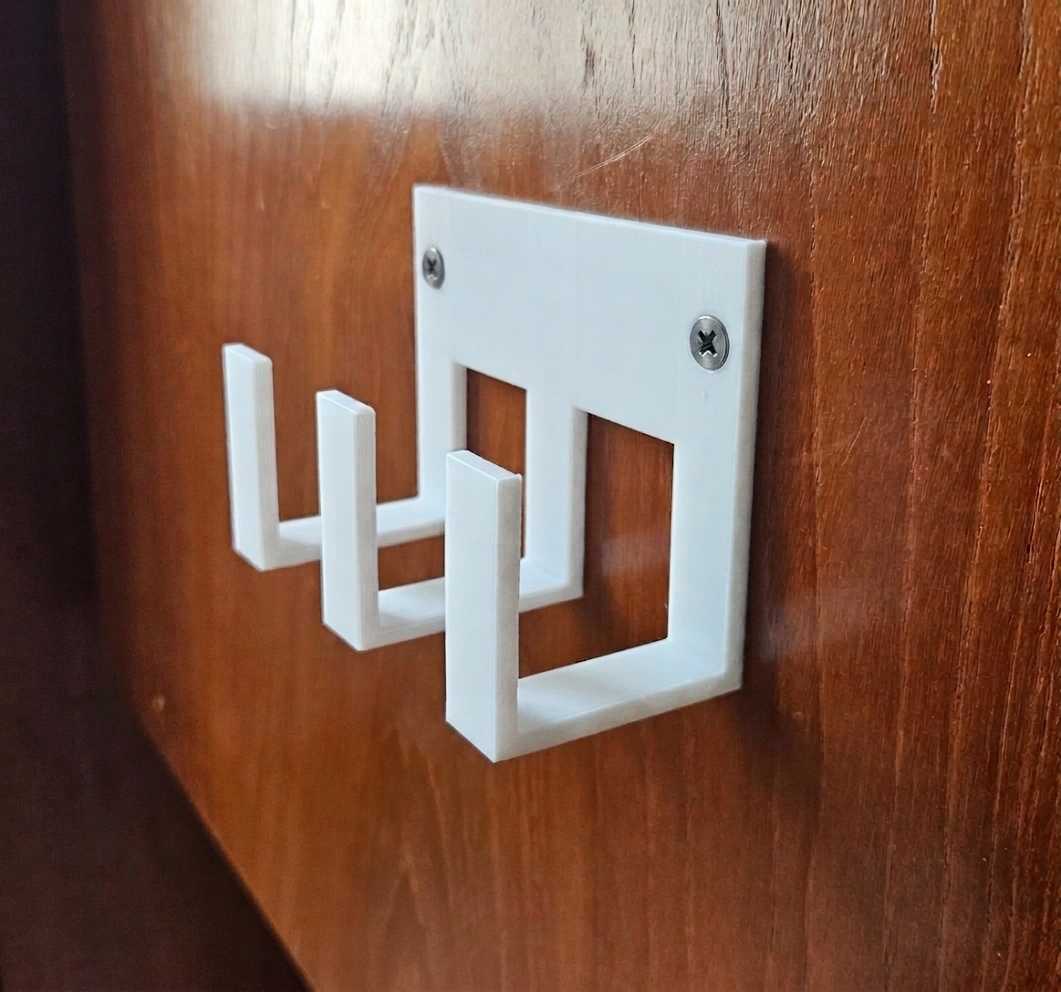

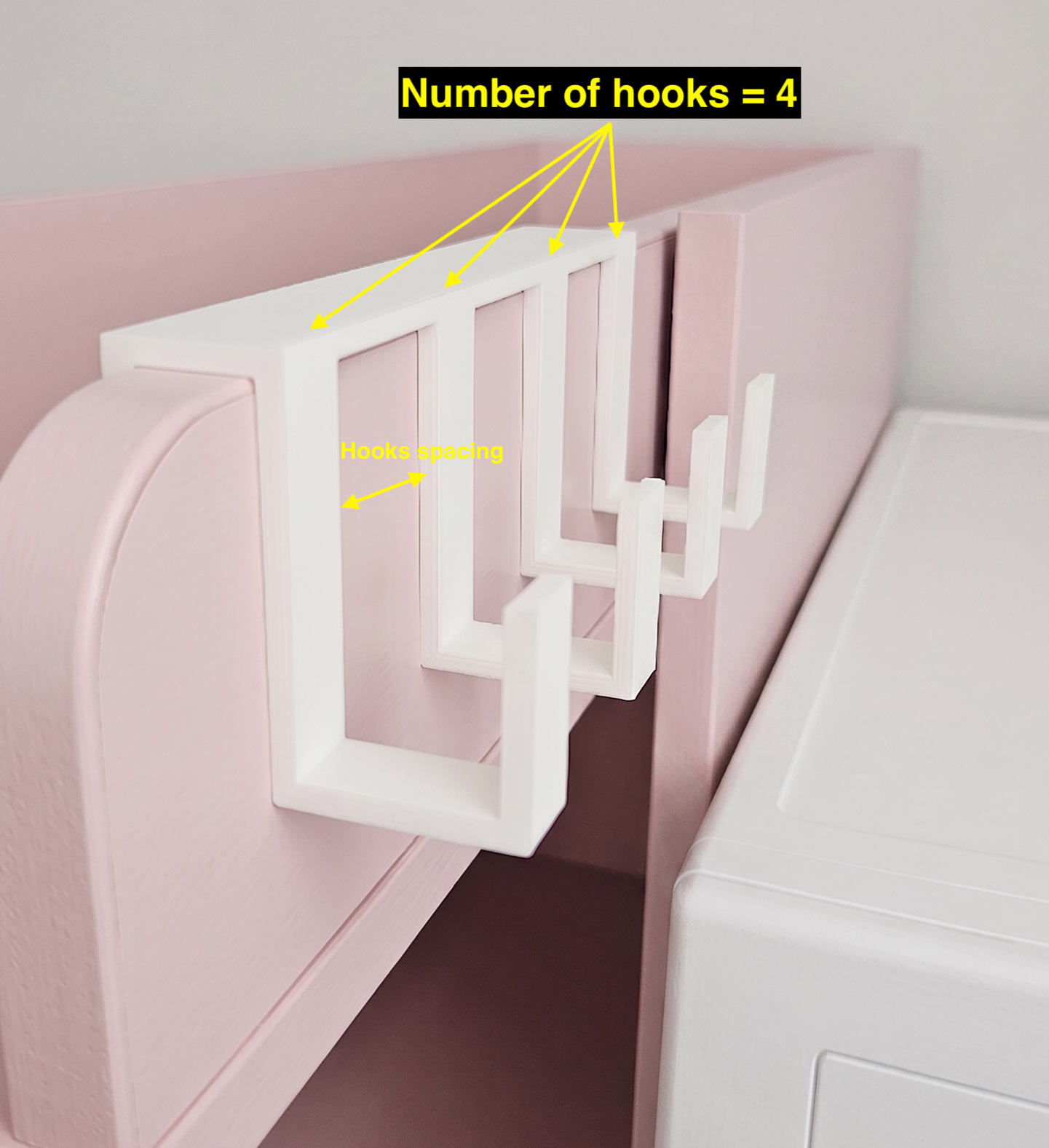

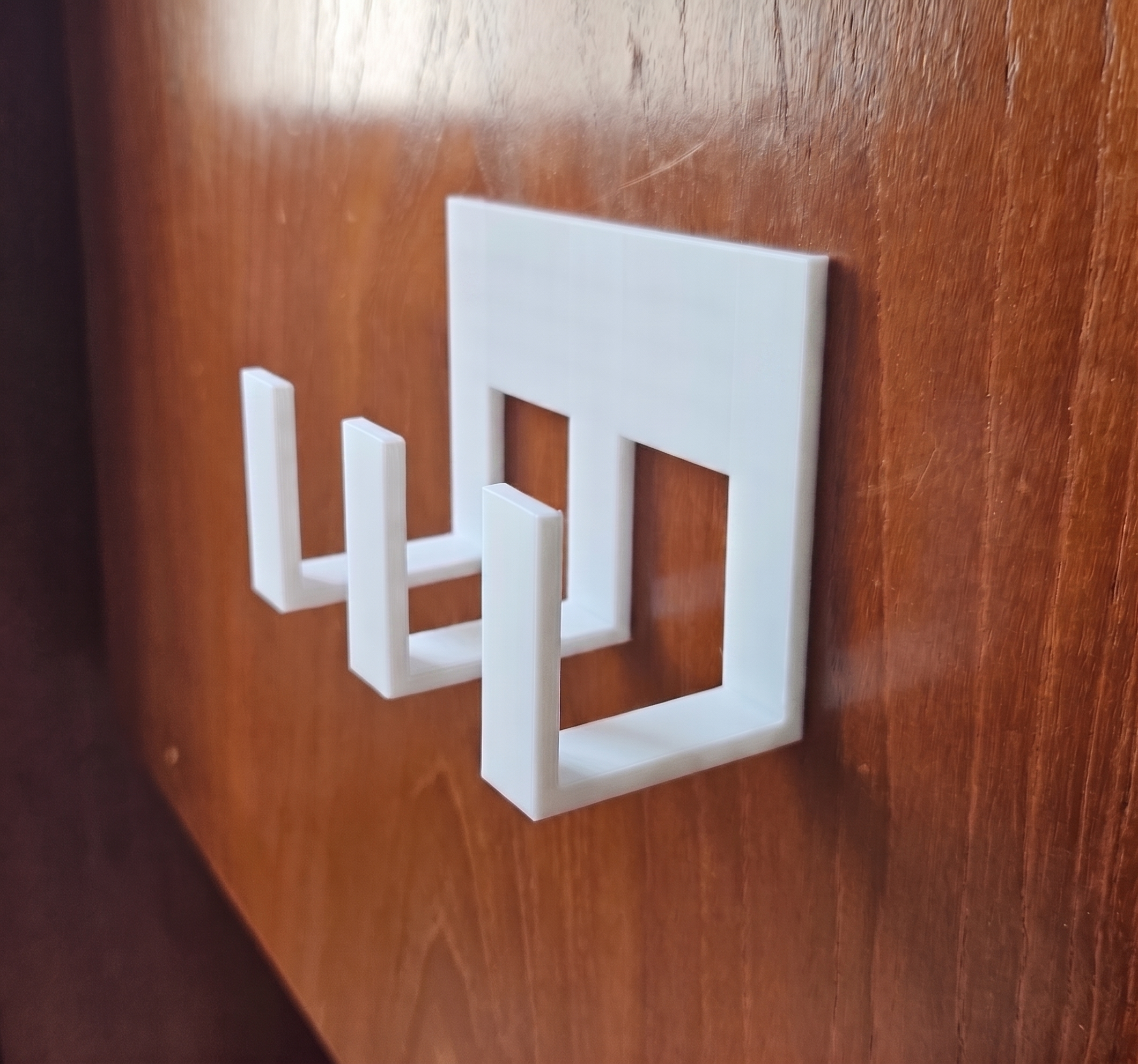

Multiple Hooks: If you change numbers of hooks parameter to anything higher than 1, the script automatically adds a support bar (Joiner) to keep them all aligned and spaced correctly. You can also set the hook spacing parameter to set the distance between hooks. The script automatically adds 2 screws holes at the right and left edges, if you don't need them (for example if you use double-sided tape) just set screw hole size to 0

Print Settings

Orientation: The script already rotates the model 90 degrees. Keep it that way. Printing it on its side is the only way to make sure the hook doesn't delaminate under load.
Strength: Don't bother with 100% infill. Just increase wall loops. That’s where the actual strength comes from.
Material: PLA is perfectly fine for most stuff
Supports: Use supports for printing multiple hooks
