Wire Shelf Hooks

(built on top of the parametric wire shelf attachment system)

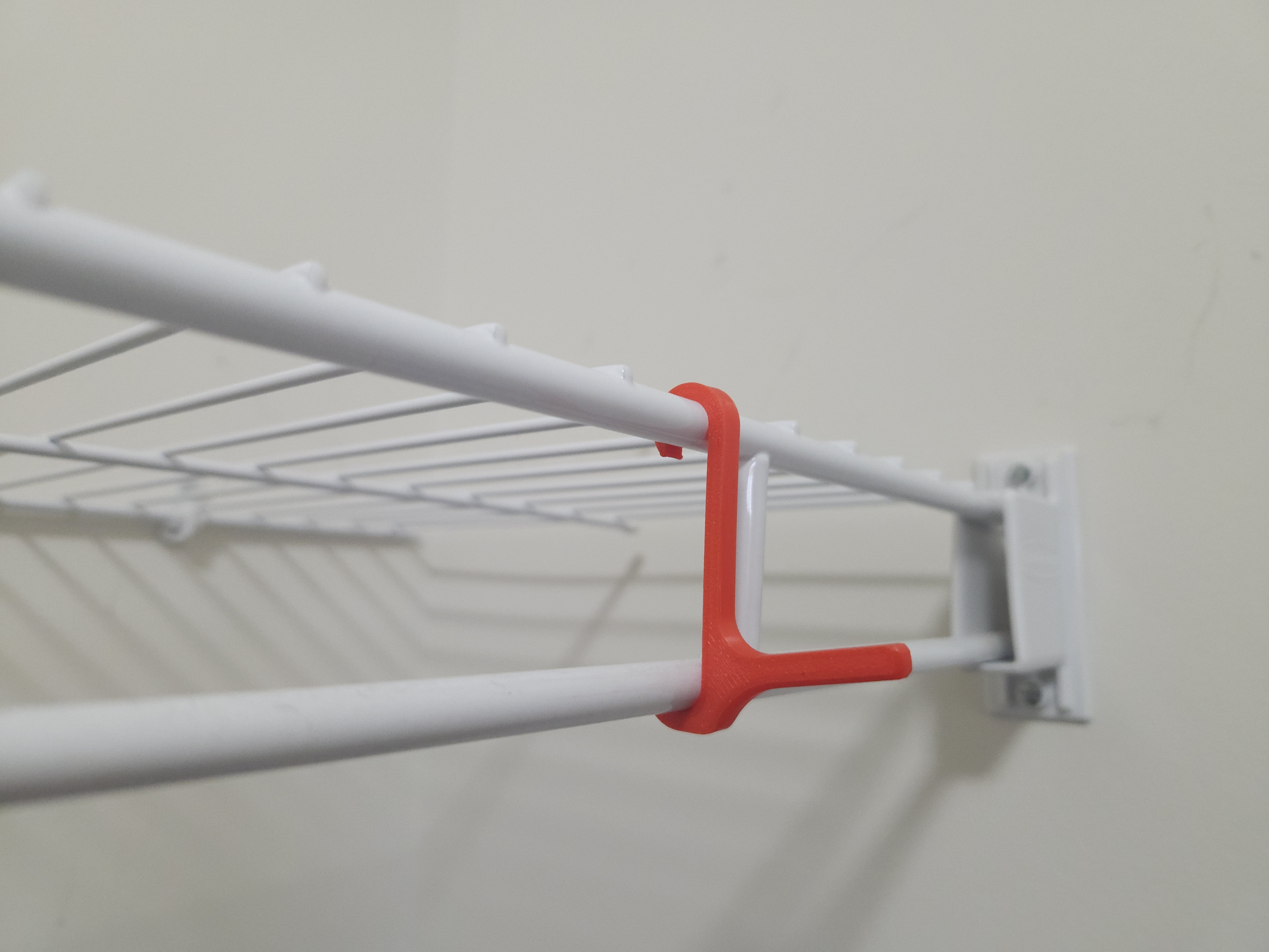

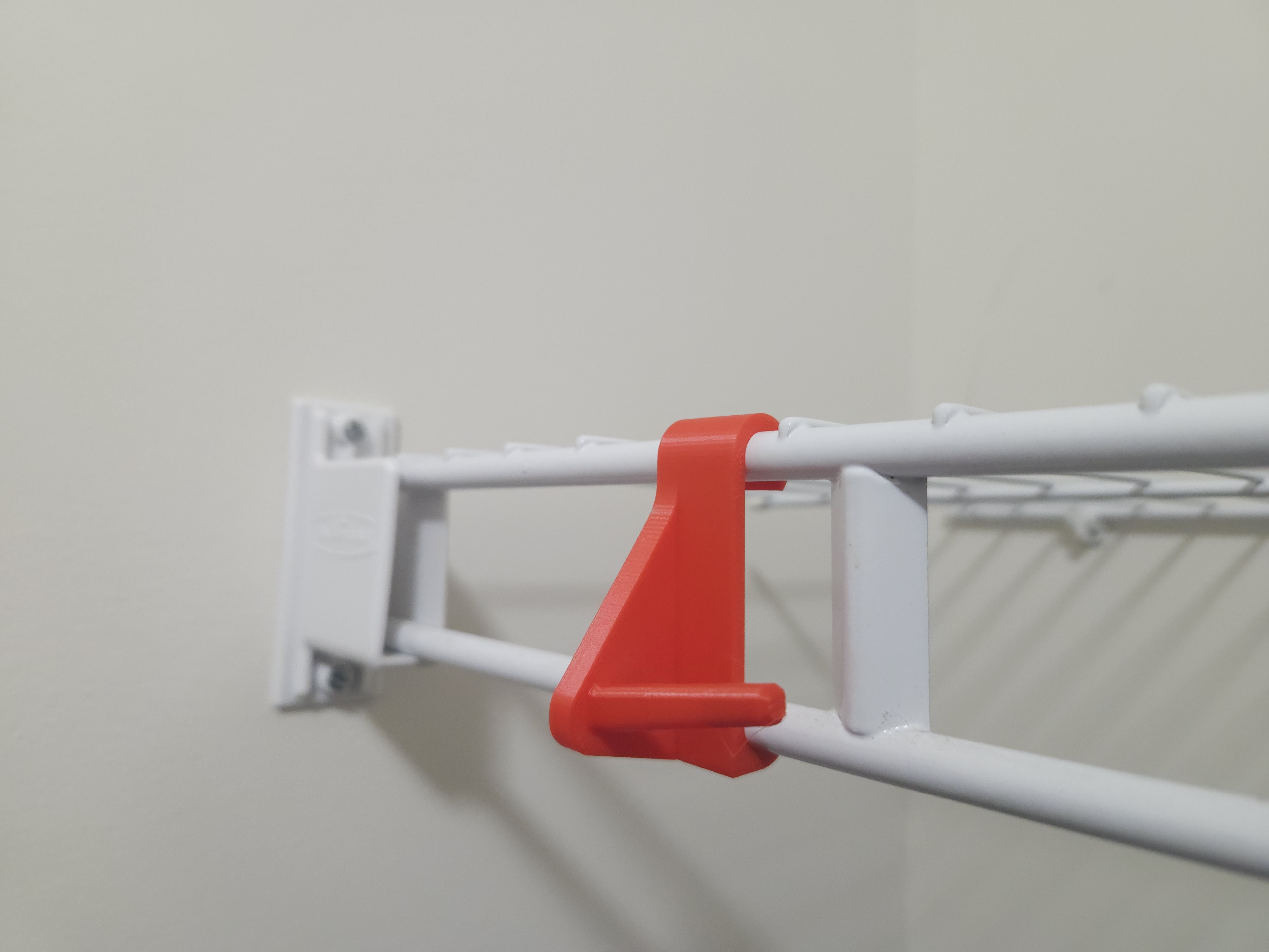

Included is a hook positioned perpendicular and parallel to the shelf. The models are parameterized so you can adjust the length and distance of the hooks along with parameters to adjust the shelf attachment for various different shelf sizes.

Parameters Guide:

Shelf Attachment Parameters:

• Bar_to_Bar
• Clearance
• Grip_Angle
• Thickness
• Width

Hook Parameters:

• Hook_Length
• Hook_Distance

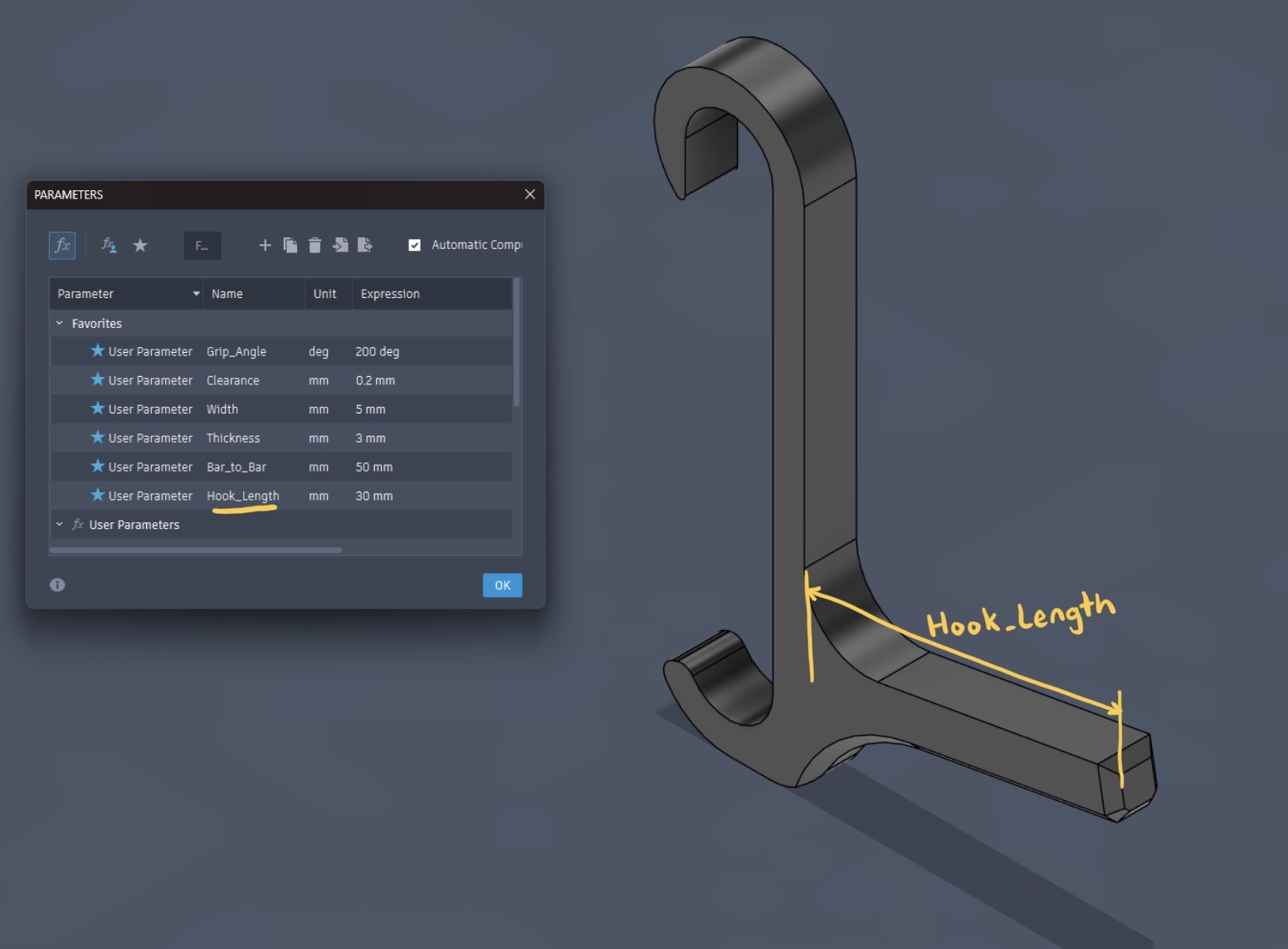

Hook_Length:

The length of the hook

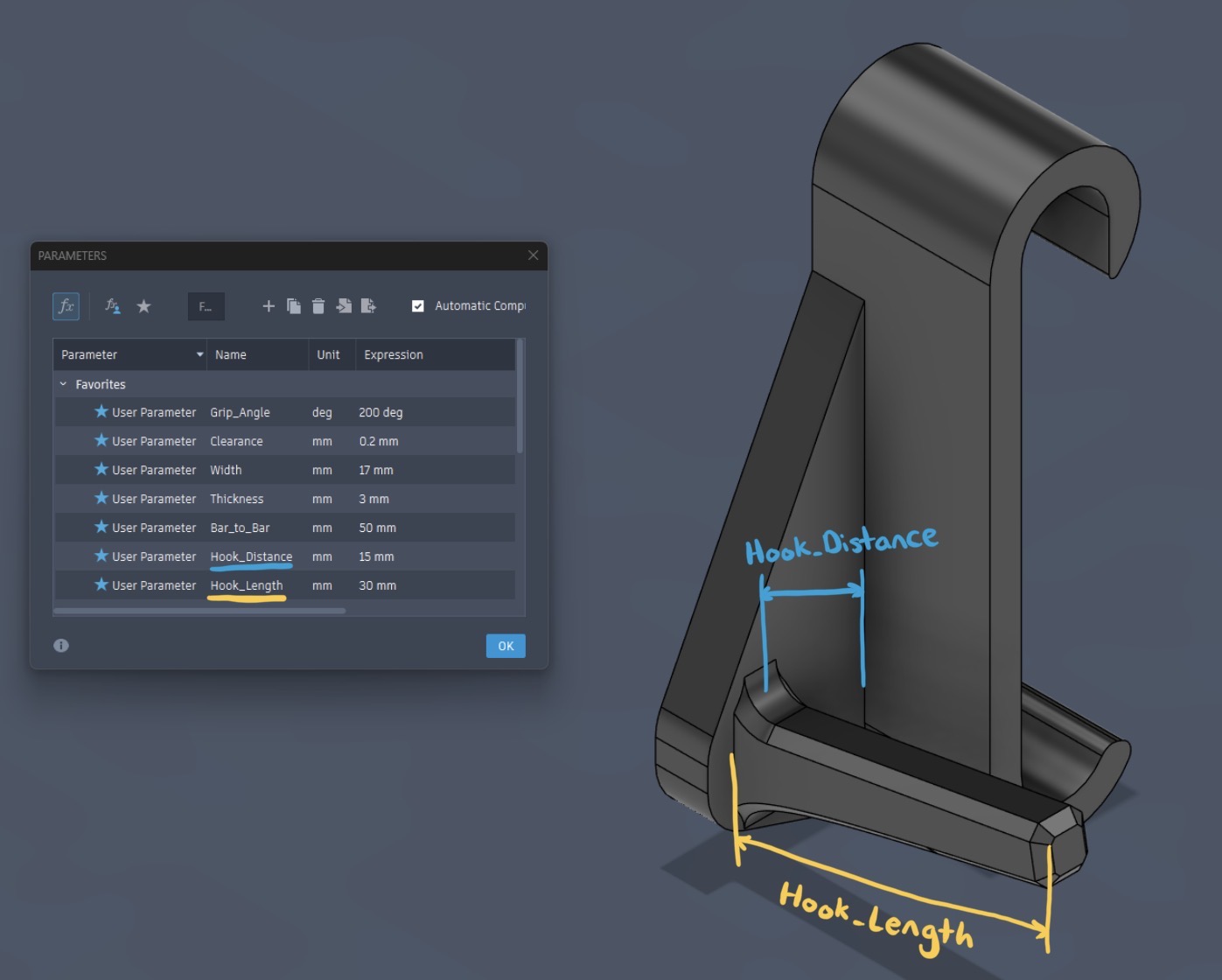

Hook_Distance:

The distance the hook is from the base on the perpendicular hook model

This model is part of my Parametric Wire Shelf Attachment System.

The full base system (including parameter documentation) can be found on the main model page linked below. That page explains how to adjust the .f3d Shelf Attachment Parameters for your specific shelf dimensions and how the system is intended to be used.

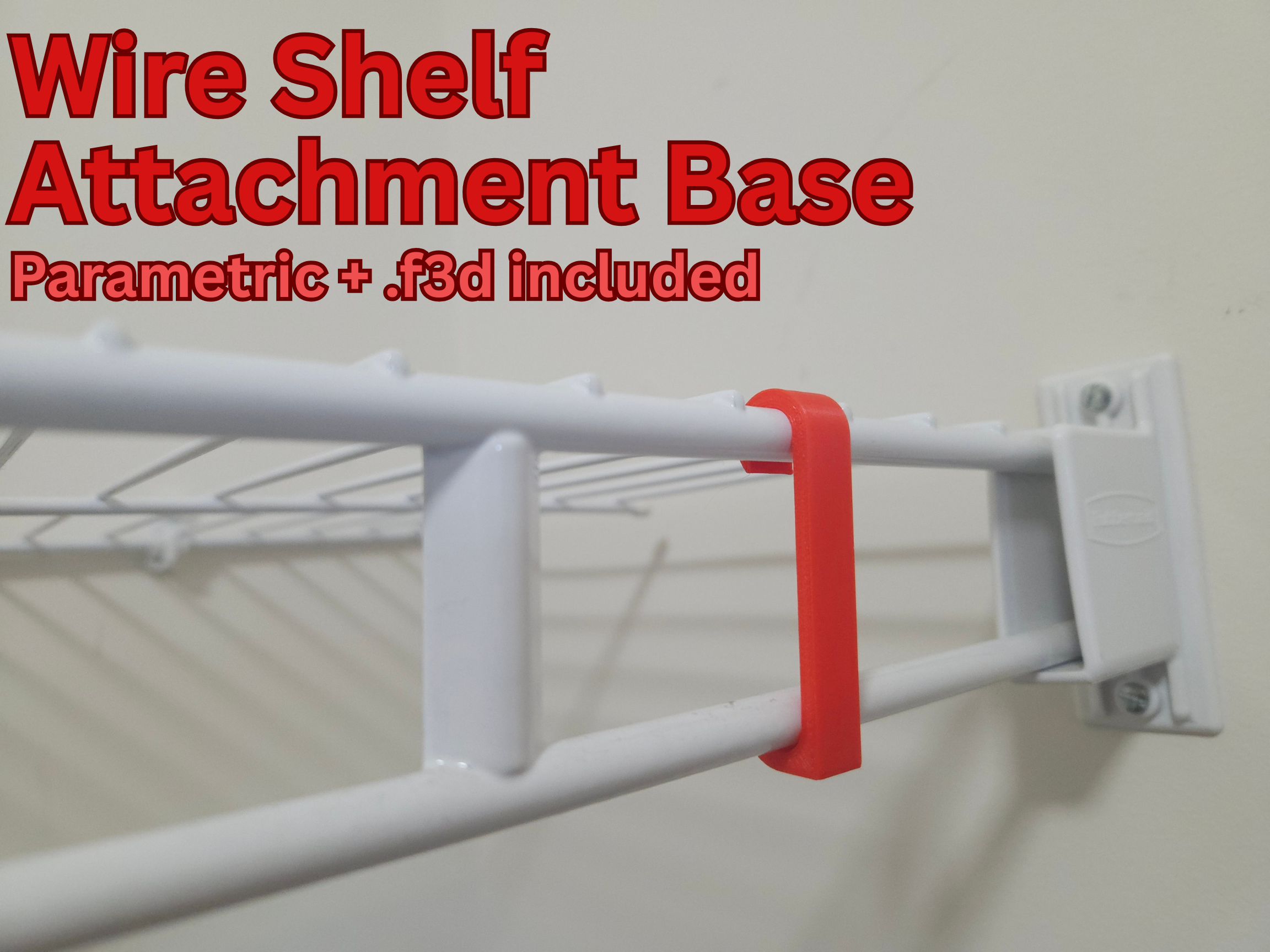

Base Parametric Wire Shelf Attachment System (Includes Model Parameters Guide)

Please check out other models built using this attachment system here
