Parametric Threaded Container – Customize It!

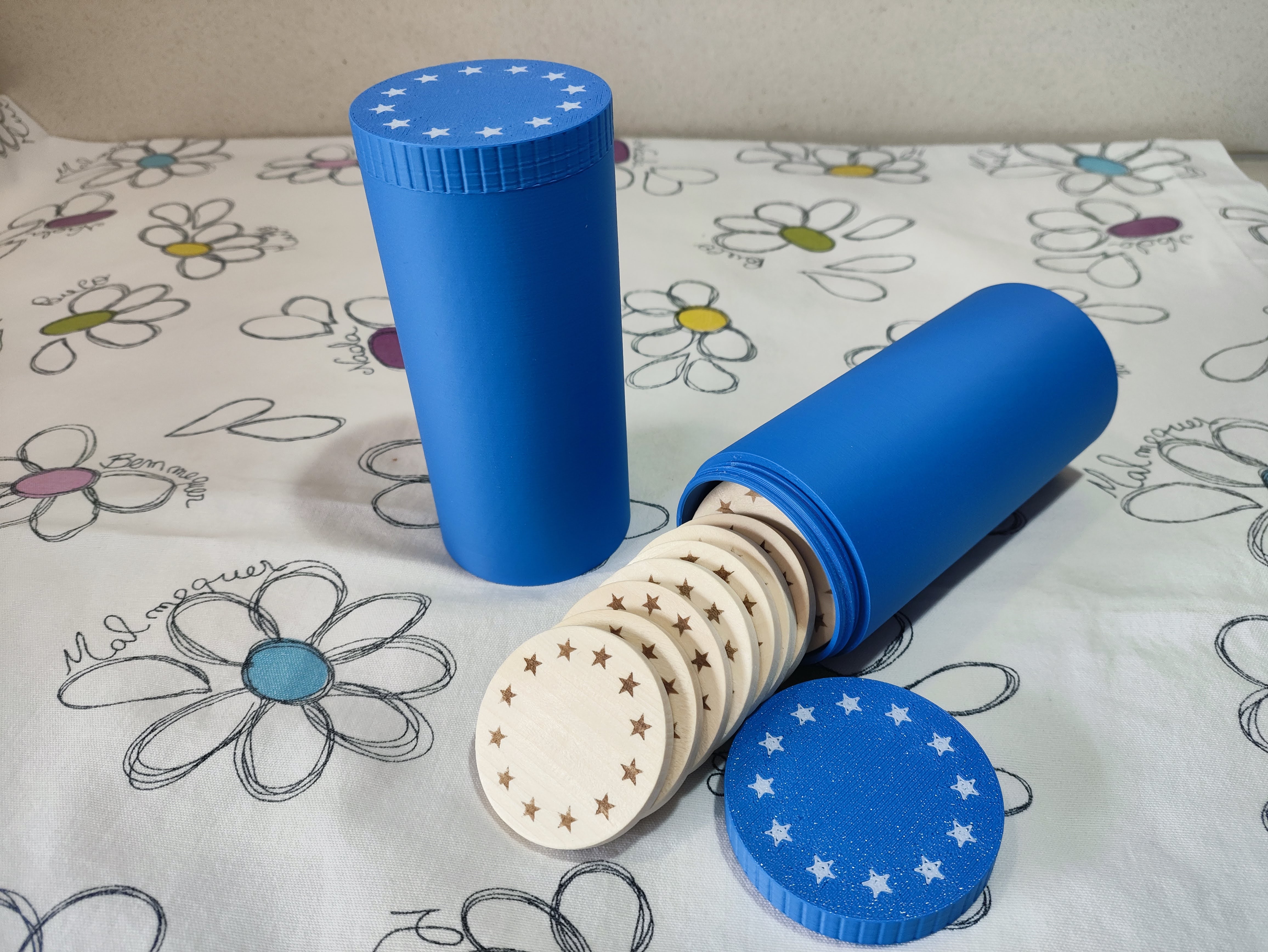

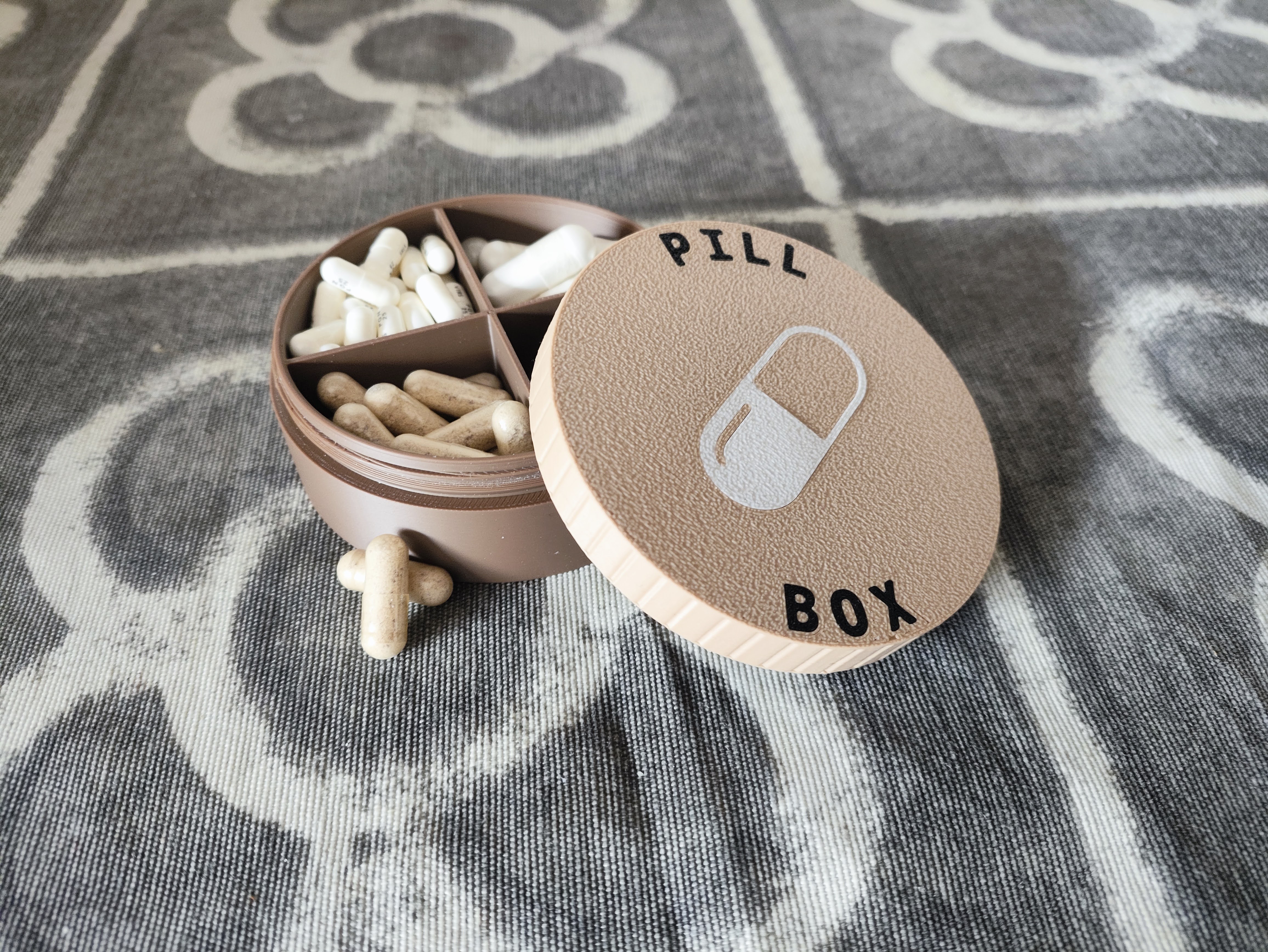

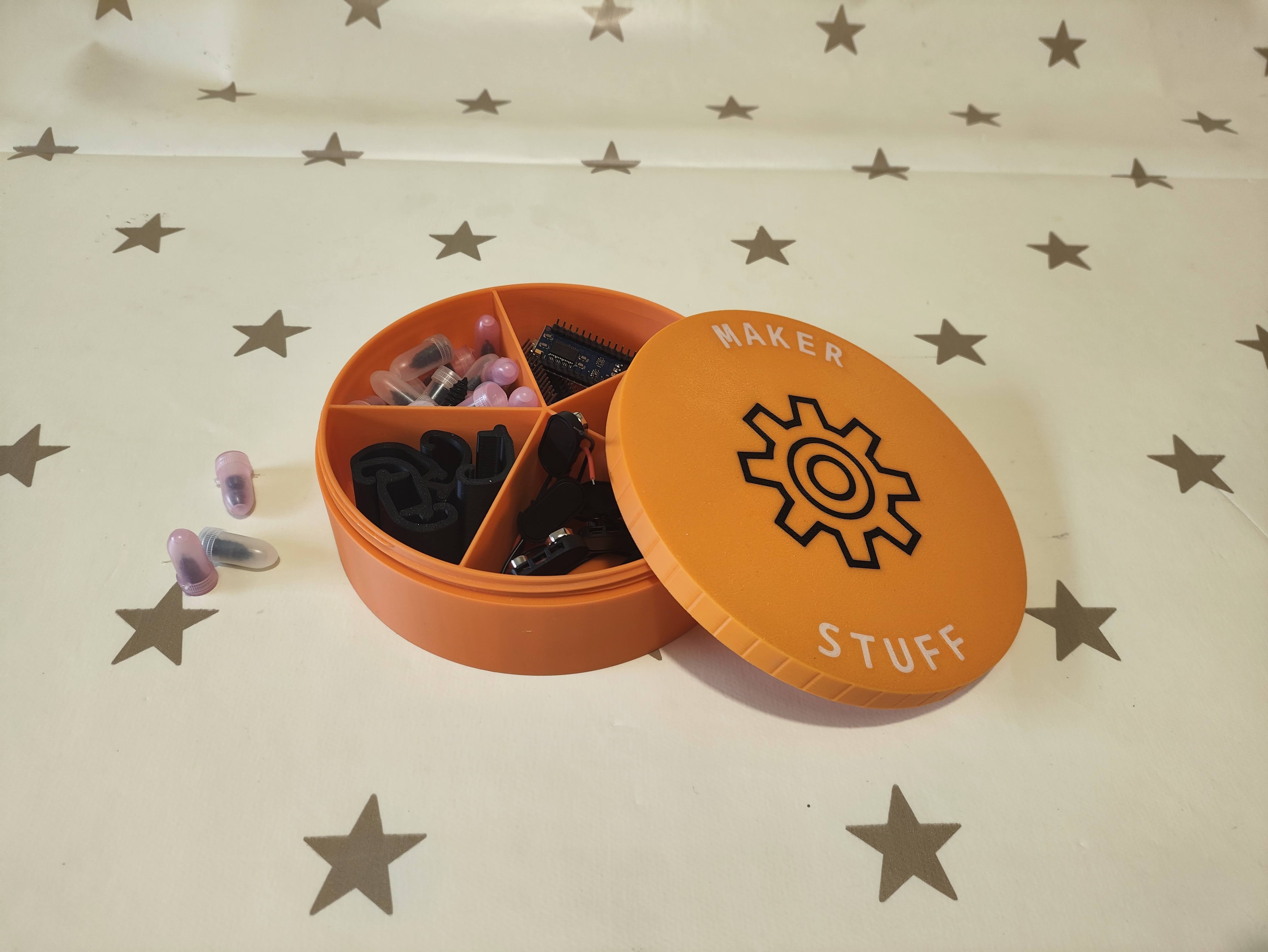

Stop searching for the perfect container — just print it. This fully parametric model lets you design exactly the box you need: the right size, the right closure, the right look. A pill box for your bag, a parts organizer for your workshop, a token tube for your favorite board game, a travel container for your next adventure. Whatever you need to store, this container can be shaped to fit it perfectly.

The screw-top lid closes securely and reopens smoothly every time. No loose lids, no rattling parts. Just a clean, solid, satisfying click when it locks in place.

Two closure styles — choose what works best for you

Continuous thread works just like a classic screw cap: rotate the lid several turns to open or close. Ideal when a rock-solid, airtight seal is the priority — think pills, spices, or anything you don’t want spilling in your bag.

Quick closure uses multiple short helical segments so the lid locks with just a short push-and-twist — typically less than a quarter turn. Perfect when you open and close the container frequently and want to do it in one quick motion.

Make it yours — decoration options

The lid is a canvas. You can engrave any emoji directly into the surface, or use the Flush color mode to fill the recess with a second filament color for a sharp, professional inlay effect. Add up to two lines of circular text — one arcing over the top, one curving along the bottom — each with its own font, size, spacing and position. Use it to label what’s inside, add a personal message, or give the container a custom identity.

Parameters explained

Main parameters

Parameter	What it does
container_height	Usable interior height in mm (20–200). This is the space available inside, not the total printed height.
inner_diameter	Usable interior diameter in mm (20–200). Sets how wide the inside of the container is.
inner_divisions	Number of internal compartments. 1 = open space, no dividers. 2 = two halves. Up to 6 equal pie-slice sections.
grip_texture	Adds vertical grip grooves for easier opening. Apply to the Lid, the Container body, Both, or None.
emoji_enable	Turns the emoji decoration on or off.
emoji	The emoji character to engrave on the lid top. Any emoji supported by the Noto Emoji font works.
emoji_size	Size of the emoji in mm (6–50).
emoji_style	Engraved: recessed mark in the lid material. Flush color: the recess is filled with a colored inlay — works best with an AMS or similar multi-material system.
top_text	Text curved along the upper arc of the lid. Leave empty to disable.
top_text_font	Font for the upper circular text. Supports any font available in OpenSCAD / MakerWorld.
top_text_size	Letter height in mm for the upper text (2–12).
bottom_text	Text curved along the lower arc of the lid. Leave empty to disable.
bottom_text_font	Font for the lower circular text.
bottom_text_size	Letter height in mm for the lower text (2–12).
top_text_margin	Distance in mm between the lid edge and the outer side of the text. Controls how close the text sits to the rim. Applies to both arcs.

Container – Advanced

Parameter	What it does
container_wall	Thickness of the container walls and bottom in mm (1.2–5). Thicker walls = stronger container, heavier print.
inner_bottom_radius	Radius of the rounded fillet at the inside bottom corner (0–20). A larger value makes the bottom more bowl-shaped, helping small objects slide out instead of catching in the corner. Set to 0 for a sharp flat bottom.
inner_divider_wall	Thickness of the internal divider walls in mm (0.8–4).
container_color	Preview color for the container body. Matches Bambu Lab PLA filament names for an accurate preview in MakerWorld.
flush_body_with_lid	When enabled, the container body diameter matches the outer diameter of the lid, giving a clean uniform silhouette. When disabled, the body is narrower and only the threaded neck reaches lid width.

Lid – Advanced

Parameter	What it does
lid_height	Total height of the lid in mm (8–50). Must be tall enough to accommodate the thread zone.
lid_wall	Thickness of the lid top and side walls in mm (1.2–5).
lid_color	Preview color for the lid.

Thread – Advanced

Parameter	What it does
thread_style	Selects between Continuous (classic multi-turn screw) and Quick (short push-and-twist).
thread_height	Height of the threaded zone in mm (6–50). Taller = more thread engagement = stronger grip. The lid height must be at least this tall.
thread_depth	Radial depth of the thread profile in mm (0.6–2). Deeper threads grip better but need a well-calibrated printer.
fit_clearance	Radial gap between the container neck and the lid bore (0.10–0.8 mm). Increase if the lid feels tight; decrease if it wobbles. Start with the default and adjust by 0.05 mm steps.
thread_groove_clearance	Extra clearance inside the lid thread groove (0.05–0.5 mm). Helps the thread mesh smoothly without binding.
thread_flank_angle	Angle of the thread flanks in degrees (30–55). 45° is the recommended default — it avoids unsupported overhangs that are hard to print without supports.
thread_crest_flat	Truncates the thread tip to create a small flat crest (0–0.6 mm). Flatter crests are easier to print and reduce the risk of stringing at the tip.
thread_pitch	Distance between thread turns in mm (2–6). Only used by the Continuous closure. Larger pitch = coarser thread, fewer turns to open.
quick_thread_starts	Number of independent thread segments for the Quick closure (2–6). More starts = shorter twist to close, but less engagement per start.
quick_thread_arc	Angular sweep of each Quick thread segment in degrees (60–360). 180° means each segment spirals half a turn. Shorter arc = faster close, less grip.
quick_thread_margin	Empty space at the top and bottom of the Quick thread zone in mm (0–3). Keeps threads away from the edges for cleaner geometry.

Grip Texture – Advanced

Parameter	What it does
grip_rib_count	Number of grip grooves around the circumference (12–96). More ribs = finer texture.
grip_rib_depth	Radial depth of each groove in mm (0.2–1.2). Deeper grooves are easier to grip but more visible.
grip_rib_width	Tangential width of each groove in mm (0.4–3). Wider grooves leave less material between them.
grip_margin	Empty margin at the top and bottom of the textured zone in mm (0–3). Keeps the grip away from edges.

Emoji – Advanced

Parameter	What it does
emoji_depth	Engraving depth for the emoji in mm (0.2–1.2). Deeper = more visible recess.
emoji_x / emoji_y	Fine horizontal and vertical adjustment of the emoji center position in mm. Useful for emojis that render slightly off-center depending on the font.
emoji_color	Preview color for the emoji inlay (Flush color mode only).

Top / Bottom Circular Text – Advanced

Parameter	What it does
top_text_spacing	Letter spacing multiplier (0.6–1.6). 1.0 = natural spacing. Increase to spread letters further apart along the arc.
top_text_style	Engraved or Flush color — same logic as the emoji style.
top_text_depth	Engraving depth for the upper text in mm (0.2–1.2).
top_text_angle	Center angle of the upper text arc in degrees (0–355). 90° places the text at the top of the lid as viewed from above.
top_text_color	Preview color for the upper text inlay.
bottom_text_spacing	Letter spacing multiplier for the lower arc text.
bottom_text_style	Engraved or Flush color for the lower arc text.
bottom_text_depth	Engraving depth for the lower text in mm.
bottom_text_angle	Center angle of the lower text arc. 270° places it at the bottom of the lid.
bottom_text_color	Preview color for the lower text inlay.

Print notes

No supports needed.
Recommended layer height: 0.2 mm, nozzle: 0.4 mm.
For Flush color decoration (emoji or text inlays), a second filament color is printed into the engraved recesses. This works best with an automatic filament changer such as a Bambu Lab AMS or similar multi-material system, which handles the color swap seamlessly. You can also do it manually by adding a filament change pause in your slicer at the right layer, but an AMS makes the process effortless — especially if the inlay is thin.
Optimized for Bambu Lab printers and MakerWorld — preview colors are mapped directly to Bambu Lab PLA filament names, so what you see in the customizer matches your actual filament.
