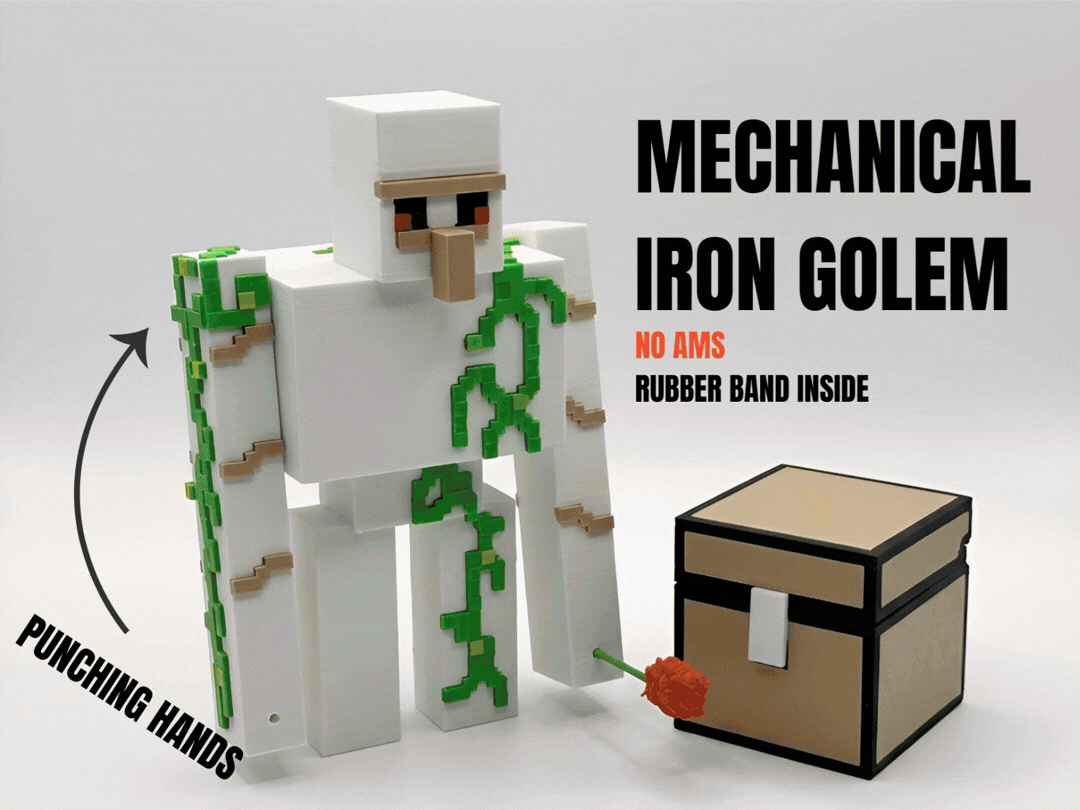

Inspired by the countless times I met my end in survival mode while desperately searching for iron 😂😂, I decided to build a mechanical Iron Golem of my own. This version isn’t just for display, it features a hidden internal mechanism that lets the golem strike upward with its arms, powered entirely by a simple rubber band.

The result is a compact desktop iron golem capable of launching anything that stands in its path. Now, instead of getting destroyed by mobs, I can send objects flying across my own desk.

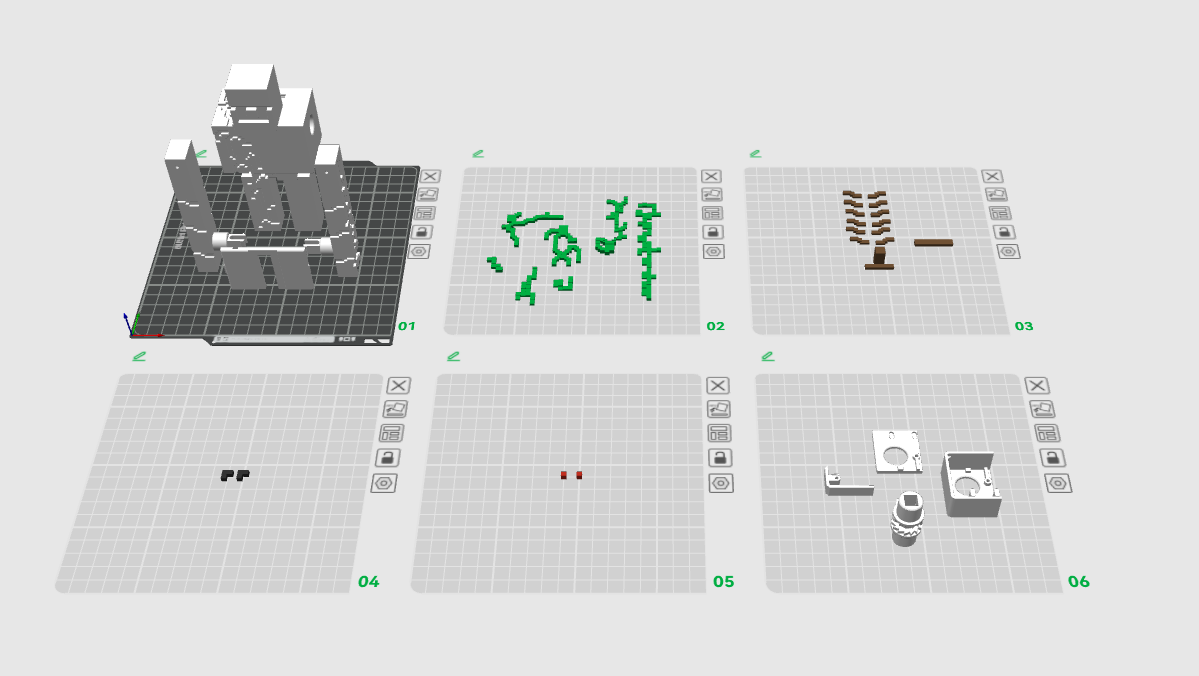

Print details

• Time to print: ~7h 40m
• Filament: ~165g
• NO AMS

 Features

• Mechanical upward arm strike
• Hidden rubber-band powered mechanism
• Functional desktop toy with kinetic action
• Compact and satisfying to operate
• NO AMS

Components

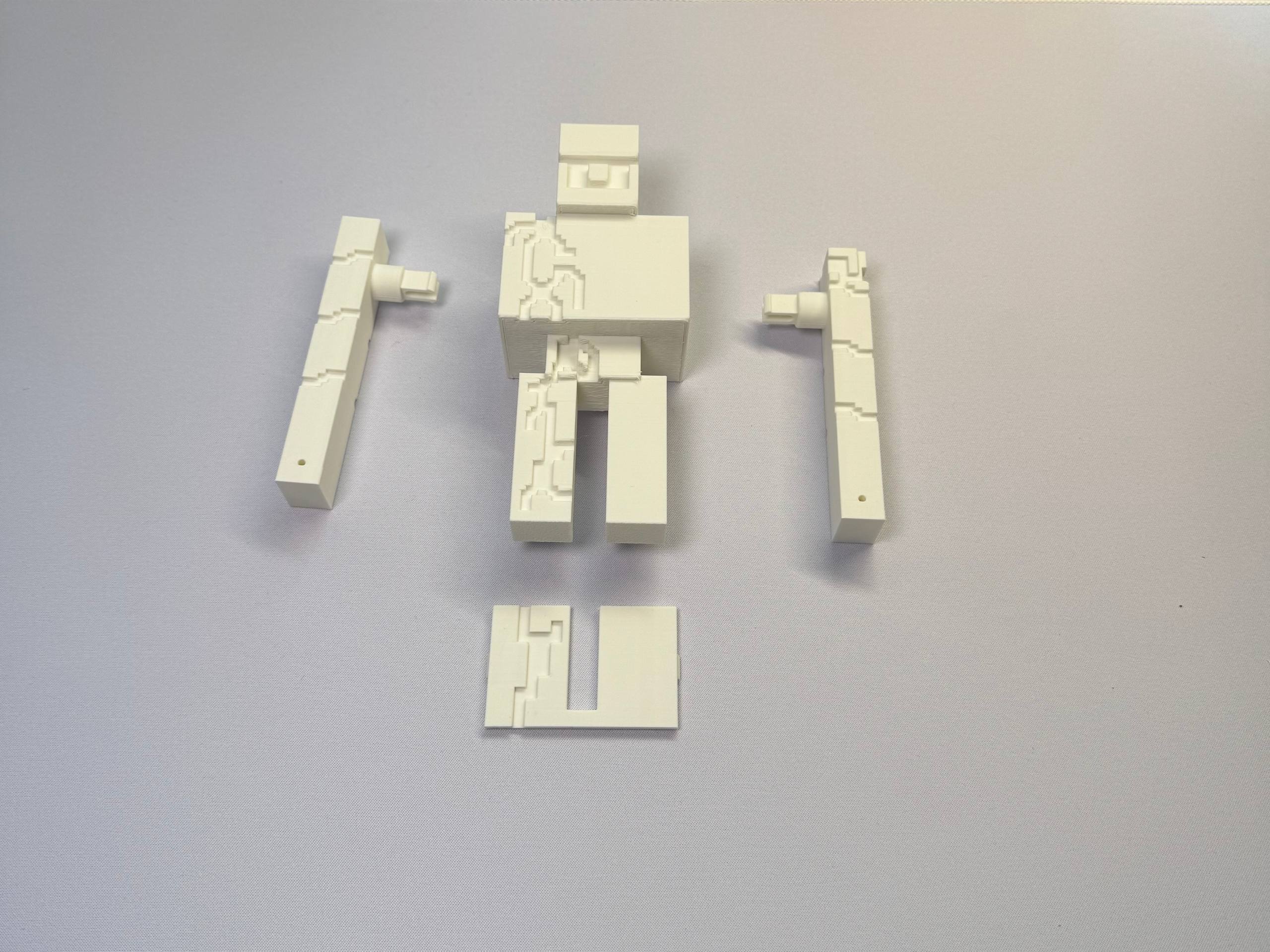

• golem body
• R hand
• L hand
• back cover

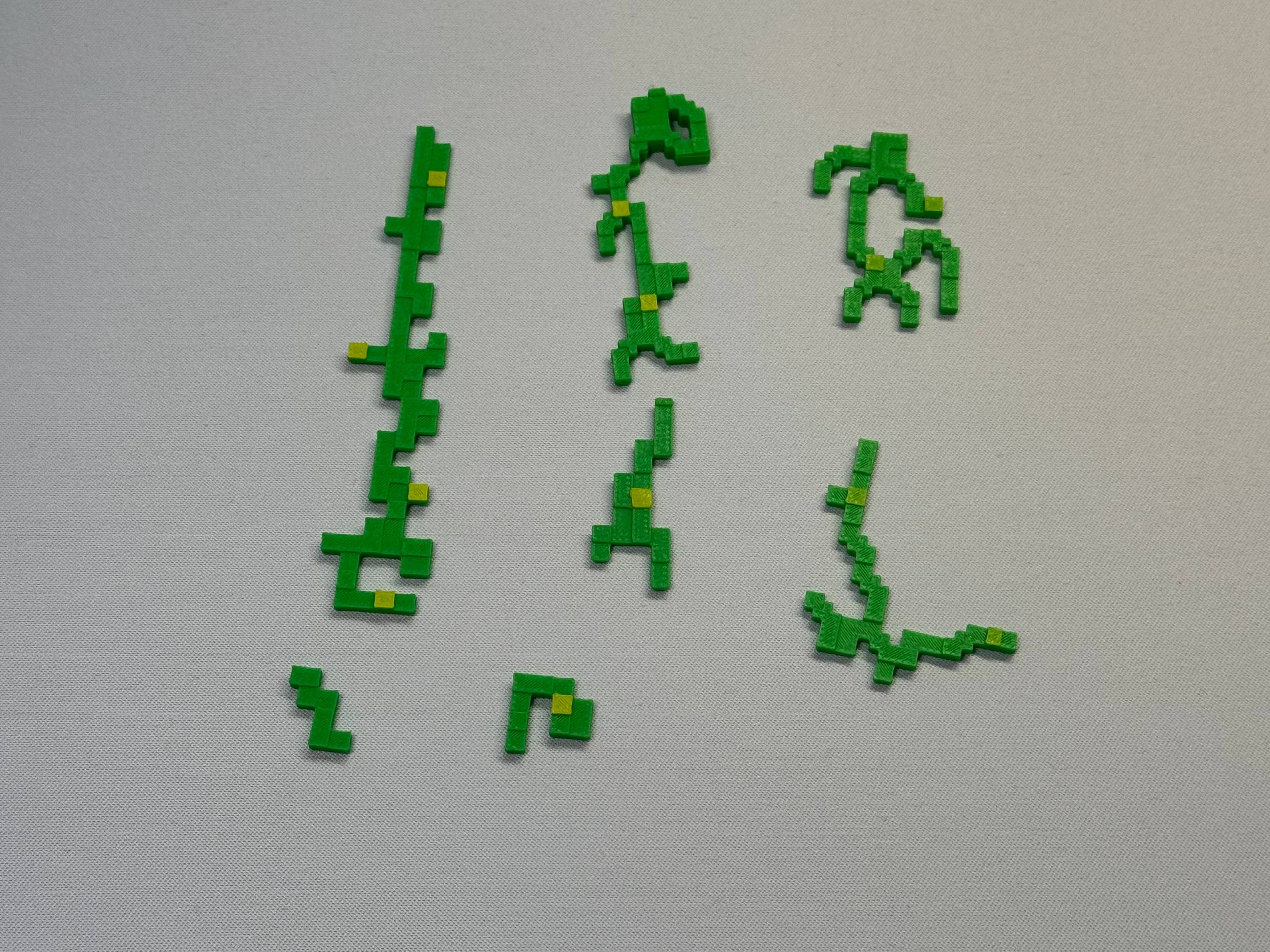

• liana inserts

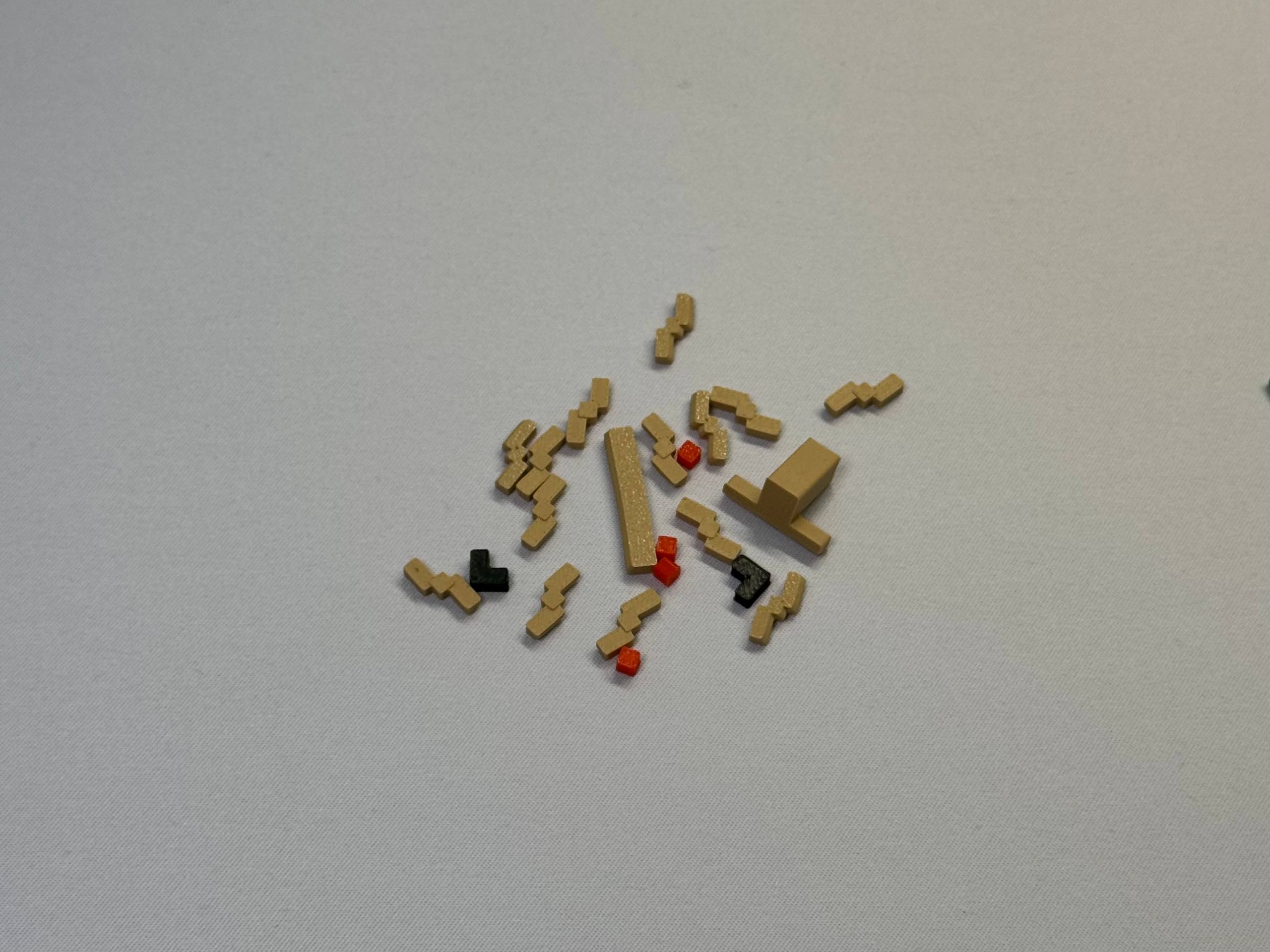

• hand inserts
• head inserts
• hand mechanism body
• hand mechanism cover
• gear pulley
• filament hinge insert
• Rubber band(you can use double bands or bend a 60mm band twice to get more tension; alos you can use wider rubber band)
• release button

Assembly

Insert all parts into body and hands. You can use a drop of glue for that!

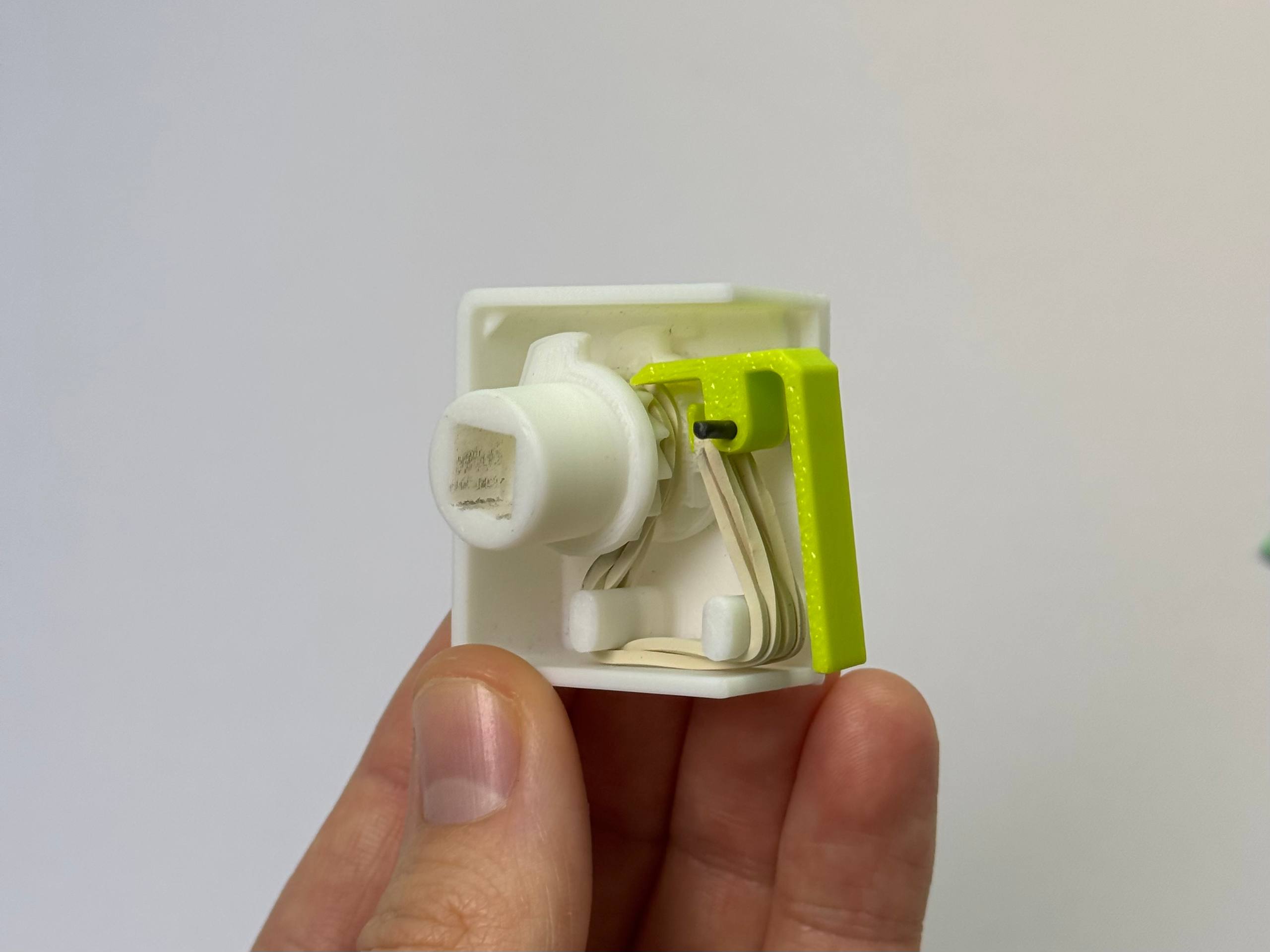

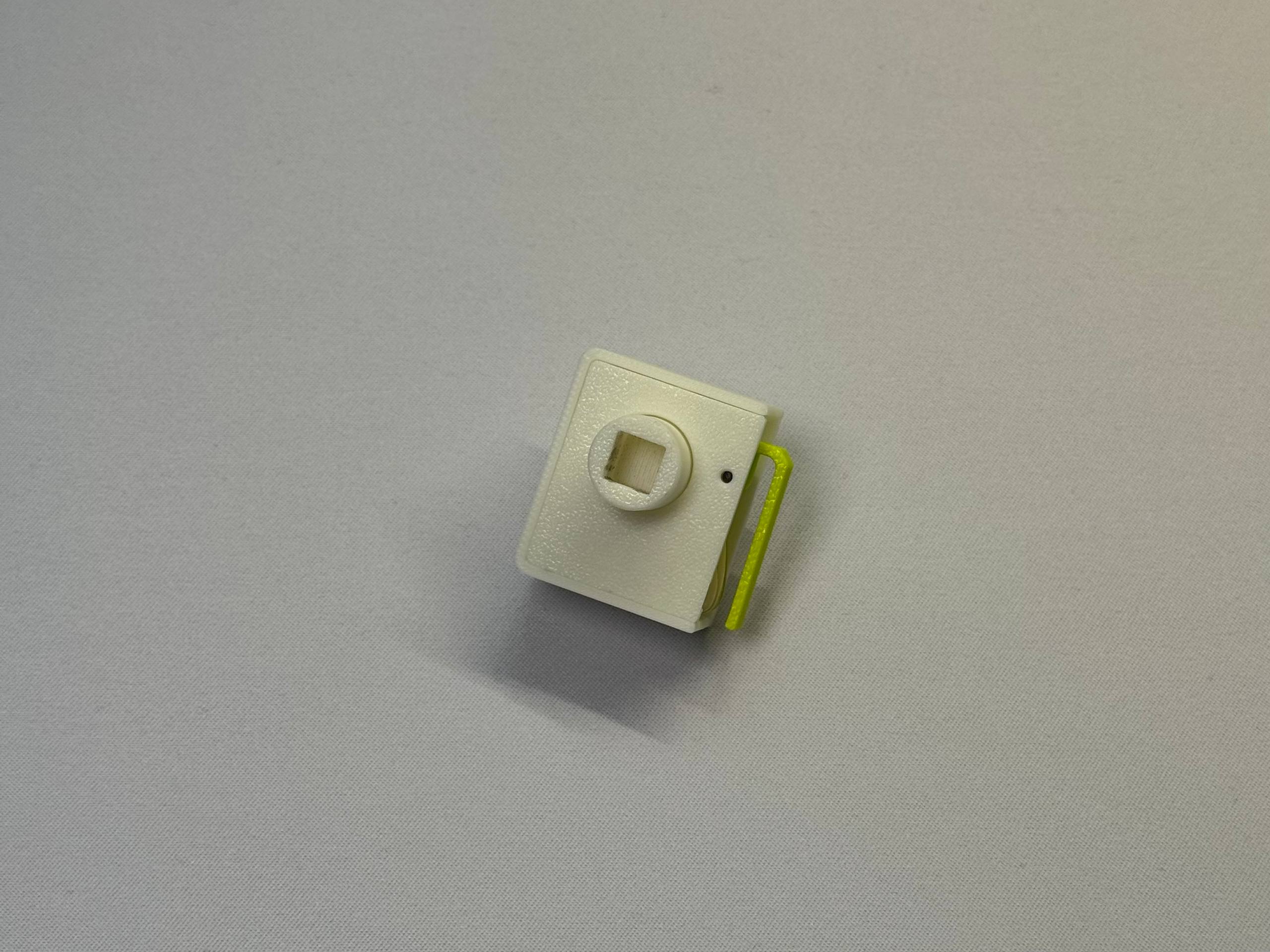

Prepare hand mechanism, take a 30mm wide rubber band or 60mm x 1,4 mm and bend into two. Insert pulley and release button(using filament hinge) like bellow.  Be carefull , inside of mechanism body there are a stopper, put pulley to be blocker by these stopper. Add cover and insert into golem body.

Insert hands in the air and rotate them down. After release the button hands must return into initial possition.

Done, have fun!)
