Rounded Shelf Support Brackets Overview

Rounded Shelf Support Brackets are small printable shelf holders for cabinets, bookcases, furniture panels, glass shelves, MDF, plywood, and home repair projects. The set includes two useful versions: a 5 mm shelf pin support for existing cabinet holes and a screw-mounted shelf bracket for places where you want a fixed support.

Compared with many simple shelf pin models, these parts are designed to look more finished on visible furniture: rounded edges, smooth curves, compact proportions, and a cleaner face make them better for shelves where the support remains visible.

Advantages Over Basic Shelf Pins

• Two mounting options in one model: 5 mm pin support and screw-mounted bracket
• Rounded furniture-friendly shape instead of a sharp or blocky utility part
• Clean visible surfaces that look better in cabinets, shelves, and display furniture
• Integrated triangular reinforcement on the screw bracket for better support
• Compact dimensions that keep the bracket discreet under the shelf
• Good for quick furniture repair, shelf replacement, and custom cabinet builds

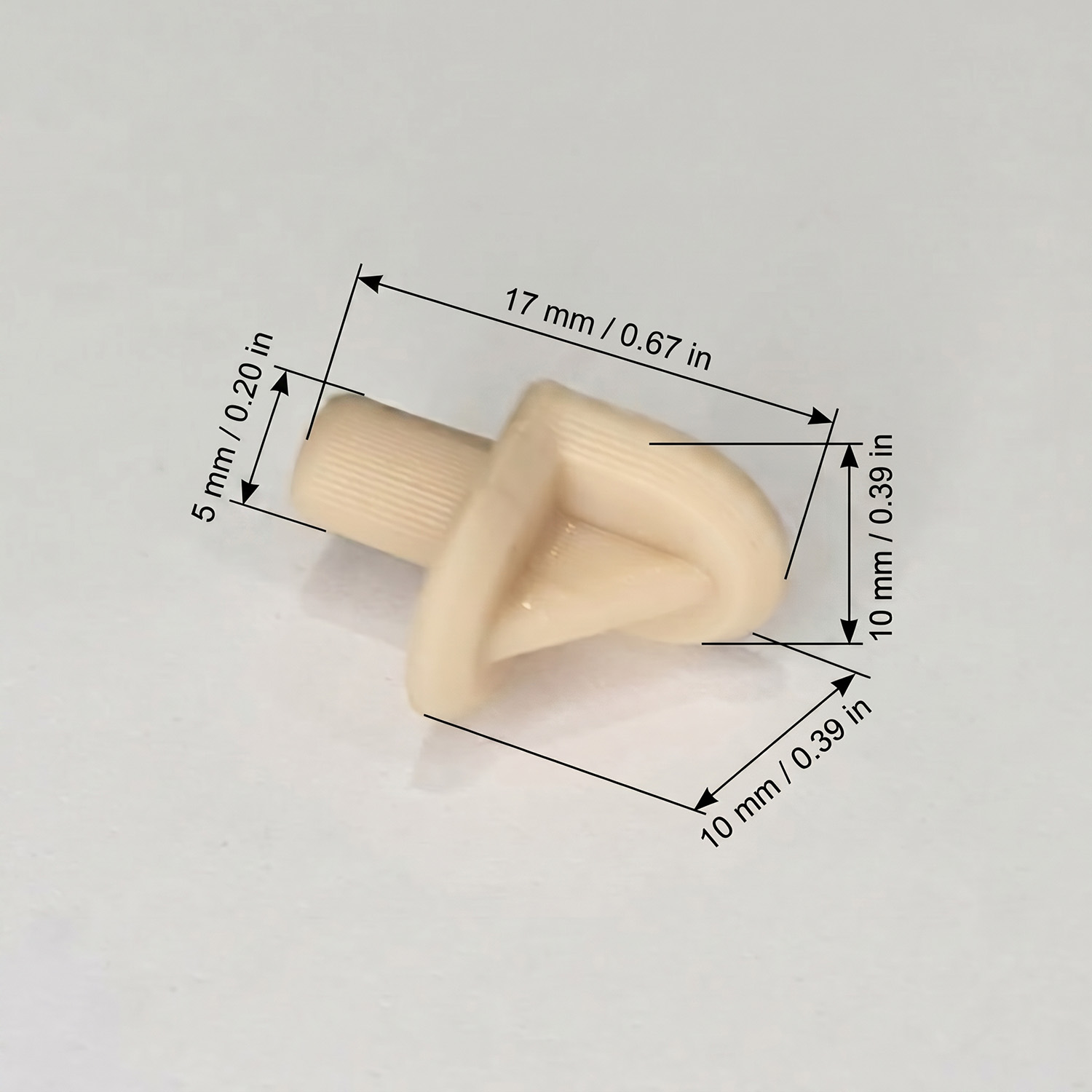

5mm Shelf Pin Support Dimensions

• Overall length: 17 mm / 0.67 in
• Height: 10 mm / 0.39 in
• Support width/depth: 10 mm / 0.39 in
• Required mounting hole: 5 mm
• This version is intended for standard 5 mm cabinet shelf pin holes.

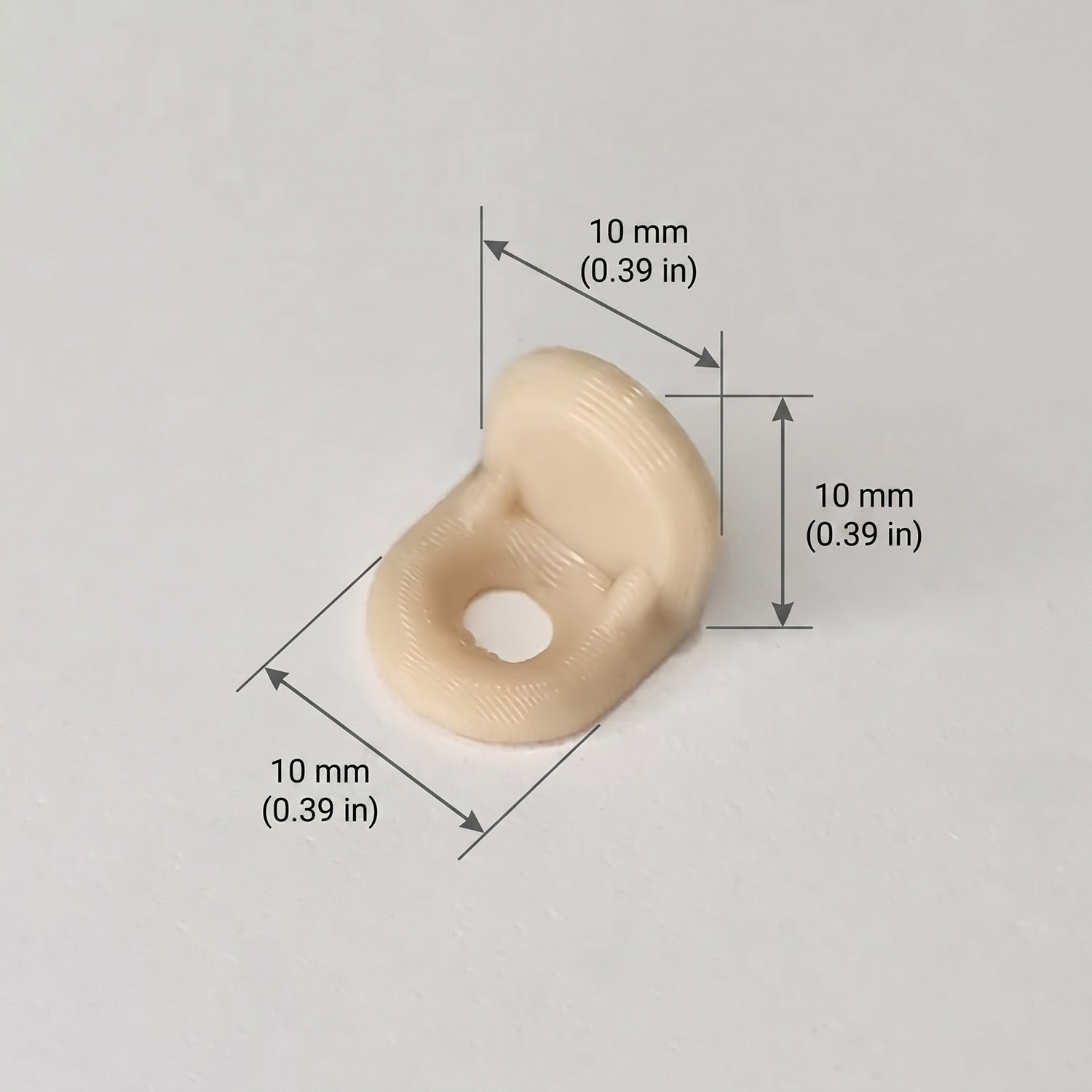

Screw Shelf Bracket Dimensions

• Approximate size: 10 mm x 10 mm x 10 mm / 0.39 in x 0.39 in x 0.39 in
• Recommended screw: universal 3x16 mm screw
• Similar local screw equivalents can be used if the head fits the printed bracket.
• This version is useful when there is no existing 5 mm shelf pin hole.

•

Cabinet and Shelf Use Cases

• Replace missing shelf pins in cabinets, bookcases, closets, and storage furniture
• Add support points for wooden, MDF, plywood, chipboard, or glass shelves

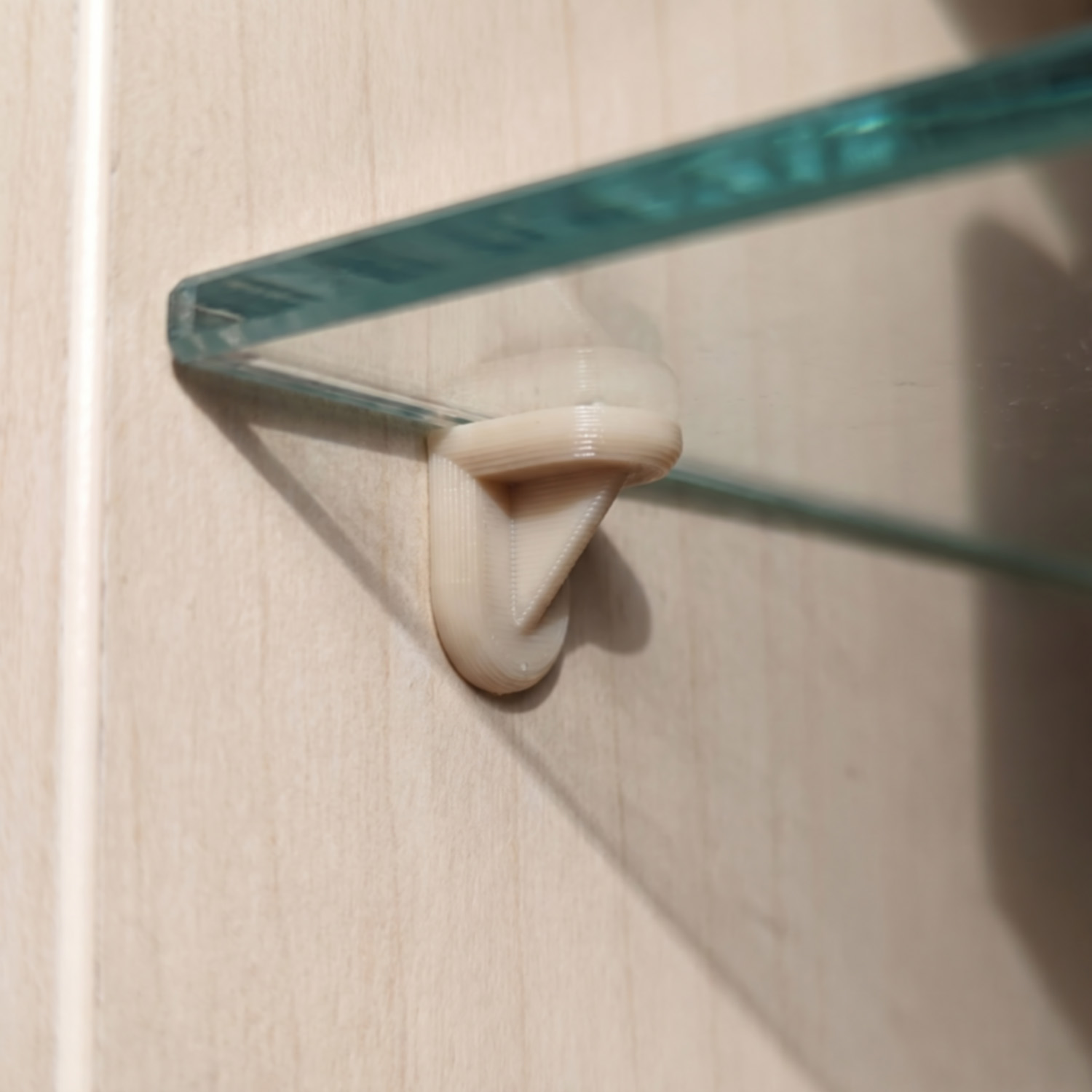

• Use the 5 mm pin version for standard shelf pin holes

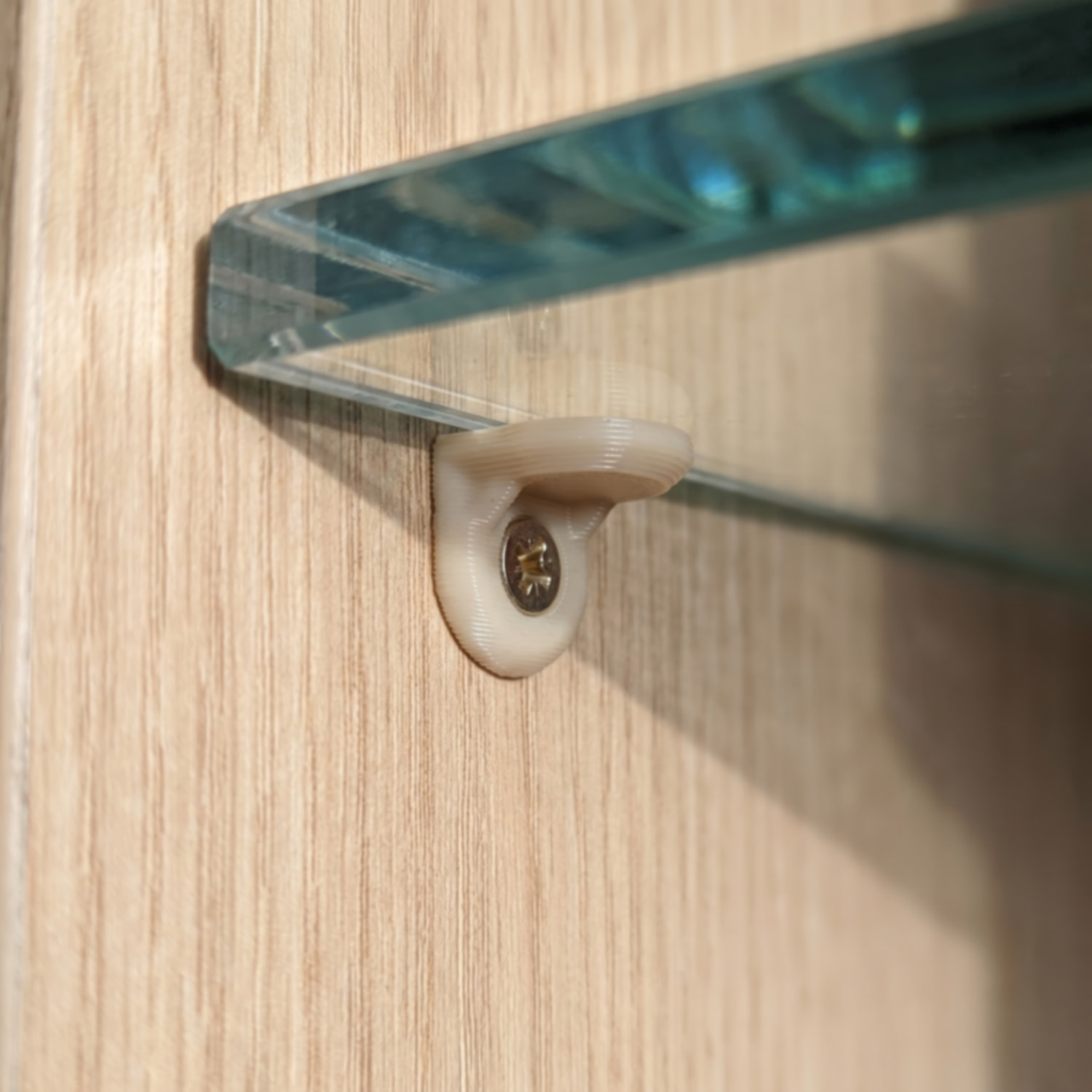

• Use the screw-mounted bracket for custom positions or damaged shelf pin holes
• Print in white, beige, black, gray, or wood-matching colors for a cleaner furniture look

•

Recommended 3D Print Settings

• Material: PETG recommended for better toughness; PLA works for light indoor use
• Layer height: 0.2 mm as the standard setting; use 0.16 mm for smoother visible curves
• Walls: 3-4
• Infill: 40-100% because the parts are small load-bearing accessories
• Supports: not required for most orientations
• Print orientation: place parts for the strongest layer direction around the pin or screw area

Installation and Fit Notes

1. For the pin version, check that the cabinet hole is 5 mm before installation.
2. For the screw version, use a 3x16 mm screw or a local equivalent with a suitable head size.
3. Print one test piece first and check fit with your shelf, hole, screw, and material.
4. Use four supports per shelf whenever possible for even load distribution.
5. Do not overload printed shelf supports; test carefully for your shelf weight and material.

Shelf Bracket Printing Notes

• This is a practical furniture accessory for light to moderate shelf support and repair.
• Actual load capacity depends on material, print settings, shelf weight, cabinet material, screw quality, and installation.
