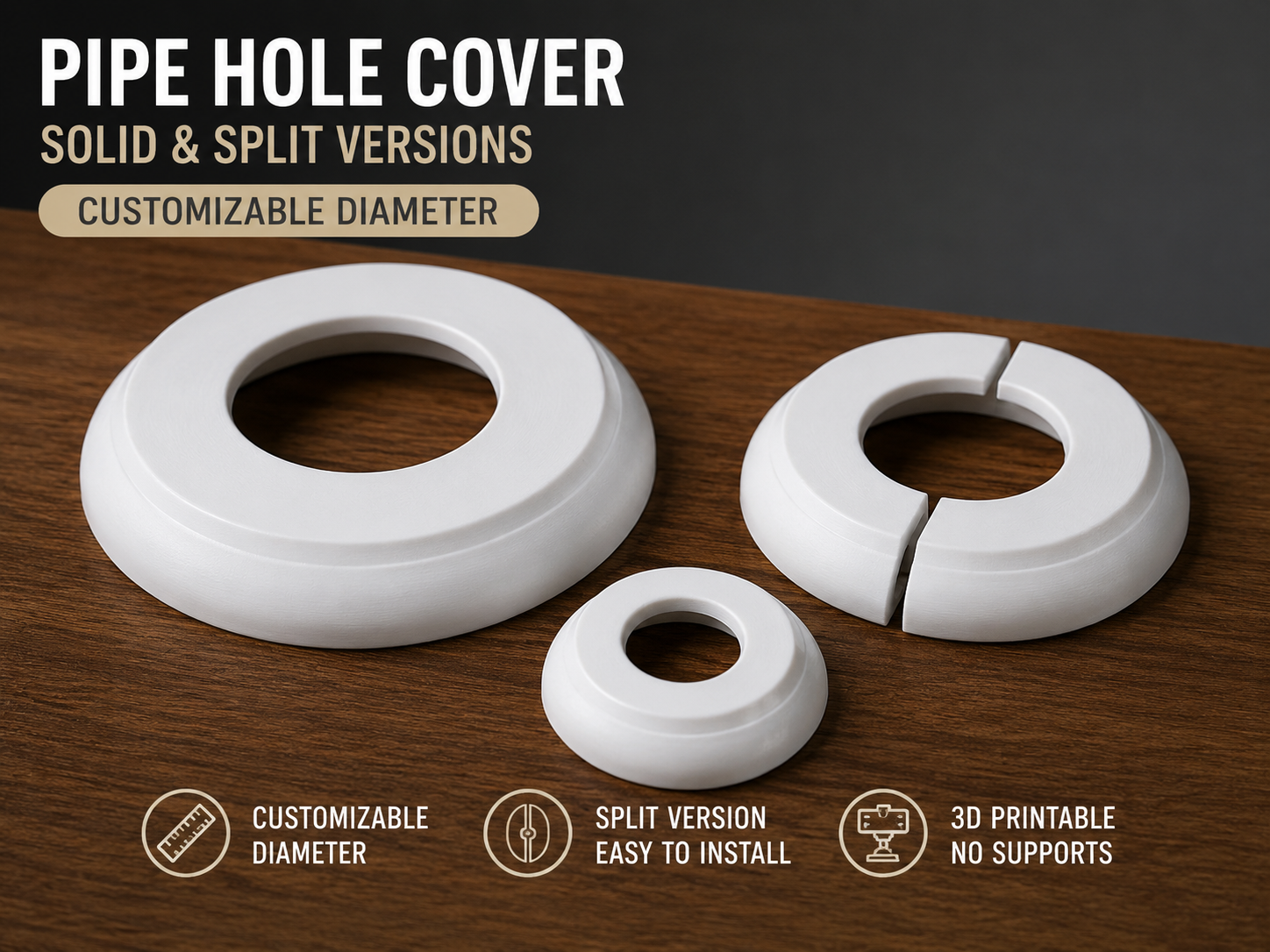

Customizable Parametric Pipe Cover / Wall Escutcheon

Elegant parametric pipe cover designed for plumbing installations and wall penetrations.

This model is fully customizable directly on MakerWorld:

• Inner diameter
• Outer diameter
• Height
• Wall thickness
• Top thickness
• Curvature strength
• Curvature profile
• Tolerance adjustment for precise fitting

Perfect for:

• Sink drains
• WC pipes
• Radiator pipes
• Water valves
• Plumbing wall finishes

The design is optimized for clean printing with minimal material usage while maintaining a smooth curved aesthetic.

Split Version

If you need a split version for already installed pipes, simply cut the model directly in your slicer and add your preferred connection system based on your needs.

Designed in OpenSCAD and fully parametric.

Tested sizes

• 20 mm
• 32 mm
• 40 mm

Notes

The tolerance parameter helps compensate for printer calibration differences and ensures a snug fit around pipes of the same nominal diameter.
