Customizable Gridfinity Full-Drawer Grid

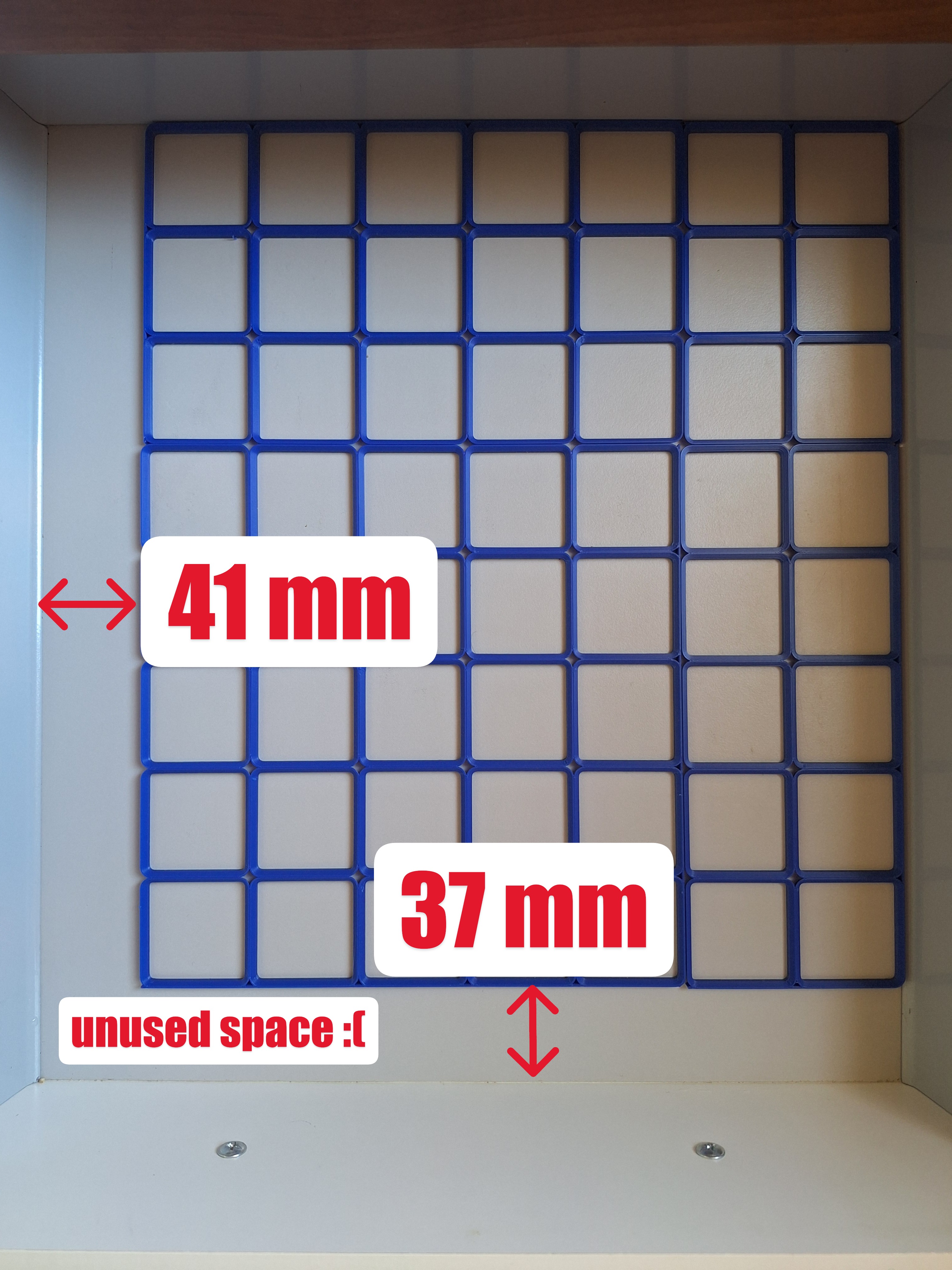

This parametric Gridfinity base grid is designed to utilize the full available drawer space without being limited by the standard 42 mm × 42 mm raster.

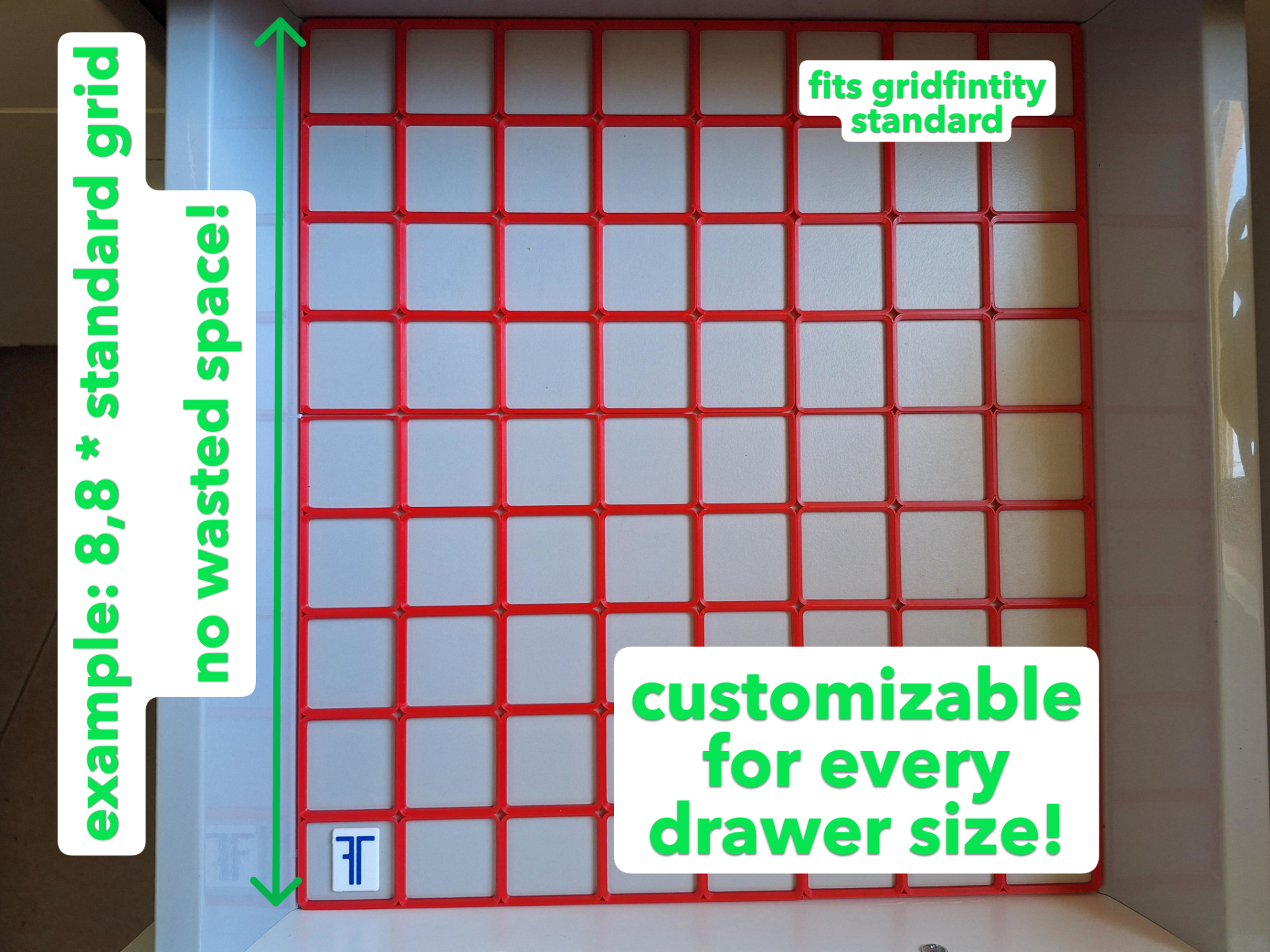

The model automatically adjusts the grid by reducing the left column and the bottom row, allowing a precise fit to any drawer dimension while maintaining compatibility with standard Gridfinity modules.

The generated grid preserves the original spacing for all regular cells, ensuring that all existing Gridfinity bins remain fully compatible. Only the outer boundaries are adapted to eliminate unused space.

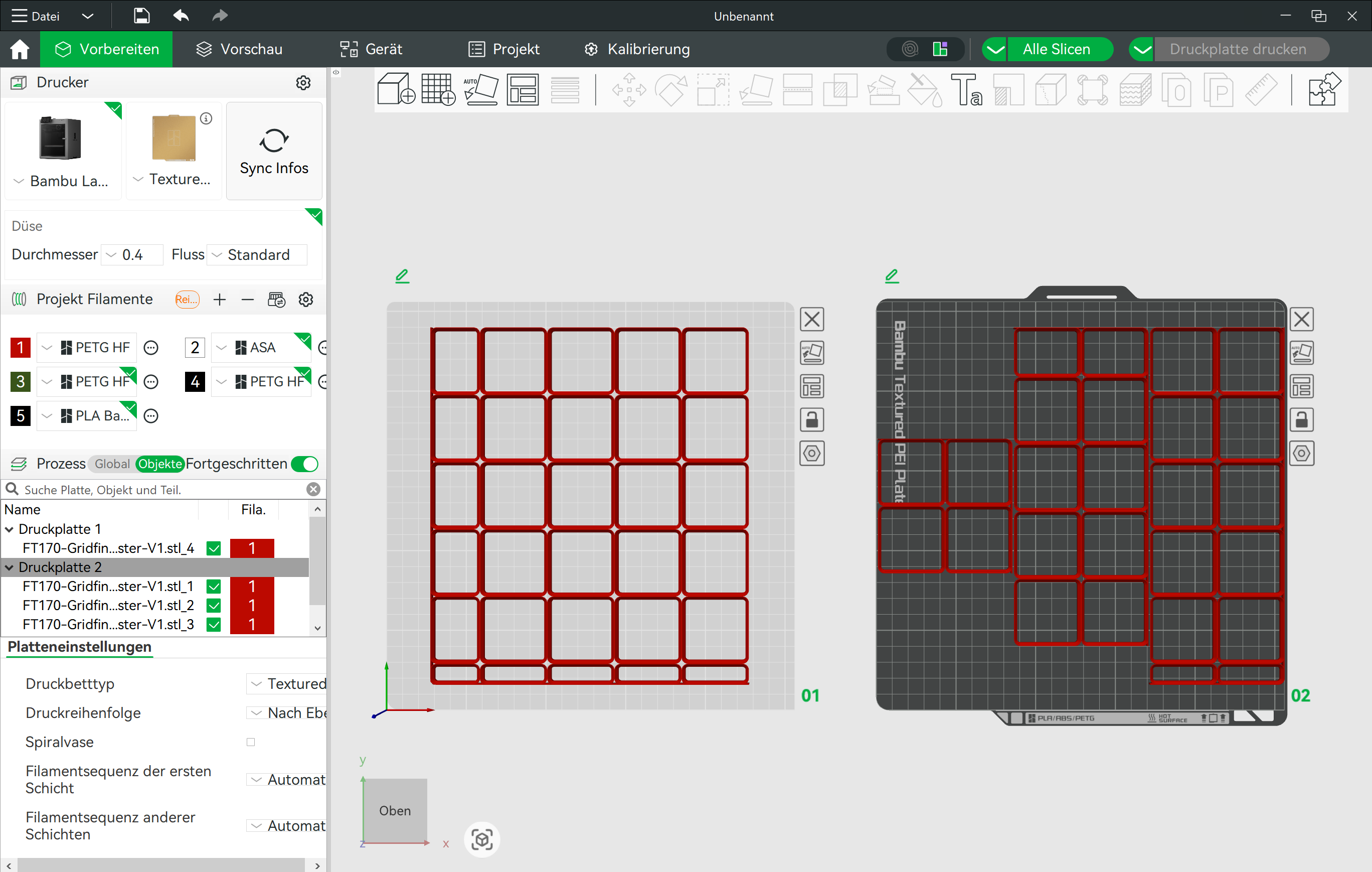

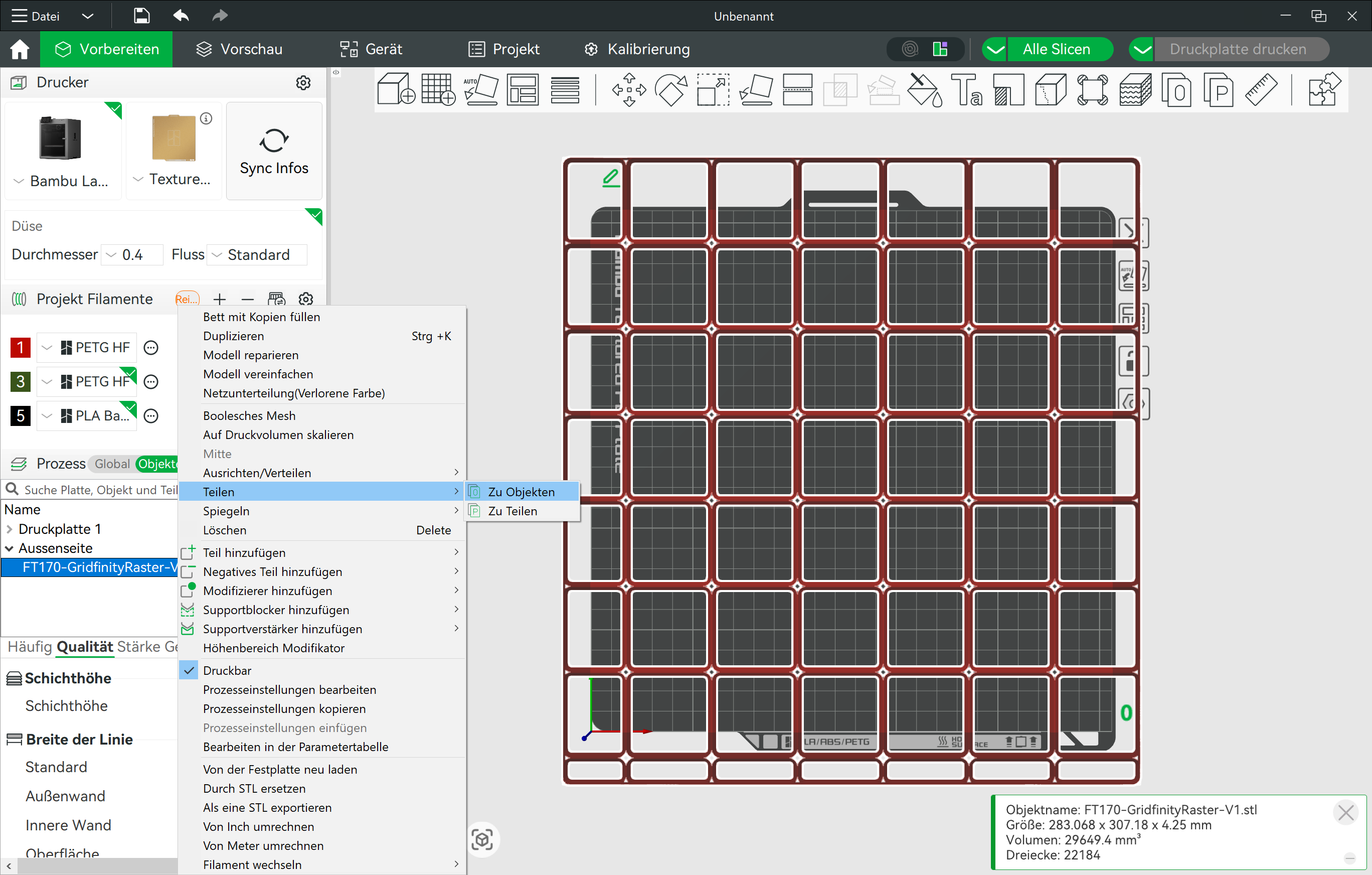

Users can define drawer dimensions and printer bed size. The model is automatically segmented to fit the defined build volume, enabling straightforward preparation in slicing software by separating the generated bodies.

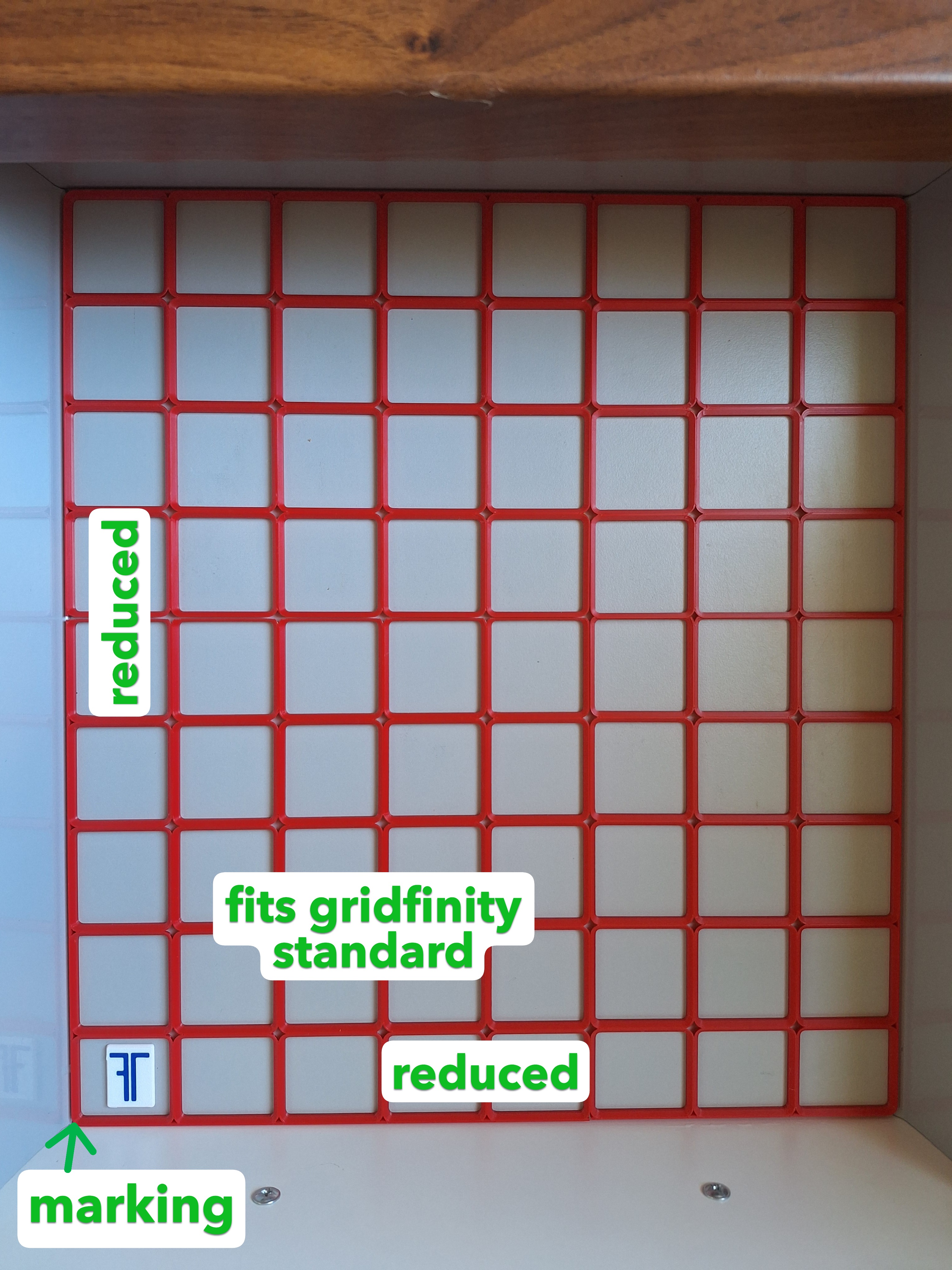

A corner marking is integrated to clearly identify the modified row and column after installation.

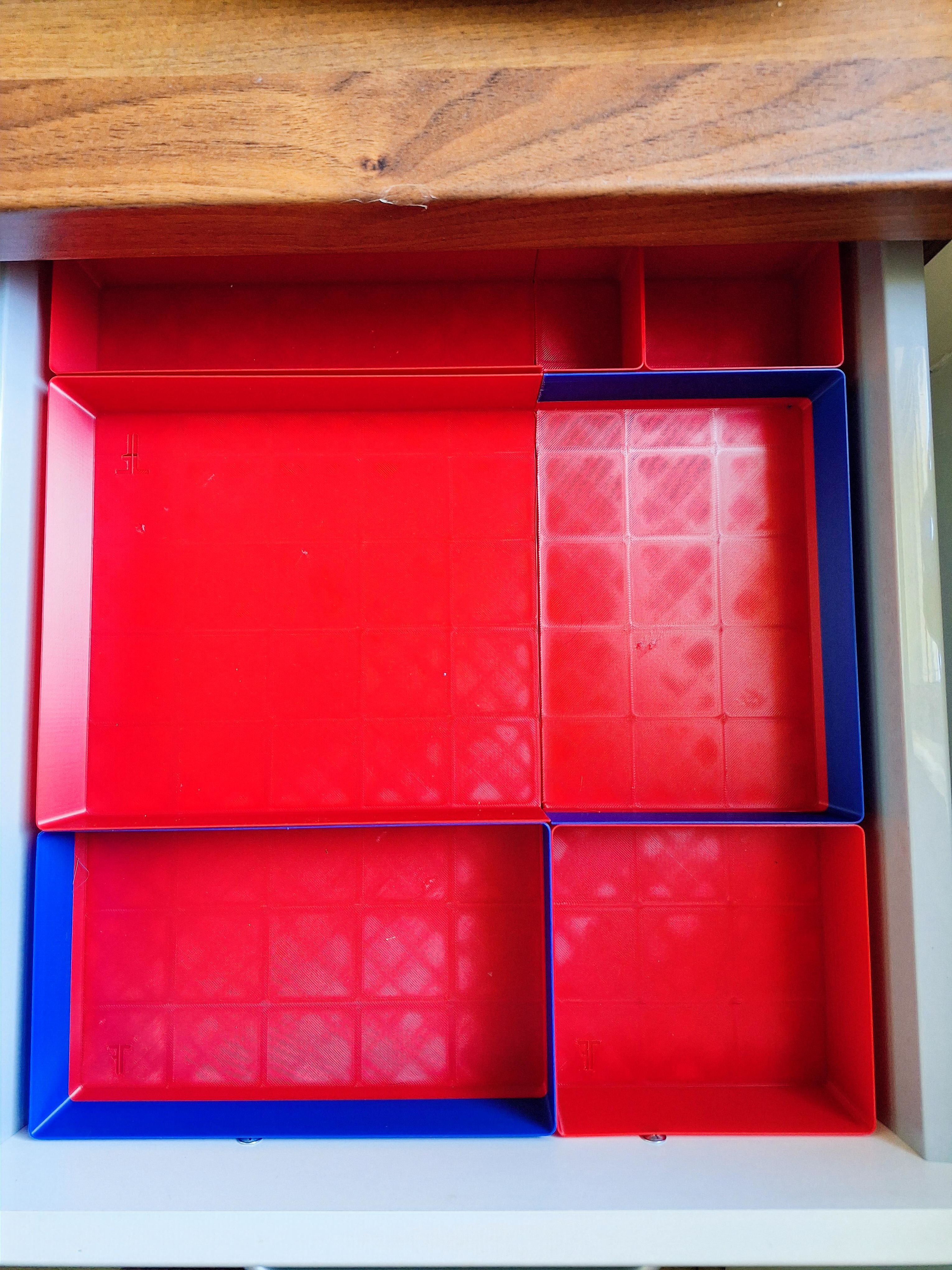

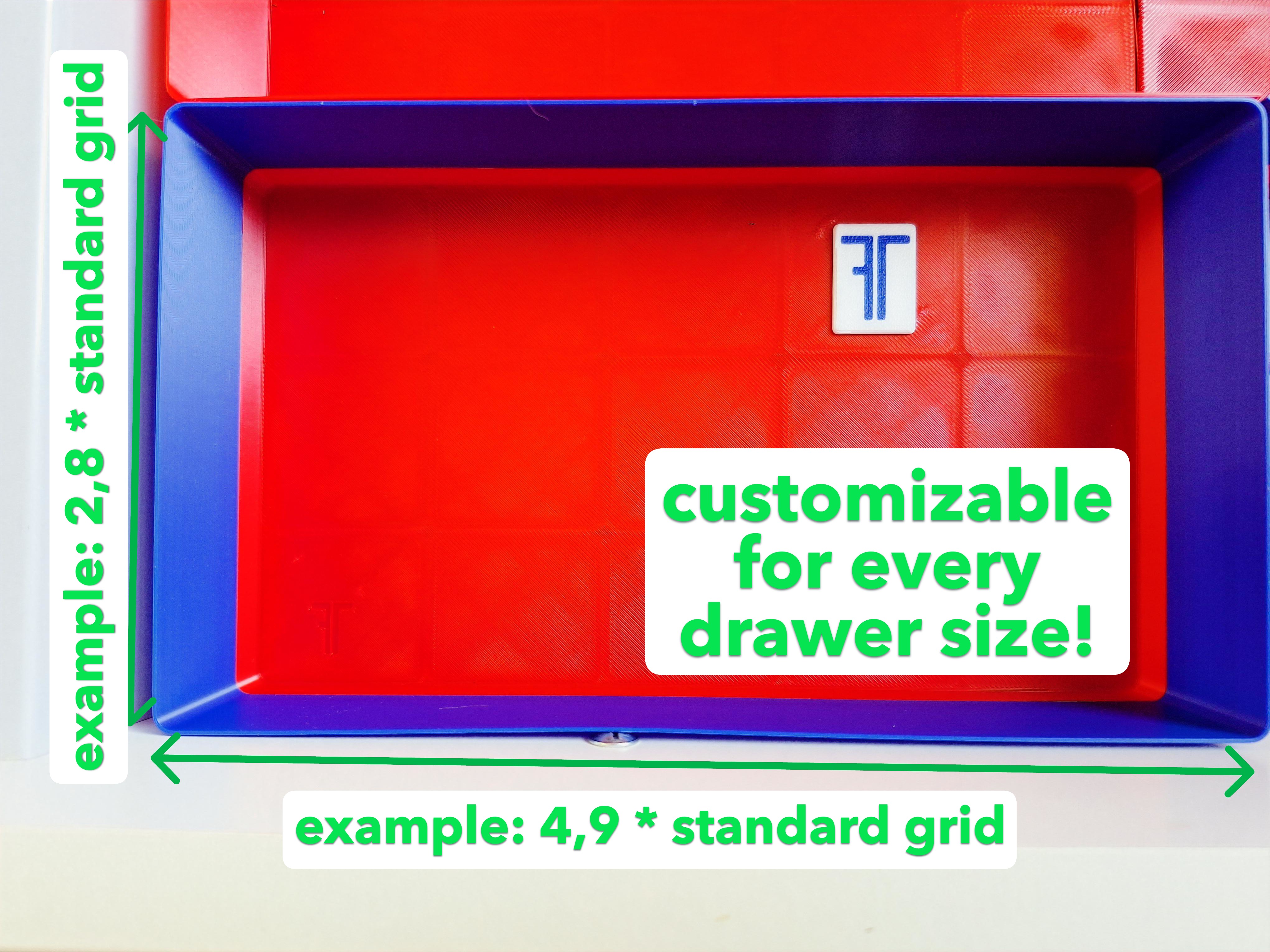

A matching parametric bin is available separately to ensure full system compatibility: Customizable Gridfinity Full-Drawer Bin

Note: Model generation time may increase depending on parameter selection due to internal geometric calculations.
