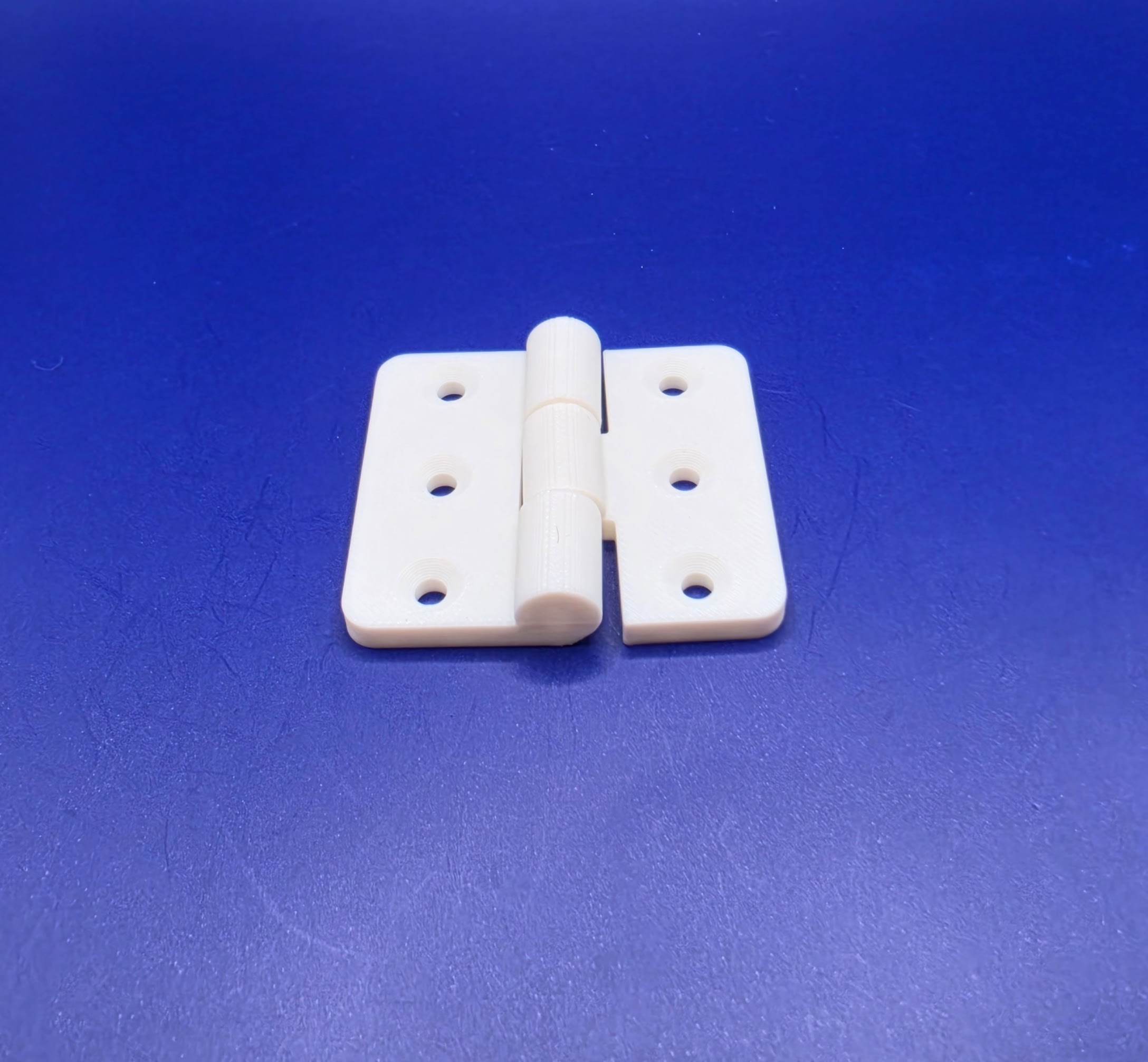

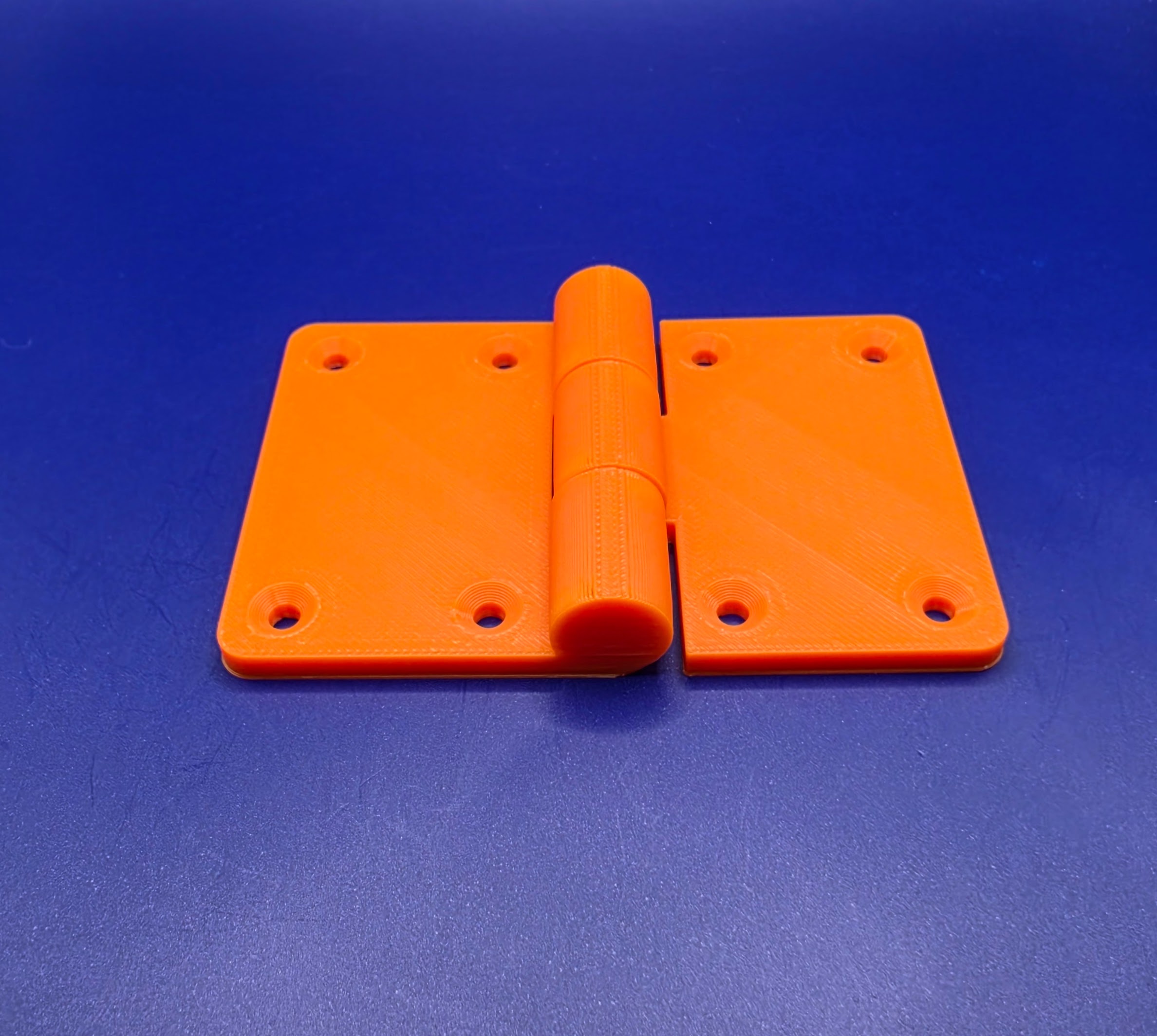

Modelo 3D Parametric Print‑in‑Place Hinge generator por John_M no MakerWorld

Descrição

This fully parametric Print‑in‑Place Hinge is designed for smooth rotation, support‑free printing, and easy customization. Every dimension—from hinge length to screw hole layout—is adjustable directly in the makerworld customizer, making it ideal for enclosures, boxes, doors, lids, props, workshop projects, and hardware replacements.



The hinge prints as a single assembled piece, using alternating knuckles and tapered pins that lock into place while still allowing free movement. Rounded corners, safe screw‑hole spacing, and adjustable clearances make this hinge both functional and aesthetically clean.

Features

  • Print‑in‑place mechanism — no supports, no assembly
  • Parametric design — adjust length, width, thickness, knuckle radius, clearance, screw layout, and more
  • Smooth rotation thanks to tapered conical pins
  • Optional countersunk screw holes
  • Rounded outer corners
  • Support‑free knuckles optimized for FDM bridging
  • Symmetrical, centered hinge geometry for easy alignment
  • Perfect for functional prints, repairs, and custom hardware

Adjustable Parameters

  • hinge_length – total length along the pin axis
  • leaf_width – width of each hinge plate
  • leaf_thickness – plate thickness
  • knuckle_radius – size of hinge knuckles
  • clearance – print‑in‑place gap (0.3–0.5 recommended)
  • corner_radius – rounded outer corners
  • screw_columns / screw_rows – number of screw holes
  • screw_hole_radius / screw_head_radius – thread + countersink sizes
  • hole_margin – safe spacing from edges

All screw holes automatically avoid corners and edges using built‑in geometry logic.

Print Recommendations

  • Material: PLA, PETG, ABS
  • Layer height: 0.2 mm
  • Clearance: 0.4 mm works for most printers
  • Orientation: Prints flat as provided
  • Supports: None
  • Infill: 20–40%
  • Walls: 3+ recommended for strength

Let the hinge cool before testing movement.

Use Cases

  • Boxes & enclosures
  • Cabinets & doors
  • DIY hardware
  • Props & cosplay
  • Repair parts
  • Prototyping
  • Functional mechanical prints
