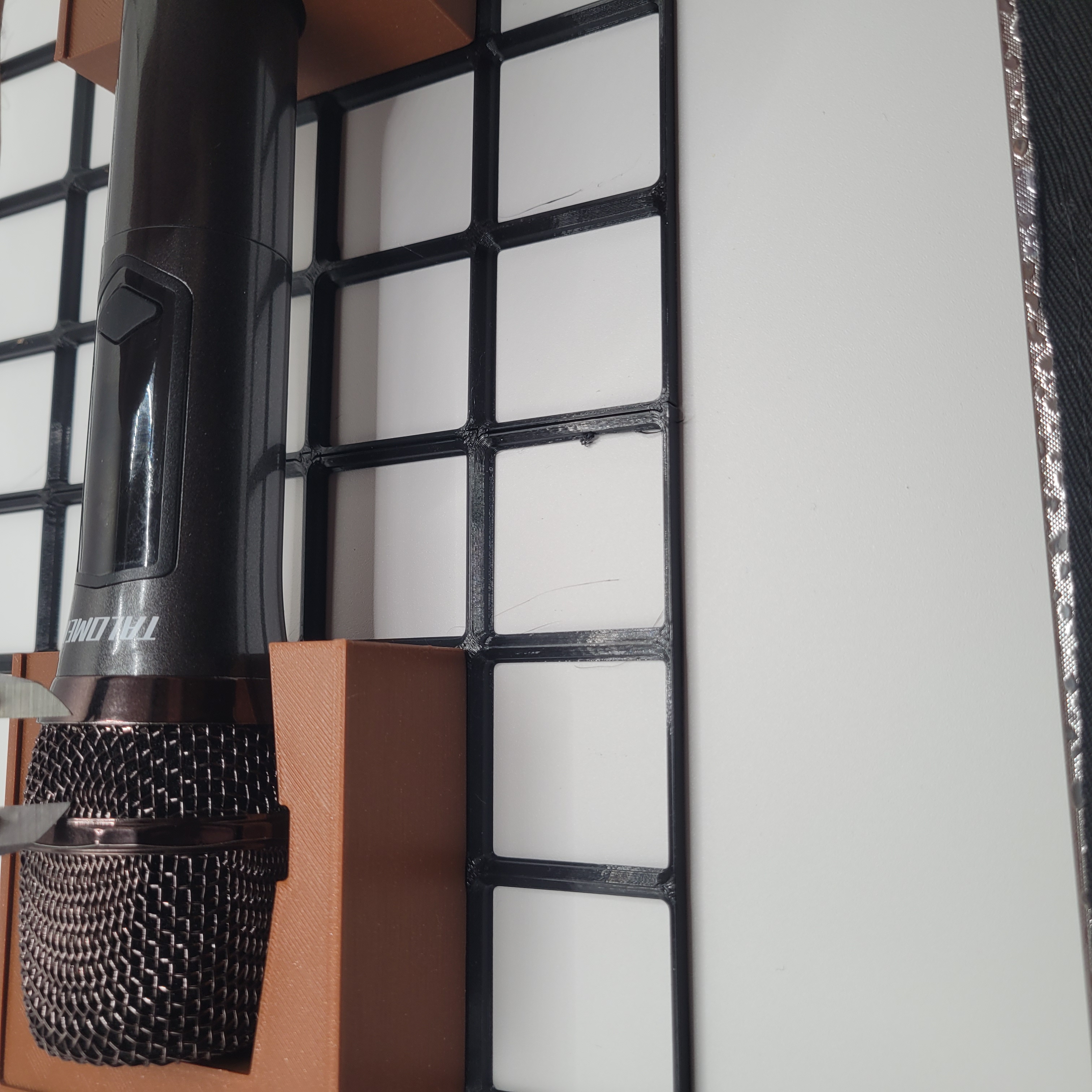

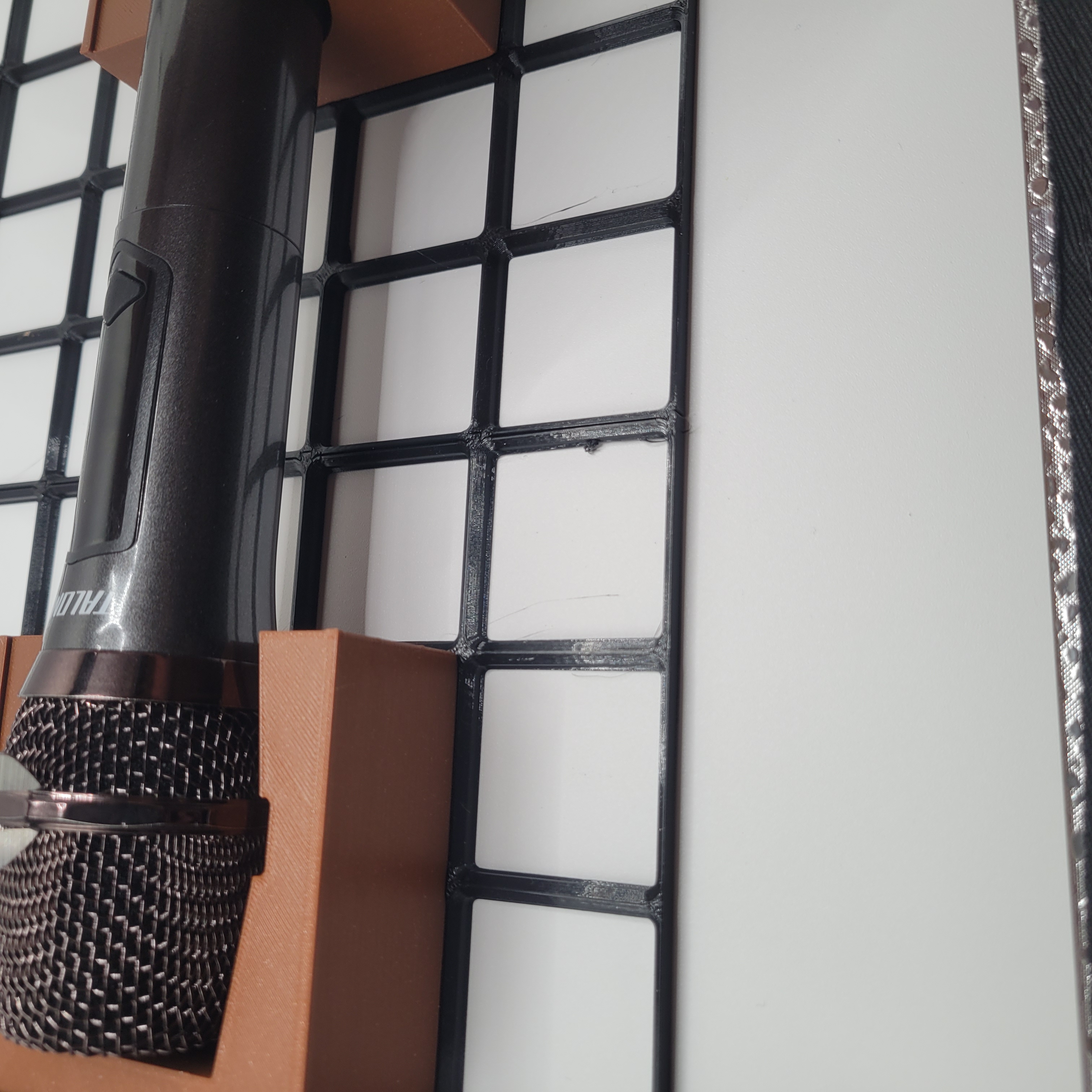

So someone in one of the Gridfinity Facebook groups asked about Microphone holders for Gridfinity.  So I took it as a challenge to come up with something that is flexible and can handle many different types of Microphones, as some are cylindrical, others have weird shaped heads, some have a ring around the head.  So this is the first pass at this.  You can also use this for other cylindrical accessories.

So there are a set of parameters that allow the Microphone to be modeled (measurement in mm).

• Bin Type : Single, Split or Double.   The bins can be long, so a split bin, creates to halves, the double only sets up bins for the ends.
• Grid Y Head: for double bins, how many Grids for the Microphone head
• Grid Y Shaft: for double bins, how many Grids for Microphone shaft.
• Overall Length:  Overall length of the microphone from top to end.
• Bin height:  Overrides the calculated height, if greater (NOTE: not implemented yet.)
• Include Lip:  Include the lip.
• Margin Edge: how much space to leave at minimum for the ends.
• Top Dia:  Diameter of the very top of the microphone
• Top Len: Length from the head to ring or bulge.
• Middle Dia:  Diameter at the middle of the head, or ring.
• Middle Ring:  Does the ring exist.
• Middle Ring Length:   how wide is the Middle Ring.
• Bottom Dia:  Diameter at the bottom of the head, roughly the top of the shaft.
• Bottom Len:  Distance from the bulge or ring.
• Shaft Dia:  Diameter of the rest of the shaft.

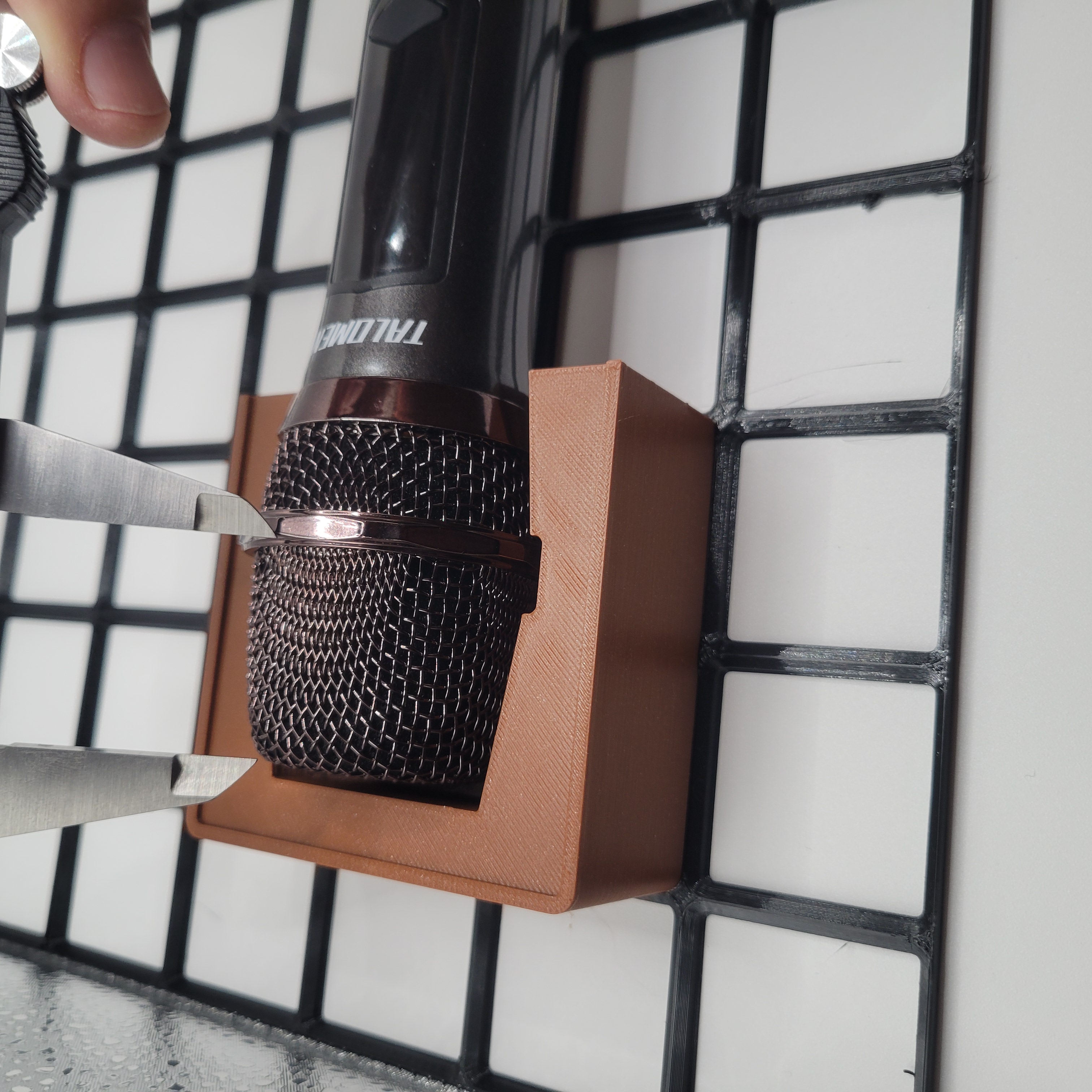

Some pictures to help with measuring

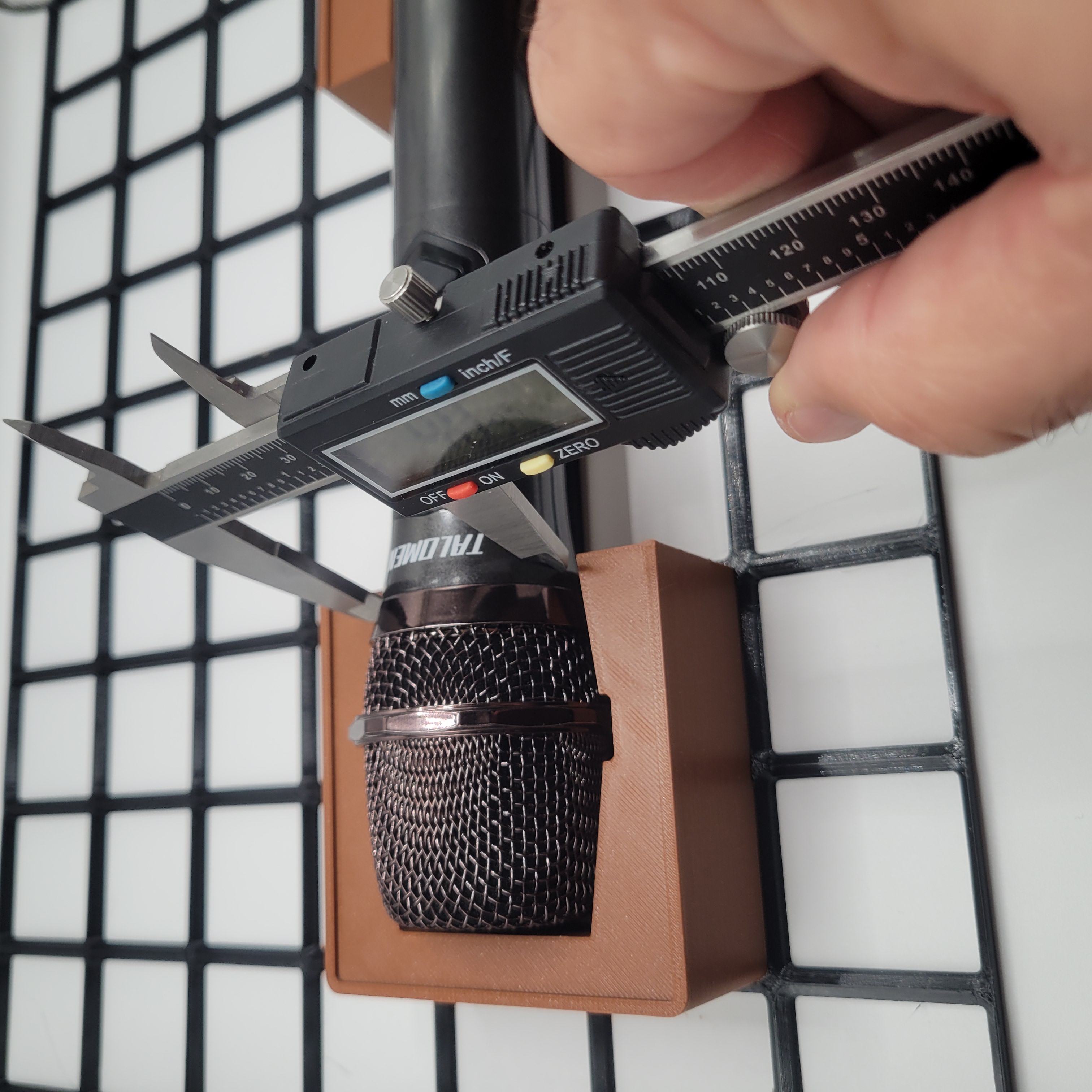

Top Diameter

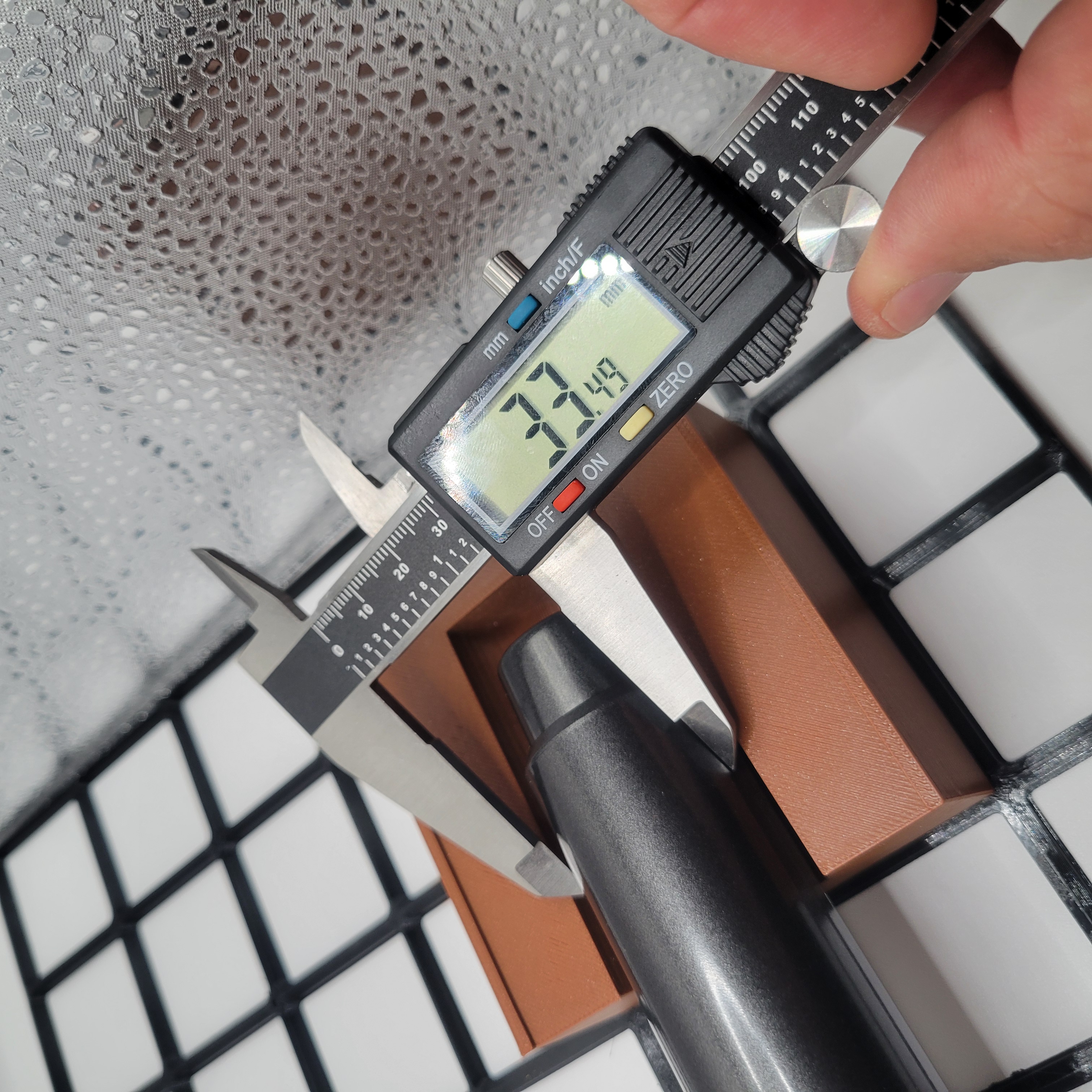

Top Len

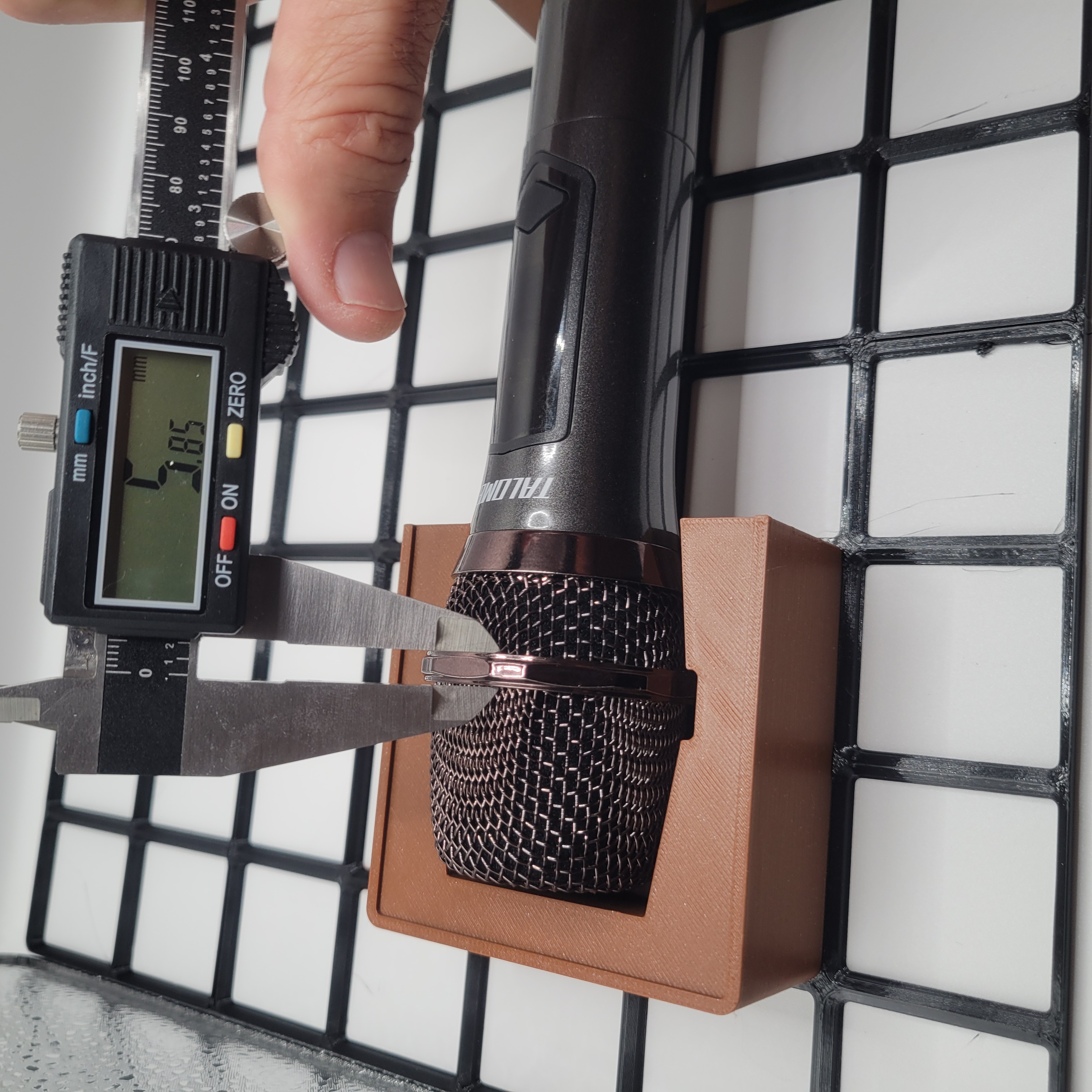

Middle Diameter

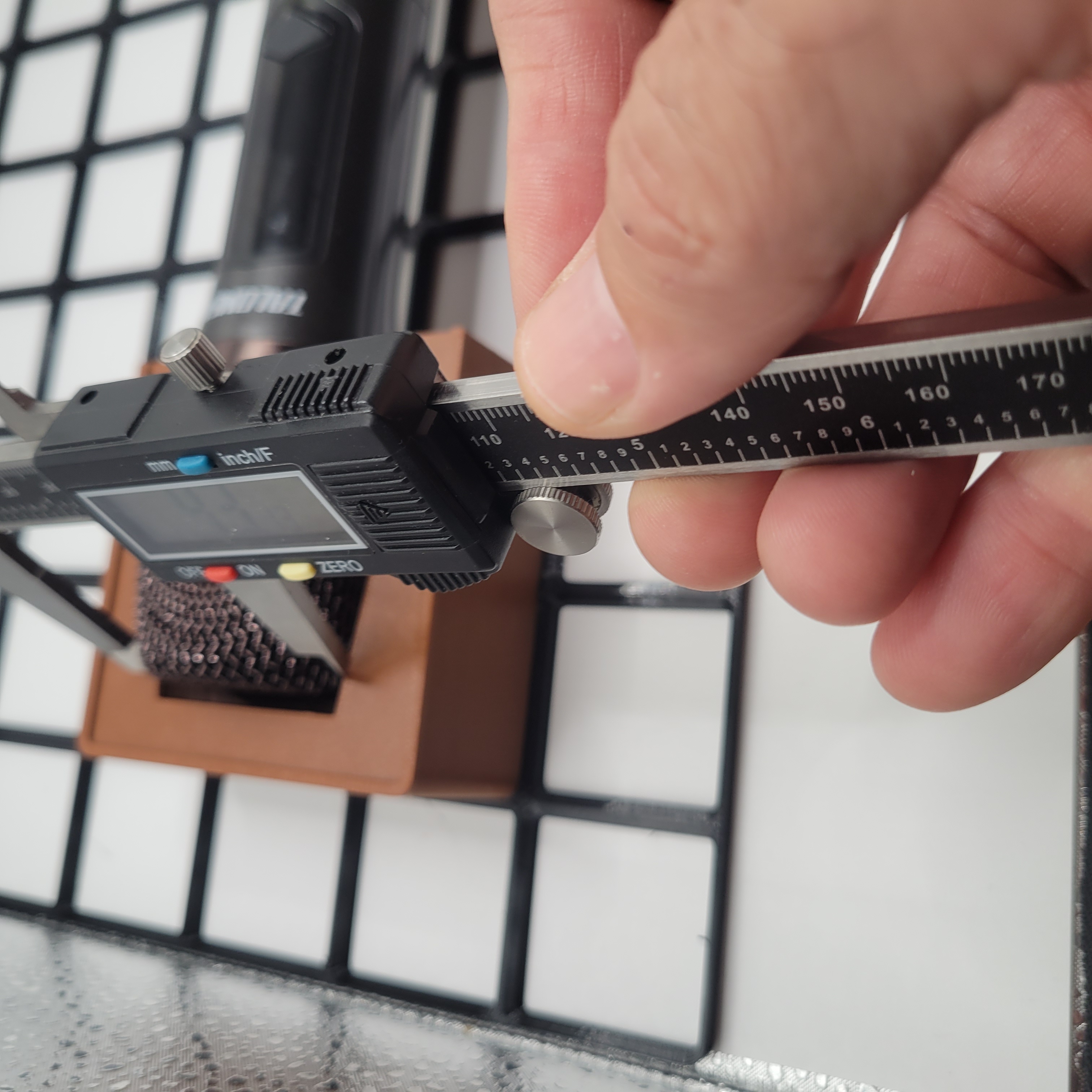

Middle Ring Length

Better Middle Ring measurement

Bottom Diameter of the Head/ Before Shaft

Bottom Distance, should be a little larger, from the bottom of the ring to where I measured bot dia.

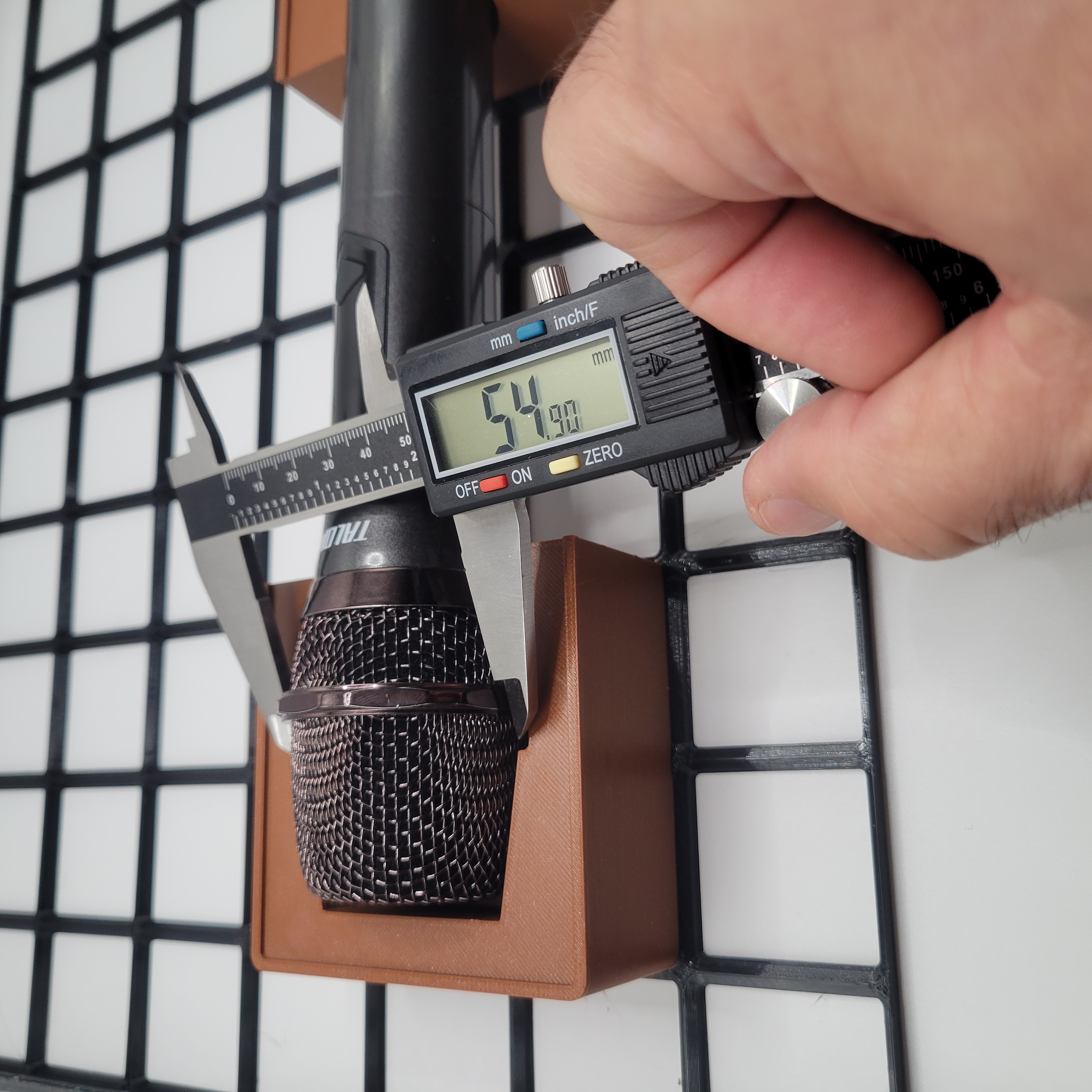

Shaft Diameter

Some notes:

• The cylinders that are cut are tapered from one diameter to the next, for example the Bottom Dia and Shart diameter are the top and bottom of a cylinder.
• You can set the diameters for the top, middle and bottom the same to produce a cylindrical head.

if you run into problems or bugs, please let me know I am pretty responsive with fixing issues.
