A highly customizable

Rack Link

for HomeRacker

The Racklink is a modular connector that links two independent HomeRacker rack columns together. Instead of planning one massive rack from the start, build small columns and connect them later — no matter the height.

• 🔗 Modular by Design — Build columns independently, connect them whenever you're ready
• 📏 Asymmetric Support — Connect columns of different heights thanks to customizable sleeve positions
• 🔄 Both Sides Option — Front and back connectors in one print for maximum stability
• ⚙️ Fully Parametric — Height, distance, and sleeve ranges are all customizable

🤔 The Problem

Building a wide multi-column rack requires careful upfront planning. Get the dimensions wrong and you're reassembling everything or even worse: you need to reprint parts.

This get's even worse when each column has different heights and you'll need to plan a ton of connectors on a single vertical support beam. Single offset isn't even possible right now.

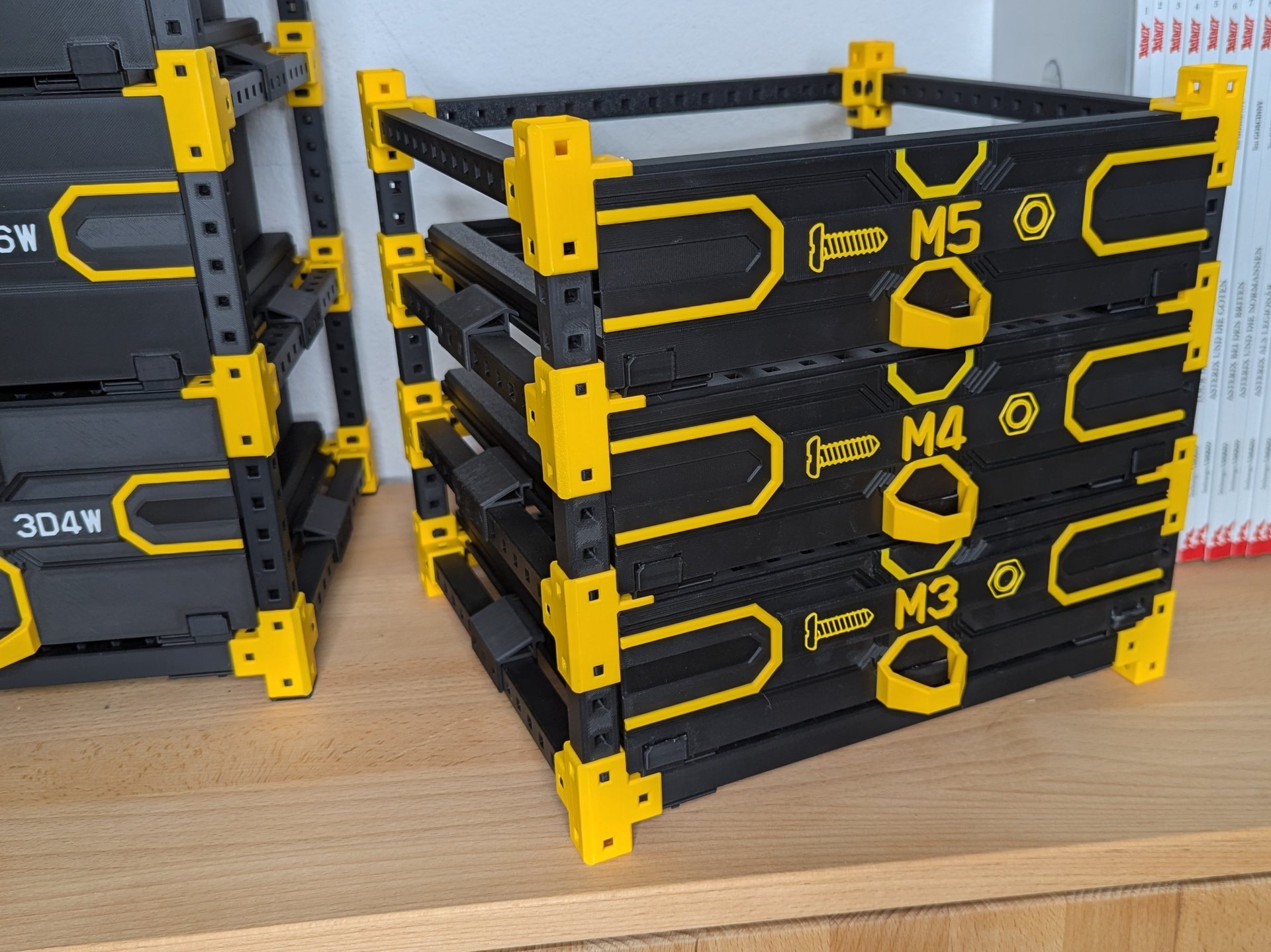

What if you could just build each column separately?

That's exactly what the Racklink enables. Two standalone columns, each built at their own pace, linked together with a simple snap-on connector (You should use lockpins though ;-) ).

🛠️ How It Works

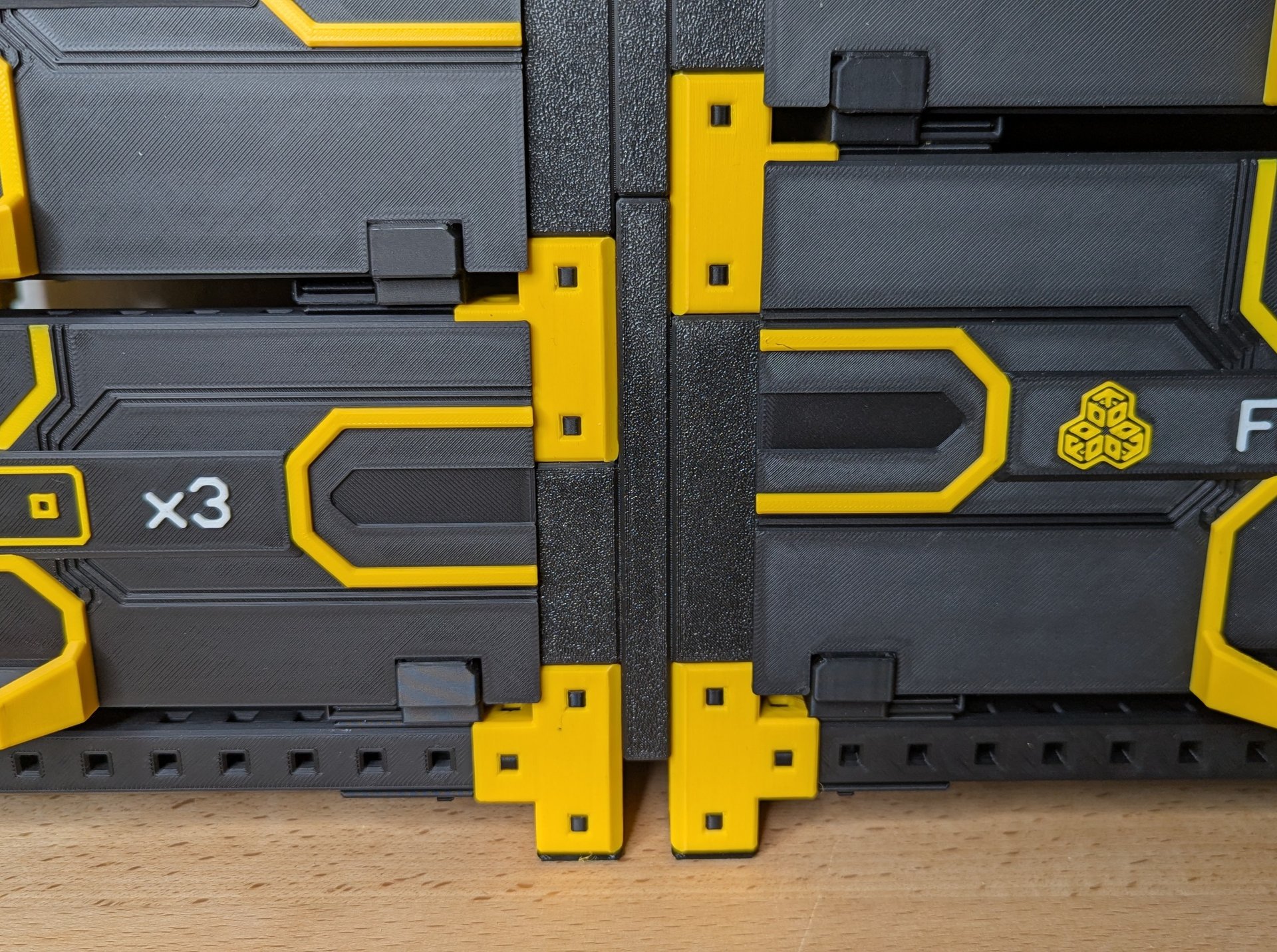

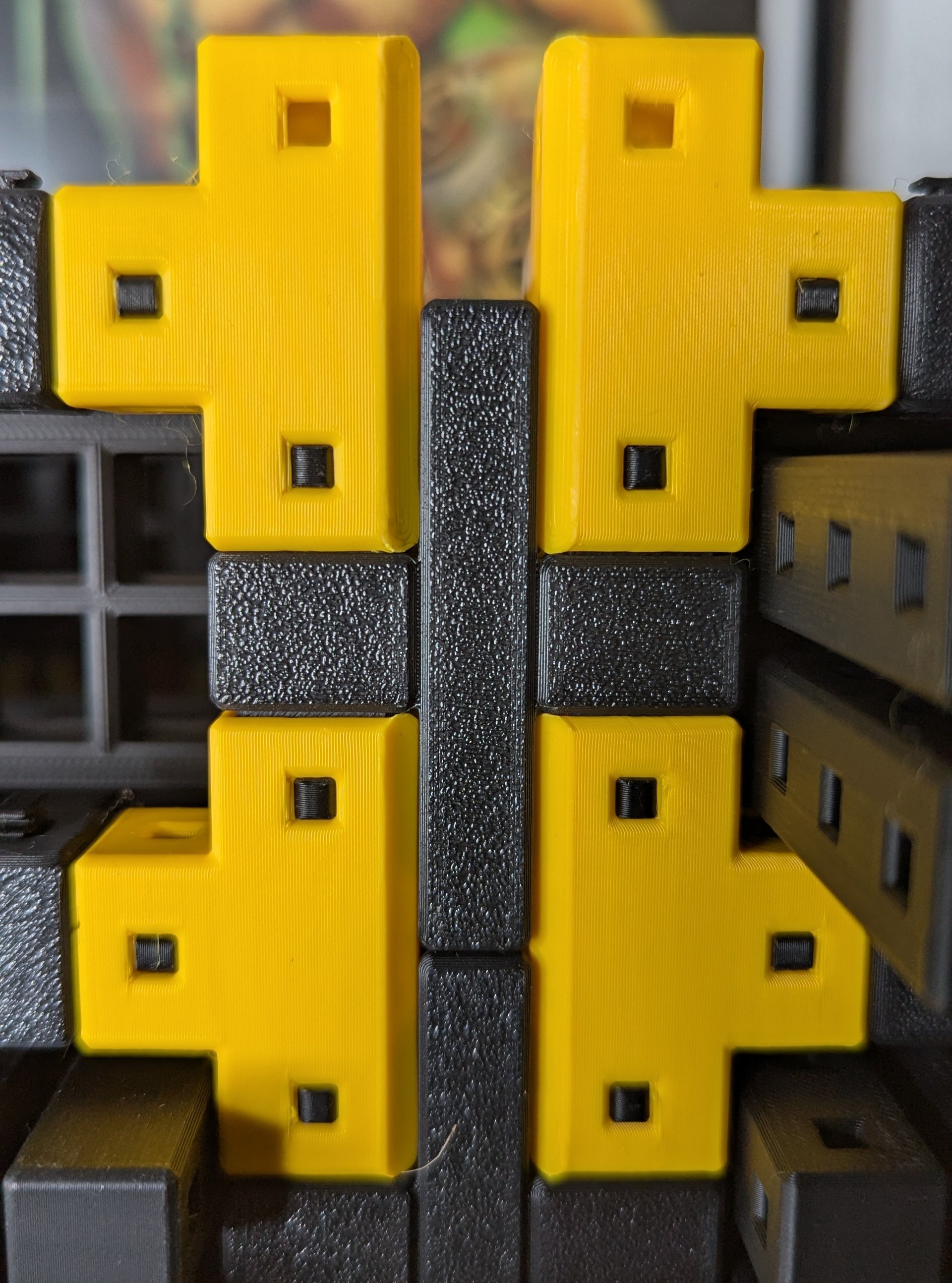

The Racklink wraps around the vertical supports of two adjacent columns with double U-shaped sleeves, connected by a flat cover plate. The cover plate extends beyond the sleeves to overlap with the connectors above and below, giving a clean seamless look.

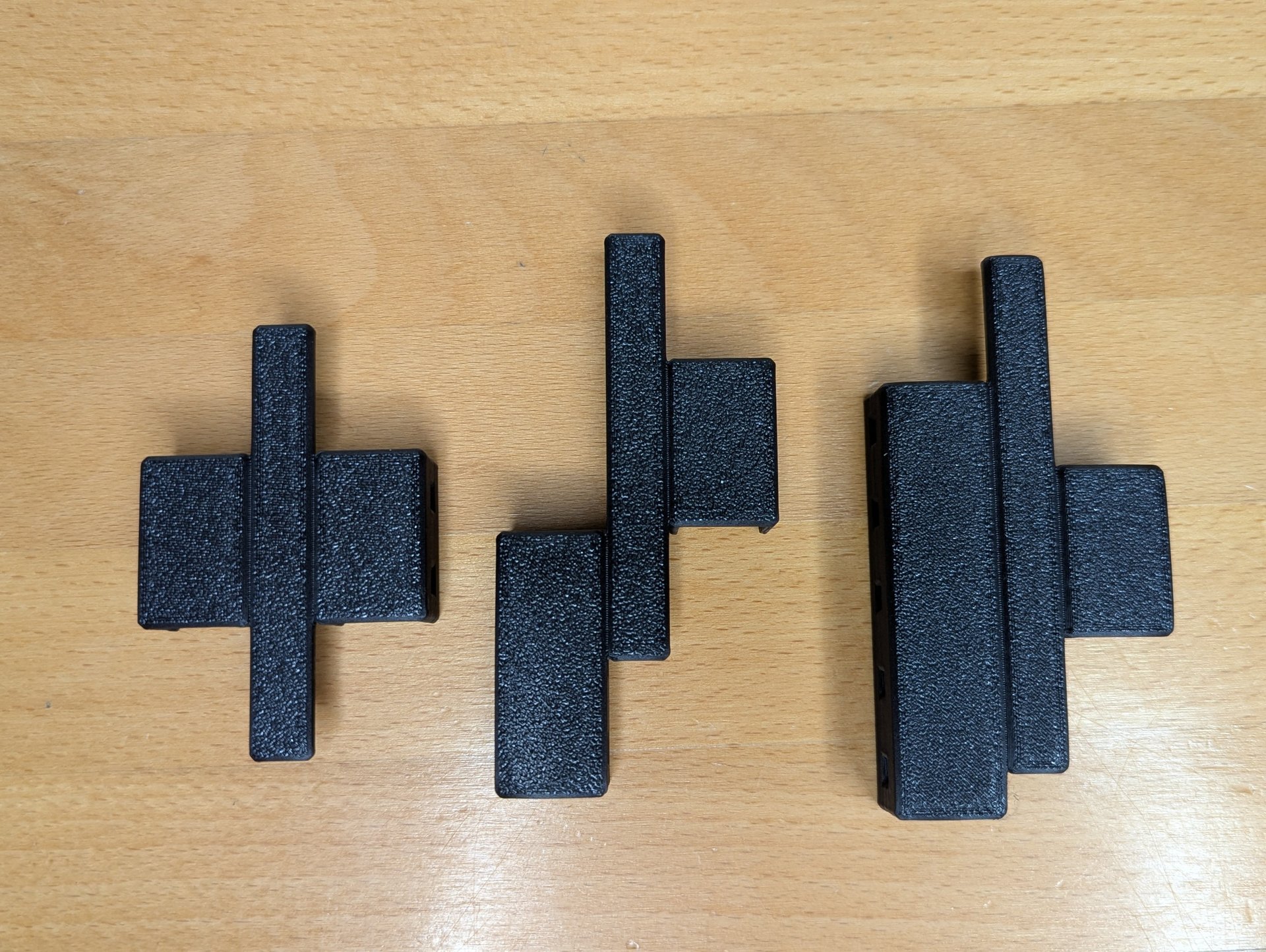

Different configurations are possible — from simple symmetric links to complex asymmetric ones where columns have different heights. The customizer handles it all.

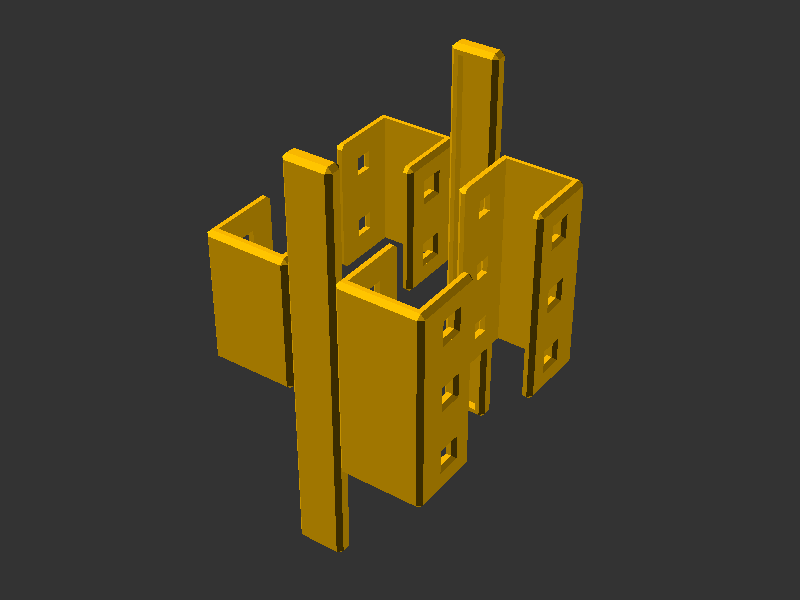

Enable both_sides (default) to generate a front and back connector in one go for extra rigidity. It'll create a racklink for the front and one mirrored version for the back.

📐 Customization Guide

For advanced configurations (asymmetric sleeves, negative start values, multi-level planning), see the attached Customization Guide PDF.

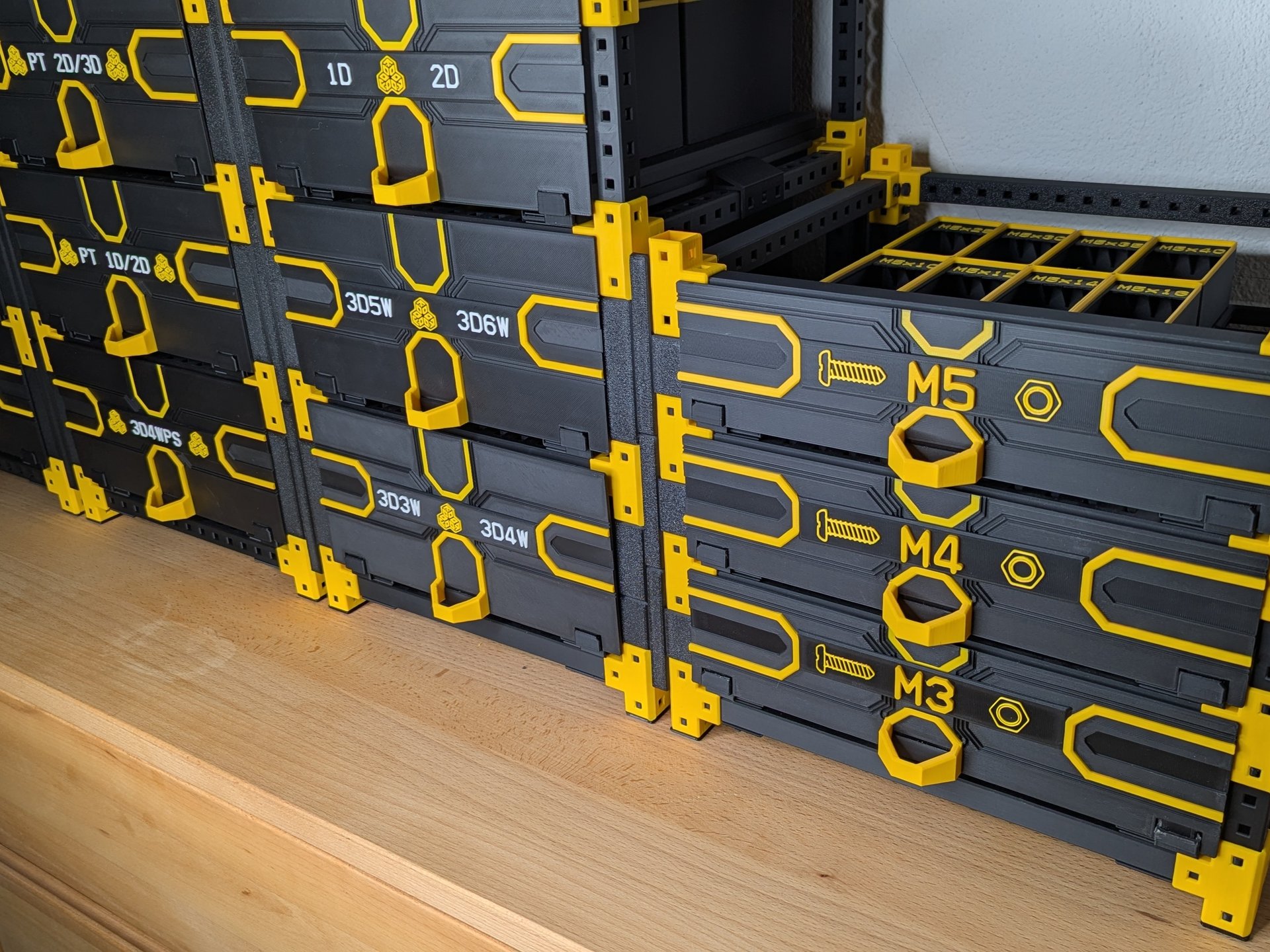

📸 In Action

🏡 What is HomeRacker?

HomeRacker is a universal modular rack building system. It's based on an open specification. Find out more here:

HomeRacker - Core on MakerWorld

or visit [https://homeracker.org/](https://homeracker.org/)

The Official HomeRacker Collection

🤝 Community Driven

I created HomeRacker - Core as an open specification. Anyone can create and share their own extensions and models based on it without licensing restrictions — all I ask for is attribution!

🧑💻 For Designers

Have an idea and the skills? Go ahead — I'd be happy to link and feature your creations in the catalog.

💭 For Idea-Generators

Not familiar with CAD? Pitch your idea to me with as much detail as possible!

Check out the Community Catalog

Pitch ideas or vote for them here on GitHub!

Join the KellerLab Discord Server: Discord Invite

☕ Support

If you appreciate this model and wanna buy me coffee, you can do so here: [https://ko-fi.com/kellervater](https://ko-fi.com/kellervater)

Or simply scan this QR-Code:

🗓️ Changelog

• 🆕 Initial Release

This model is part of the HomeRacker Exclusive collection. It builds on the open-source HomeRacker - Core system — the base building blocks changelog can be found in the Core CHANGELOG.
