Overview

• Clean, modular screw organization for Multiboard systems
• Designed for fast access, portability, and precise sorting
• User Verified: Test-printed and dialed for reliable fit and function
• Each bin routes screws into a front catch for easy retrieval
• Slides off the board quickly for mobile workstations

Features

• Labeled M3 sizes: M3, x5, x6, x8, x10, x12, x14, x16, x18, x20
• Snap-on Multiboard peghole slider system included
• Print one bin or full set depending on your needs
• Tight spacing allows bins to sit flush side-by-side
• No supports required (clean, fast prints)
• Durable geometry optimized for repeat handling

Description

I originally received a multi-size screw kit with a broken case, so instead of returning it, I built something better.

This Multiboard-compatible screw holder system is designed for efficiency and real-world use. Each bin is labeled and sized specifically for common M3 screw lengths, allowing you to instantly identify and grab what you need without digging through mixed hardware.

The angled internal geometry naturally funnels screws into a front catch, making retrieval effortless. Combined with the slide-off mounting system, you can quickly remove a bin from your board and take it directly to your workspace.

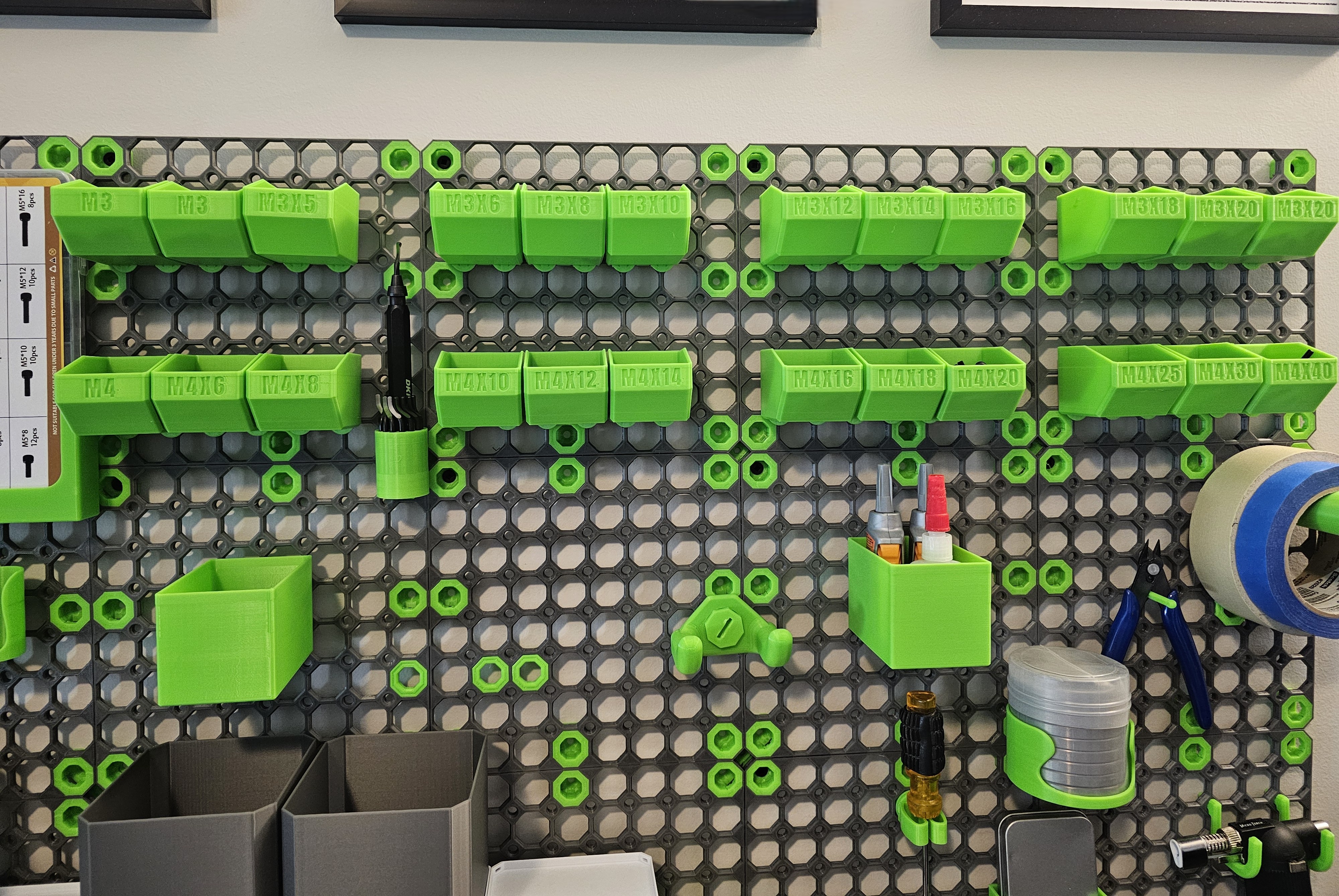

The layout is intentionally tight and modular, letting you build a clean, professional-looking wall of organized hardware. This is a practical solution that looks as good as it functions—perfect for any workshop or print station.

Assembly Guide

1. Print desired bins (individual sizes or full set)
2. Print included Multiboard peghole sliders
3. Attach sliders to the back of each bin (press-fit)
4. Mount bins onto Multiboard panel
5. Load screws and arrange bins side-by-side

Bill of Materials (BOM)

Required Non-Printed Parts:

• No hardware required

Note: This is a 100% printed system with snap-fit mounting components.

Technical Print Settings

Recommended Equipment

• Nozzle: 0.4mm
• Build Plate: Any clean plate that has proper bed adhesion

Print Parameters

• Filament Type: PLA or PETG tested, any sturdy filament should work.
• Wall Loops: 3
• Infill Density: 15%
• Infill Pattern: Rectilinear (fast) or Gyroid (stronger)
• Layer Height: 0.20mm
• Supports: None
• Brim: Not required (use outer brim if adhesion issues)

Material & Time Estimates

• Filament Usage: ~30g per bin
• Estimated Print Time: ~1 hour per bin
• Dimensions: 45mm (H) x 48mm (W) x 60mm (D)
• Verified Profile: Tested for fit, strength, and repeatability
