Descrição
I created the main components for a meshtastic node.
The project currently includes the following components:
- a plate compatible with the 150x100x70mm box
[https://s.click.aliexpress.com/e/_c4Nh5Rtp](https://s.click.aliexpress.com/e/_c4Nh5Rtp) - a 21700 battery holder (models for other sizes (18650, etc.) will be added upon request), including a double or triple version
- a Heltec T114 - V3 - V4 board holder
- a 20mm diameter air vent with a grille to allow air to pass through the waterproof box, to be installed at the bottom of the box.
I added a battery protection circuit to my standalone solar node project
[https://it.aliexpress.com/item/1005008449687805.html](https://it.aliexpress.com/item/1005008449687805.html)
An MPPT charger for proper battery charging.
[https://s.click.aliexpress.com/e/_c4MSwGvH](https://s.click.aliexpress.com/e/_c4MSwGvH)
A 10W 5V solar panel
[https://s.click.aliexpress.com/e/_c4Sd0usb](https://s.click.aliexpress.com/e/_c4Sd0usb)

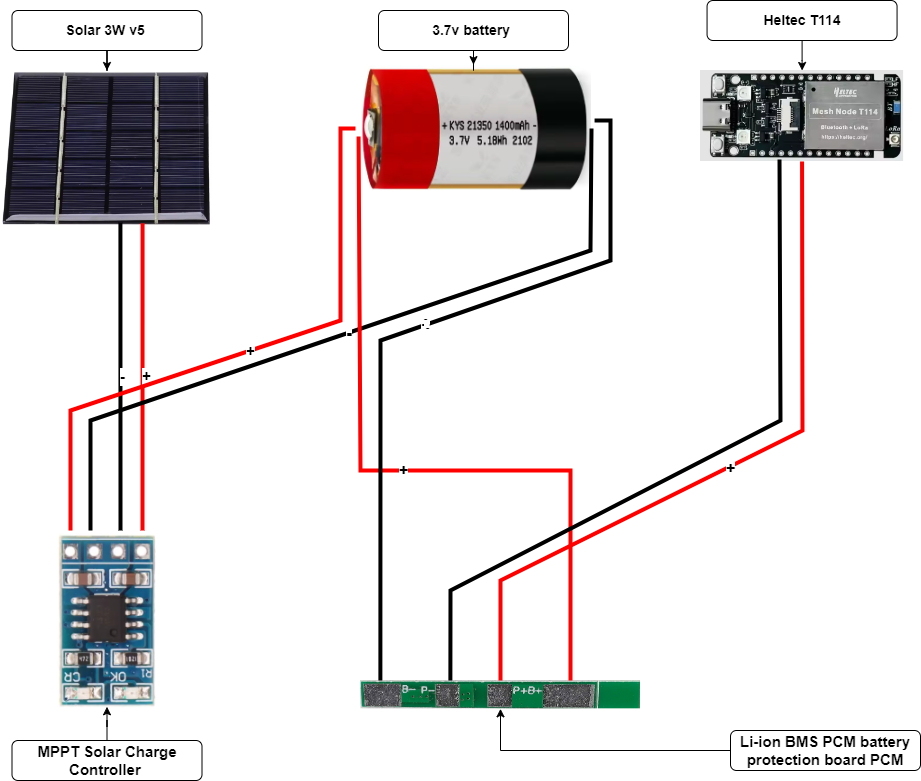

This is the wiring diagram.
Please write here and give your feedback!!
