The Ultimate Gridfinity Drawer Configurator

I made this tool because I wanted a faster and cleaner way to turn a full drawer into a proper Gridfinity setup

With the Ultimate Gridfinity Drawer Configurator, you enter your drawer size, choose alayout, and generate a complete drawer system with a fitted grid, matching bins, optional lids, magnet holes, and separated printable parts.

What it does

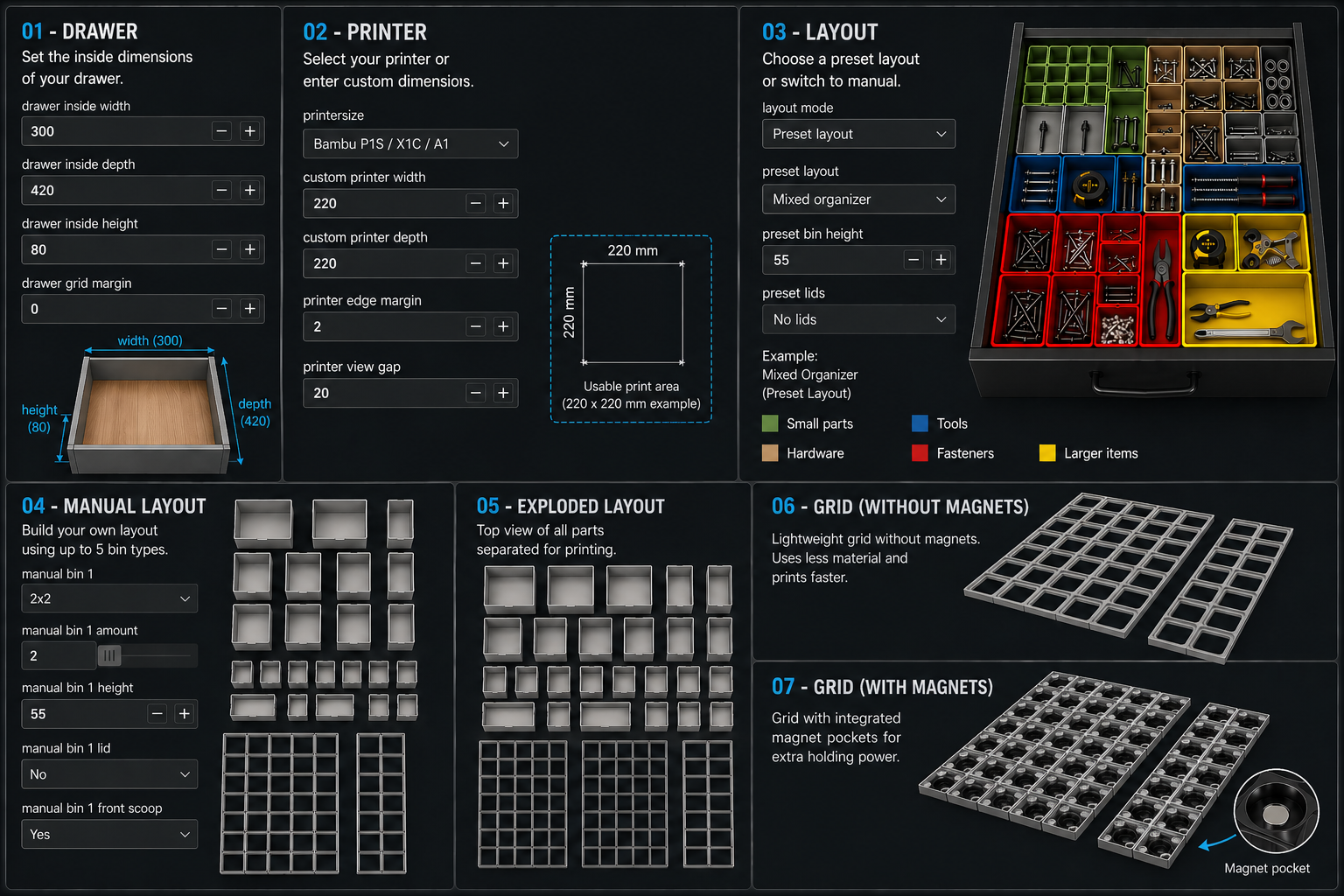

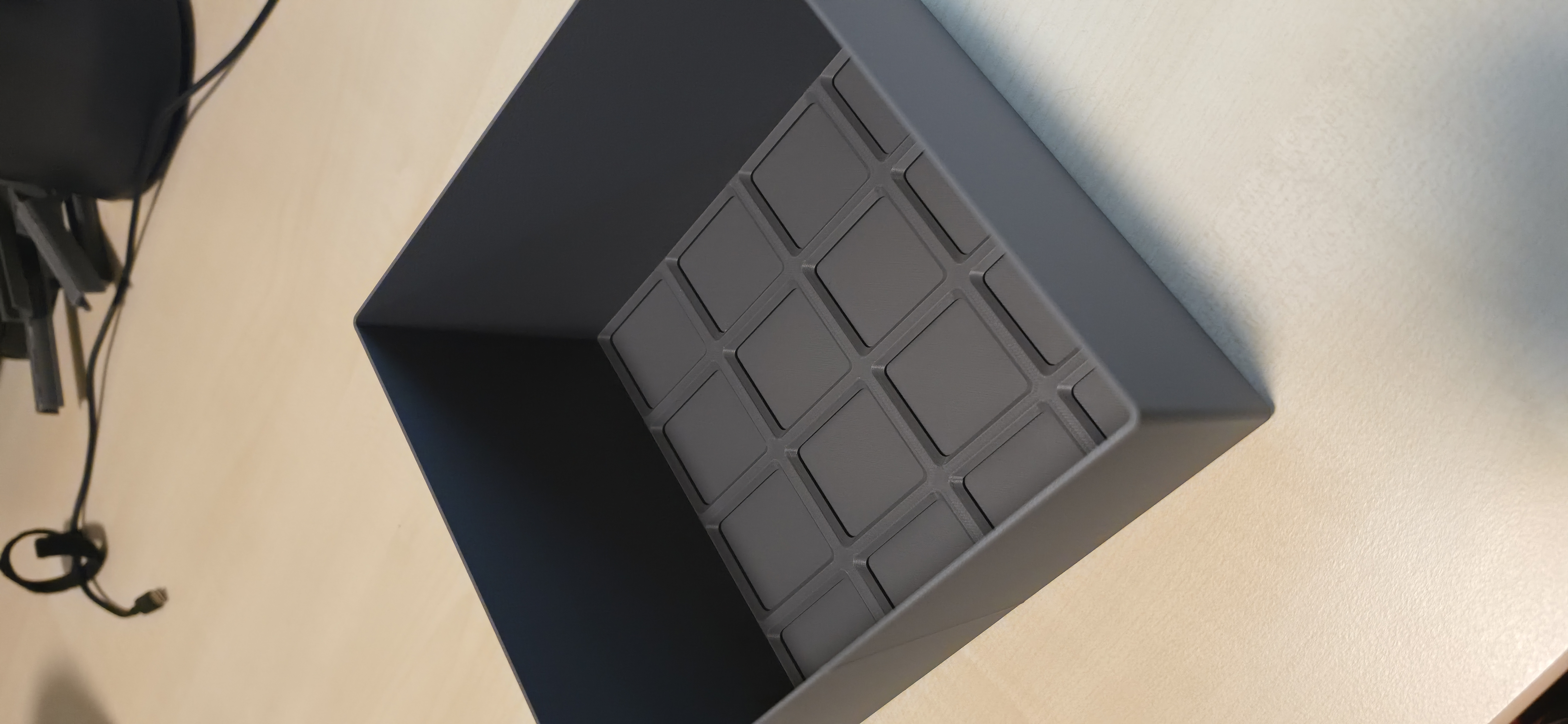

This configurator automatically calculates the maximum number of Gridfinity cells that fit inside your drawer. From there, you can create a complete layout with different bin sizes and heights.

You can preview everything assembled inside the drawer or switch to print to see the parts separated for printing.

Main features

• Fully parametric Gridfinity drawer generator

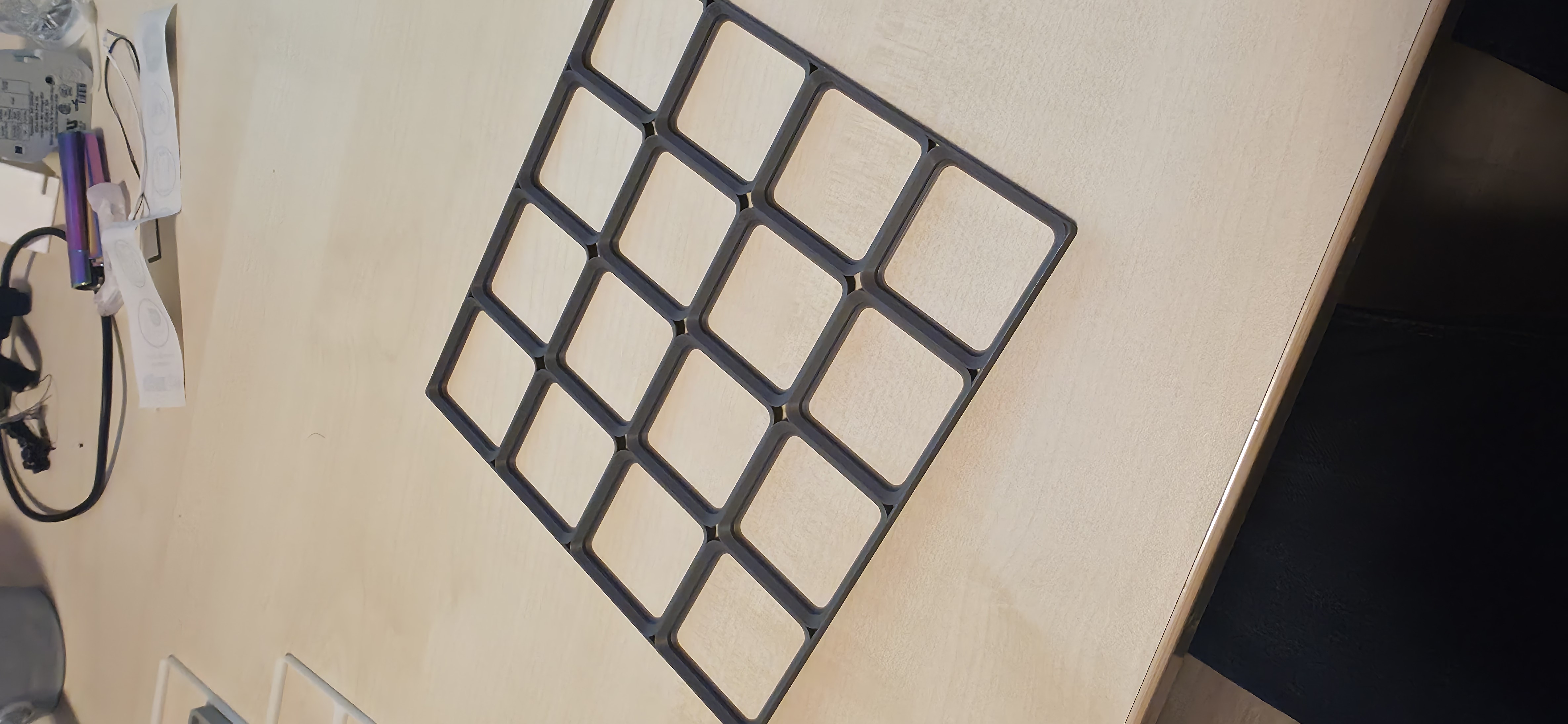

• Automatically fits the grid to your drawer size
• Preset layouts for quick setups
• Manual layout with up to different bin groups
• Adjustable bin sizes, amounts, and heights
• Optional lids with a recessed fit
• Pull holes in the lids for easy removal
• Optional magnets
• Grid splitting based on your printer size
• Exploded view for grid parts, bins, and lids
• Built-in printer presets for common machines
• Assembled drawer preview
• Bin and grid test modes

Layout options

You can keep it simple with one of the preset layouts, or use the manual layout to build something more specific.

For example, you can mix:

• small bins for screws, nozzles, inserts, and tiny parts
• larger bins for tools, spare parts, and accessories
• low bins for flat items
• taller bins for bulk storage
• lidded bins for items you want to keep covered

The goal is to make it easy to create a drawer that fits the way you actually use it.

Printer setting

The print setting separates the model into individual printable parts:

• grid sections
• bins
• lids

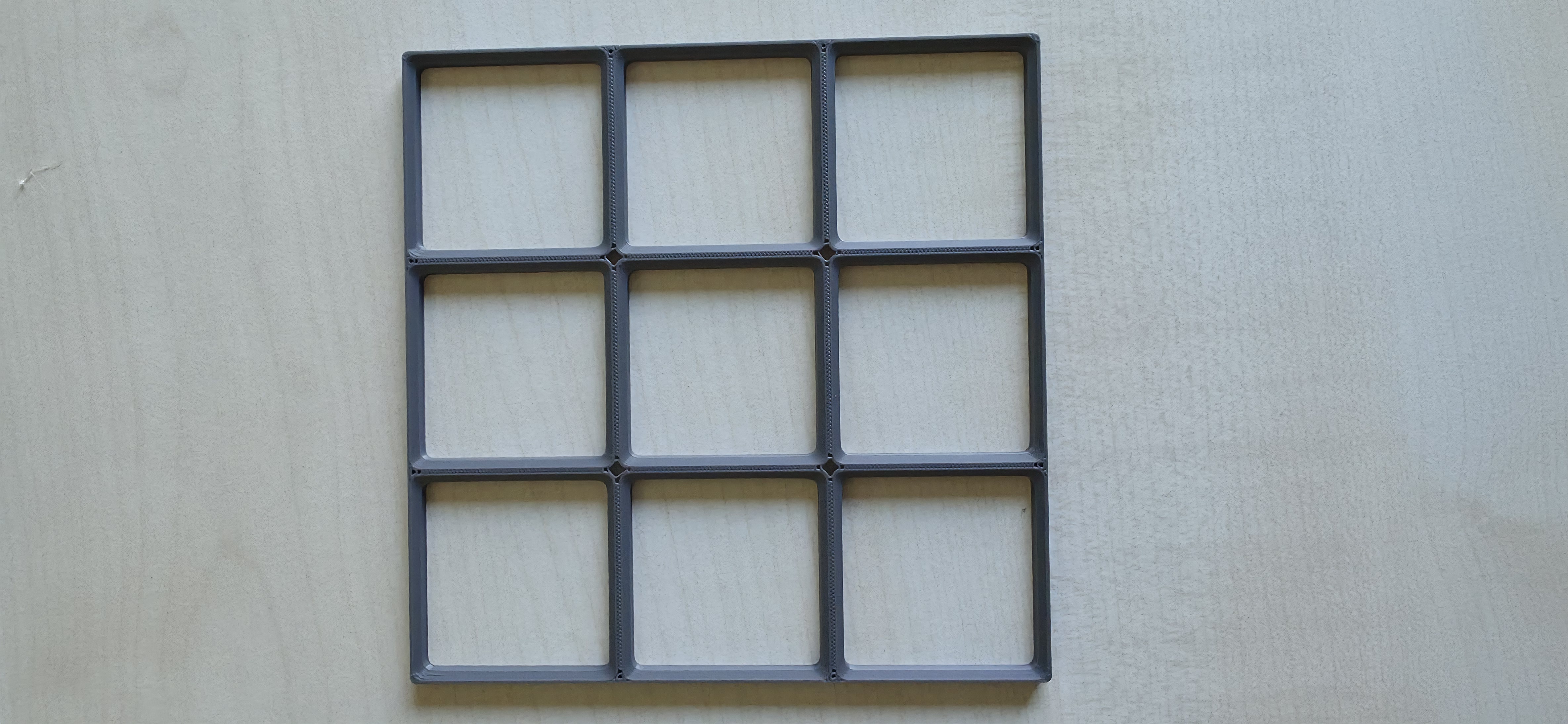

The grid can be split based on your selected printer size, so larger drawer layouts can still be printed on normal-sized printers.

Magnets optional

If you want a more secure Gridfinity setup, the generator also includes magnet options.

Works great with the Ultimate Bin Generator

For even more control over individual bins, check out my Ultimate Bin Generator.

This drawer generator is made for creating a complete fitted drawer layout. The Ultimate Bin Generator is better when you want to fine-tune individual bins or create more specialized storage parts, including Gridfinity-compatible bins.

Together they give you a flexible system for building custom storage that fits your workspace.

Good for

• 3D printer tools and spare parts
• nozzles, screws, inserts, and hardware
• electronics components
• hobby and craft supplies
• workshop drawers
• desk organization
• maker spaces
• tool storage
• custom Gridfinity setups

In short

The Ultimate Gridfinity Drawer Generator helps you create a complete custom Gridfinity drawer from your own drawer dimensions. It generates the grid, bins, lids, magnet options, and separated printable parts, making it a simple way to build a clean drawer system that actually fits.
