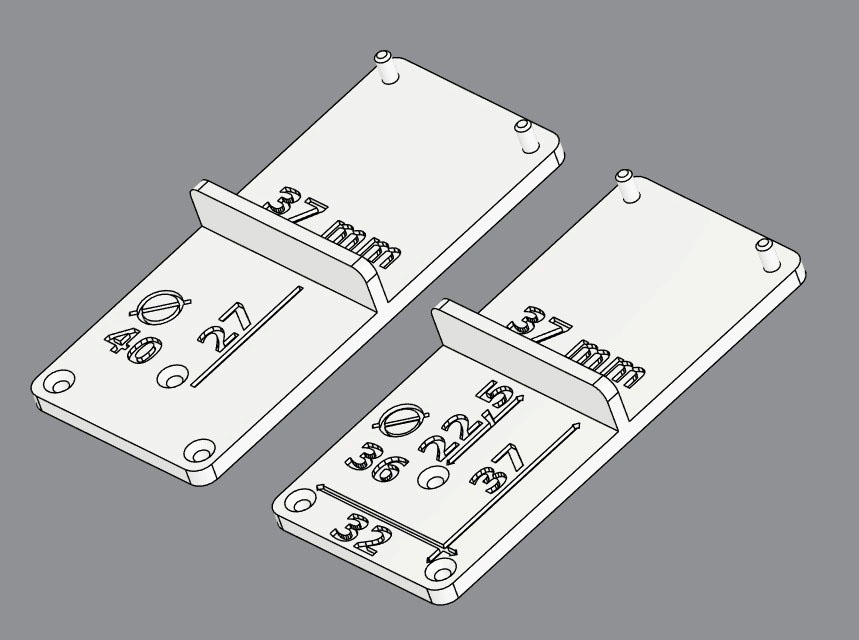

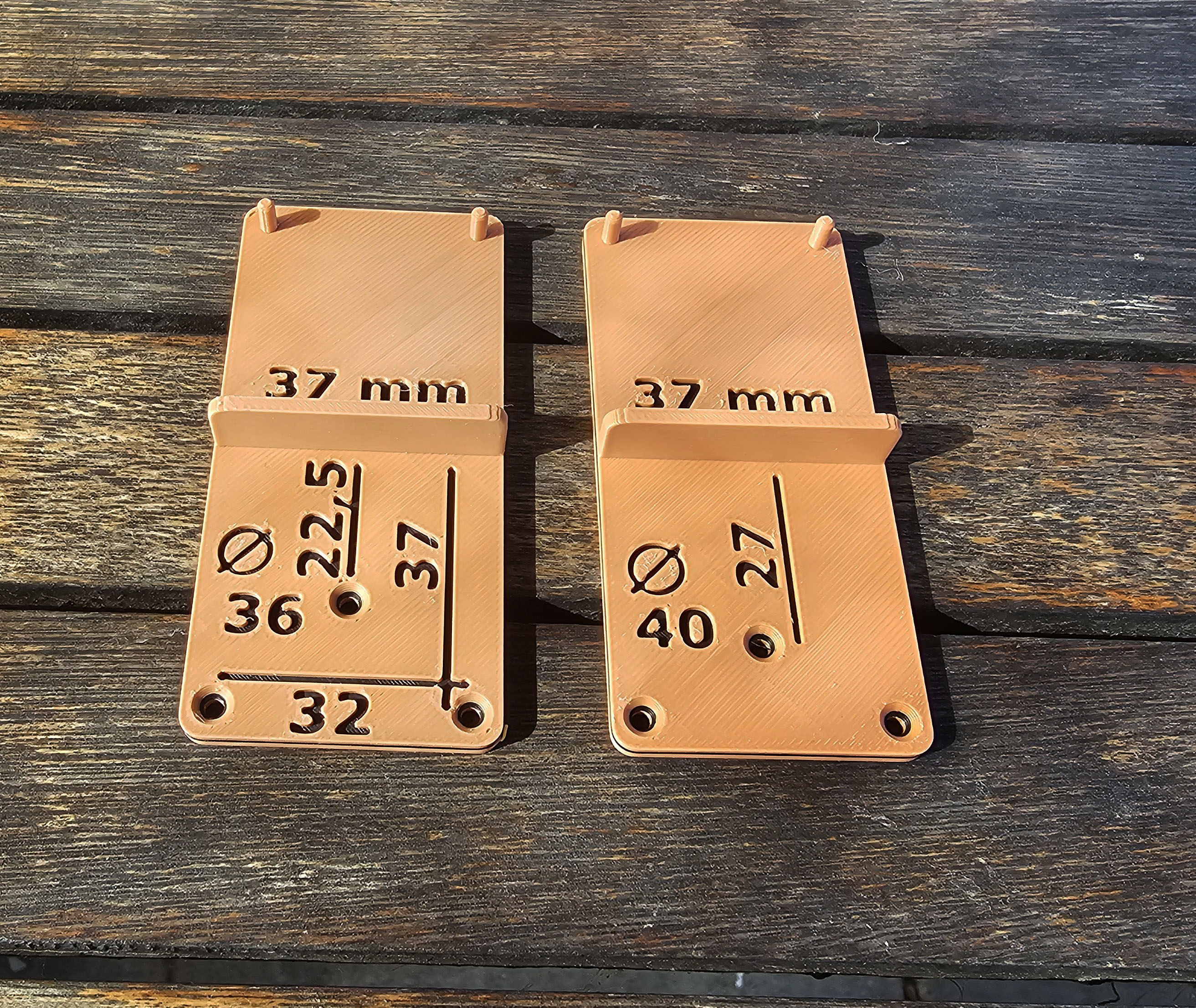

🔧 Hinge Drilling Jig

A practical and precise jig for drilling holes for cabinet hinges (e.g. Ø35–40 mm). This tool makes installation of cabinet doors much easier by ensuring accurate positioning, repeatability, and professional results without complicated measuring.

Perfect for woodworkers, makers, and DIY enthusiasts.

✨ Features

• ✅ Accurate drilling – clearly defined hole positions
• ⏱️ Saves time – no more repetitive measuring
• 🔁 Repeatable results – ideal for batch work
• 🧰 Easy to use – beginner-friendly
• 💪 Durable design – suitable for workshop use

🛠️ What it’s for

This jig is designed for precise drilling of concealed (cup) hinges in cabinet doors. It helps you position the hinge hole correctly from the edge and ensures straight, consistent drilling every time.

🧵 Recommended Print Settings

• Material: PLA
• Layer height: 0.2 mm
• Infill: 15%
• Supports: Not required
• Perimeters: 3–4 (for extra strength)
• Top/Bottom layers: min. 4

🎨 Two-color printing

For better readability, print using two colors:

• Base: light color (e.g. beige)
• Text/markings: contrasting color (e.g. black)
