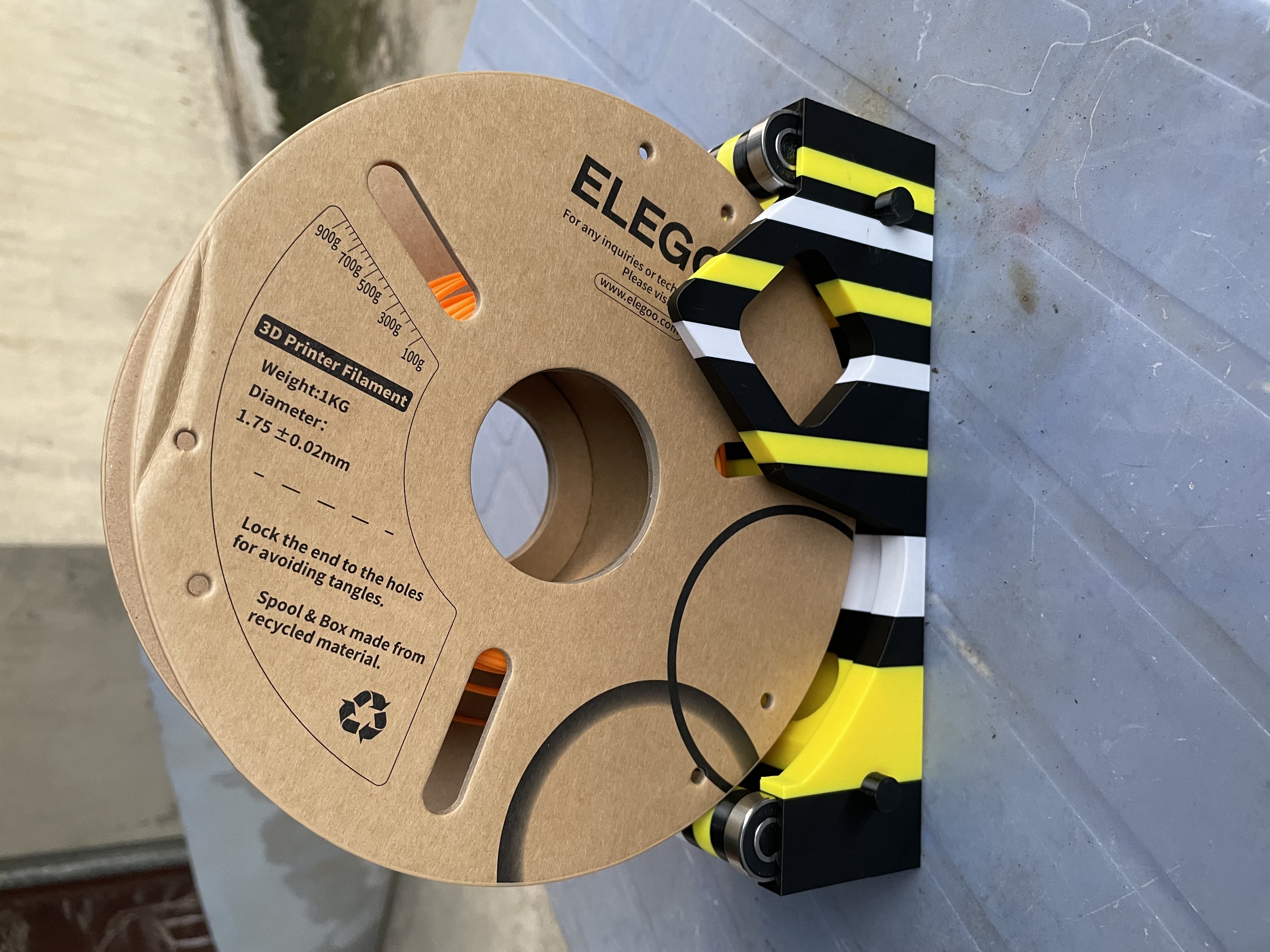

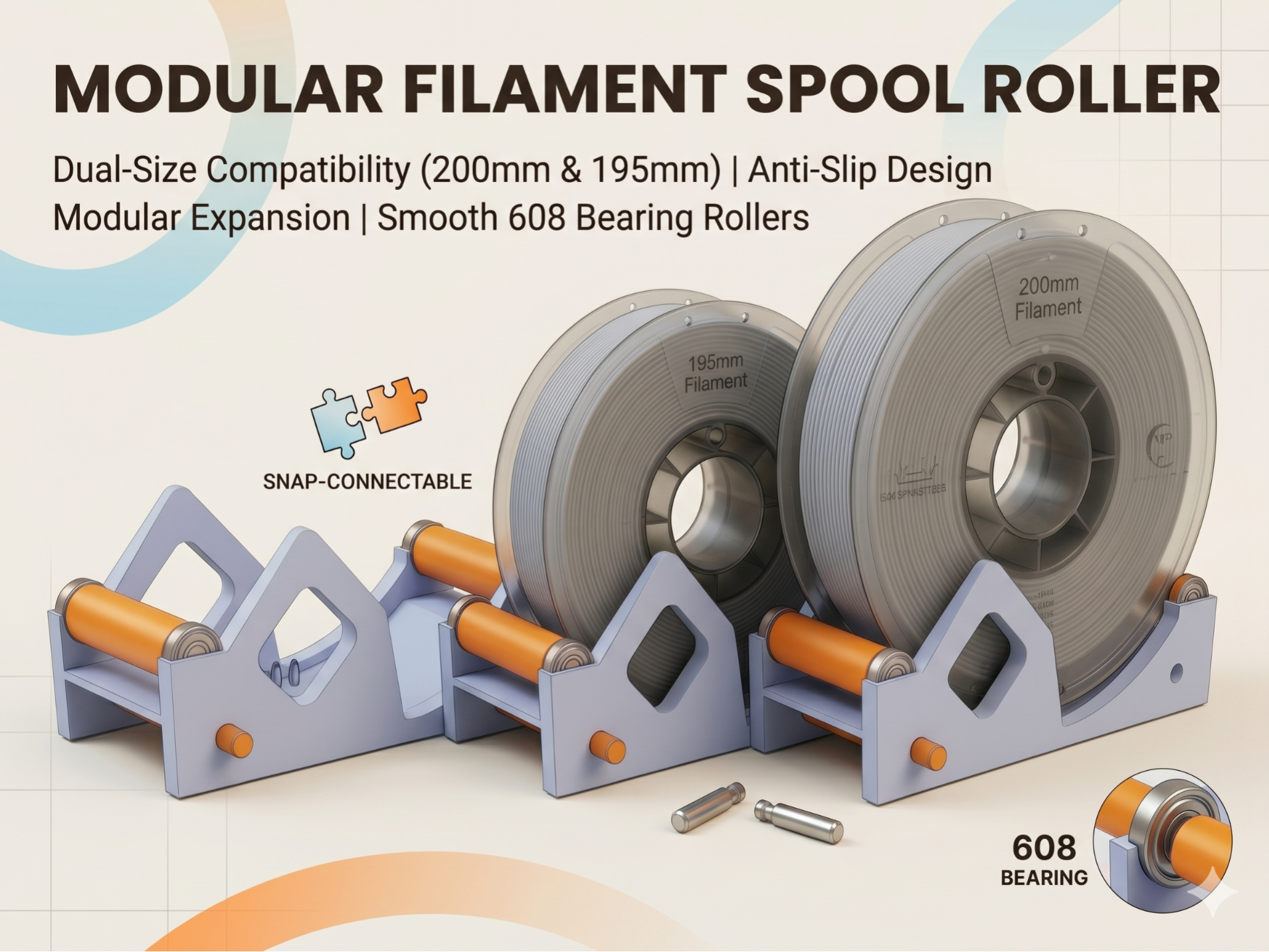

Modular Filament Spool Roller (Dual-Size Compatibility)

Enhance your 3D printing setup with this robust, smooth-rolling filament holder. Designed for reliability and flexibility, this tray features a unique dual-groove system to prevent spool slipping and a modular design for easy expansion.

Key Features

• Dual-Size Support: Specifically engineered with anti-slip ridges (ribs) to perfectly fit both 200mm and 195mm diameter spools.
• Ultra-Smooth Rotation: Utilizes two 20mm diameter rollers equipped with standard 608 bearings, ensuring minimal friction and preventing extruder tension issues.
• Modular & Expandable: Each unit includes 10mm alignment pins (chốt định vị), allowing you to securely snap multiple trays together to organize your entire filament collection.
• Anti-Slip Design: Integrated side guides and internal ridges keep the spool centered and prevent it from "walking" off the rollers during long prints.

Technical Specifications

• Compatible Spool Diameters: 195mm & 200mm
• Roller Diameter: 20mm
• Bearings Required: 608ZZ / 608-2RS (4 per unit)
• Connector Pin: 10mm (included in the design)

Assembly Instructions

1. Print the main frame and two rollers.
2. Press-fit the 608 bearings into the ends of each roller.
3. Mount the rollers onto the frame.
4. (Optional) Use the 10mm pins to join multiple units together side-by-side.
