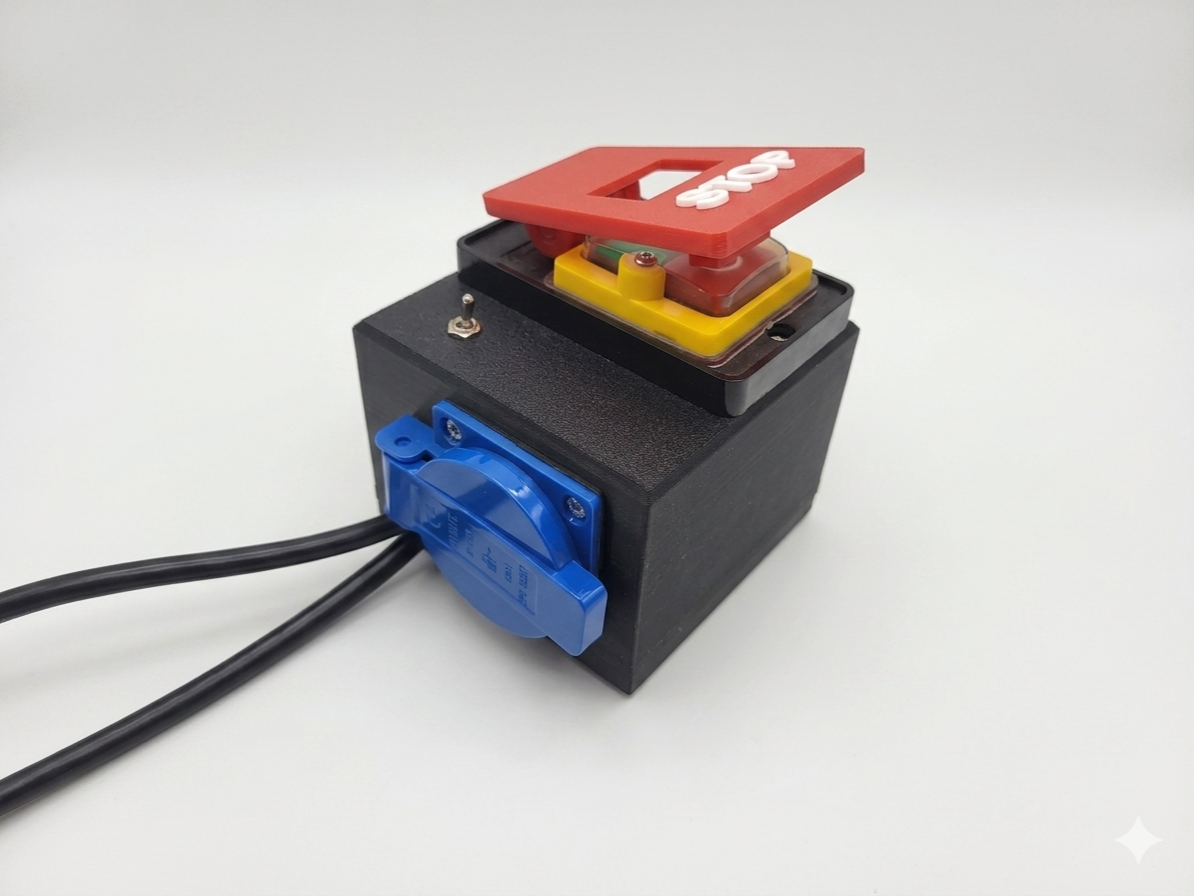

This model is a compact enclosure for a main power switch, a power outlet, and a small paddle (rocker) selector switch.
It is designed as a sturdy, modular housing for custom electrical control setups where multiple switching elements need to be combined in a single unit.

The enclosure consists of two parts that are screwed together, allowing easy access for assembly, wiring, and future modifications 🔧.

✨ Features

• Designed to hold:
  • 1× ON/OFF main switch
  • 1× power outlet
  • 1× small paddle / rocker selector switch
• Clean and functional design, suitable for workshop or DIY equipment
• Two‑part housing for easy assembly and maintenance
• Secure screw‑together construction using heat‑set insert nuts
• Flexible mounting concept for commonly available switches and outlets

🧩 Assembly & Hardware

Enclosure assembly

The housing is assembled using:

• 4× M4 heat‑set insert nuts (OD 5.5 mm, Length 4mm)
• 4× M4 × 16 mm screws

The insert nuts are intended to be pressed into the provided recesses using a soldering iron 🔥.

Component mounting

• The ON/OFF switch and the power outlet are mounted using
  3×10 mm countersunk wood screws
  (other screw lengths may also be suitable).
• The paddle / rocker switch is secured with its own supplied mounting nuts.

🛠 Example Application (Optional Use Case)

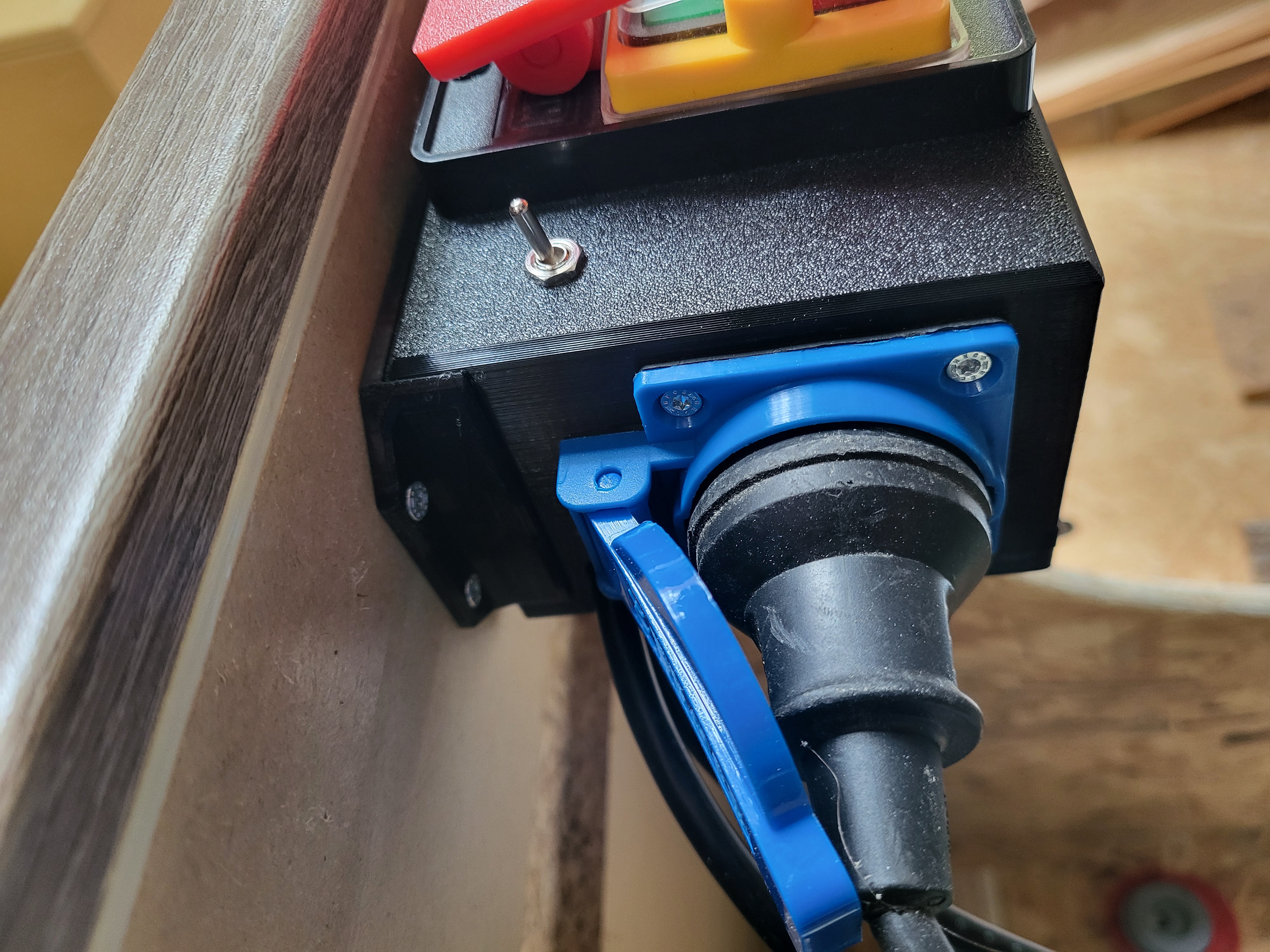

One possible application for this enclosure is a small router table setup using two power tools:

• The ON/OFF switch functions as the main power switch.
• The paddle switch selects which of two tools is supplied with power.
  • One tool is wired directly to the paddle switch.
  • The center pins of the paddle switch are connected to the main power line from the ON/OFF switch.
  • The remaining pins lead to the power outlet.
• A second tool can be plugged into the outlet and removed when needed.

This ensures that only one tool can run at a time, which is useful in compact workshop setups.

👉 This is just one example. The enclosure itself is application‑independent and can be used for many different power or switching projects.

⚠️ Important Notice

⚡ Working with mains voltage can be dangerous.
This model is intended for experienced users only. Always follow local electrical regulations and ensure all wiring is checked and tested before use.

🧱 Mounting notice:
The enclosure does not include any predefined mounting options for a table, wall, or other surfaces.
Because the intended mounting method and location can vary greatly, no mounting holes or fastening features are provided by default.

Users are free to adapt or modify the design to suit their specific mounting requirements.
