H.I.T. - Hyper-modular Infinite Target

H.I.T. (Hyper-modular Infinite Target) is a reactive, self-righting 3D printable target designed for anyone who loves target practice—whether you use Nerf blasters, Airsoft, slingshots, or even light archery.

The core philosophy of H.I.T. is zero downtime. Stop walking back and forth to reset your targets; just keep shooting!

Key Features:

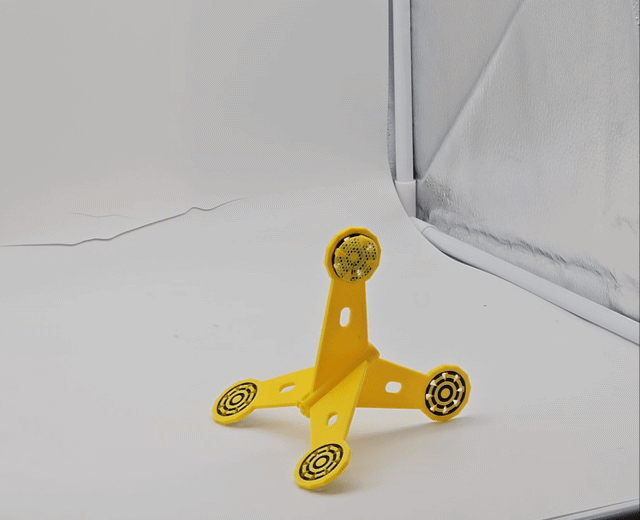

• Self-Righting Geometry: Thanks to its clever interlocking design, H.I.T. will always land with one of its faces pointing toward the shooter. No matter how hard it’s hit or how much it tumbles, it’s always ready for the next shot.
• Sacrificial Centers (Optional): Want 100% proof of a hit? Snap on the sacrificial centers. These thin inserts are designed to deform or break when struck, providing clear visual feedback that you nailed the bullseye rather than just hitting the frame.

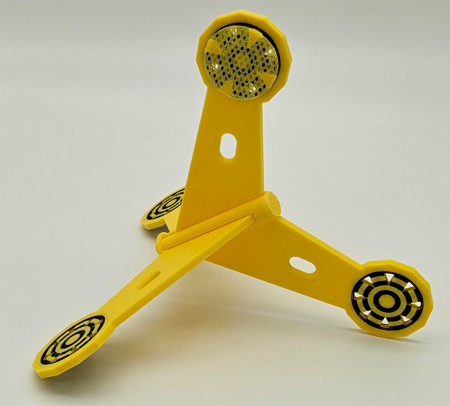

• Hyper-Modular Design: The target consists of two identical main parts that slot together perfectly.
• Reinforced Core: I've included an optional reinforcement pin to strengthen the interlocking joint, ensuring the target survives even the most intense sessions.

• 8 Target Zones: Once assembled, the target offers 8 different striking points distributed across its 3D structure.

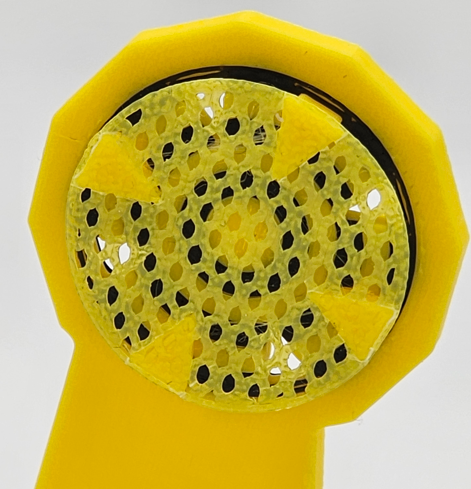

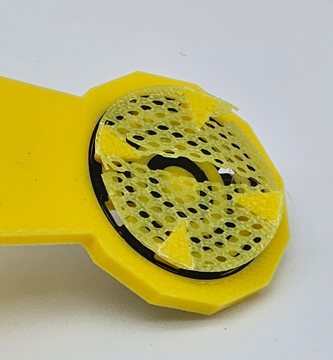

  Sacrificial Center (Left good, Right Hit!)



•

Technical Details & Assembly:

1. Main Body: Print 2 copies of the main "V" shaped part. They are identical, making printing and replacement easy.
2. Assembly: Slide the two main parts into each other using the central slots.
3. Reinforcement (Optional but Recommended): Slide the reinforcement sleeve/pin over the central joint and insert the small ring to lock everything firmly in place.
4. Sacrificial Discs: Print as many as you need. They simply snap into the circular target zones.

Recommended Print Settings:

• Material: PLA for standard use; PETG or TPU if you want a more "indestructible" frame for high-power blasters.
• Walls/Infill: Refer to my profile.
• Supports: no support needed.

Stop resetting. Start hitting. Download H.I.T. today!

This is also perfect for my model:

[https://makerworld.com/it/models/1169267-modular-blowgun-extremely-powerful#profileId-1177287](https://makerworld.com/it/models/1169267-modular-blowgun-extremely-powerful#profileId-1177287)
