Warning: Make sure, that you are putting right tile into the right slot

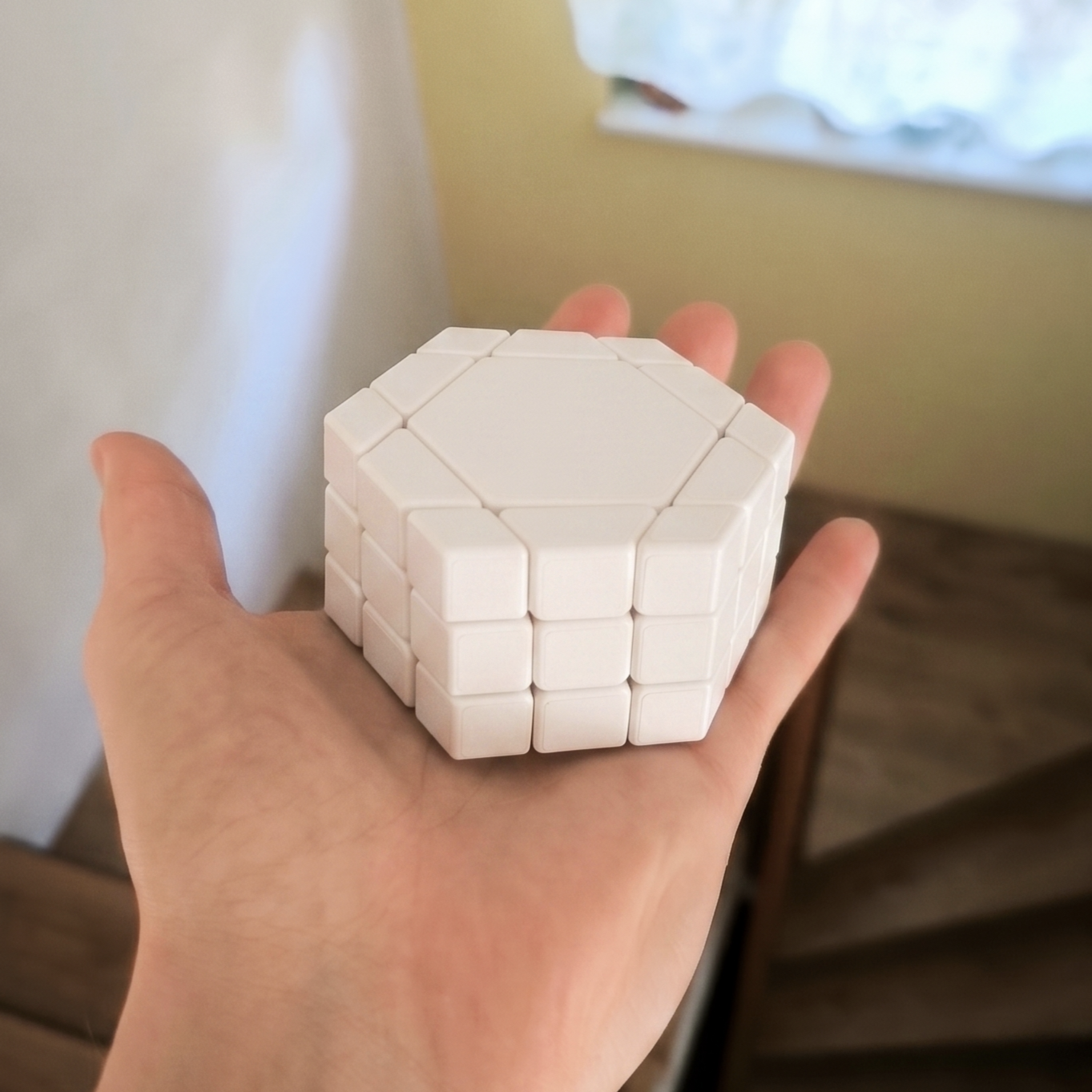

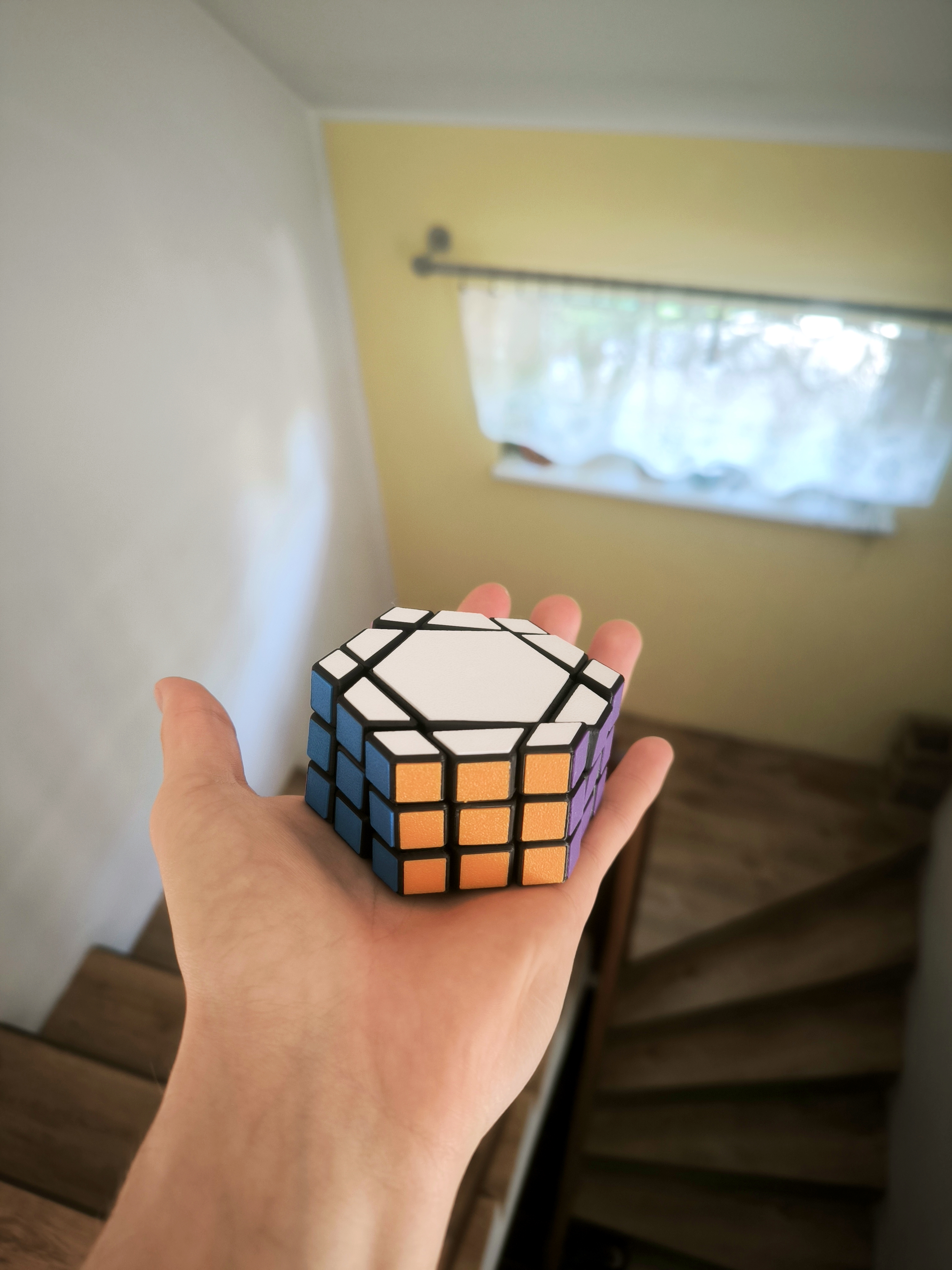

This is a fully 3D-printable twisty puzzle based on standart 3*3 Rubic cube but this in shape of hexagonal prism. The model is engineered to be assembled completely without screws. No MMU/AMS is required for printing.

Performance Notes:

• Turning: The puzzle turns very smoothly once properly assembled and broken in.

• Tolerances: It does not corner-cut and can feel slightly unstable during solves, but the mechanism is secure and does not pop.



Assembly & Post-Processing Tips:

• Cleaning & Sanding: After removing supports, make sure to lightly sand any surfaces where supports were attached to achieve flush joints.
• Assembly & Lubrication: Start assembling the model. Just before inserting the final pieces, apply lubricant to the cube's internal mechanism. Once the cube is fully assembled, perform several turns on every side to distribute the lube evenly and ensure a smooth turning experience.
• Tiling: Even if the tiles look like square, they are rectangles with little diferences of lenght of side. Ensure that you are putting right tile in right orientation.

Assembly instructions:

• Step 1: Connect core with the side center pieces (make sure they are fully engaged)



• Step 2: Put the stake through the core and attach the bottom center piece



• Step 3: Assembly whole bottom layer



• Step 4: Insert the middle edges



• Step 5: Assembly the whole top layer without the center piece



• Step 6:  Snap the top center piece
