Customizable Patterned Stackable SortingBox System

Customizable Patterned Stackable Sorting Box System.

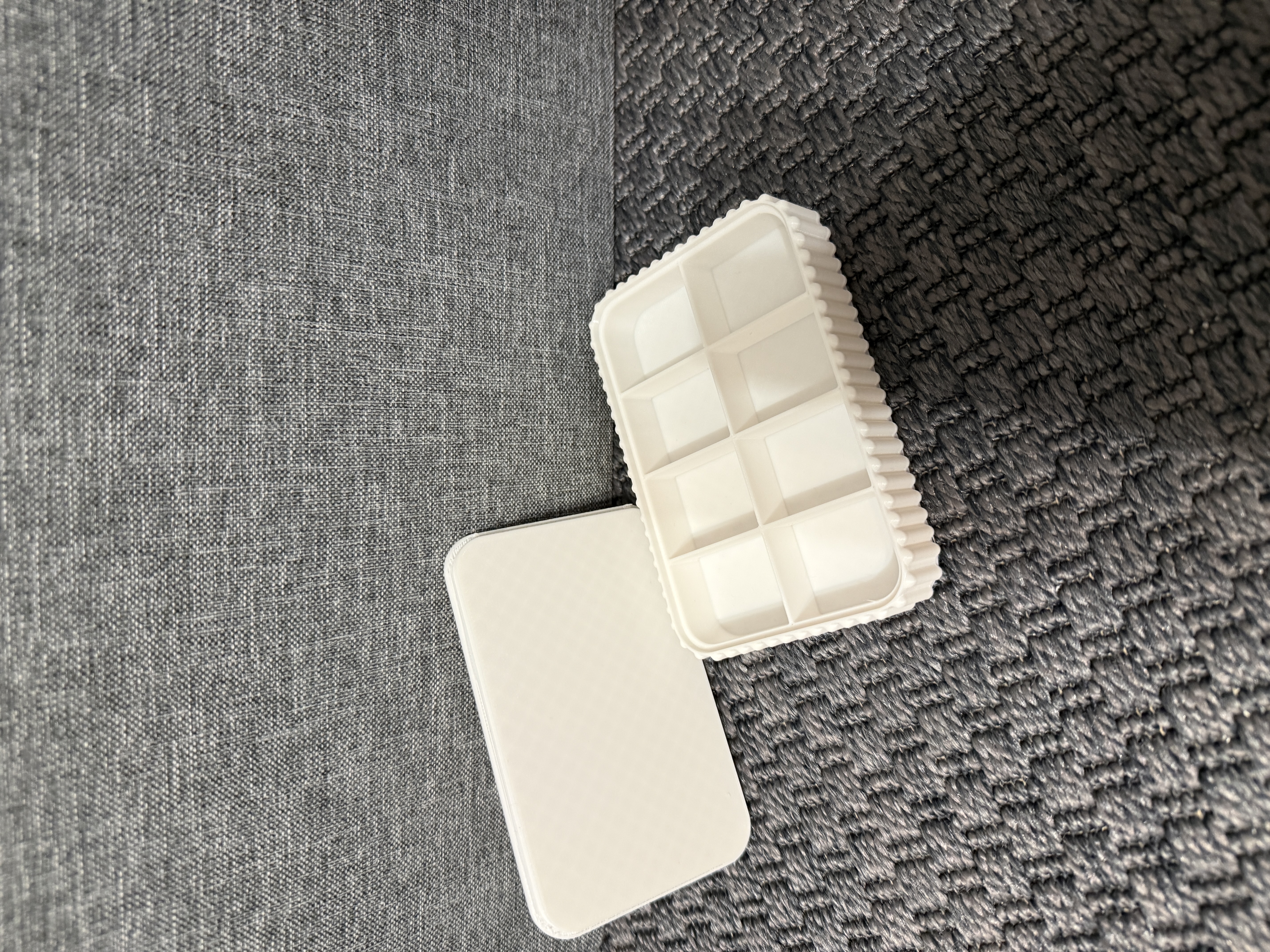

You can create nestable boxes very easily and quickly. Lids can also be made for the boxes.

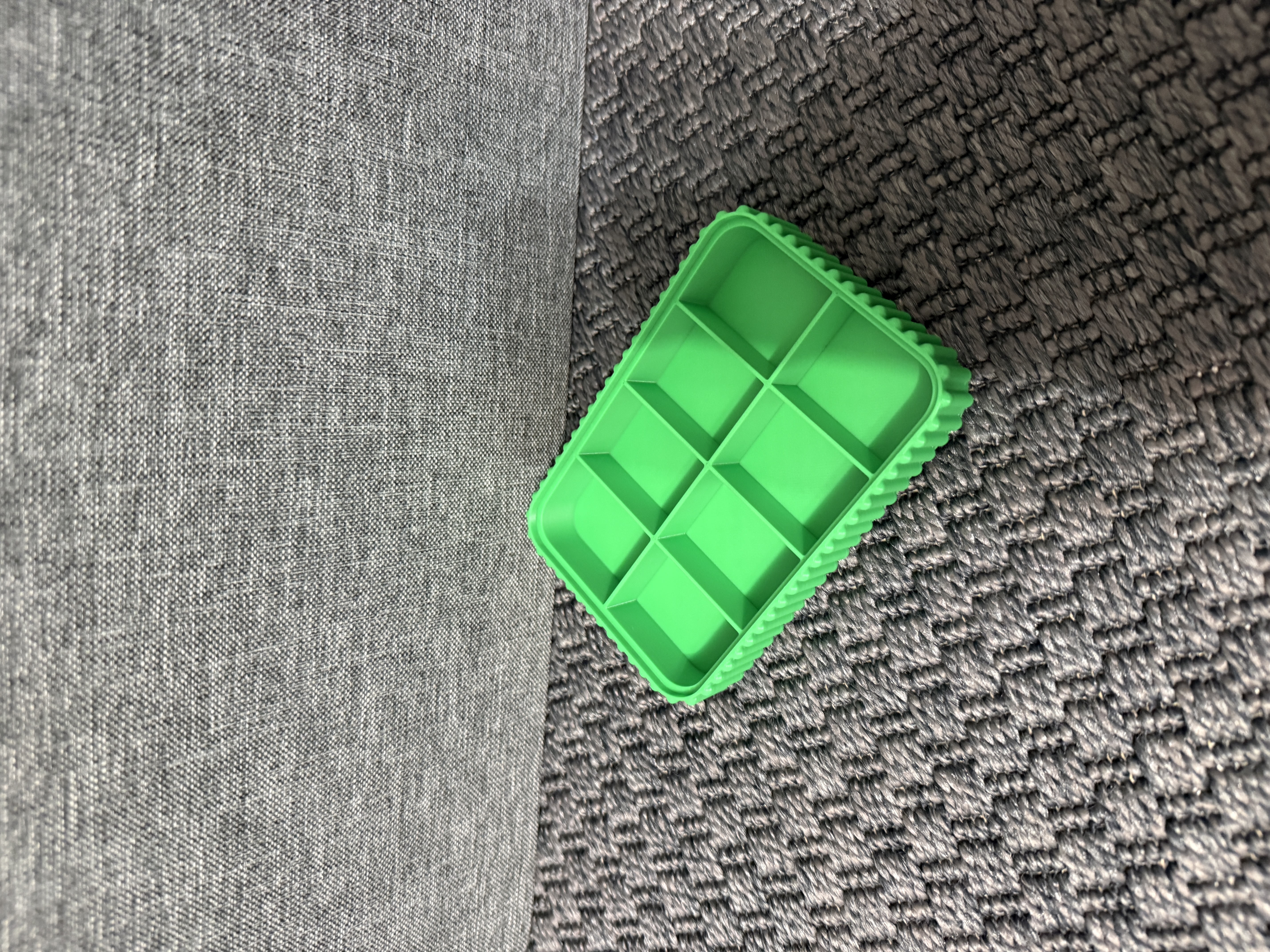

For organization, dividers can be provided.

Use a 0-10 mm rounding for the corners. If the box is larger, you can choose a larger value.

Box parameters:
box_length
box_width
wall_thickness
wall_height
bottom_thickness
corner_radius

Divider parameters:
enable_dividers true or false (enable or disable dividers)
divider_count_x
divider_count_y
divider_thickness (Use an integer multiple of the nozzle multiple)

Stacking parameters:
stackable true or false (enable or disable stacking)
stack_height
clearance (How much smaller should the part that goes into the other box be? Use your experience, but at least 0.4 mm.)

Pattern parameters:
pattern_r
pattern_spacing

Lid parameters:
enable_lid true or false (enable or disable lid)
lid_thickness
enable_lid_handle true or false (enable or disable lid handle) disable)
lid_handle_width
lid_handle_height
lid_handle_thickness
lid_handle_hole_width
lid_handle_hole_height
lid_handle_hole_offset

If you find an error, please write to me in chat.

If you are satisfied with my work, please, in addition to downloading the model, printing and evaluating it, you can also support it with boost.

Print and use!
