Hello and welcome to my second release of a hydroponic system.

This version is a free-standing vertical bucket type.

Pictured in green is a previous iteration of this system, featuring three cups per level which I believe is too many unless the intention is to grow something like lettuce.

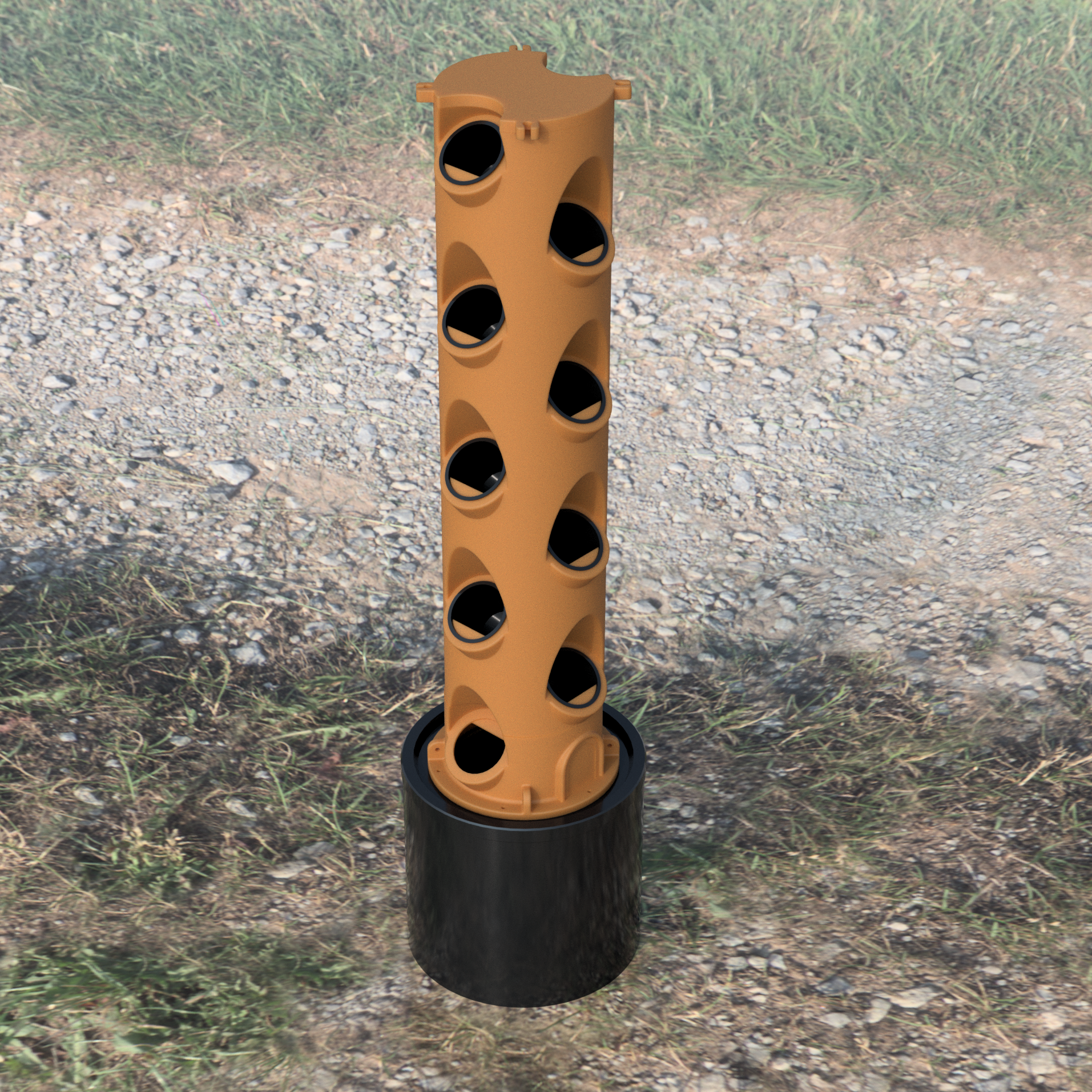

The current version has two cups per level which is the brown system in the pictures above.

CHANGE LOG 14/6/26:

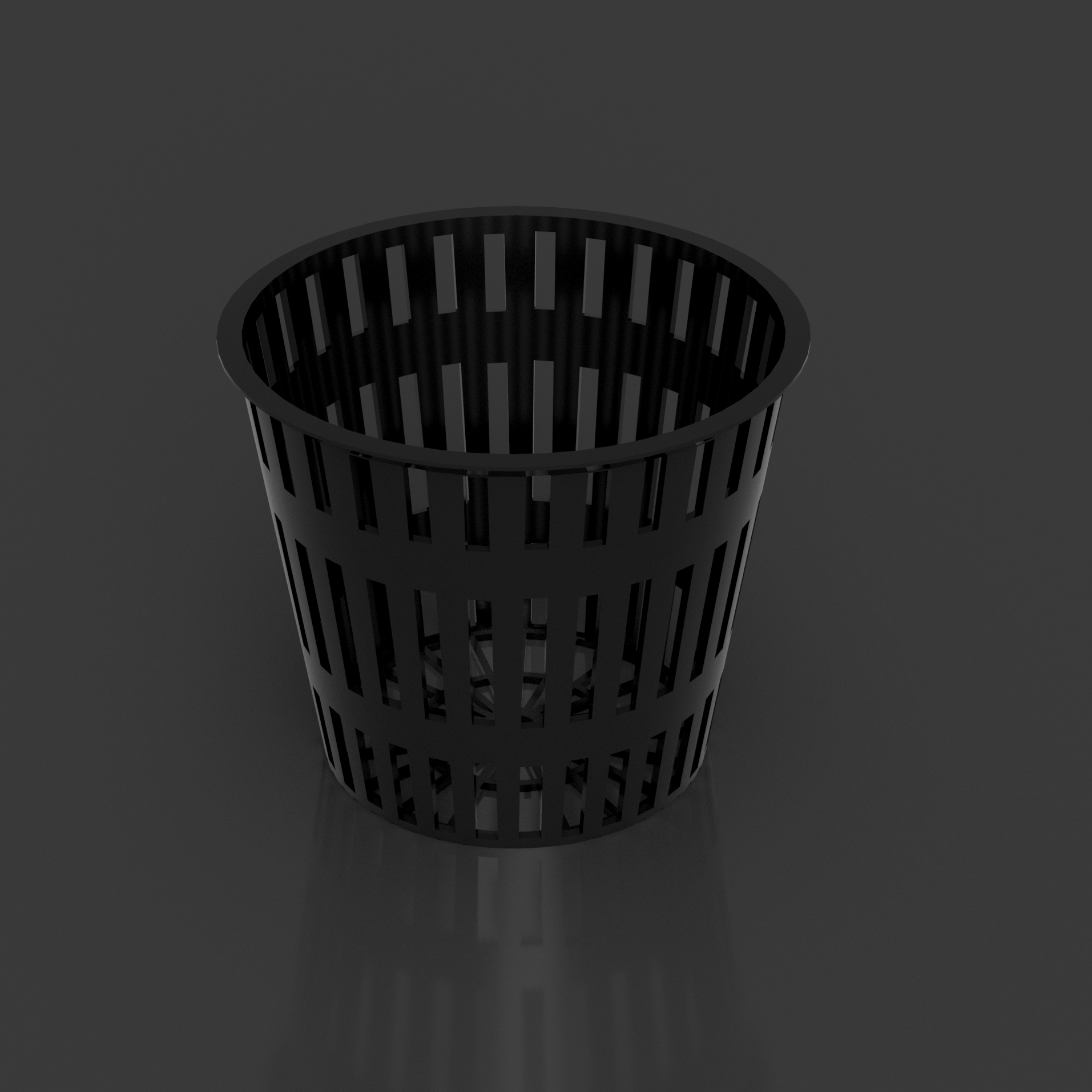

Net Cup Print Profile added.

Bridge section added to each of the net cup ports for reduced print time, can be easily removed with a sharp knife.

Features of the current version (brown):

• Height of 925mm
• Base flange size 245mm
• 18 Net Cups

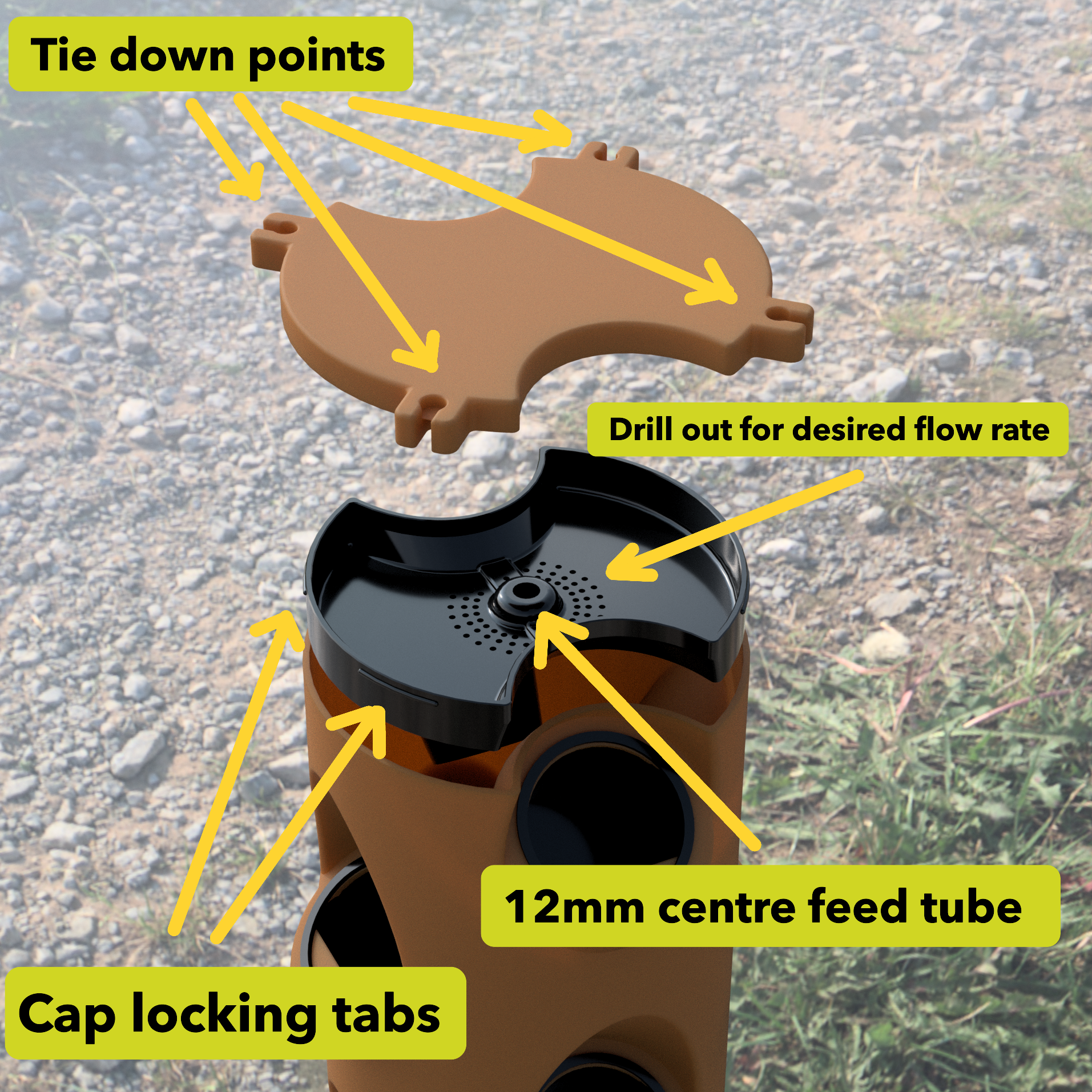

• 12mm centre feed tube

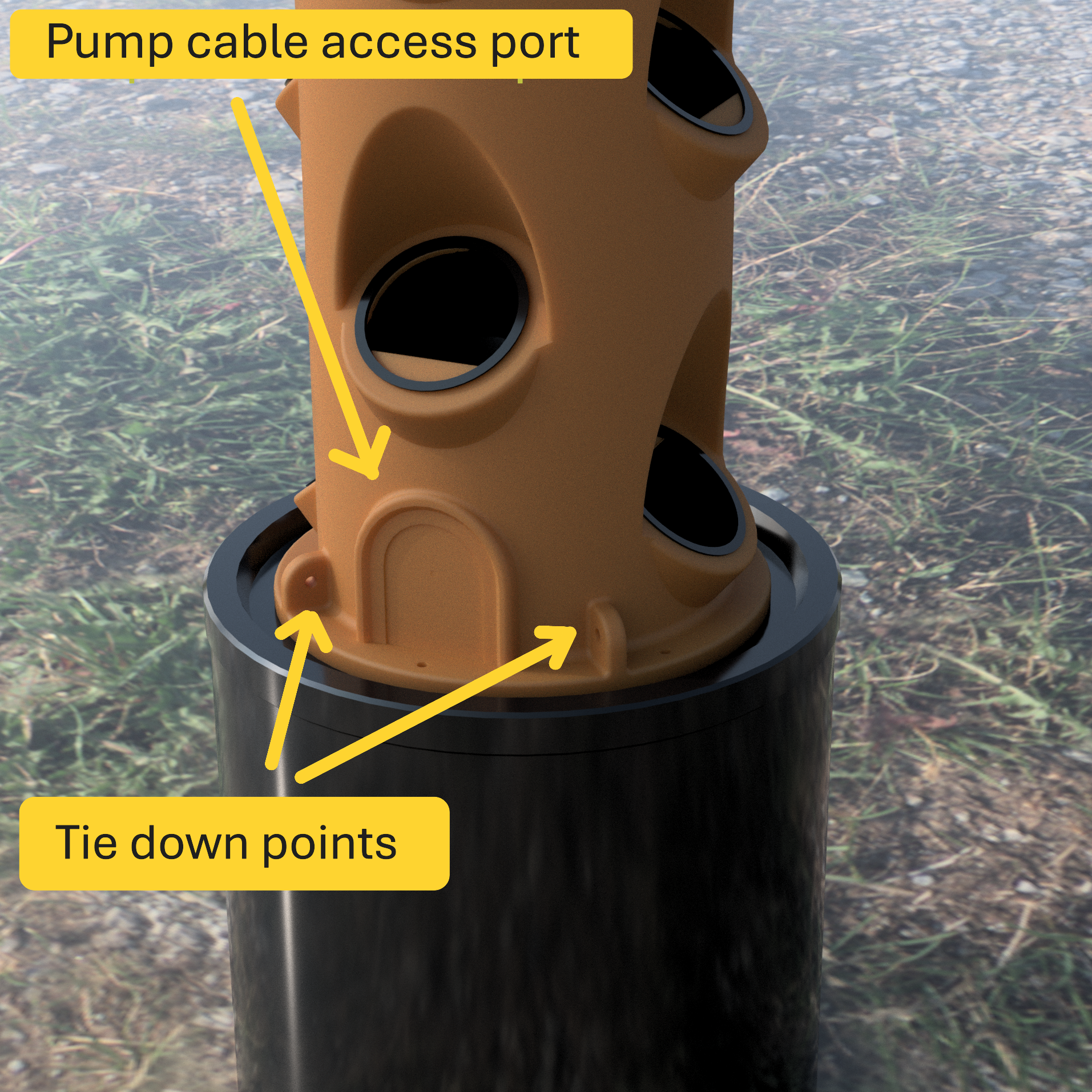

• Tie down points, for transporting and windy environments (remove bridge/skin at each of the four top tie down points)

• Mains plug access port (remove thin wall)
