Wanted to take lithophane display to next level!

Fits 125x125 mm Panels

All my panels I have in preview were made in Makerlab Lithophane Maker.

Uses lazy susan base from Amazon and all M4 Hardware with exception of two m3 bolts for the DC Jack Plate; Links below.

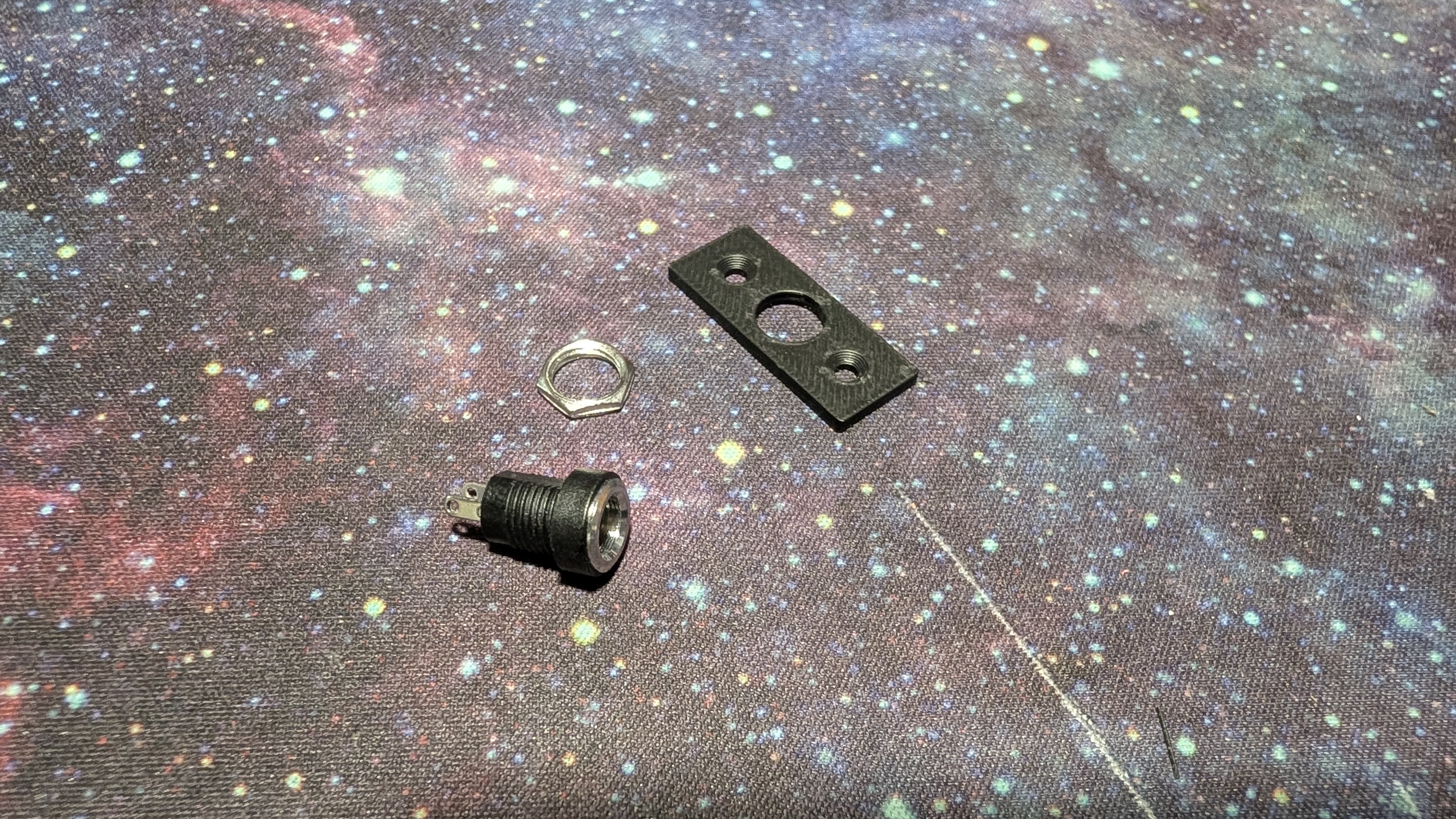

DC Jack Input Plate uses M3 Counter Sink bolts. Threads are self-tapped by screw. MAX LENGTH is 20mm So I wouldn't use anything longer than 18mm. I personally used 12mm.

The lazy susan hardware all uses M4 Hardware. Countersunk recommended. For threads I used M4 nuts that get pulled into recessed cavities. Tight fit! I used bolts to pull in nuts before assembly to make assembly easier. Recommended bolt length 14mm in length.

The center post for the LEDs uses M4 bolts to self tap threads. NO NUTS. Recommended Length: 8mm
-I do plan on adding a round center post.

The brace that is glued into top of cube also uses a M4 nut that is recessed. Same process as above to pull it in.

Lid will then use M4 Countersunk bolt MIN Length 8mm but added hole in center post so can use long bolt if all you have available.

Recommended Filament though any white looks decent

Lazy Susan Hardware

Power Input Option 1:
Power Supply: 12V 1A 5.5 x 2.1mm

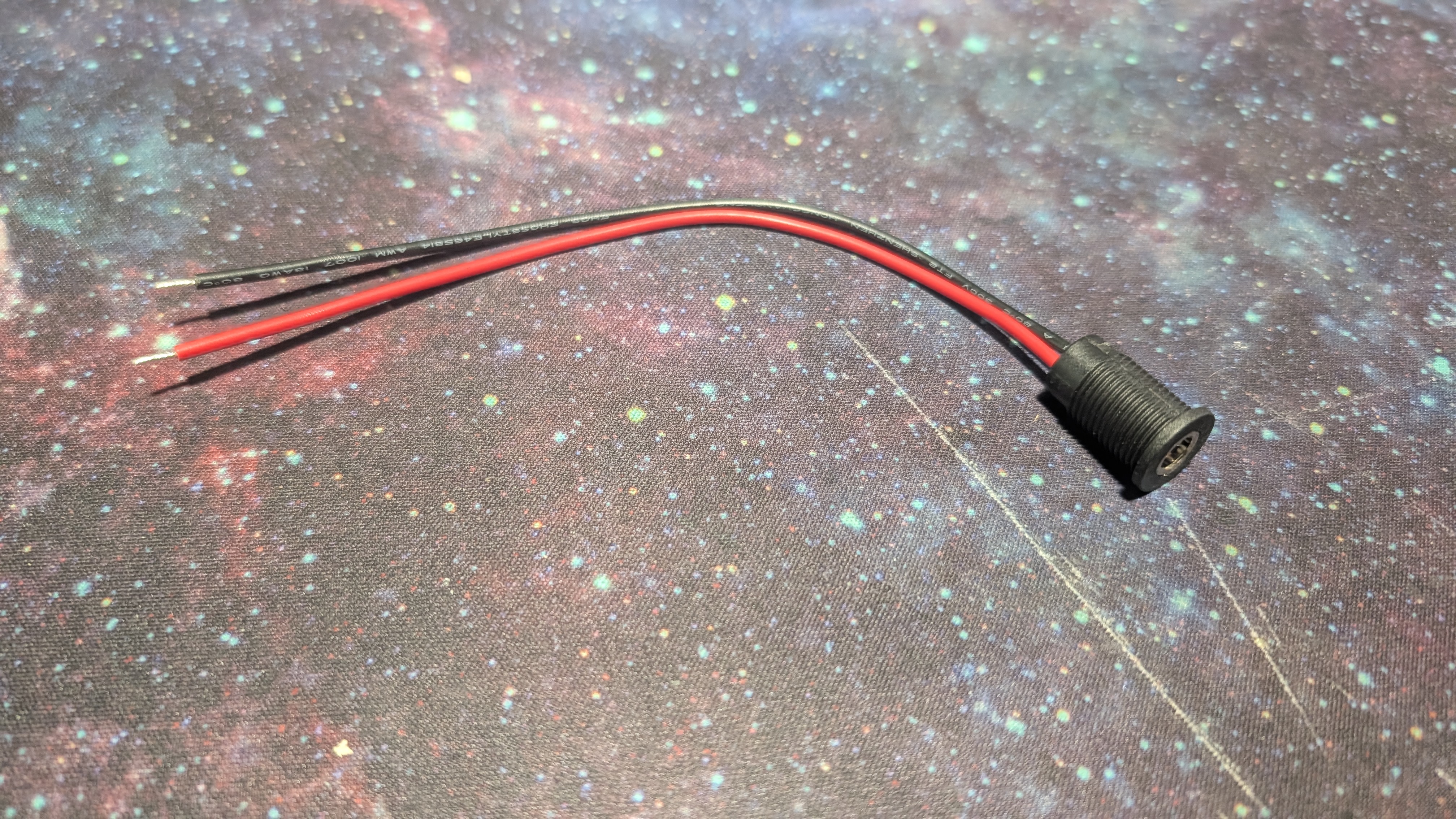

DC Input Jack

Power Input Option 2:

Power Supply: 12V 1A 5.5 x 2.1mm

DC Input Jack

Power Input Option 3:
Solderless Light Option from Bambu Store is in development.

12V White LED Strip (any should work just fine) Example

The above links are Amazon Affiliate links so I may receive compensation if items are purchased through them! It's what keeps me going :)

UPDATE: 5-21-2026

• Added better notes on two power input options and named plates accordingly

UPDATE: 5-5-2026

• Added New Cube body that has recess built into the bottom of the cube for hardware (Aesthetic thing, looks way nicer)
• Added Round LED Post for easier installation of strip
• Updated link for power input jack. I put wrong one for what I used in this project and I apologize. Too many projects going on.
