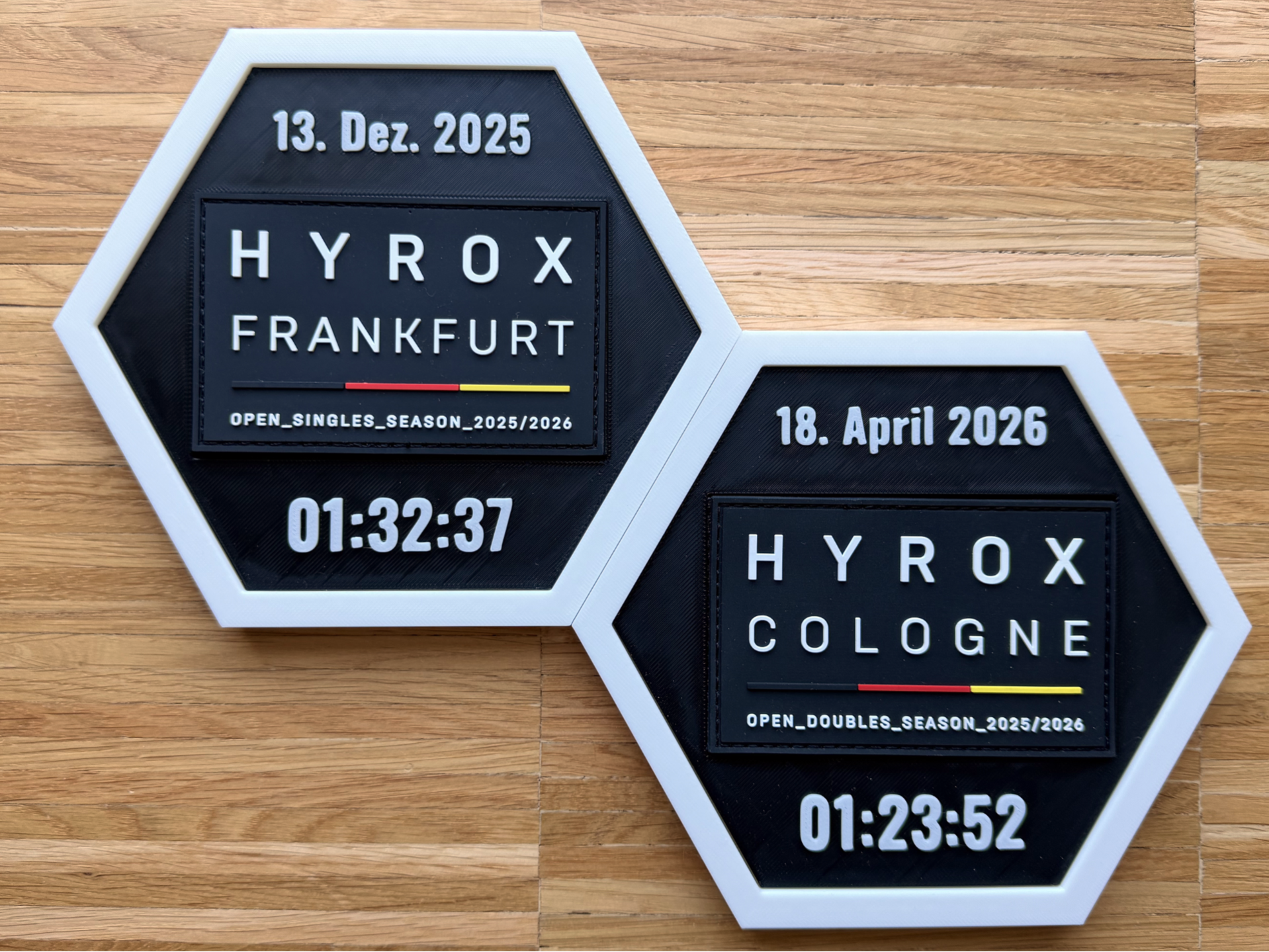

This is a printable display frame for fitness race finisher patches, such as those used in the HYROX event. The default settings are sized to fit HYROX 2025/2026 patches mounted in a landscape orientation. There is a recessed pocket, as well as space above and below for your race date and finish time.

Use the parametric model maker (use the “Customize” button) or download the .scad file so that you can adjust the patch pocket, text, font, frame size, hanger, and connectors without having to edit the geometry by hand. Alternatively, download the ready-to-print files directly from MakerWorld and add the text via BambuStudio. The stand and connectors are included as separate plates in the 3MF file.

Attach some adhesive Velcro tape to the patch pocket and simply place your patch inside.

Hint: Print the frame shell and front inlay separately, then glue the parts together to reduce the number of filament changes required due to the rim.

Recommended print setup

• Nozzle: 0.4 mm
• Material: PLA
• Layer height: 0.20 mm
• Walls: 2
• Infill: 15% gyroid

• Wall generator: Arachne
