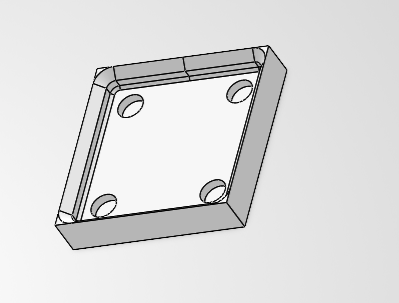

This SolidWorks model is a fully parametric Gridfinity bin designed to complement the SolidWorks Gridfinity Baseplate. It follows the official Gridfinity specification and includes magnet holes at each corner for secure attachment.

The design features:

Parametric equations for easy width, length, and extrusion adjustments
3 mm top extrusion for sturdy builds (modifiable in SolidWorks)
Error‑free rebuilds across all size variations
SolidWorks part file (.SLDPRT) and ready‑to‑print 3MF examples

Ideal for makers who want to build custom storage organizers, tool holders, or modular inserts that snap perfectly into Gridfinity baseplates.

Whether you’re designing a flashlight shadow box or a precision tool tray, this bin provides a reliable foundation for your next project — simple, parametric, and error‑free.

Note that MakerWorld won't let me upload more than one SolidWorks part file per listing, so I had to split this design into three listings.

Here is the Gridfinity baseplate with magnet holders
Here is the Gridfinity baseplate without magnet holders – just the simple frame for lower profile applications
