ESP32 Smart LED Matrix Clock (MAX7219 + Sensors)

A compact and smart LED dot-matrix clock powered by ESP32-C3 Mini, featuring a MAX7219 8×32 display, environmental sensors, and automatic brightness control.

Designed specifically for this custom 3D-printed enclosure.

Case Versions

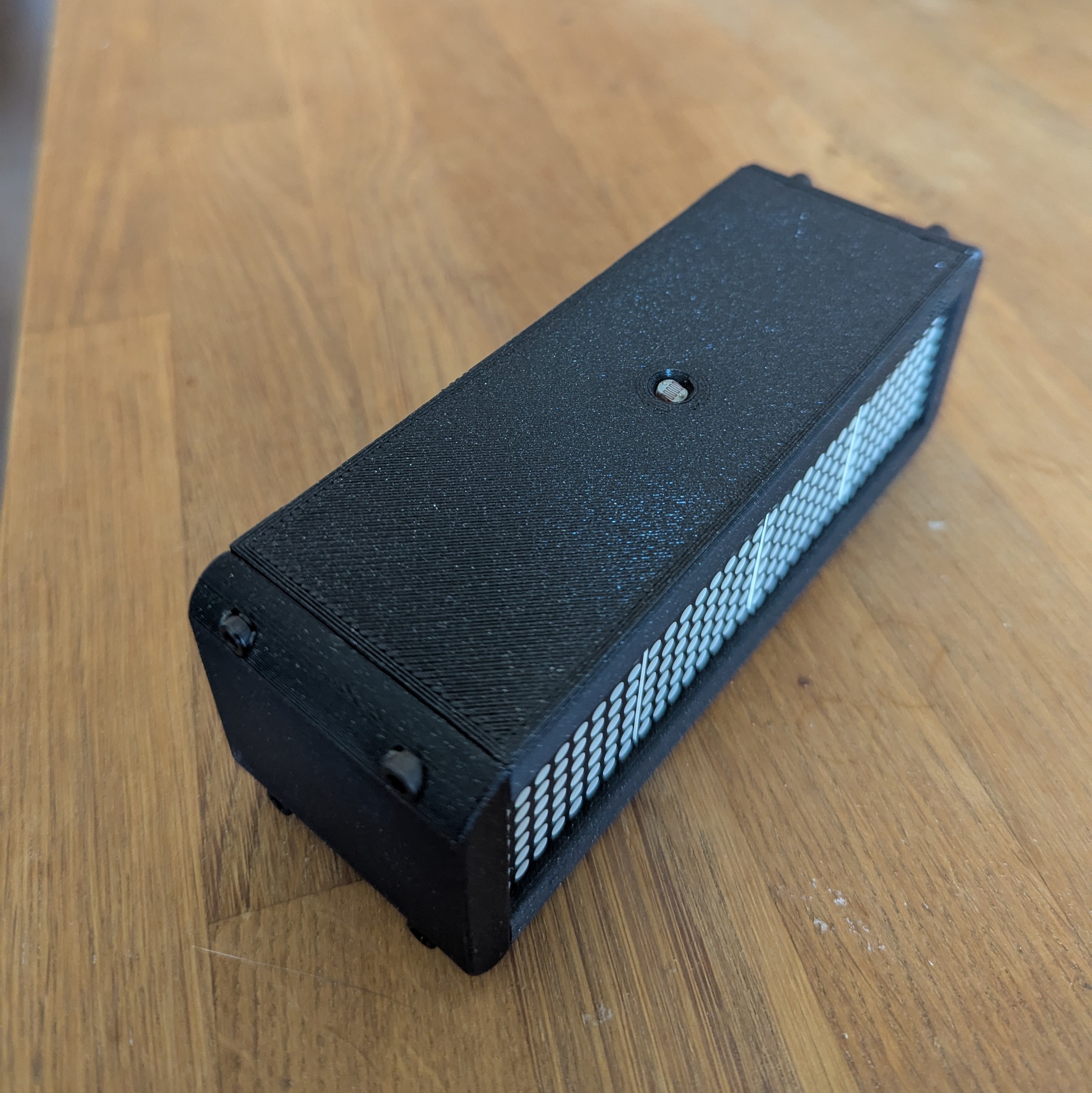

- Classic — flat lid (best for maximum readability)

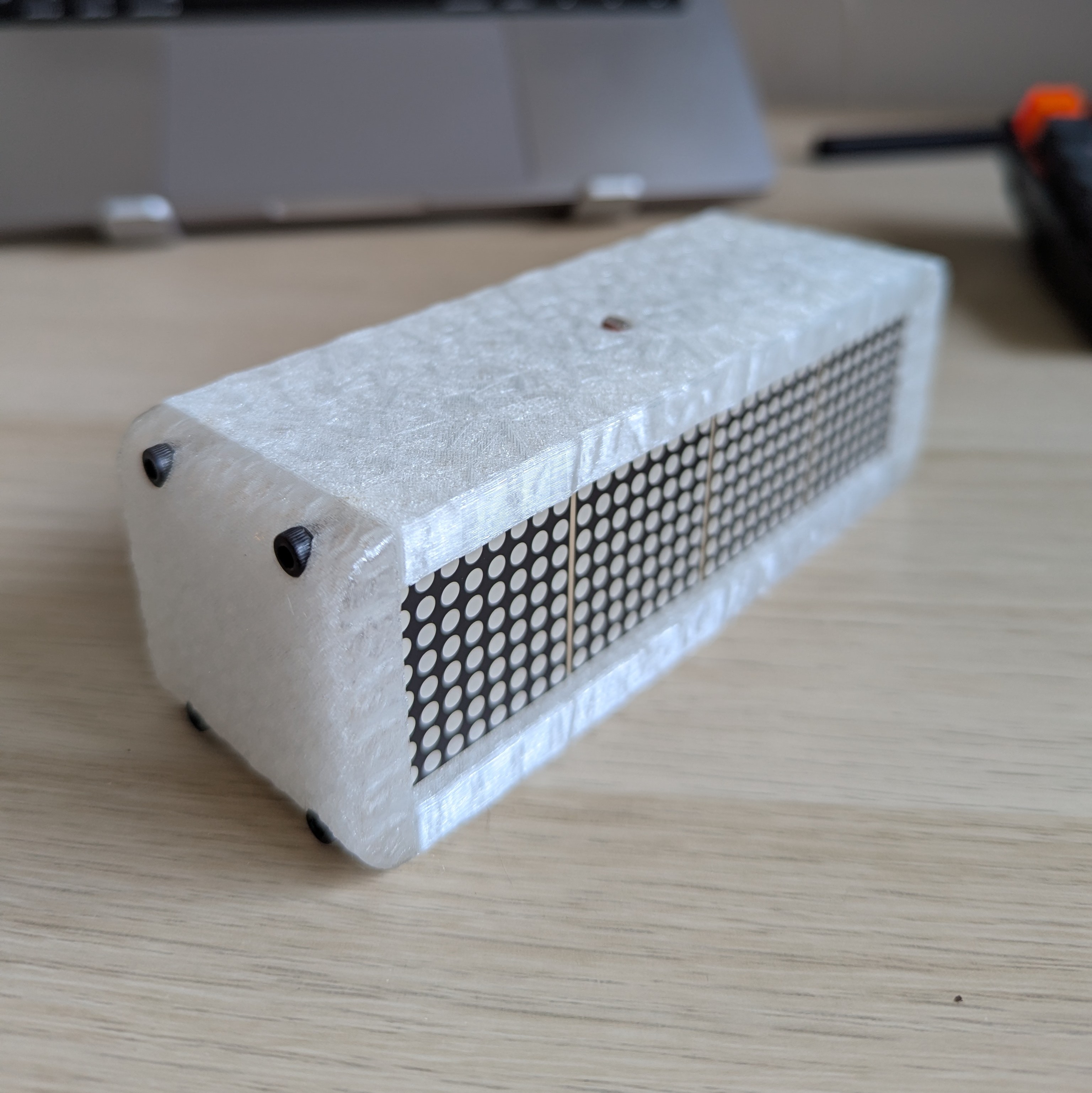

- Crystal — textured transparent lid (soft diffusion effect)

Features

- NTP time sync via WiFi
- Rotating display: time → date → temperature → humidity
- Night mode (e.g. 00:00–08:00)
- Auto brightness via KY-018 photoresistor
- Animated transitions
- Internal LED glow through the case

Components

- ESP32-C3 Mini
- 4× MAX7219 8×8 LED matrix (FC16)
- DHT22 temperature & humidity sensor
- KY-018 light sensor

Assembly

- 10× M3x8 mm screws
 - 8 for case assembly
 - 2 for ESP32 mounting
- 10× M3 threaded inserts

Firmware & Setup

Full source code, wiring diagram, and setup guide:
[https://github.com/Fomicha/home-lab/tree/main/makerworld-clock](https://github.com/Fomicha/home-lab/tree/main/makerworld-clock)

Printing Tips

- PLA or PETG
- 0.2 mm layer height
- No supports required
