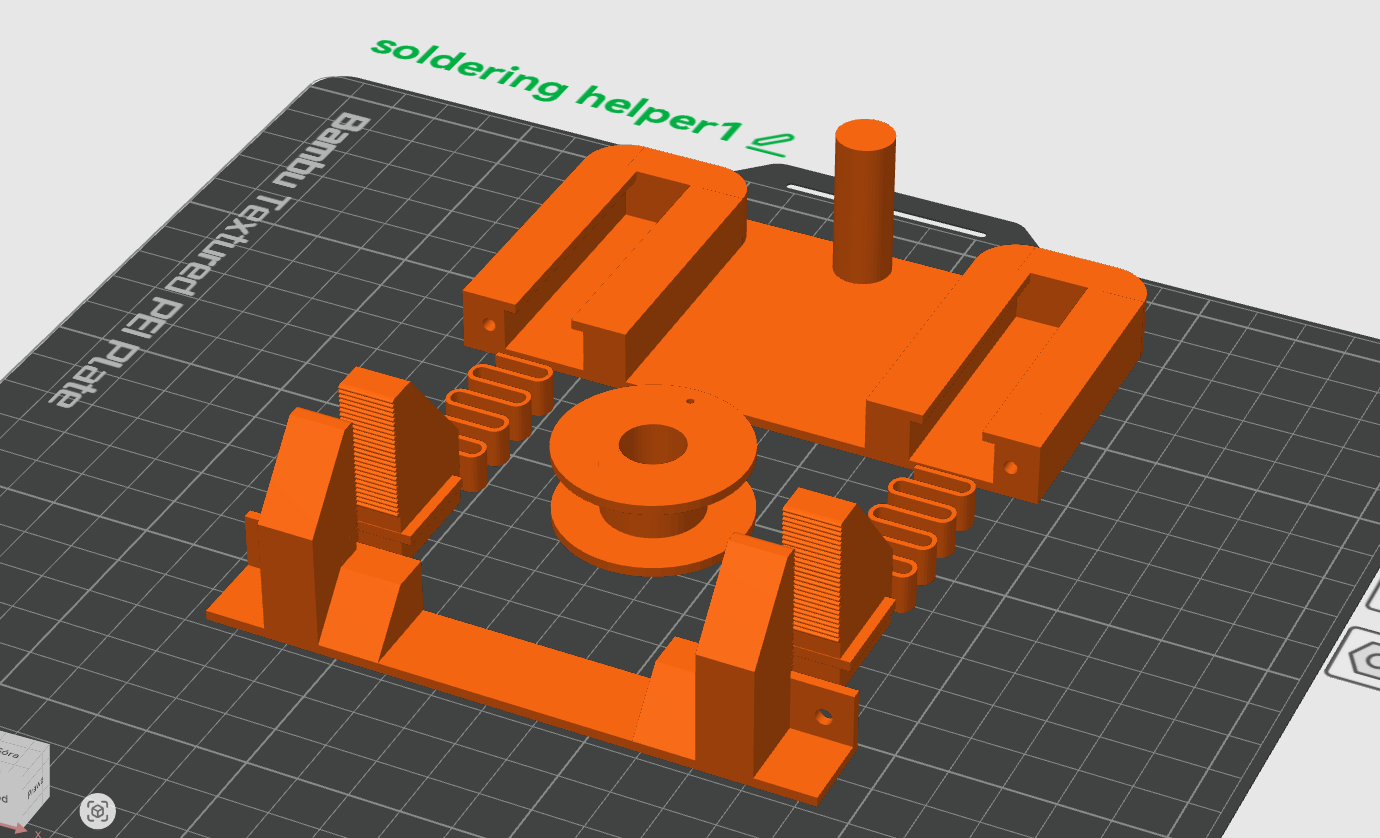

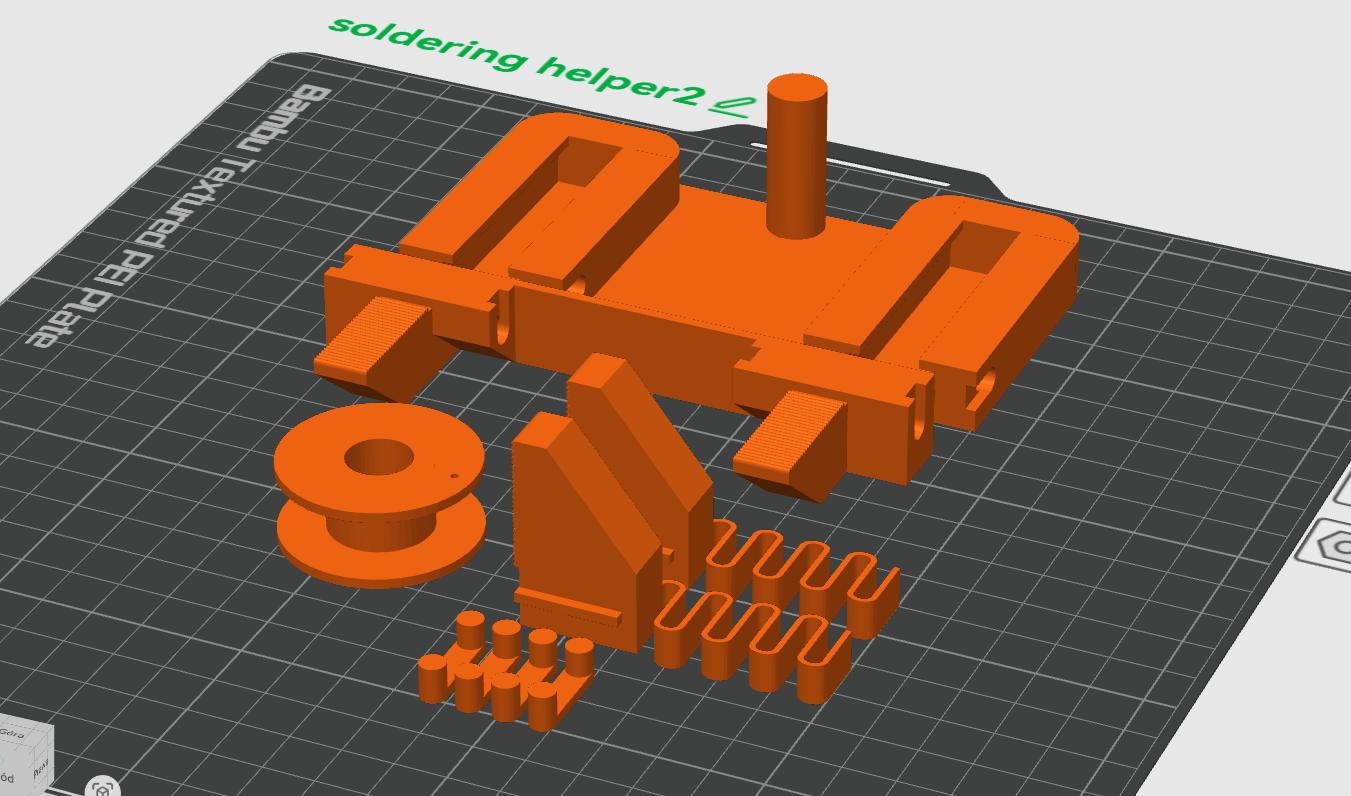

Soldering Helper – Soldering Holder
A practical soldering holder (a "third hand") that facilitates precise work with wires and small components.
The model is designed to be stable, comfortable to use, and easy to print.
Assembly options:

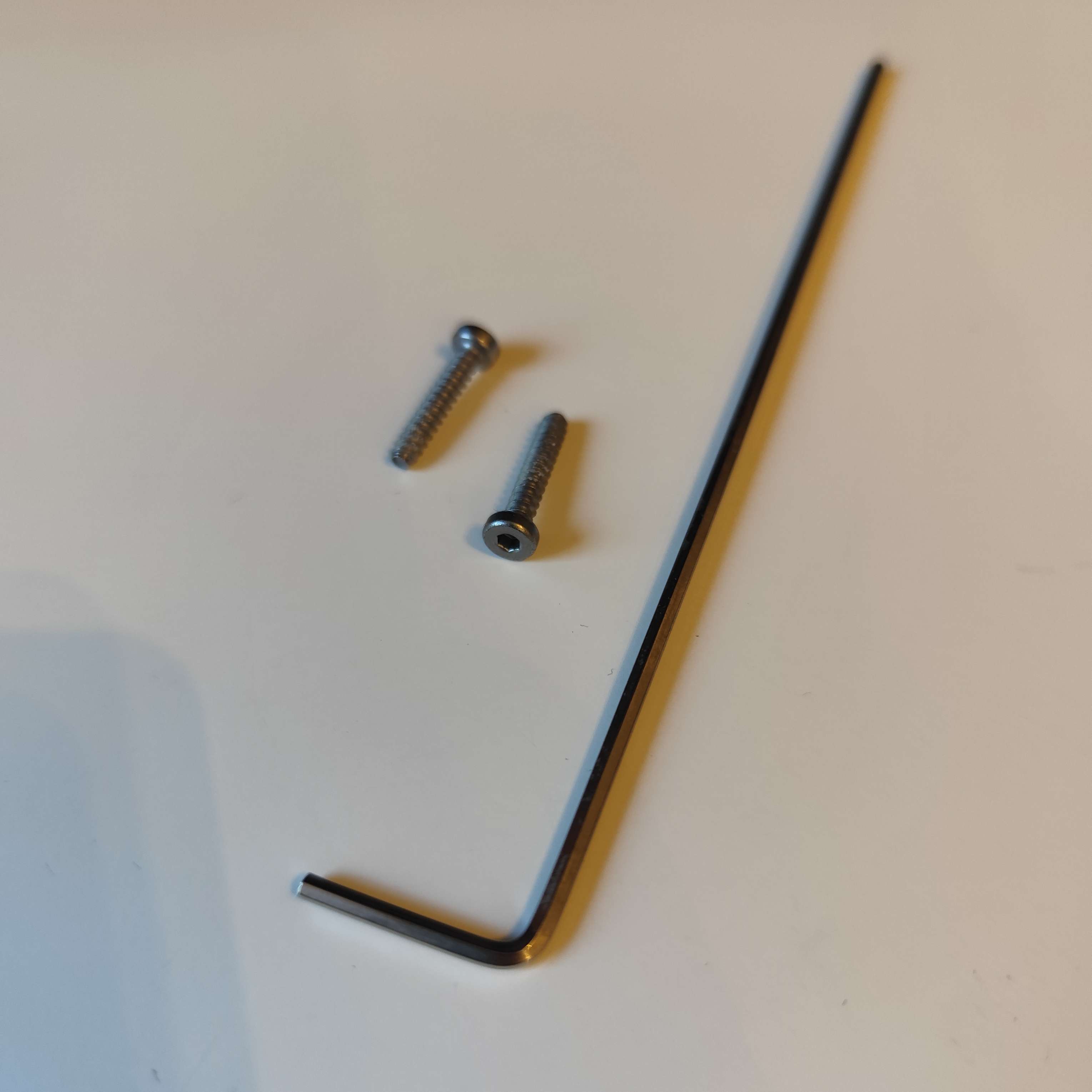

Screws:
Best screws from protective case for 3D printer delivery like Bambulab P1S. ( I use them)
Use a screw with a maximum length of 18 mm and a thread diameter and a thread diameter of 3 mm (the hole in the model is 2.8 mm, so the screw screws in tightly)

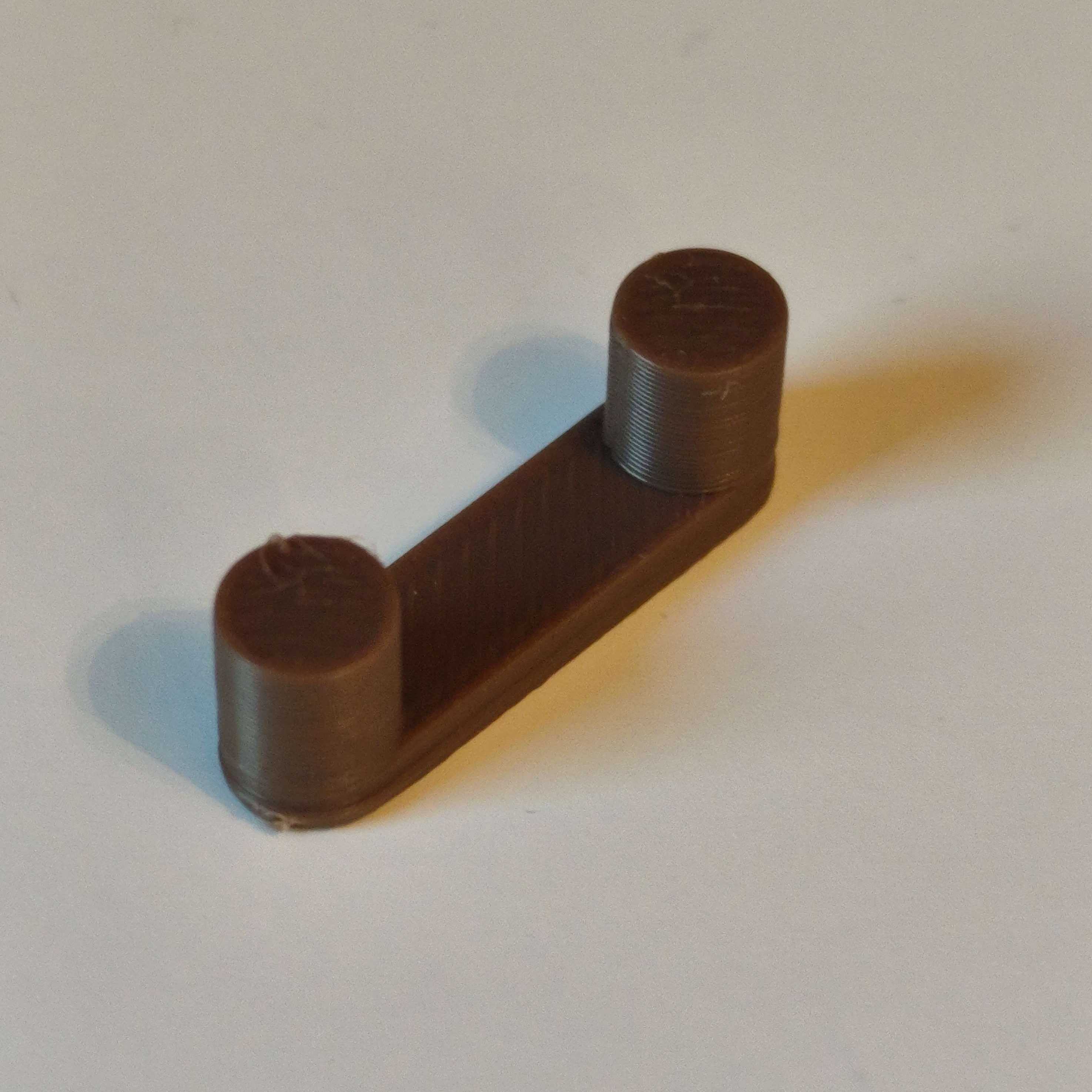

Pins:
The elements are press-fitted. The pins are in the print file. The holes are on the side.
Printing:

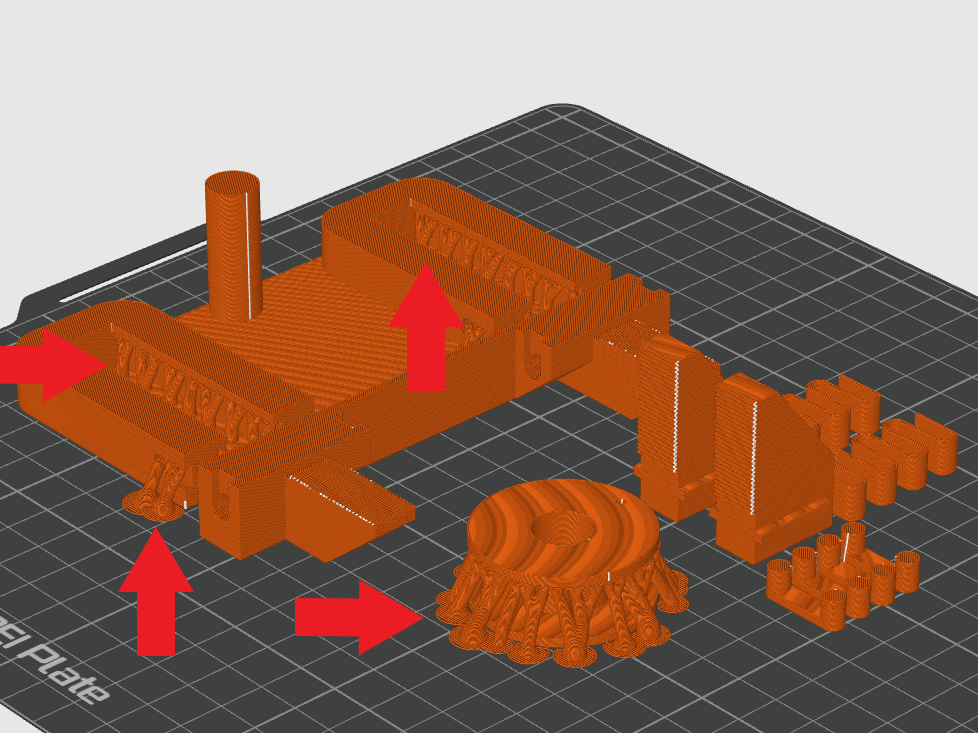

- Need support at the base and at the tube for tin
- Standard print settings will be sufficient
