Descrição
Maximize your X2D first layer success with the largest coverage adhesion tester on MakerWorld, lifting cleanly with its comfort pull tab for quick, frustration-free checks. Models for left AND right nozzle!
 Designed as part of my ongoing collection of practical Bambu Lab upgrades. Each model is conceived, printed, and endurance-tested on my own machines, refined through dozens of iterations to match the printer’s true mechanical behavior. Precision isn't assumed here, it’s verified layer by layer.
Follow me if you like my work, that kind of appreciation really dries my filament. Likes and boosts feed the Maker World algorithm and keep the new models coming |
This model brings the proven A1 adhesion test concept to the new X2D. It is designed to cover a wide print area so you can quickly verify Z-offset, nozzle flow and surface adhesion. Booth for the left (direct drive) nozzle and the right (bowden drive) nozzle.

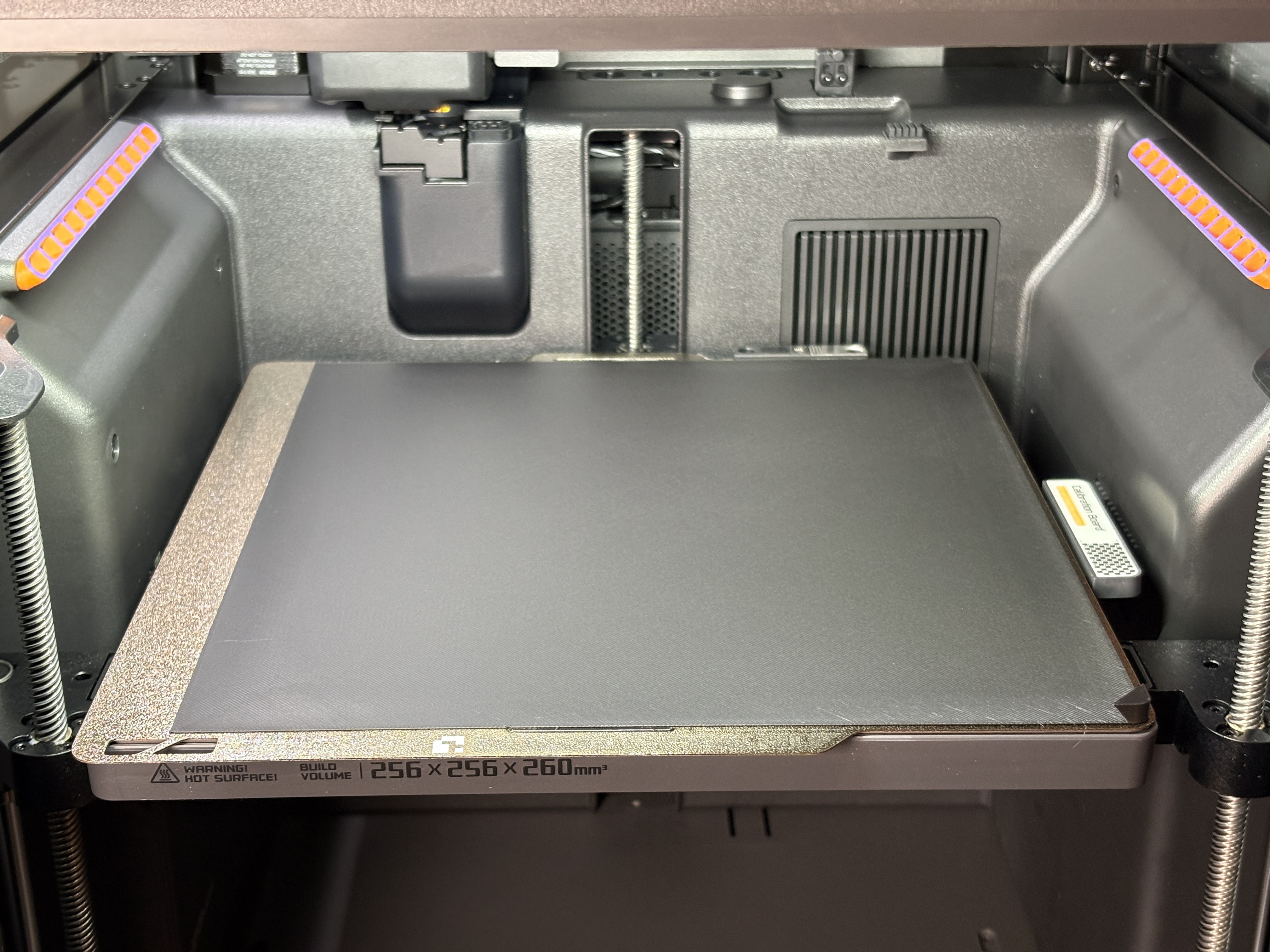

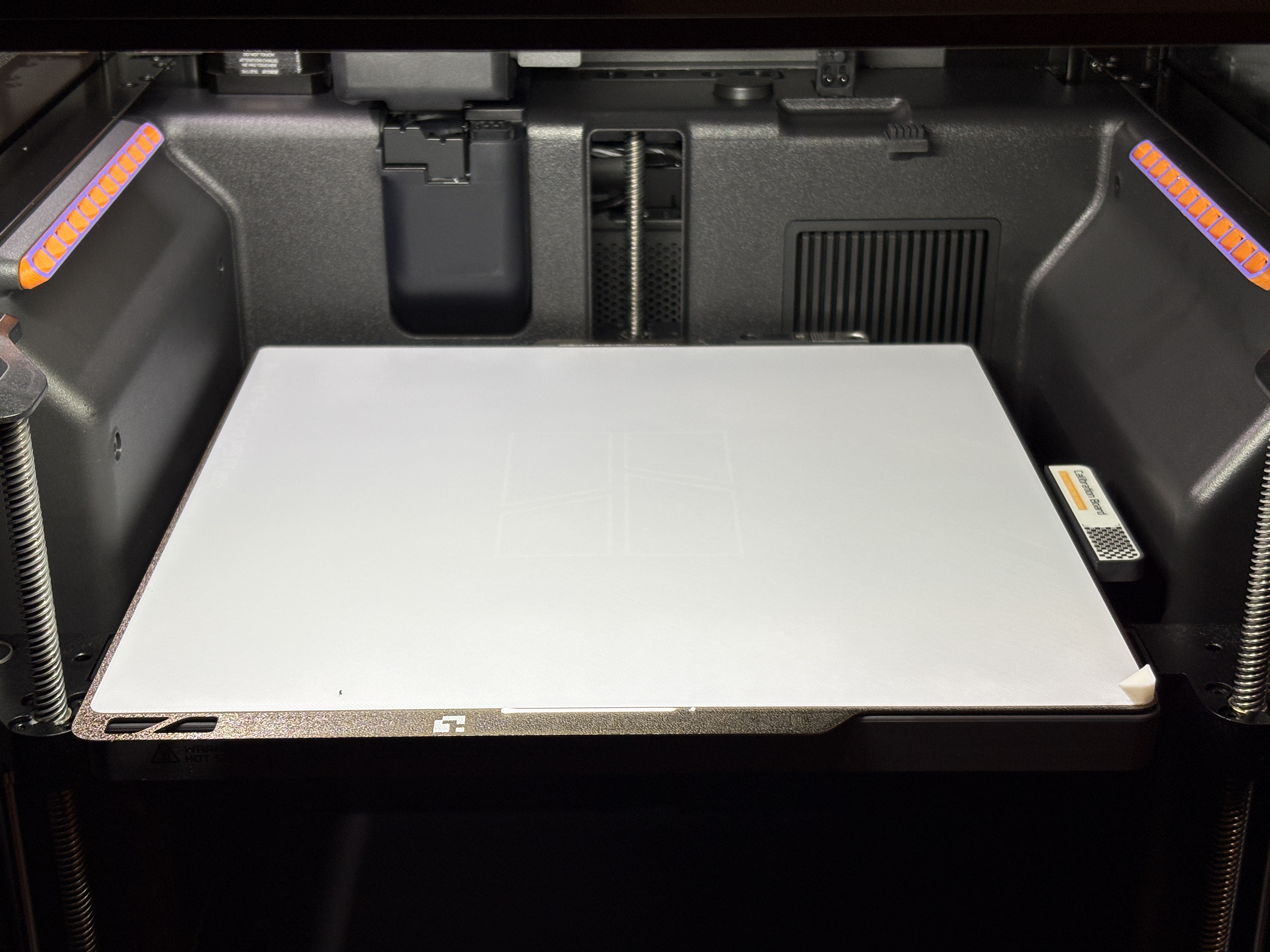

The continuous line pattern makes it easy to detect if the first layer is too high or too low. Once the print is complete, the plate lifts off cleanly using the integrated comfort pull tab, leaving the bed ready for your next job.
Use this test after nozzle swaps, filament changes, or bed cleaning to confirm consistent adhesion and a clean surface.
Helpful Advice:
- 2 layers highlight surface inconsistencies without excessive adhesion
- 1 layer shows trouble spots faster but sticks tighter - remove carefully!
- Clean the plate thoroughly using warm water and dish detergent (not hand soap)
- Run a calibration under Device → Calibration before testing for best results
Part #18 in my X2Design Journey.
X2D First Layer Adhesion Test ⧸ Bed Cleaning
Publicado em 18 de abr de 2026
