Introduction

This Camera Image Shutter Test Rotating Disc is a practical and visually engaging tool designed to evaluate rolling shutter and global shutter performance in imaging systems.

Whether developing embedded cameras, validating machine vision systems, tuning ISP pipelines, testing robotics sensors, or demonstrating camera technology, this rotating target provides a clear and efficient way to observe motion-related image artifacts in real time.

The model features a high-contrast black and white segmented pattern that amplifies dynamic imaging issues during rotation, making it easier to identify Image Corruption, Dropped Frames, Stutter, Frame Tearing, Timestamp abnormalities, Sync Errors, Bit Errors, Intermittent Noise, as well as geometric distortion, skew, wobble, and motion blur.

This makes it especially useful for high-speed interfaces, embedded cameras, synchronized multi-camera systems, robotics vision platforms, and production validation workflows.

Key Features

• High-contrast rotating shutter test disc
• Designed for Rolling Shutter vs Global Shutter comparison
• Ideal for camera validation, ISP tuning, robotics vision, and sensor demonstrations
• Helps detect transport and synchronization issues quickly
• Useful for identifying skew, wobble, geometric distortion, motion blur, and frame timing issues
• Excellent for presentations, laboratories, engineering teams, and trade show demos

Recommended Use Cases

• Rolling shutter artifact comparison
• Global shutter validation
• Frame synchronization testing
• Motion blur analysis
• ISP image tuning demonstrations
• SLAM and robotics vision validation
• Embedded camera product showcase

Printing Tips

For best visual results, print in black and white filament or apply high-contrast vinyl overlays.

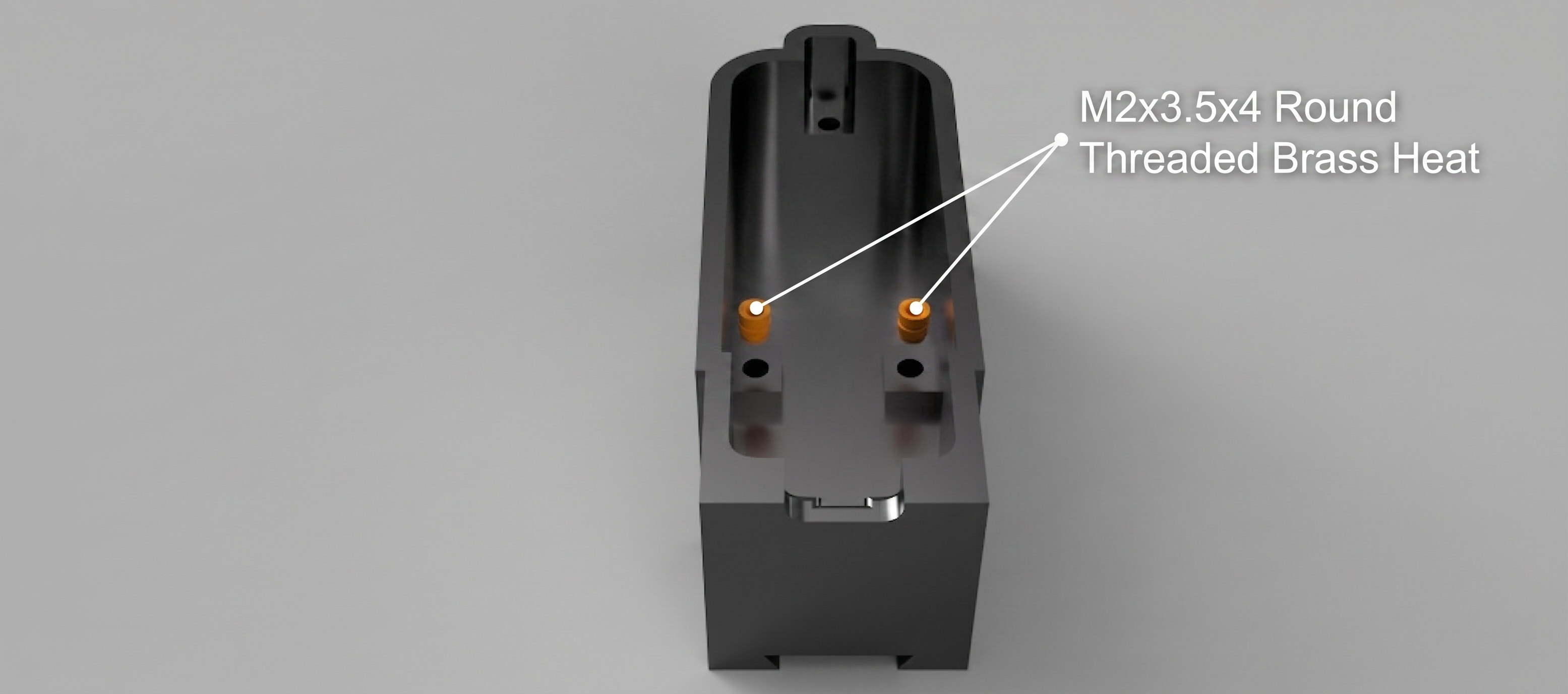

Mounting Options
