Adapter to fit a Small Rig Vibe P30 ring light to a Vevor binocular microscope.

Should fit any Ø67mm threaded light to a Ø54.5mm microscope.

With a knurled cap for a M3 Hex-Head screw (DIN-933) that presses on.

You can find other sizes here!

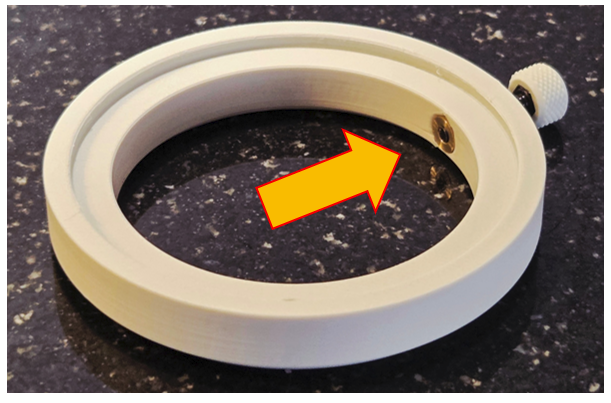

The Threaded insert gets inserted into the inside of the adapter:

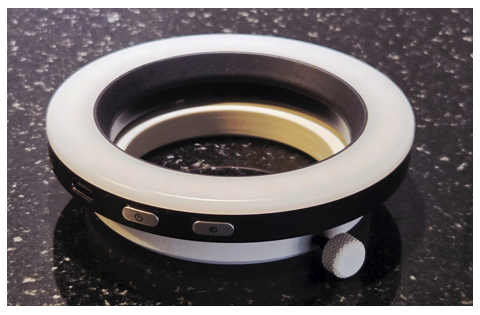

The ring light just screws into the adapter and forces its threads into the plastic. This can take a couple of tries to get to fit nicely and also to get the screw positioned where you want it. (I wanted my buttons in the back :P )

The whole thing can be fit over the bottom of your microscope and be held in place by tightening the screw :)

FYI, battery life on the Vibe P30 is pretty short, but you can hook up a battery bank to it via USB-C, even though Small Rig doesn't advise this during use of the light…

Required hardware:

1x Small Rig Vibe P30

1x Tappex Microbarb M3 threaded insert

1x M3 x 20mm Screw (DIN-933)
