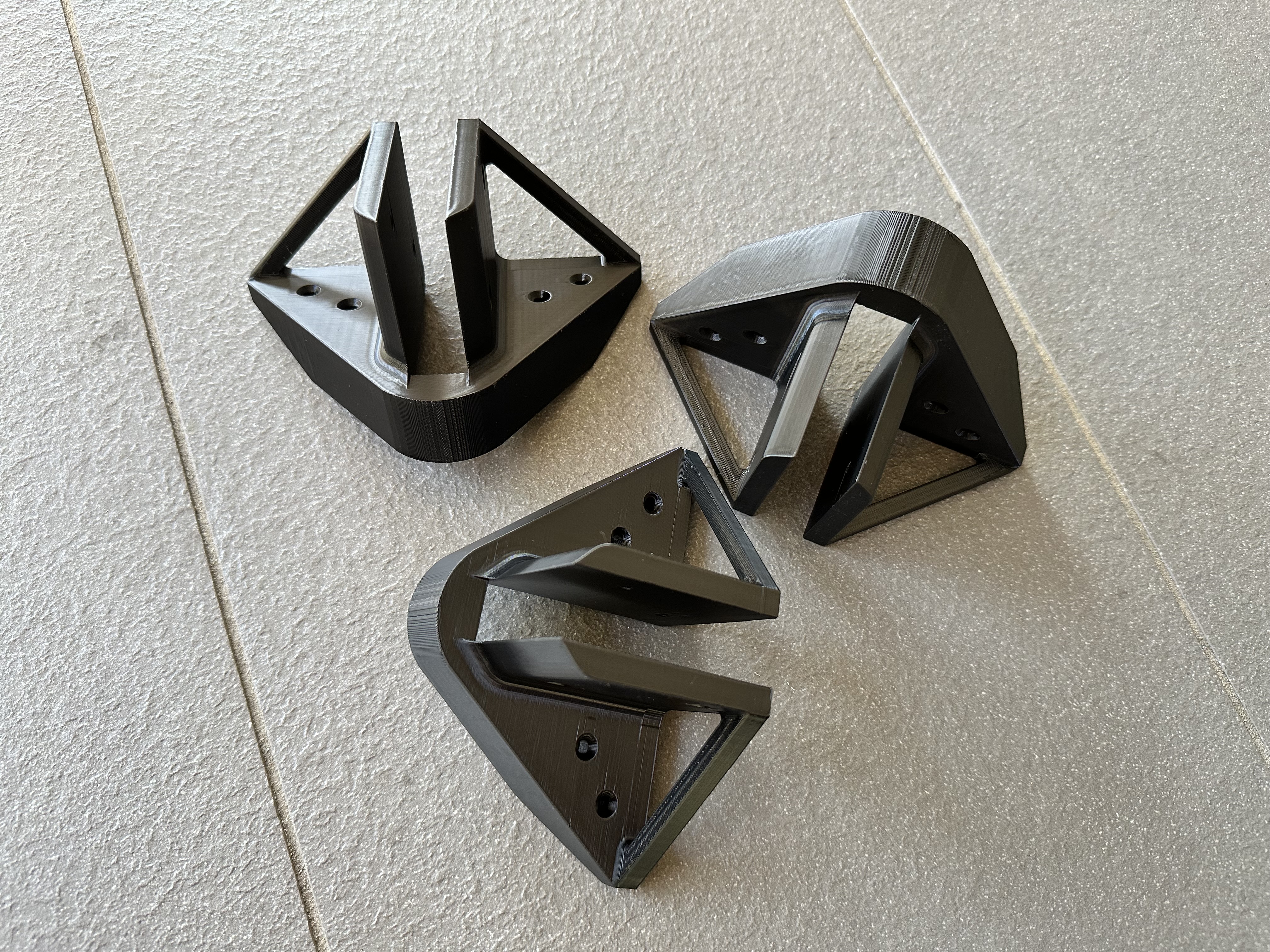

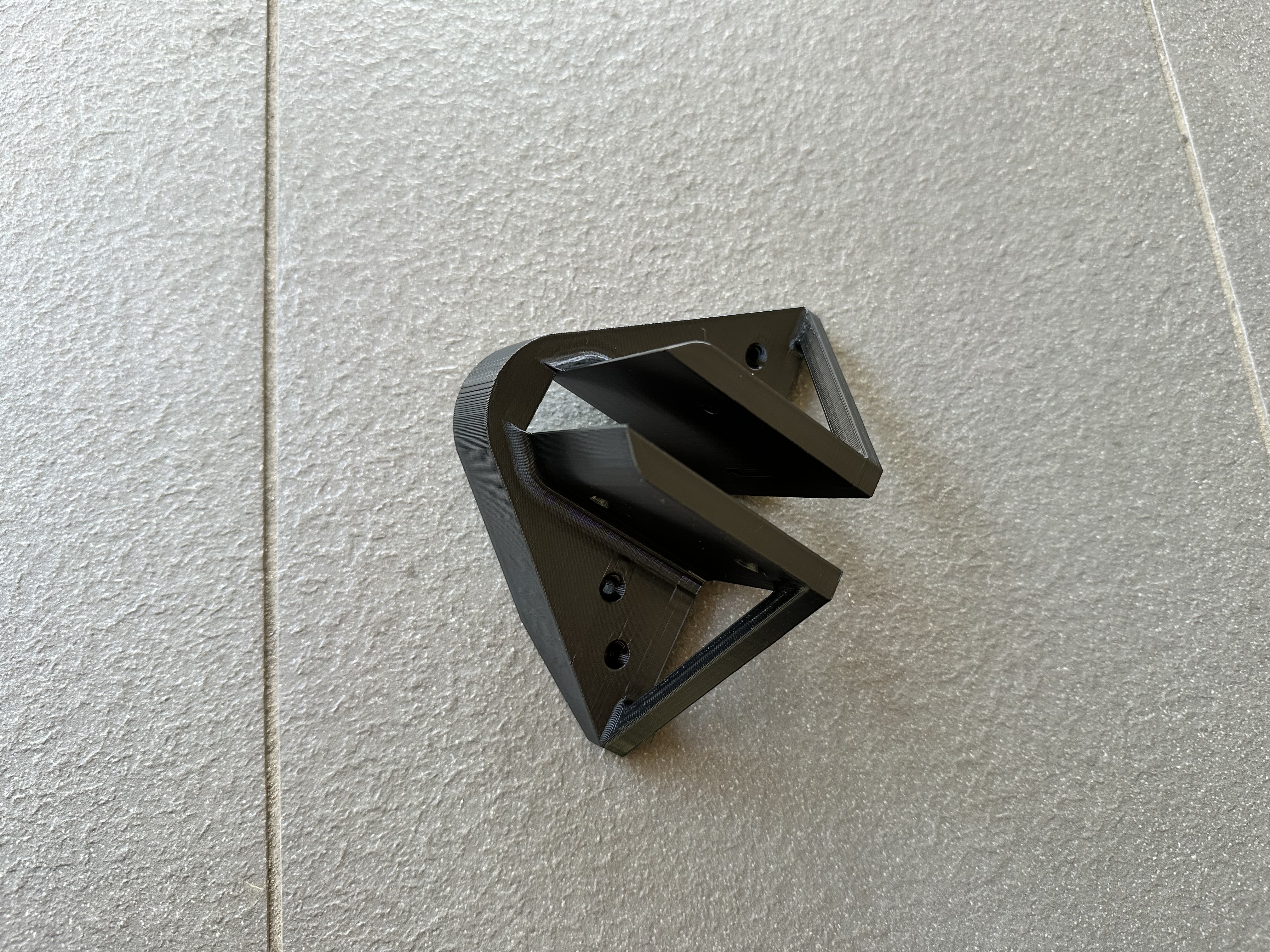

A lightweight connector system designed to easily assemble a compact wooden stool with angled legs for improved stability and modern style. A key feature of this design is the 45° angled legs, which not only give the stool a more modern, dynamic appearance but also improve stability by widening the base footprint. The connectors are precisely shaped to hold each leg at this angle, ensuring consistent alignment and a secure fit during assembly.

It joins a rectangular seat top (300 × 400 × 18 mm) with four legs made from 18 mm thick wood, each measuring 250 mm in height and 10 mm in width.

🔧 Features

• ⚖️ Material Efficient
  Uses only around 50g of filament for each connector.
• 🪵 Simple Wood Components
  Designed for a 300 × 400 × 18 mm seat and four 250 mm tall legs (18 mm thick, 10 mm wide).
• 🔩 Standard Fasteners
  Designed for use with 8G × 20 mm zinc plated hinge-long thread countersunk head timber screws (or equivalent 4 mm diameter, 20 mm length screws).
• 💪 Strong ABS Construction
  Optimized for printing in ABS to ensure durability and load-bearing strength.
• 🧩 Easy Assembly
  No complex joinery required—connectors align and secure all parts precisely.
• 📐 Angled Leg Design (45°)
  Enhances stability while giving the stool a clean, modern look.
• 🖨️ Print-Friendly Design
  Minimal supports required and quick to print.
• 📦 Ideal for DIY & Flat-Pack Projects
  Perfect for makers, prototyping, and compact furniture builds.
