⚙️ Recommended Print Settings

• Material: PLA / PETG
• Layer Height: 0.20 mm
• Infill: 10% to 20%
• Walls: 3
• Supports: Not required
• Brim: Optional (recommended only if bed adhesion is poor)

🖨️ Easy and fast to print.

🔄 Rotating Mechanism

The top section is designed to rotate freely after printing.

Because every 3D printer, filament, and calibration is slightly different, the rotating part may feel tighter on some printers.

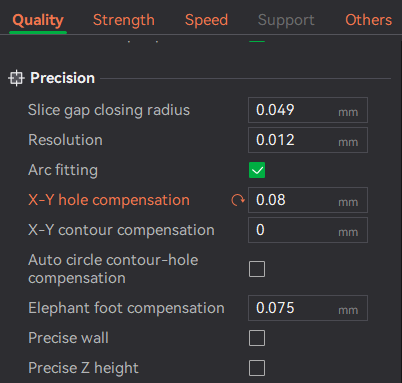

If needed, adjust only one of the following settings in Bambu Studio:

• Quality → Precision → X-Y hole Compensation (Recommended): increase slightly (+0.03 mm to +0.08 mm).
• Quality → Precision → X-Y contour Compensation: if needed, reset Hole Compensation to 0 and try a small negative value (-0.03 mm to -0.05 mm).

Do not change both settings at the same time. Test one adjustment first.
