**NOW PARAMETRIC** Two-Part Modular Cable Channel

• A clean, flexible cable management system built from two simple parts: base sliders + slide-on shells.
• Designed for easy installation, customization, and expansion.
• For bends go check out the Parametric Curved Two Part Cable Channel!

How it works

• Base slider mounts to your surface.
• Shell slides on top to fully enclose cables.

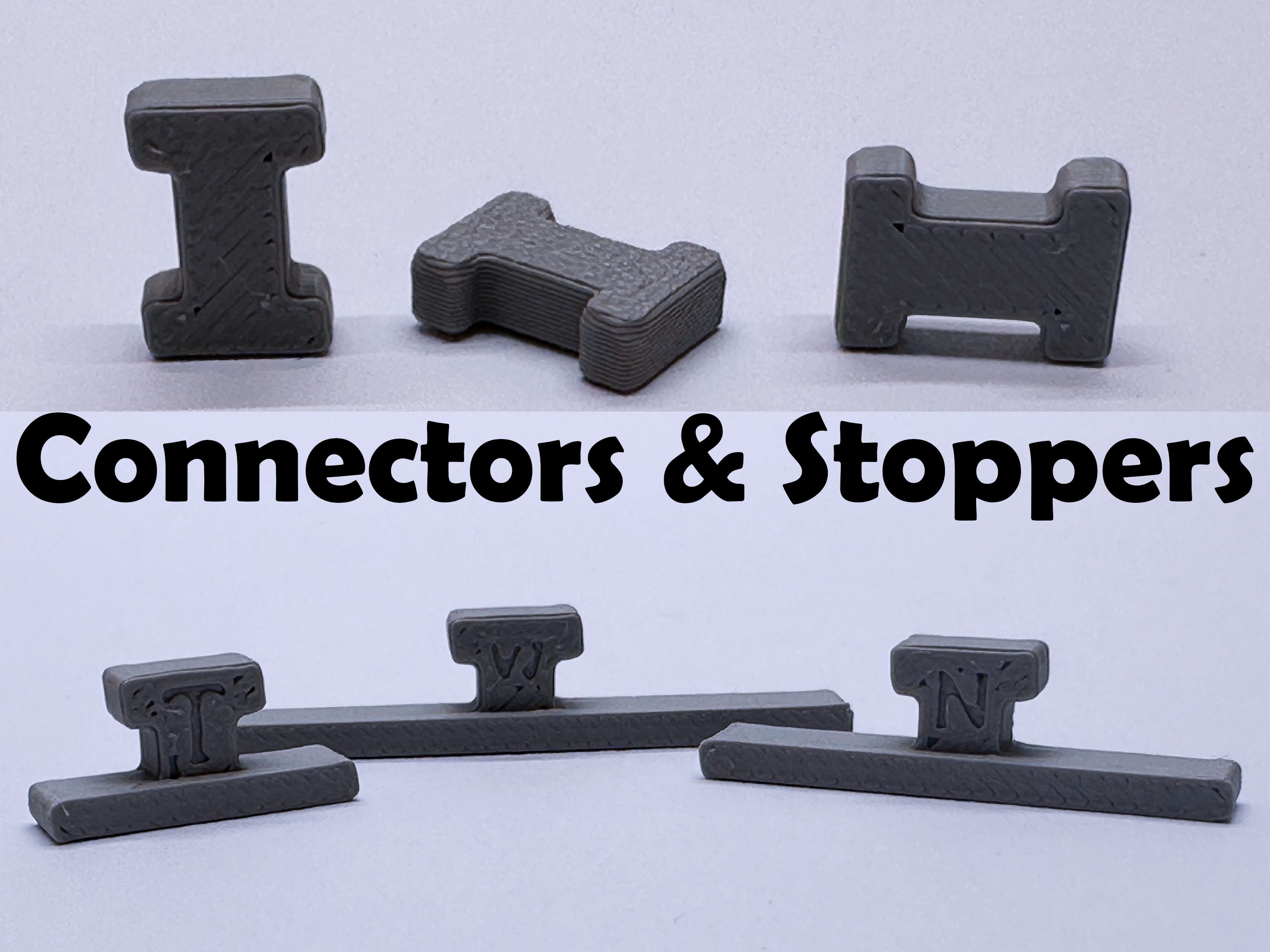

• Stoppers prevent shells from sliding off.
• Connectors let you extend the system seamlessly.

Available sizes

1. Base sliders (width):

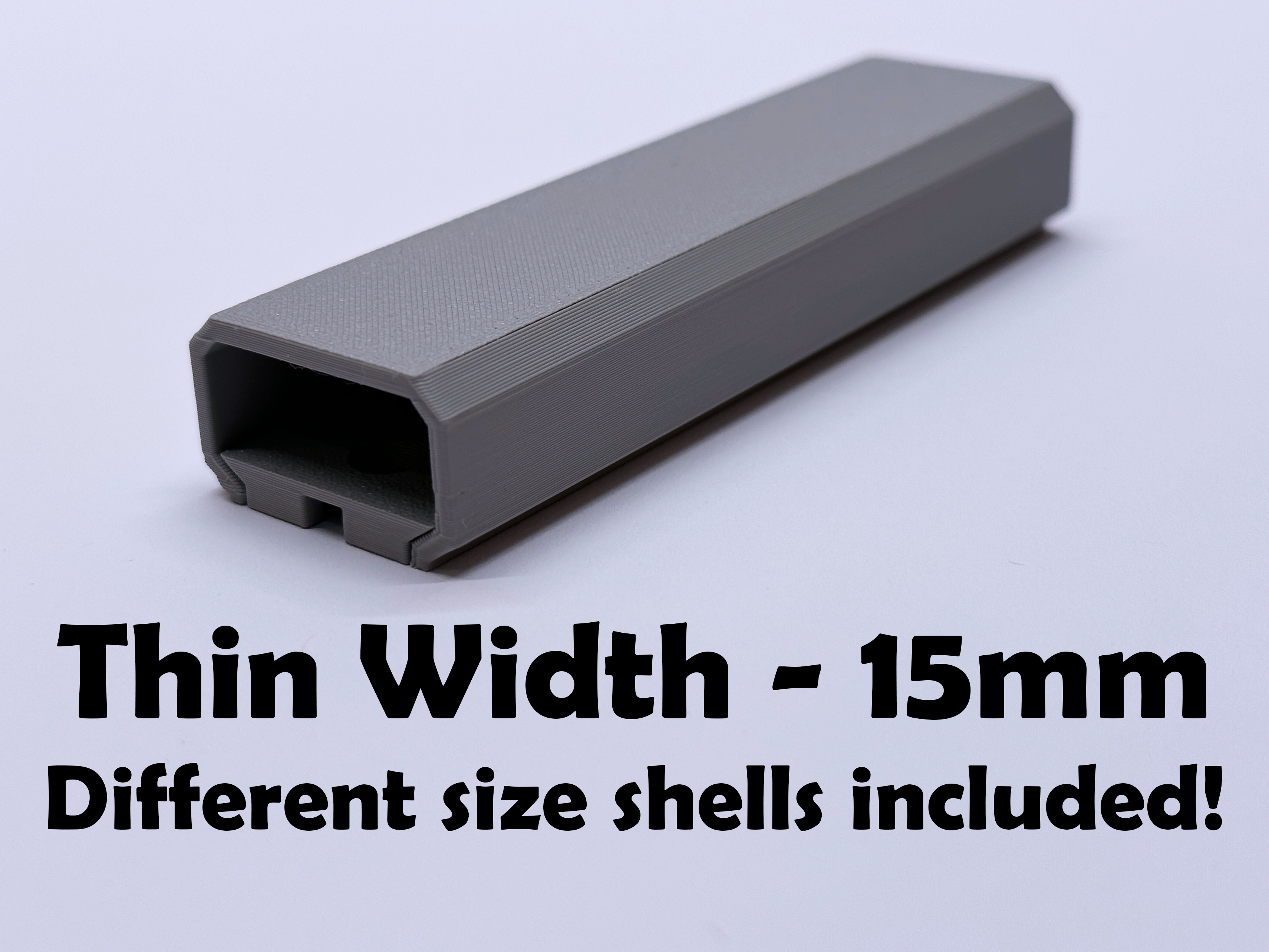

• Thin – 15 mm

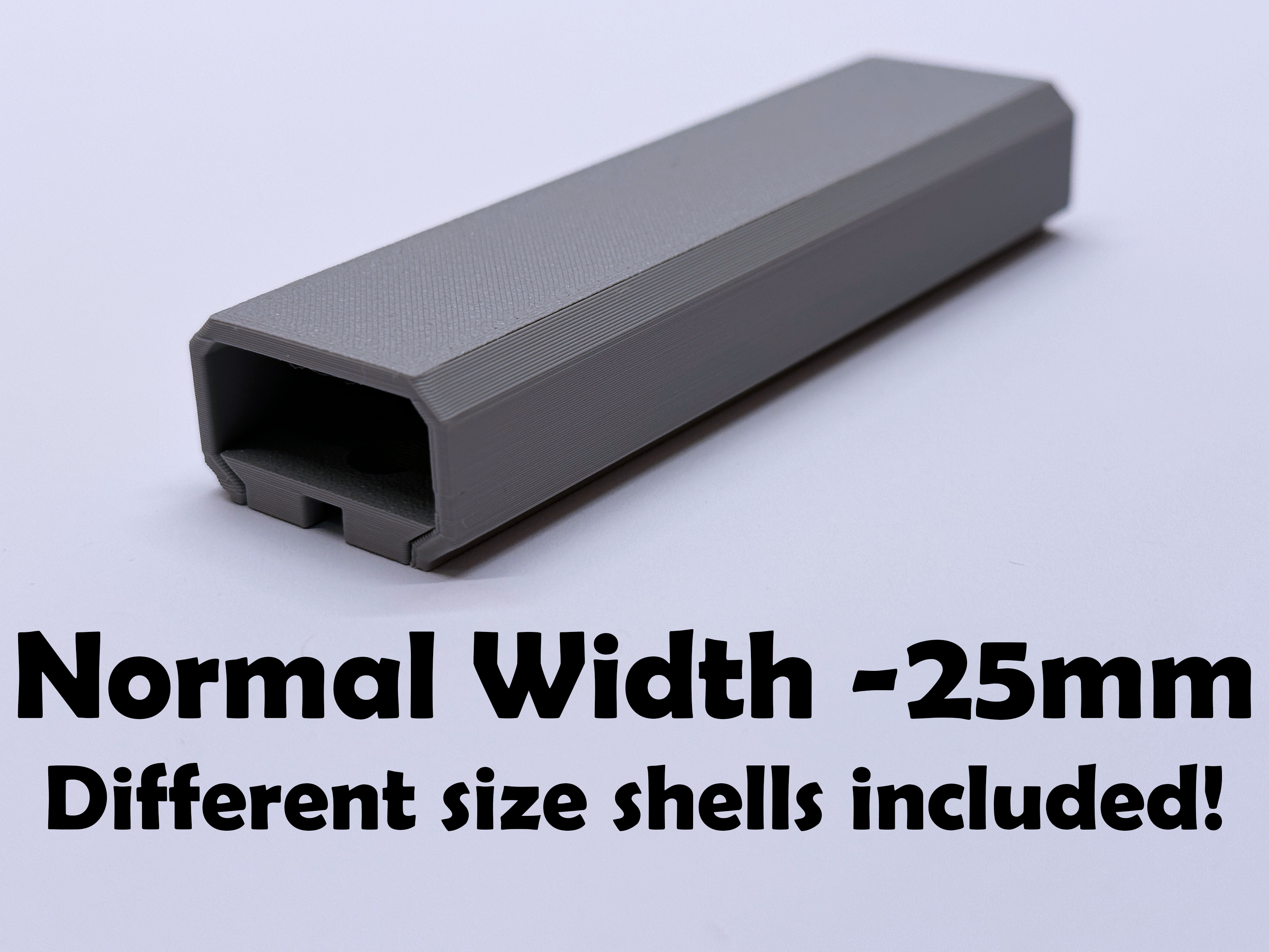

• Normal – 25 mm

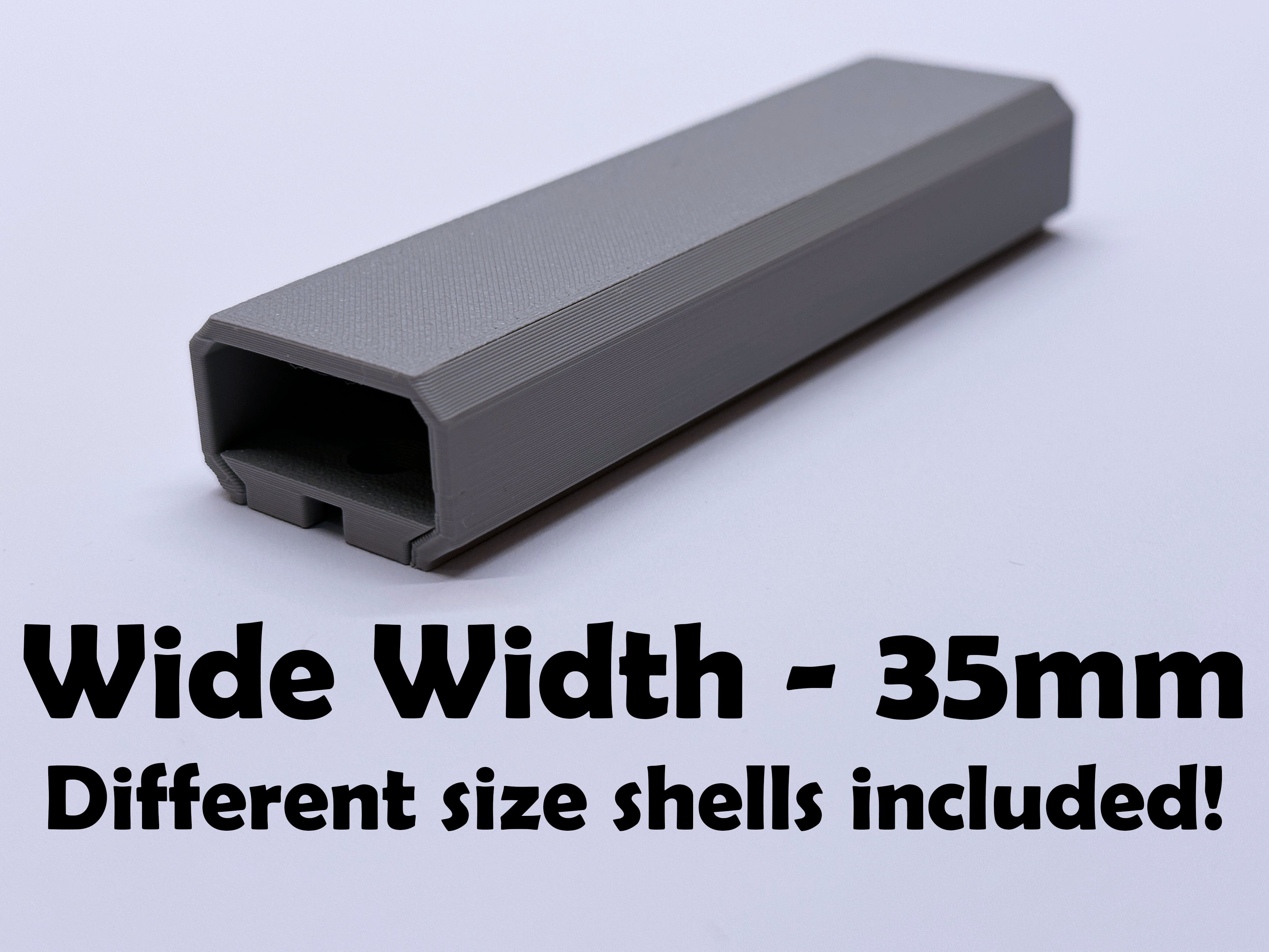

• Wide – 35 mm

2. Shells (height):

• Low – 3 mm
• Medium – 6 mm
• High – 9 mm

Modular system

Connect multiple base sliders using connectors for longer runs.

Mix & match heights and widths depending on your cable needs.

Use stoppers (letter-marked for to match base width) to lock shells in place.

Installation options

Option 1: Screw mount (fits 3 mm screws).

Option 2: Use double-sided tape for a clean, no-drill setup.

Make sure to check out the One Part Cable Channel for a more discrete look too!

UPDATE 2.0

The cable channels are now parametric and can be customized to your desire!

It allows you to customize dimensions of the cable channels to fit your specific needs.

Key features:

• The straight base sliders automatically adjust the amount of screw holes depending on the length you define.
• All screw holes fit 3mm screws. You can also use double-sided tape for mounting.
