🏆 Customizable Name Generator

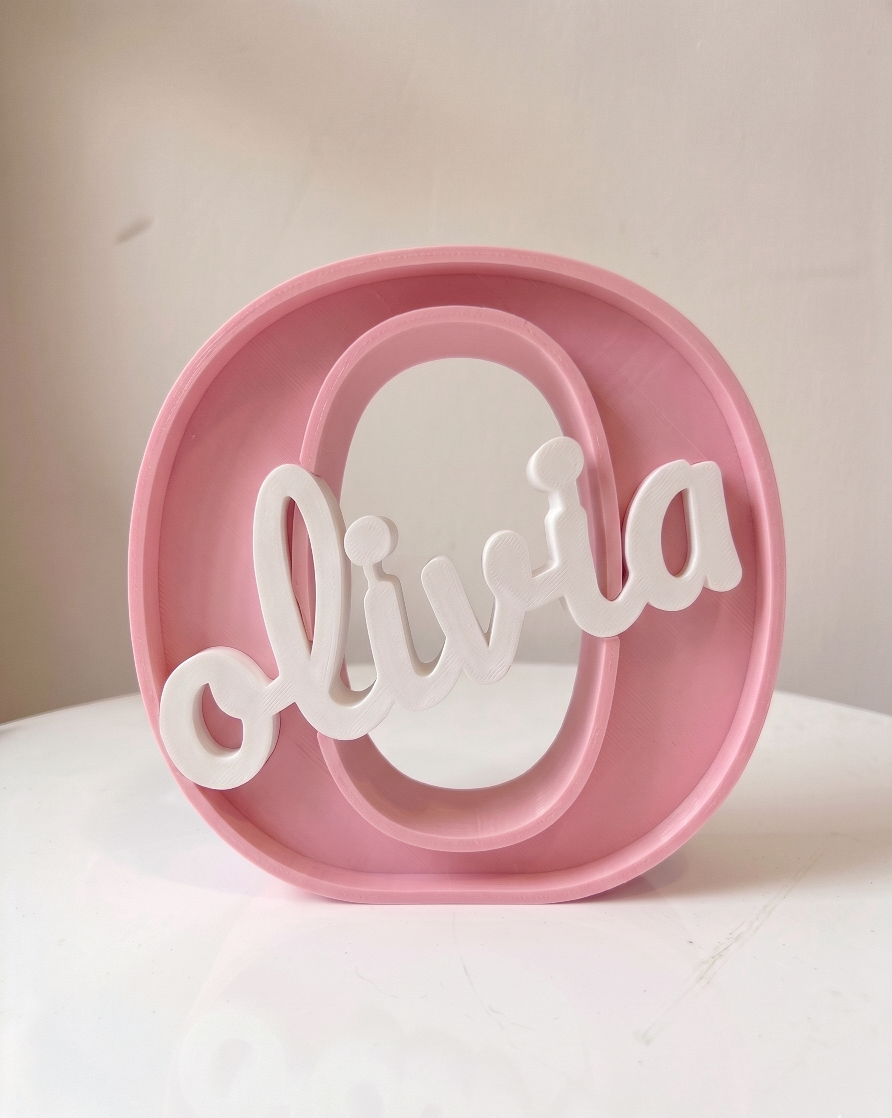

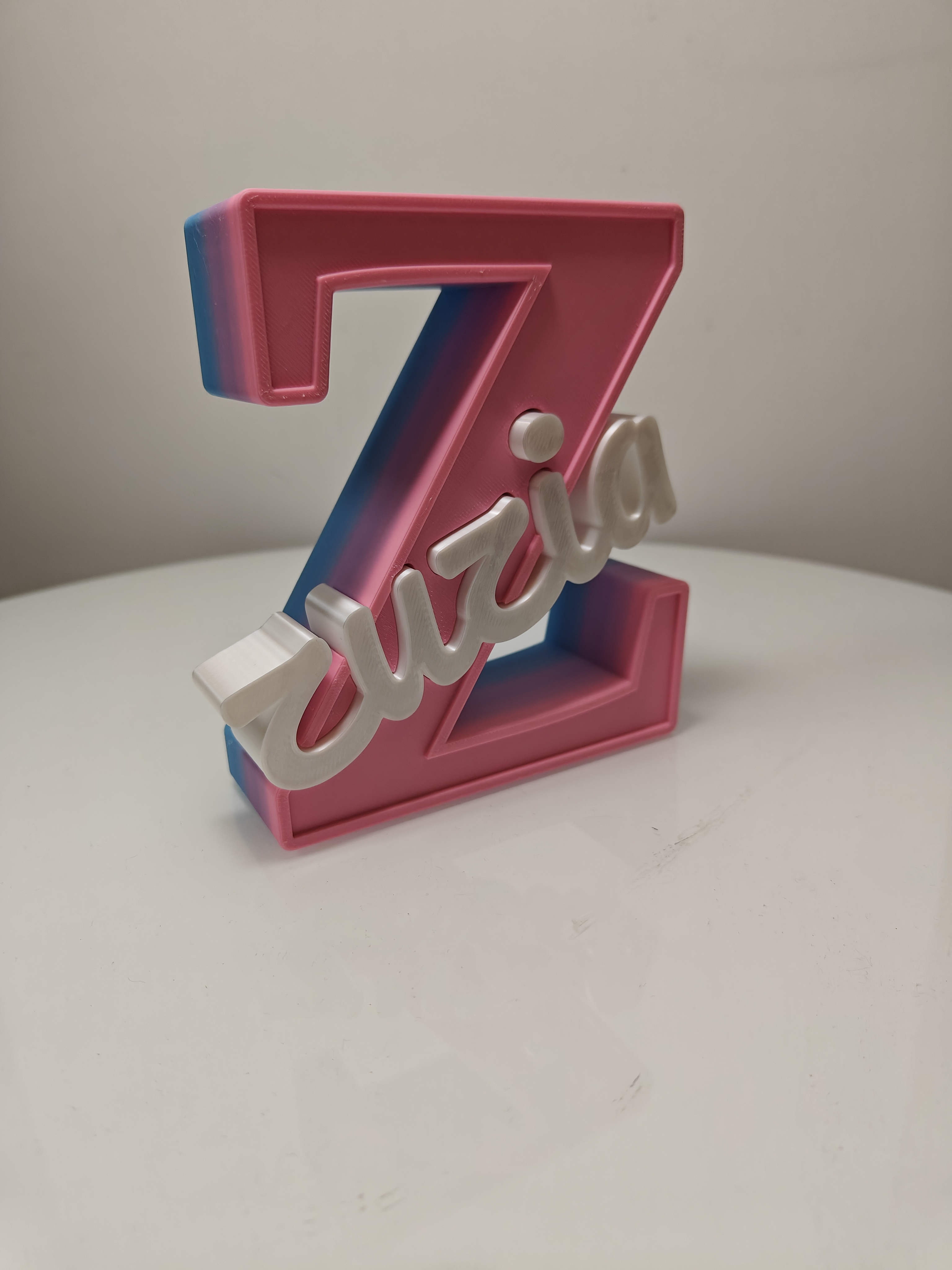

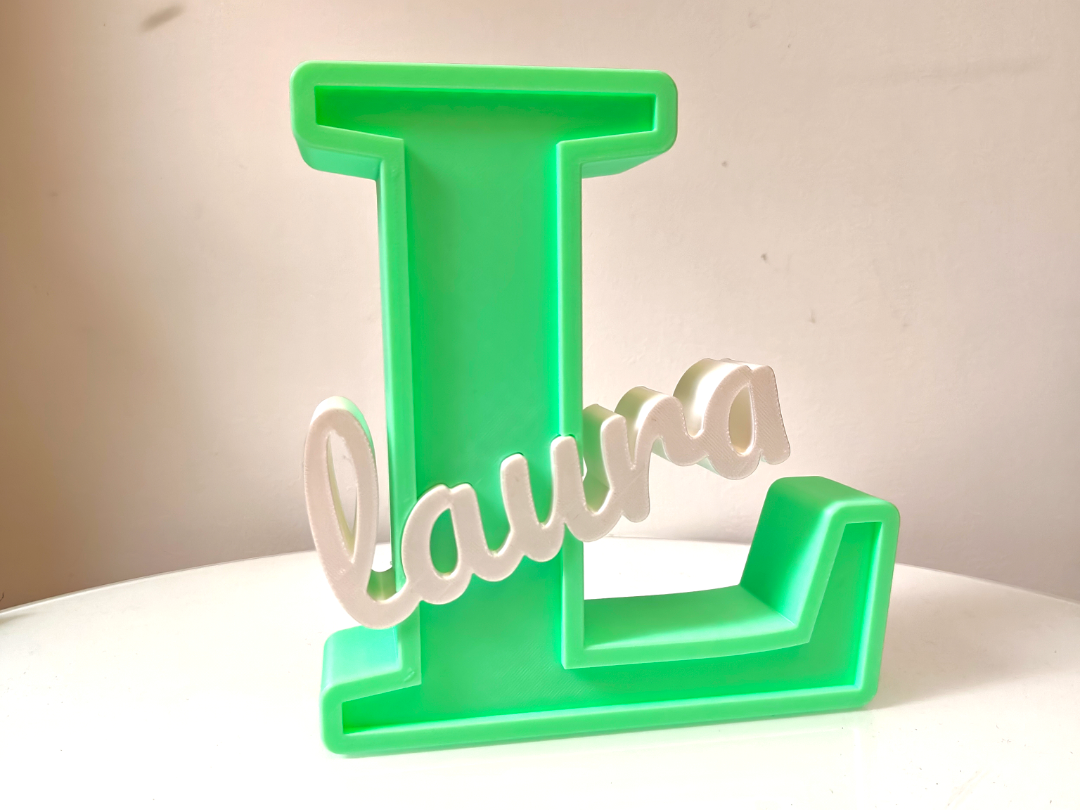

This model is a fully adjustable trophy generator. The system automatically creates a massive base (the first letter of the name) with a decorative rim, where your custom script name is elegantly inlaid. It’s a perfect idea for a gift, desk decor, or personalized wall art.

⚙️ How to Print Separately (No Supports)

To achieve a clean look without any support material, you should print the Base and the Name as two individual parts. Here is how to do it in the Customizer:

1. Generate the Base: In the Element_Selection menu, select "Base " and click "Generate". Download this file.
2. Generate the Name: Change the selection to "Name " and click "Generate" again. Download this second file.
3. Print & Assemble: Both parts are designed to lay flat on the heatbed. Once printed, simply press the name into the inlay on the base. ou can freely adjust the tolerance to your needs – you decide how tight the fit should be. I recommend a setting between 0.2–0.5 mm, which ensures a perfect "snap-fit" without the need for glue (though a drop won't hurt!).

✨ Customizer Features:

• Free Composition: You can move the name vertically and horizontally, or rotate it at any angle to perfectly fit the background letter.
• Stability or Wall Mount: Round-bottom letters (like O, S, C, G) feature a Smart Bottom Cut for stability on shelves. If you plan to hang the trophy on a wall, you can turn this off to keep the original letter shape.
• Dot Connector System: For names with "i" or "j", you can enable the built-in dot connector. You can adjust its position and width to ensure the dot is securely attached to the rest of the name for a 3D print.
• Full Dimension Control: You decide the overall size, inlay depth, and the thickness of all elements.
• Font Selection: Two styles available – one of which includes full support for Polish special characters (ą, ć, ę, ł, ń, ó, ś, ź, ż).
• Live Visualization: Choose from 5 pastel colors to visualize the final result before printing.

🖨️ Print Settings:

• Designed to print with No Supports.
• Use the Element_Selection menu to export the base and the name as separate files. This allows for easy dual-color printing even without AMS/multi-material systems.
• Default Tolerance (0.5 mm) ensures a smooth, snug "snap-fit" between parts.

Do you like this project? Leave a "Like" and show off your print in the "Makes" section!
