Parametric Gridfinity Hex Bins

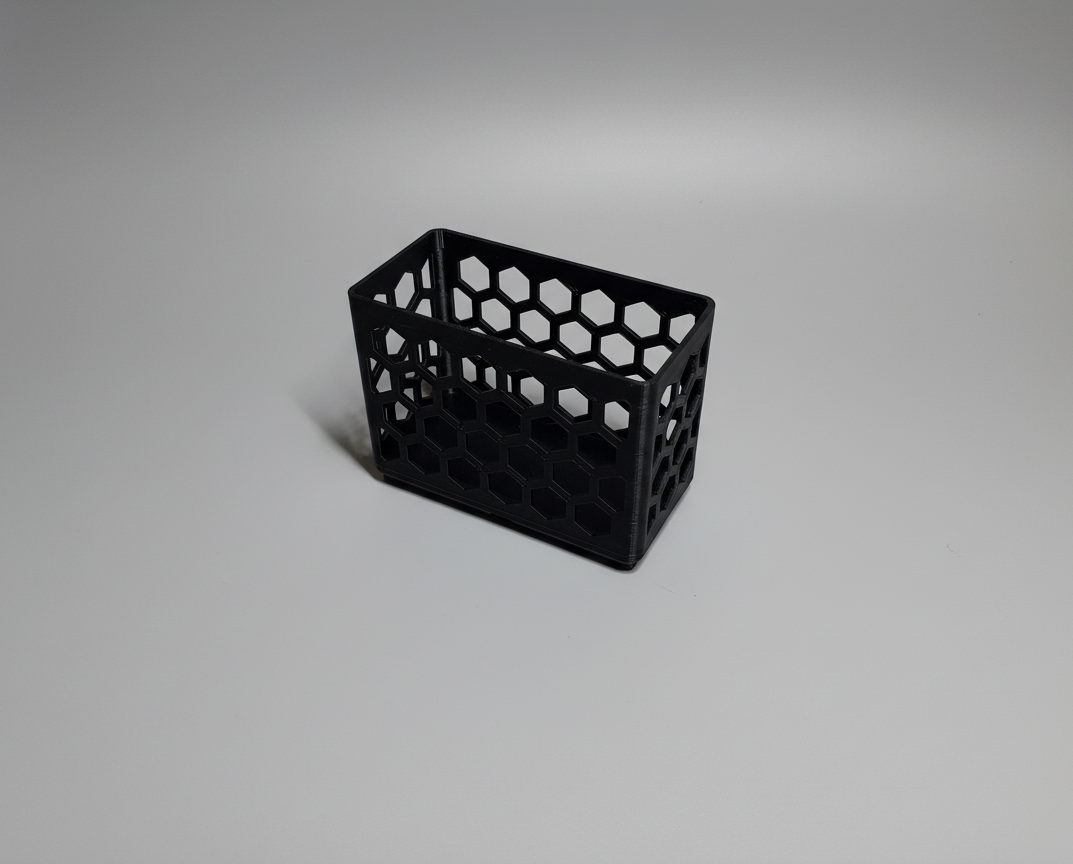

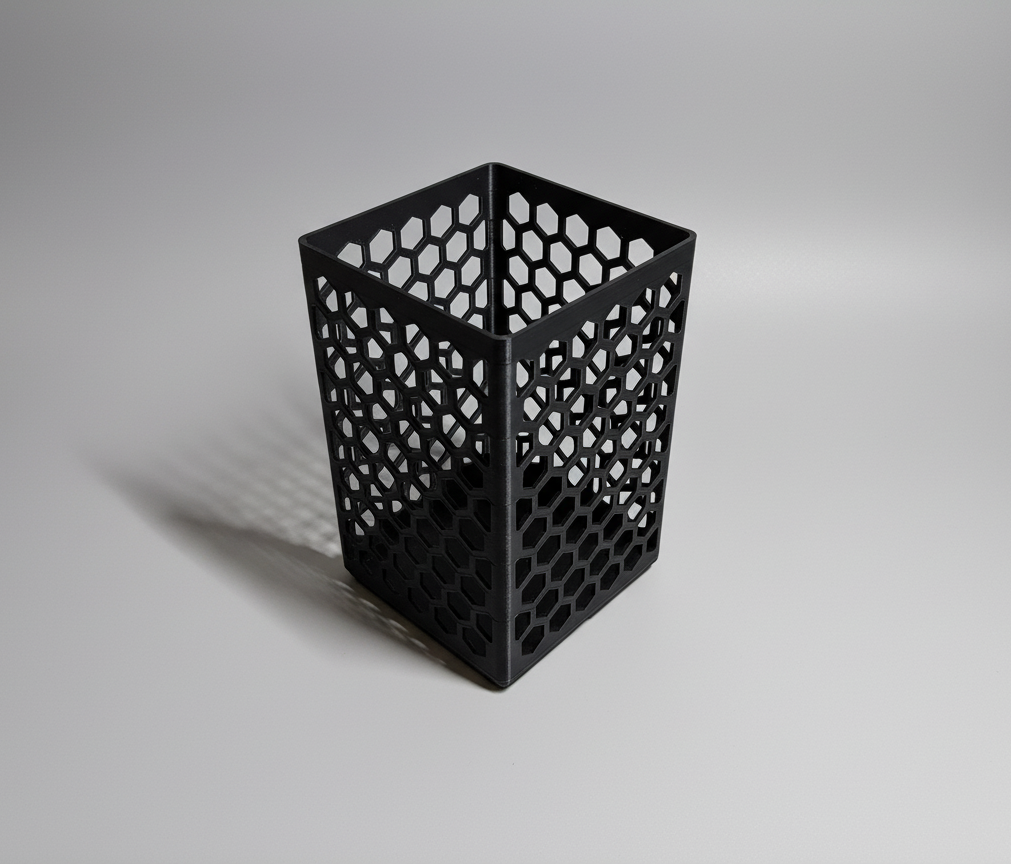

Parametric Gridfinity Hex Bin with Honeycomb Walls & Magnet Support

A fully customizable Gridfinity-compatible storage bin with a striking honeycomb wall pattern. Configure grid size, height, hex pattern, and margins directly on MakerWorld – no code editing required.

Features:

🧩 Gridfinity Standard - Snaps into any Gridfinity baseplate with precision-fit feet.
⬡ Honeycomb Walls - Parametric hex cutouts on all four sides for style, grip, and ventilation.
✂️ Clip or Skip - Choose whether edge hexes are cleanly clipped at the wall boundary or omitted entirely.
🔍 Sliver Filter - Set a minimum visible hex size so tiny partial cutouts are automatically filled in.
🧲 Magnet Ready - Optional magnet holes in the feet for a secure hold on magnetic baseplates.
💍 Solid Rings - Add solid bands above and/or below the hex pattern for extra rigidity.
⚙️ Customizable Online - Adjust grid size, bin height, hex size, wire thickness, wall thickness, and margins on MakerWorld.

Default Setup:

2×1 grid (fits 2 Gridfinity units)
42 mm tall bin with 1.6 mm walls and 2.4 mm bottom
10 mm hex holes with 1.2 mm wire between them
Magnet holes enabled
Side clipping off, solid rings off

Printing Guidelines:

Material: PLA or PETG recommended
Layer Height: 0.2 mm or finer for clean hex edges
Infill: 15–30% is usually enough
Supports: Not needed
