sines · lamp

a minimalist desk lamp that will provide soft ambient lighting in your space

designed for E14 low-heat LED bulbs (max 25w) to ensure optimal performance, longevity, and safety. where the shade screws into the base and includes an optional top diffuser. perfect for desk spaces, offering soft illumination with a sophisticated presence

important

• ensure your filament is dry and calibrated and that your build plate is properly clean so that there aren't adhesions issues and lifts during the print
• don't over tighten the shade to the base, it's a short thread so you'll only to tighten until snug

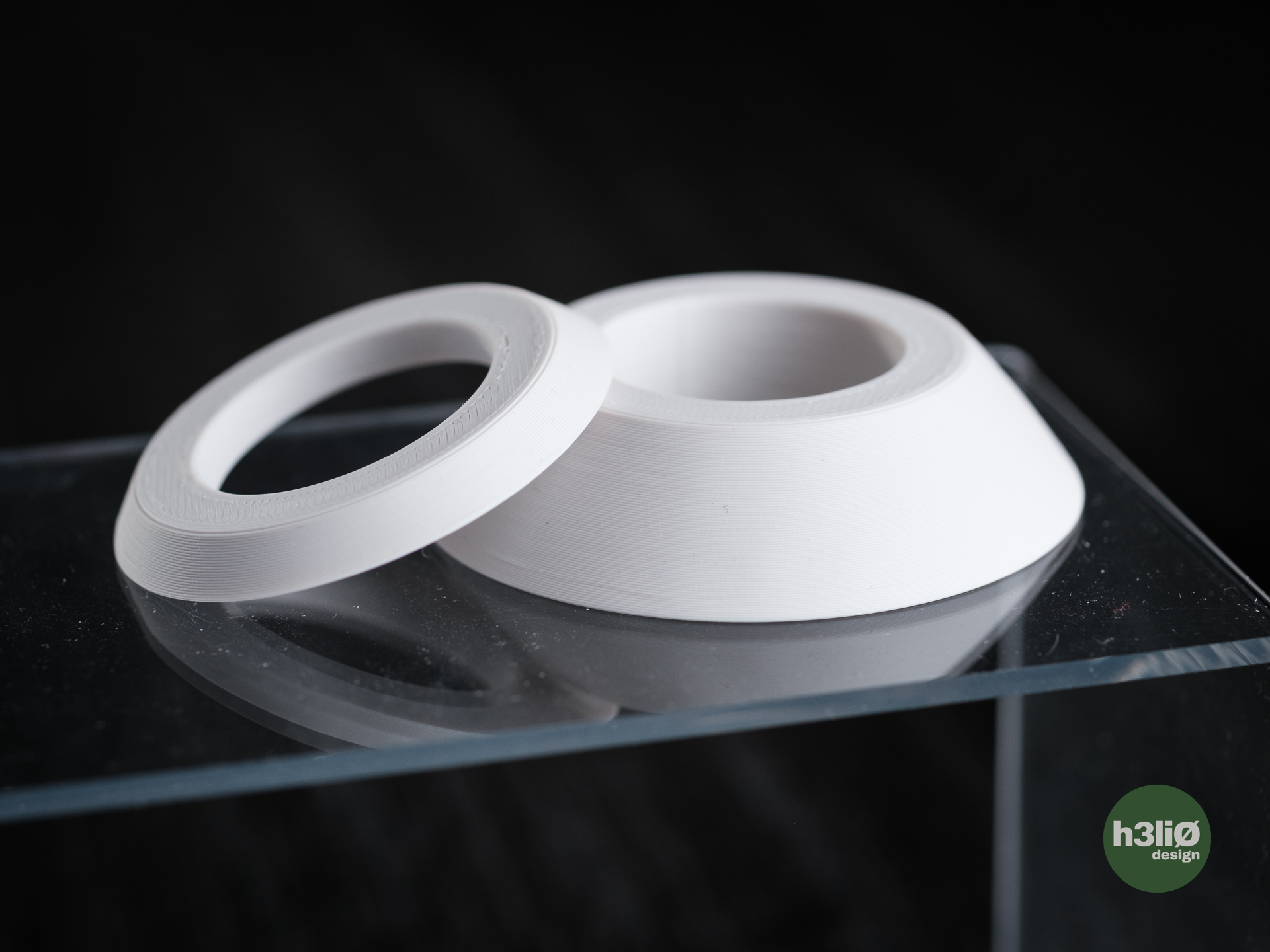

• includes optional spacers to make the lamp sit lower, and also an optional top diffuser with venting holes
• this lamp is provided “as‑is.” users are solely responsible for ensuring that the final build is safe, complies with local electrical codes, and is used in a manner consistent with their own risk tolerance. use this design at your own risk. no liability is accepted for any damage or injury

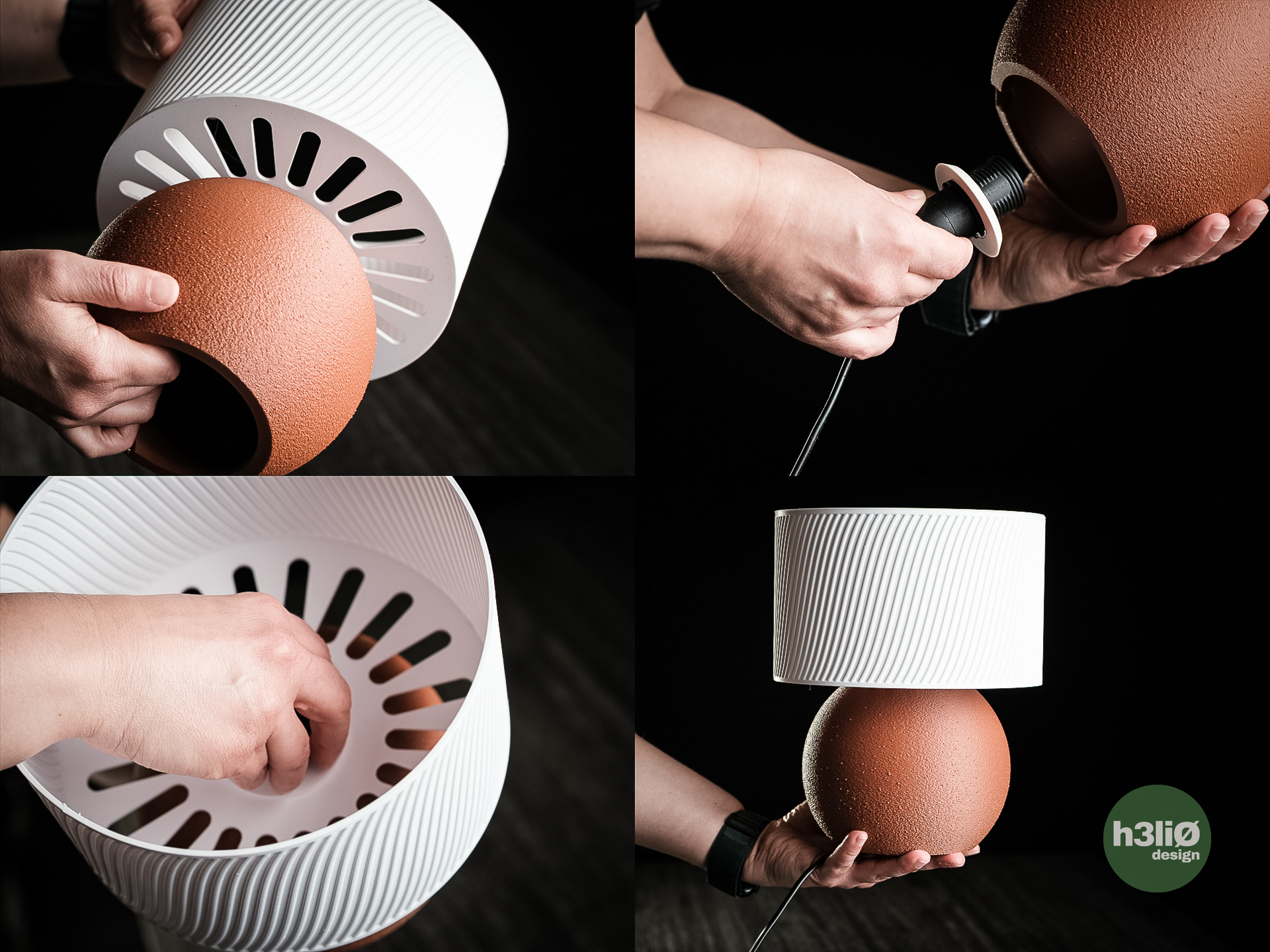

assembly

• thread the shade into the base (don't over tighten)
• use a E14 light fixture kit and put the socket through the base • there are optional spacers (5, 10  and 15mm) to add to the fixture if you'd like the lamp to sit lower, depending on the light fixture kit you use
• secure the inner shade to the base using the light socket threaded connector, aligning before a tightening fully
• add the lamp
• add the top diffuser (optional)

• finally guide the power cord through the cutout slot





components dimensions:

• base  ~ x • 150 · y • 150 · z • 123
• shade ~ x • 194 · y • 194 · z • 120

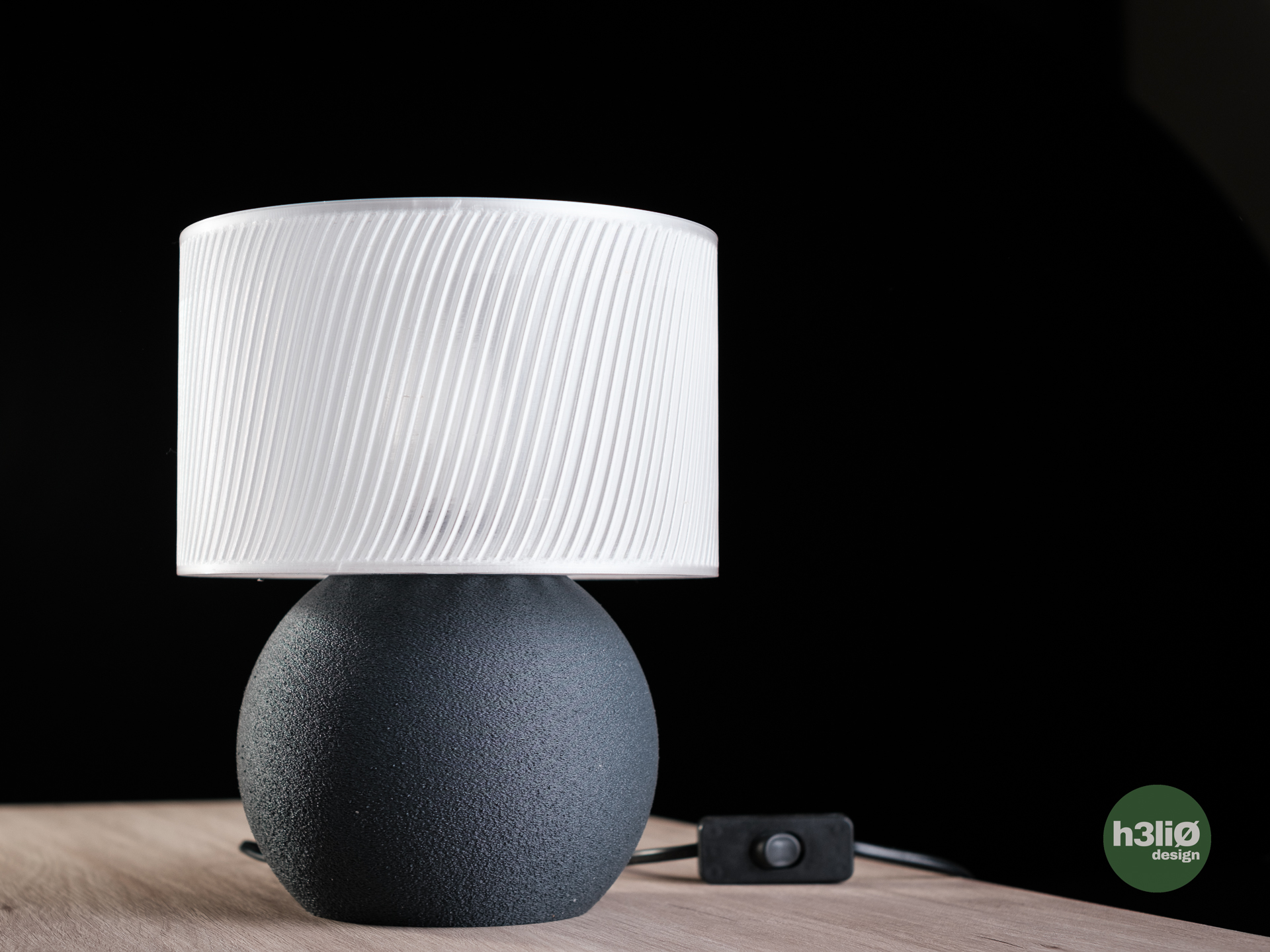

photos show printed in PLA-CF + PCTG transparent and PLA matte +  PETG-HF

body settings

• .40mm nozzle
• .2 layer height
• 15% adaptive cubic infill
• fuzzy skin
• no supports

shade settings

• .40mm nozzle
• variable layer height
• 15% gyroid infill
• no supports

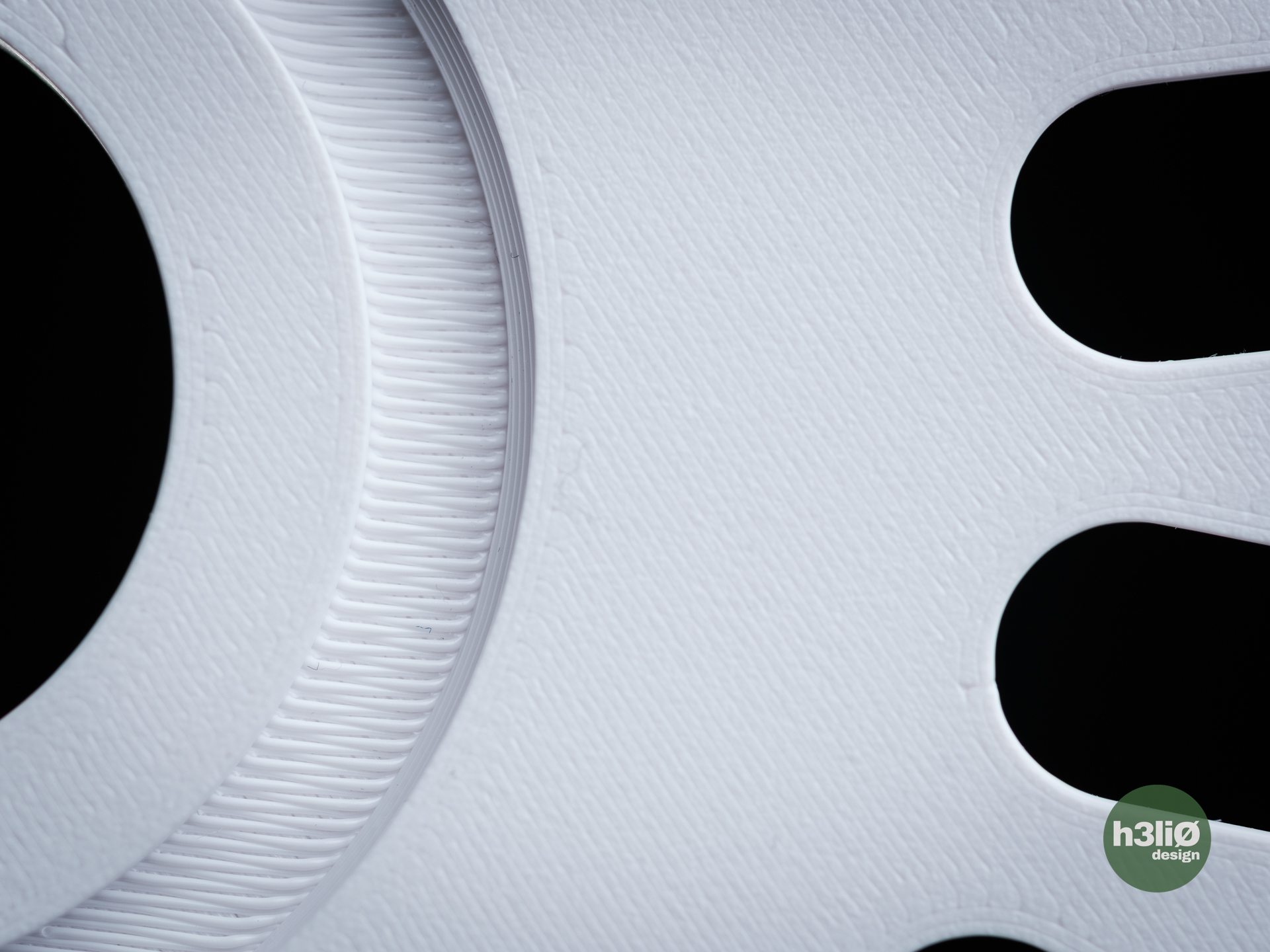

• archimedean cords bottom and top surface on the top diffuser

spacers settings (optional)

• .40mm nozzle
• .2 layer height
• 15% cubic infill
• no supports

notes

• commercial licence membership available on my patreon
• all photos uploaded are of the actual printed model, and are copyright protected
• if you enjoy this model please consider to buy me a coffee
• includes bambu studio 3mf files and STLs
