Tired of your microcontrollers getting dusty or having their pins bent? This model is for you.

This is a fully parametric protective case designed for popular microcontrollers such as Arduino Nano, ESP32, Raspberry Pi Pico, and more. It keeps your boards safe, organized, and ready to use while allowing easy customization to fit different sizes and configurations.

The print profile includes designs for only three microcontrollers. If you want to customize it, follow these steps:

1. Download the .f3d file
2. Open it in “Fusion 360”

3. Go to  Modify →  change parameter

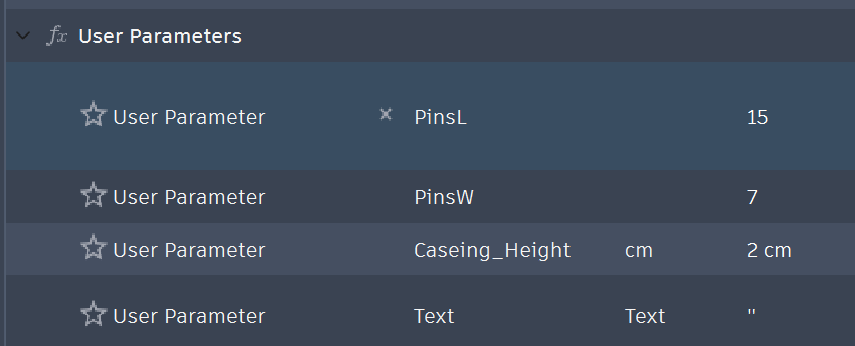

4. You will see 4 adjustable parameters:

• PinsL – Number of pins along the length

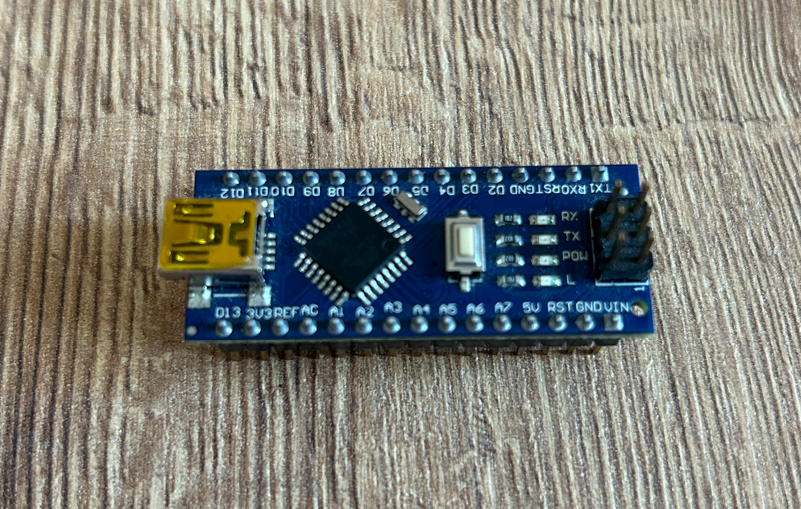

  • Example: On an Arduino Nano, there are 15 pins in one row → set PinsL = 15

• PinsW – Number of pins across the width

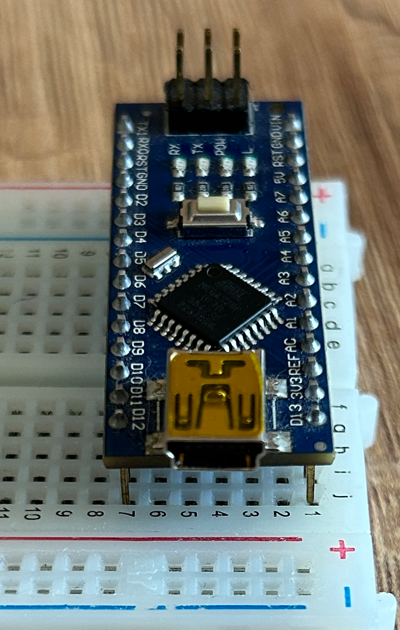

  • Place the board on a breadboard as shown in the reference image
  • For Arduino Nano → PinsW = 7

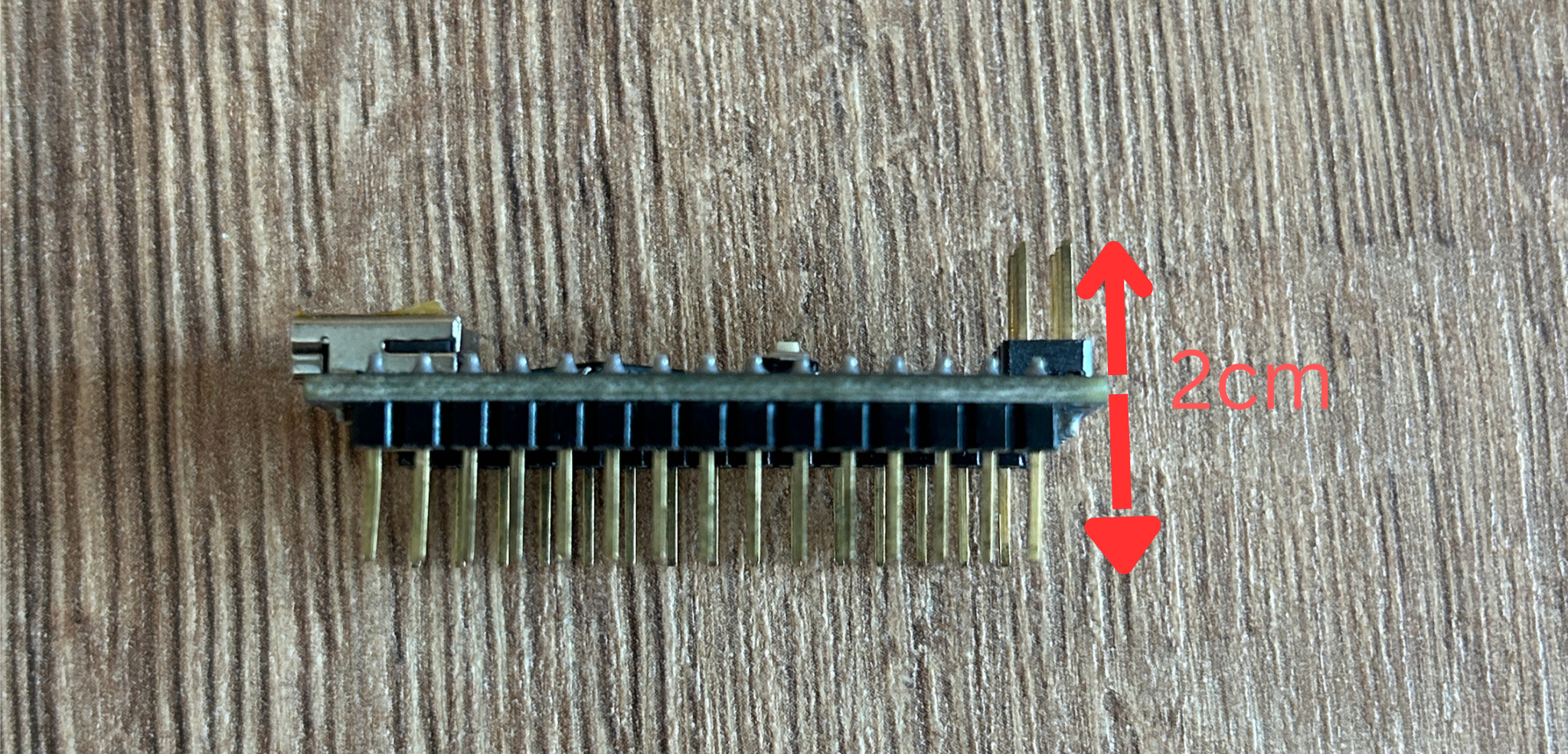

• Case_height – Total height of the case (including pins)
  • Measure your board with pins inserted
  • Example: Arduino Nano ≈ 2 cm

• Text (optional) – Add custom labeling if desired
