Update:

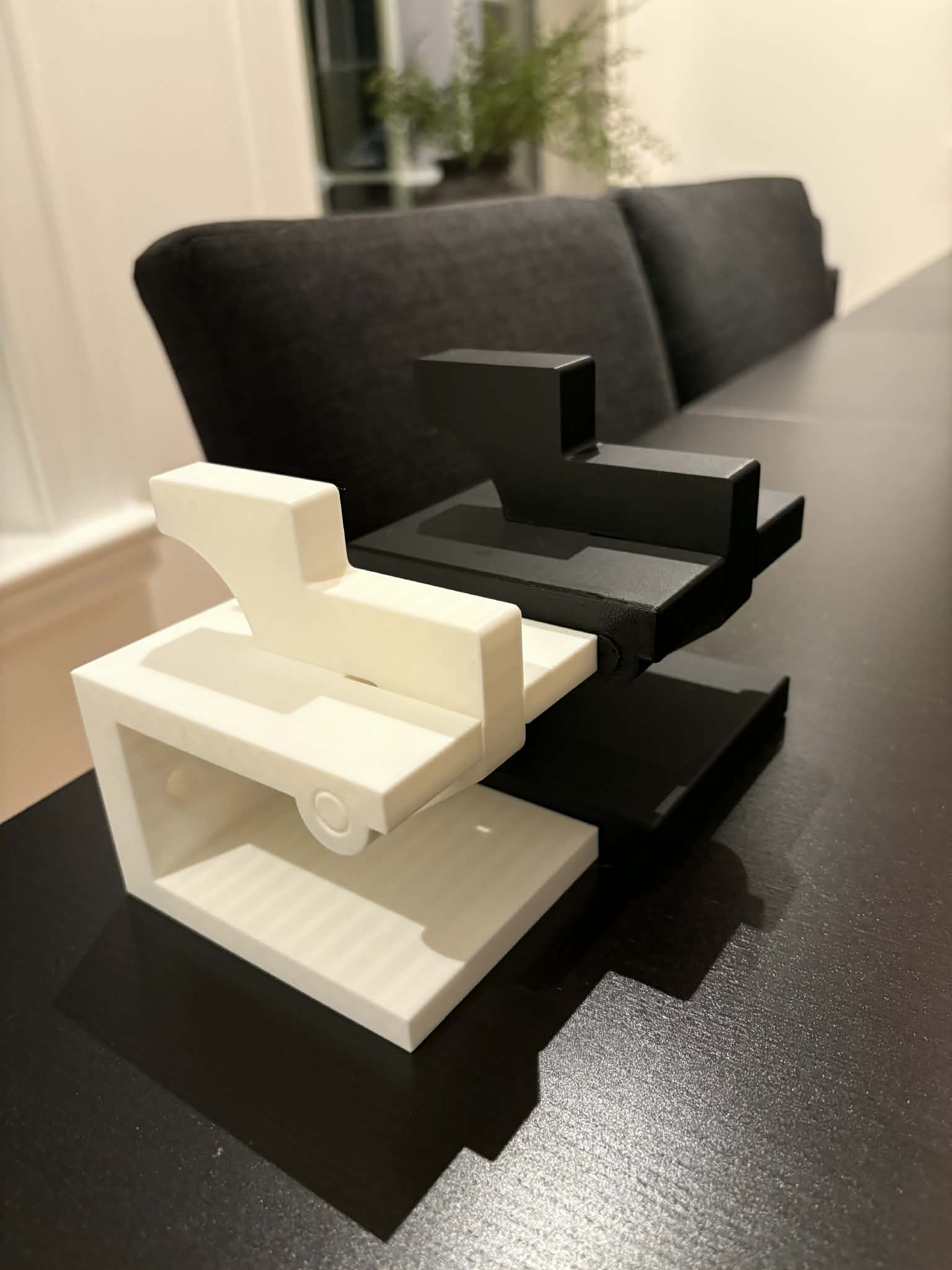

I have added a small and a bigger version of the Bin Mount, it's also now a press fit. I printed the smaller version with a 9.8mm locking pin with 0.24mm layer height and had to remove some of the seam build up. But I have also added a 9.75mm locking pin which I think will fit with no removal of seam. It is a press fit by hand, it sits nicely. I have used 4 walls, feels really sturdy and dont feel like it's going to break when applying force. I only used 15% infill, but if you need it to be any stronger just adjust :)

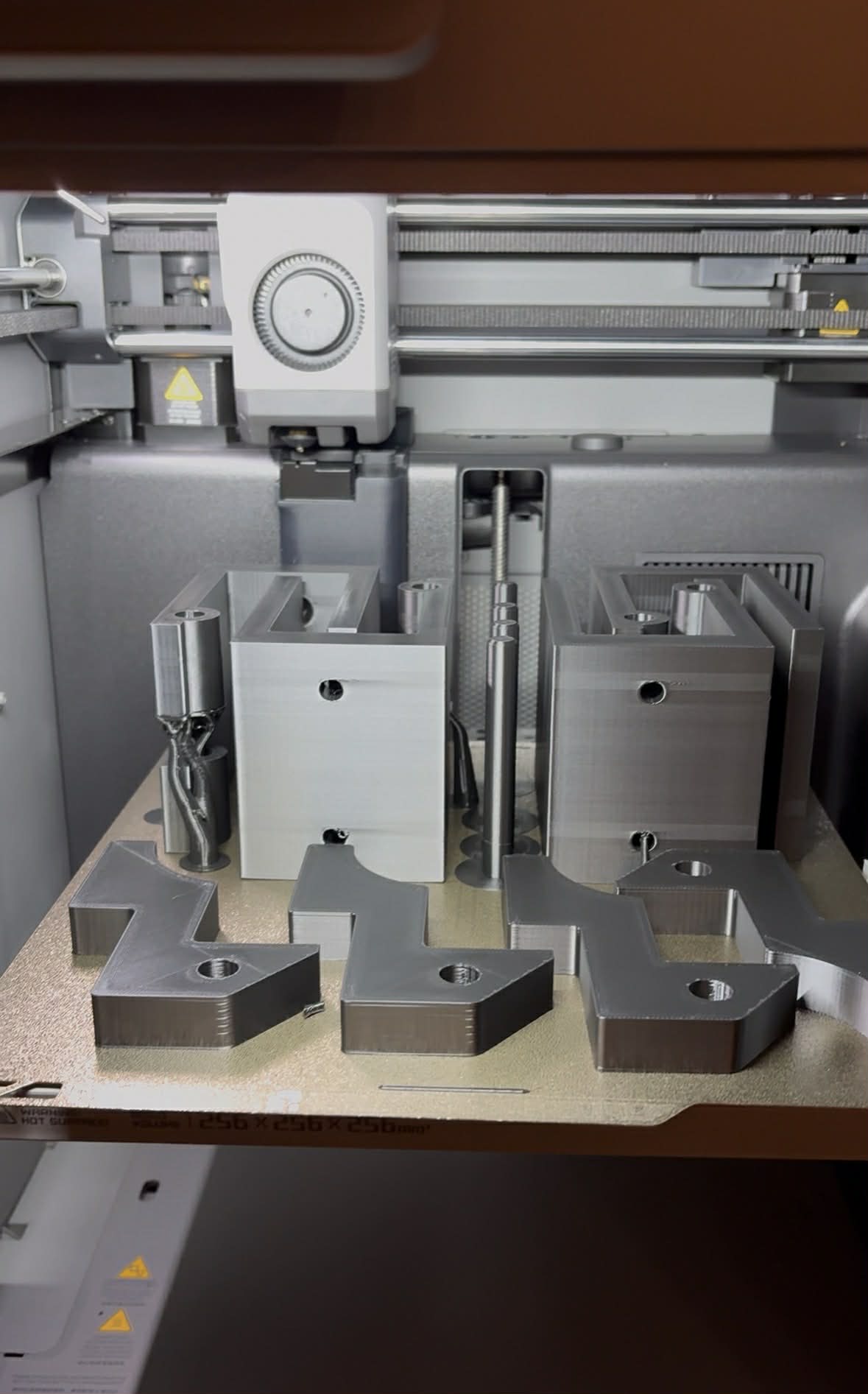

Printed the pins standing up, seems to be fine should use 9.8mm pin if printing standing up as there are no need to clean the seam.

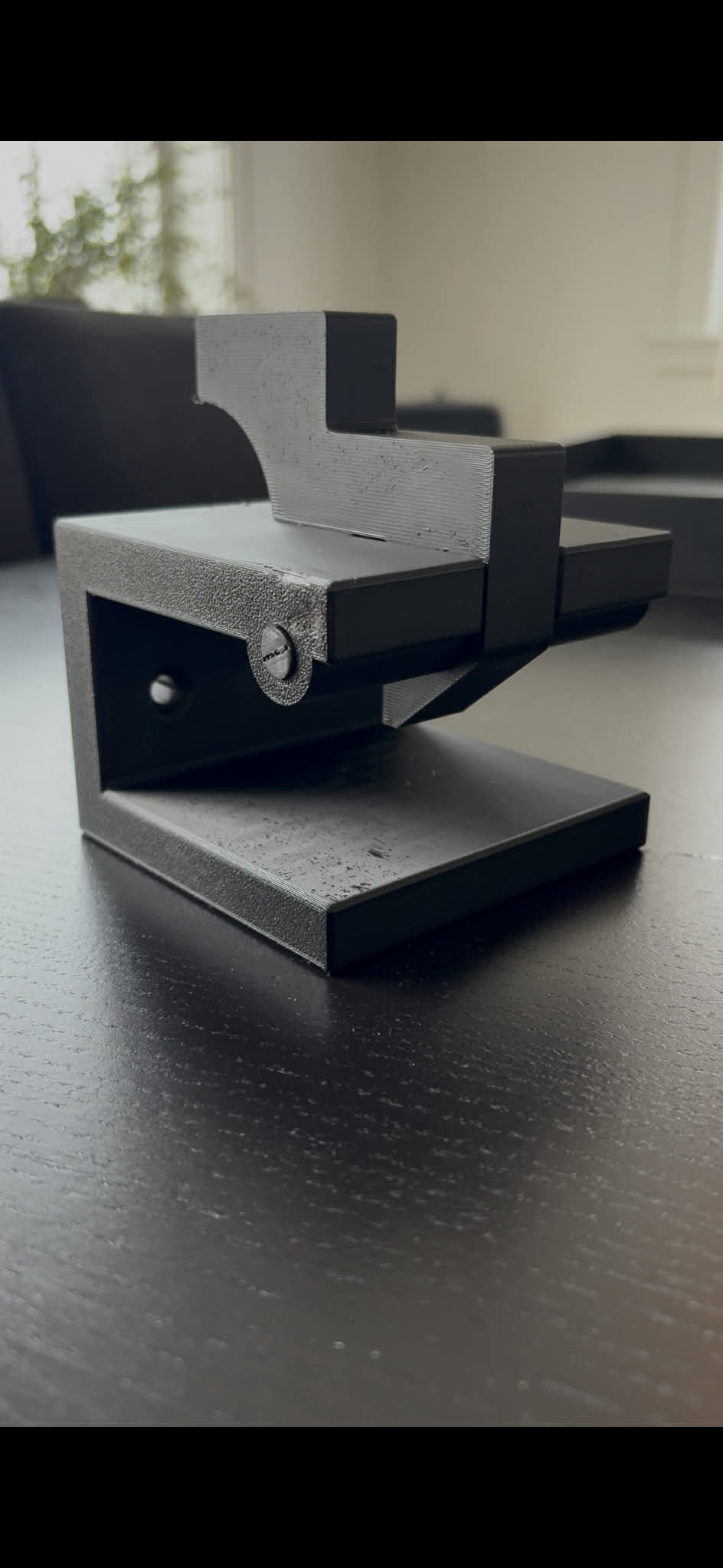

Bin-Lock Wall Mount

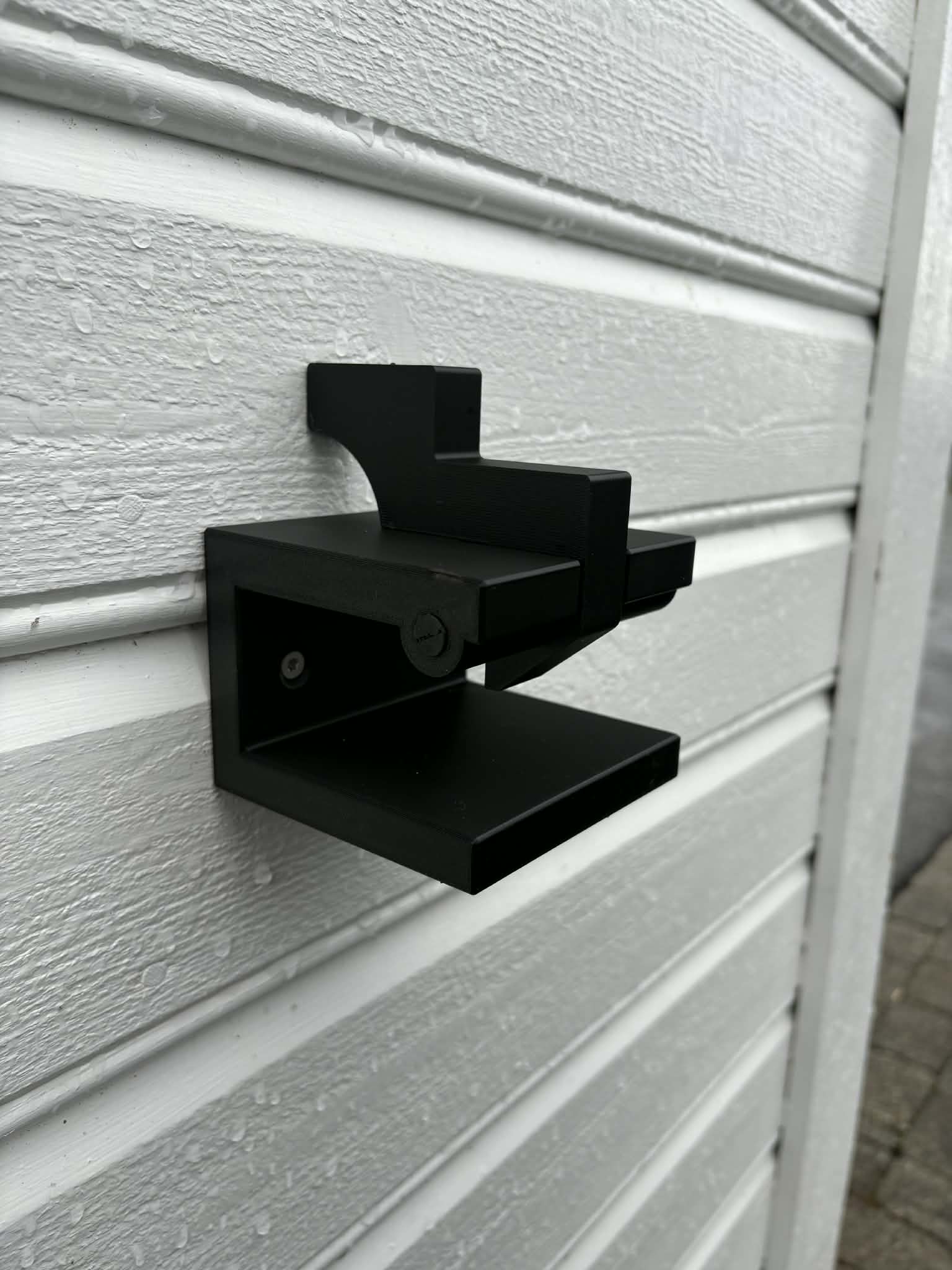

This Bin-Lock is designed to securely hold your trash bins in place by attaching them to a wall, preventing them from tipping over in strong winds or getting moved out of position.

Perfect for outdoor use, it helps keep your space neat and organized—whether it's next to your house, garage, or shed.

The design is simple, sturdy, and easy to install. Once mounted, the clip holds your bin firmly while still allowing quick removal when needed.

Although designed for trash bins, this model is versatile and can be used for many other purposes. For example, it works great in a garage or workshop to hold items that have a fixed place against the wall.

Features:

• Keeps bins from falling over or shifting
• Wall-mounted for stability
• Easy to install and use
• Multi-purpose design for various storage needs

Use Cases:

• Outdoor trash bin stabilization
• Garage organization
• Holding tools or equipment against a wall
• General-purpose wall clip

🖨️ Recommended Print Settings

• Material: PETG (recommended for outdoor use) or PLA (indoor use)
• Layer height: 0.24 mm
• Infill: 15–50% (depending on strength needed)
• Walls/Perimeters: 3–4
• Supports: Is required for the housing, the locking pins can be printed standing as it does not get that much force applied.
• Orientation: Print flat on the back for best strength
• Brim: Optional for better adhesion

💡 Tips

• Use strong screws and wall plugs appropriate for your wall type
• PETG or ABS is recommended for long-term outdoor durability
• Increase infill if you plan to hold heavier objects
• Scale the model if needed for different bin sizes
