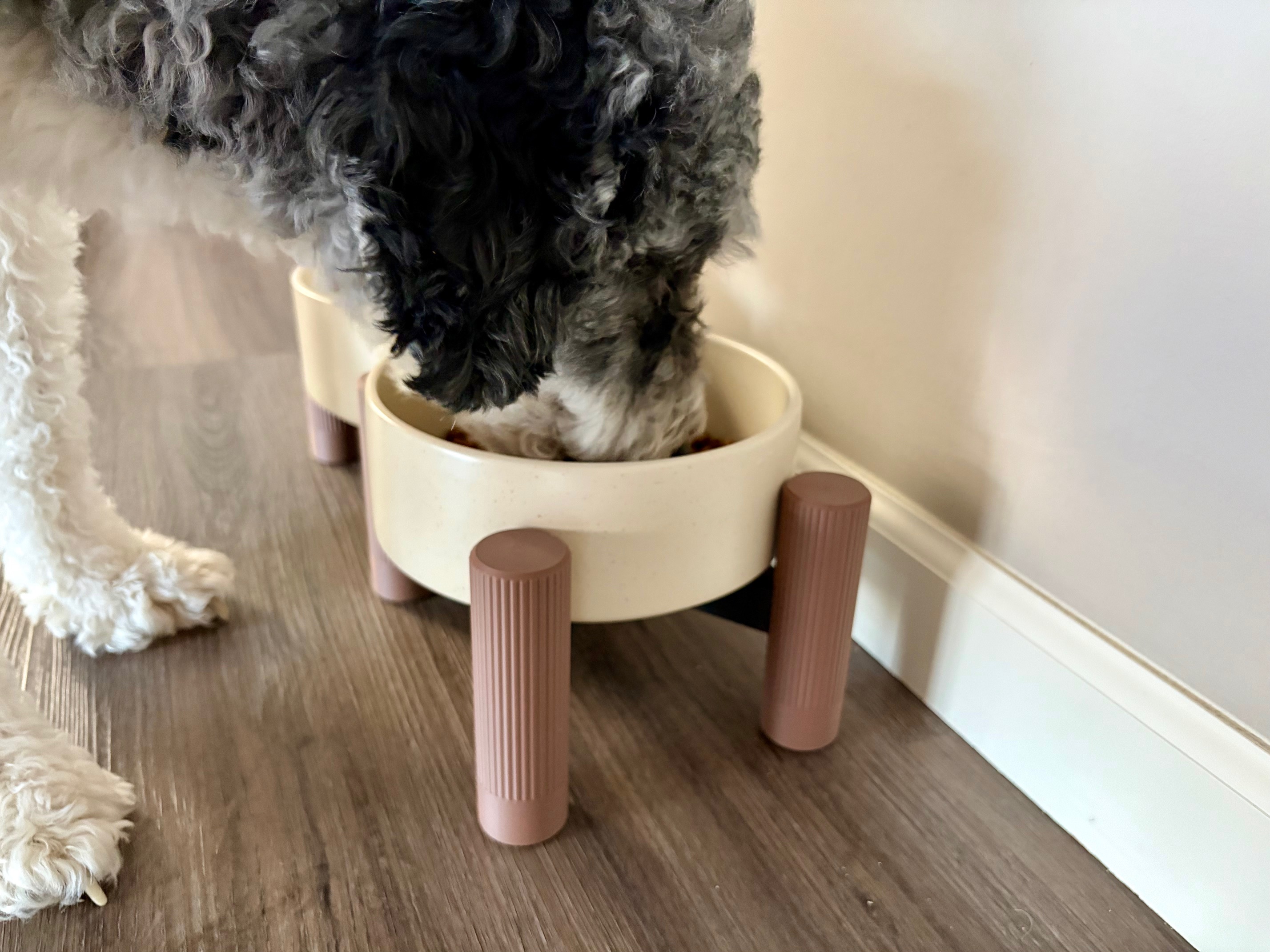

🐕 A modern elevated dog bowl stand designed for flexibility, comfort, and everyday use. Inspired by premium wooden stands, this design raises bowls to a more natural height for your dog while maintaining a clean, minimal footprint.

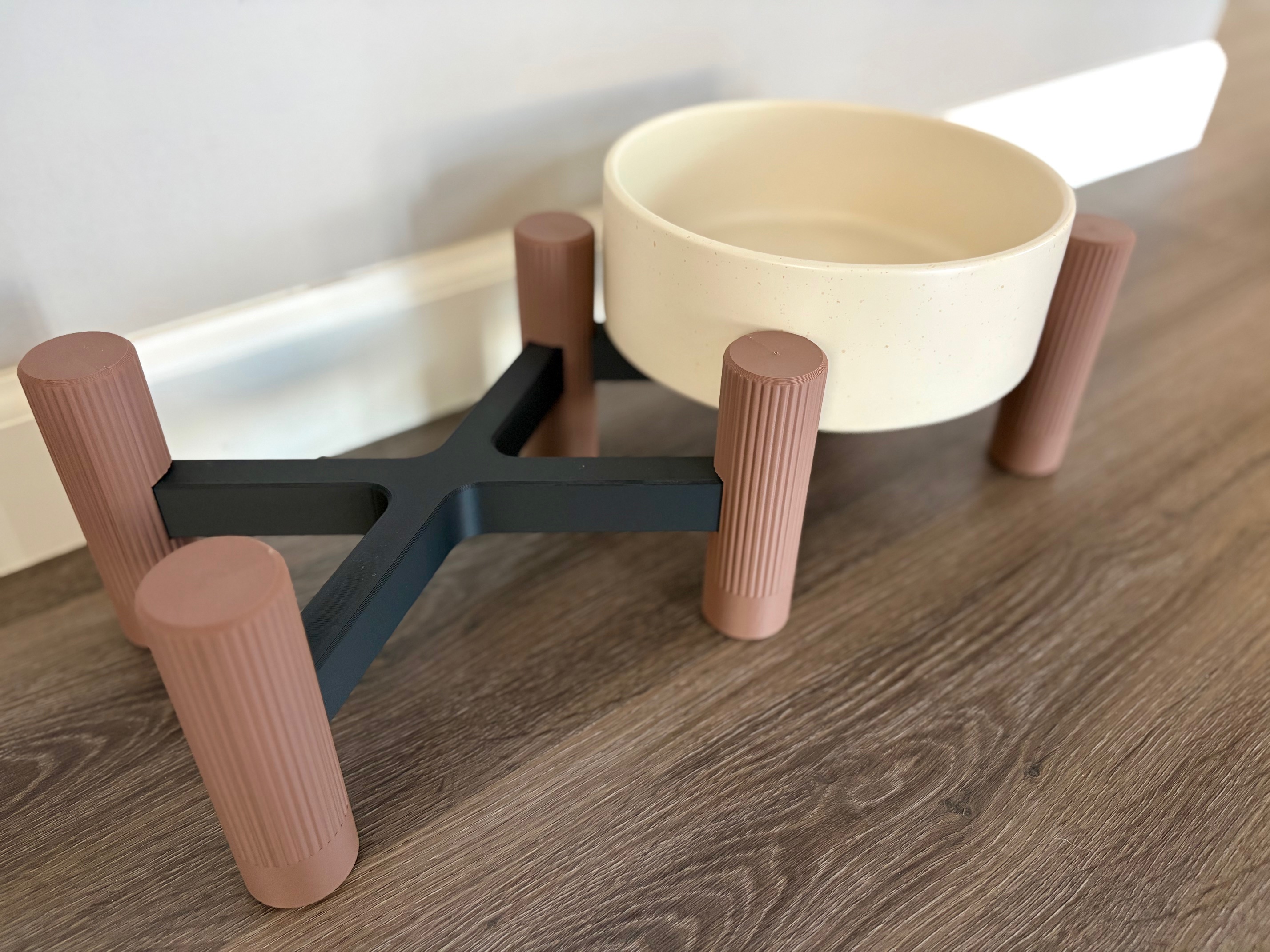

Built as a modular system, the stand is made up of three simple parts — end post, connector post, and bowl brace— allowing you to create anything from a single bowl setup to a fully connected feeding station.

And to take it a step further, this model is fully parametric, letting you dial in a perfect fit for your setup!

✨Highlights

• Modular Design - Print 1, 2, or more bowl setups and connect them as needed
  • Single dog bowl stand - end post (x4), bowl brace (x1)
  • Double dog bowl stand - end post (x4), connector post (x2), bowl brace (x2)
  • See assembly guide for step-by-step instructions
• Parametric - Use the “Customize” feature to custom-fit dimensions to your bowls and feeding setup
• Modern aesthetic, maximum strength - Open geometry creates a clean understated look with high strength
• Strong interlocking structure - Each piece connects to form a strong stable frame
• Secure bowl support - Designed to hold bowls in place and reduce movement during use

🛠 Printing Notes

• Designed for PLA (PETG should work fine too)
• No supports required - BambuStudio will say the post models have a floating cantilever, but you can ignore this as the model contains designed supports.

• If your dog bowl diameter is close to the one in the print profile, and not over, you can download the 3mf (or use Bambu Handy) and just send it. These are the values for the provided print profile.

  • Bowl diameter (default 195mm)
  • Bowl height (default 70mm)
  • Riser height (default 50mm) - the distance from the ground to the bottom of the bowl brace.



📋Creating a Custom Size Dog Bowl Stand

1. Measure your dog bowl diameter and height.
2. If using Bambu Handy, tap “Prepare to Print" and select “Customize” to open Parametric Model Maker.
3. If using Makerworld website, select the “Customize” button to open Parametric Model Maker.
4. There are two models to customize using the Customizable list feature:
   1. For the bowl brace model enter your dog bowl diameter. Follow steps to generate model & download.
   2. For the posts model enter your dog bowl height. Modify the riser height if desired. Follow steps to generate model & download.
5. If using the Makerworld website, you'll need to open each 3mf file in BambuStudio to print.
6. Copy model components based on number of bowls. Quantities are listed above.

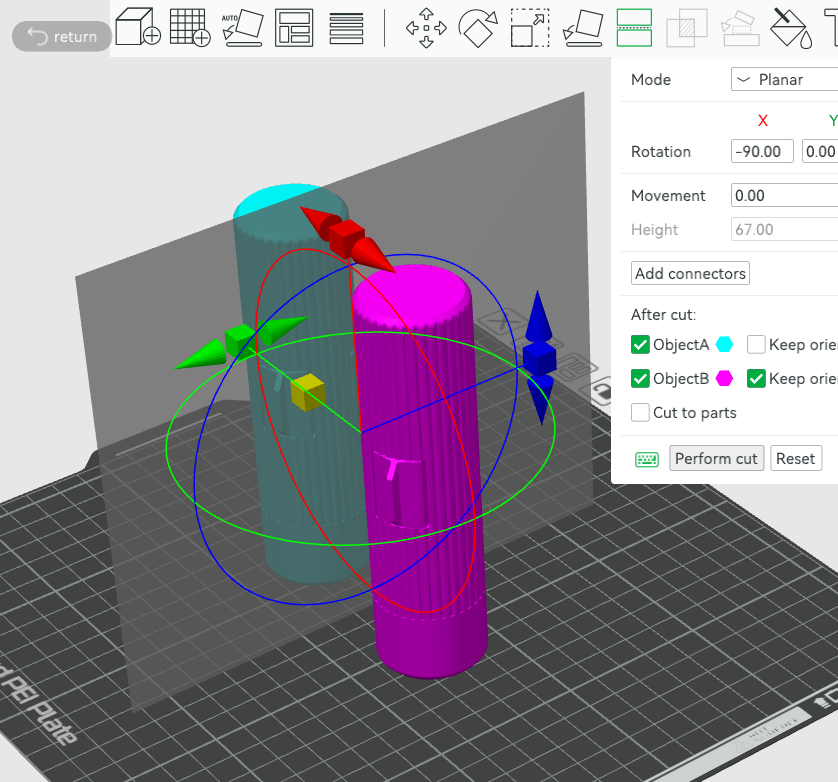

   1. Note: The posts will be one object when you open. A quick way to seprate them is to use the split tool rotated -90 degrees as shown below. Alternatively, you can use split to parts but it's a little more cumbersome to move things around.
